KINGTOYO VOLTAGE BATTERY ALTERNATOR (KT-1957)

Reference: KT-1957

Condition: New

5 Item Items

Warning: Last items in stock!

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

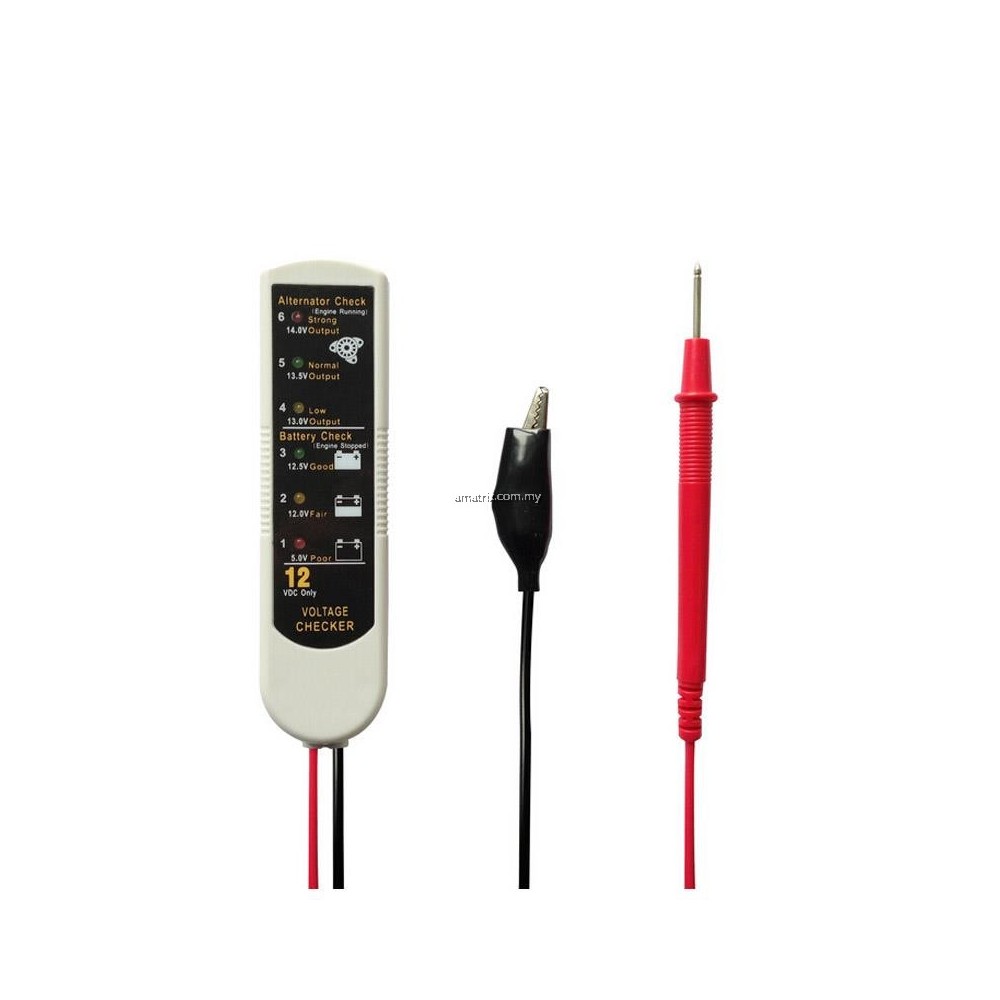

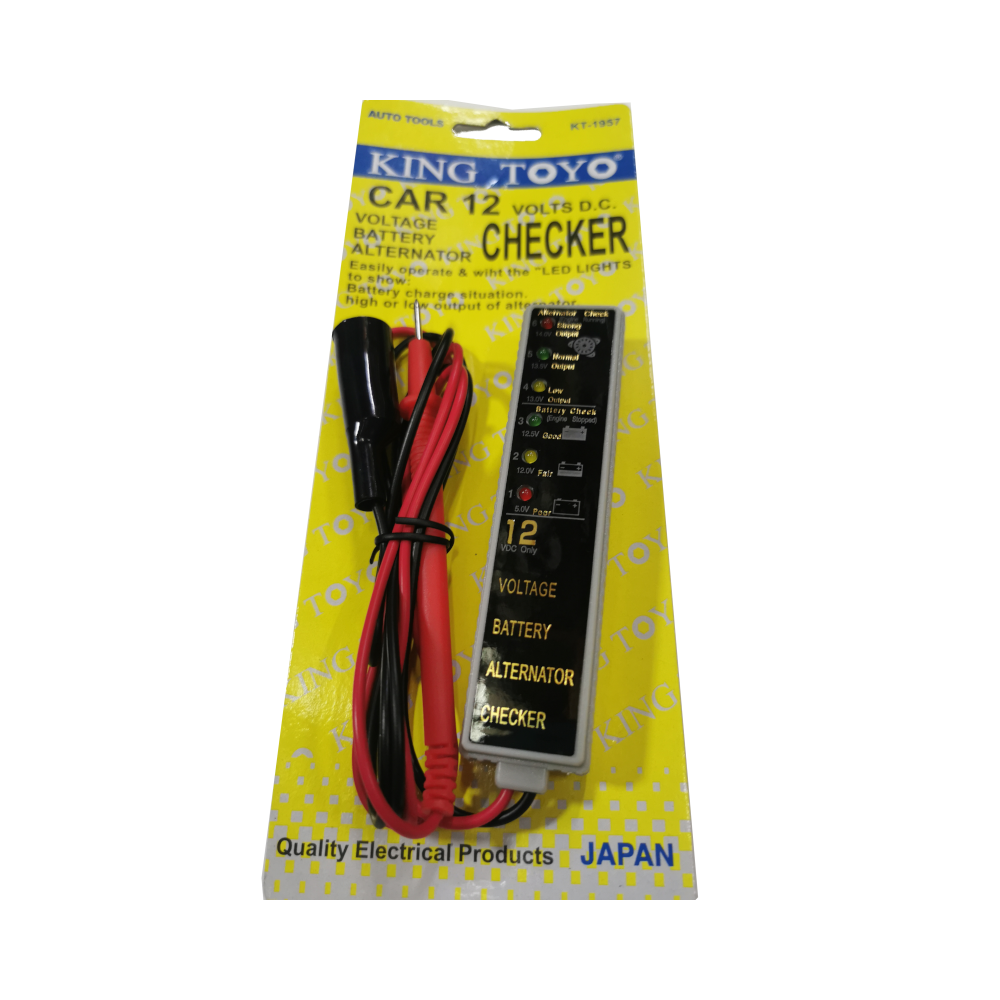

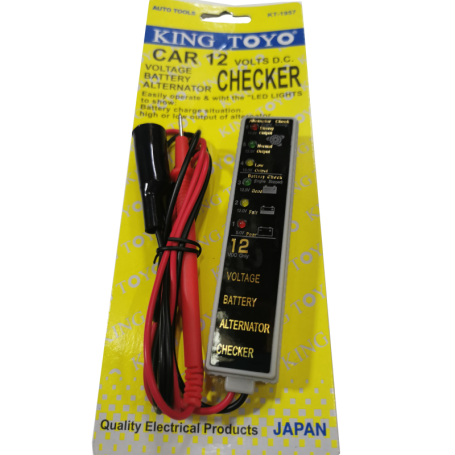

KINGTOYO Voltage, Battery, and Alternator Checker (KT-1957)

This KINGTOYO professional tool, Model KT-1957 (KTVBA-1957), is a compact and easy-to-use 12 Volts D.C. Voltage Checker designed for quick and reliable testing of a car's battery and alternator system.

Key Features

Easy Operation: Designed to "Easily operate & check with the LED LIGHTS" for a quick diagnosis.
Dual Functionality: Checks both the Battery Charge Situation and the Output of the Alternator.
LED Indicator System: Features a series of color-coded LED lights to clearly display the testing status.
12 VDC Only: Specifically designed for 12 VDC vehicle electrical systems.
Portable Design: Comes in a small, hand-held form factor with attached alligator clips (for connection to the battery) and a probe (for potential further checks).

Diagnostic Indicators (LED Lights)

The checker uses a numbered and labeled LED system to indicate the status:

LED No.	Status Indicator	Voltage Reading	Diagnostic Result
6	Alternator Check (Engine Running) - Strong	14.8V Output	Alternator Charging Strong
5	Alternator Check (Engine Running) - Normal	13.8V Output	Alternator Charging Normal
4	Alternator Check (Engine Running) - Low	13.0V Output	Alternator Charging Low
3	Battery Check (Engine Stopped) - Charged	12.8V Good	Battery Good (Fully Charged)
2	Battery Check (Engine Stopped) - Fair	12.6V Fair	Battery Fair (Needs Charging)
1	Battery Check (Engine Stopped) - Poor	9.8V Poor	Battery Poor (Low Voltage/Potential Failure)

Note: The LEDs 4, 5, and 6 are used to check the alternator's charging voltage when the engine is running. LEDs 1, 2, and 3 are used to check the battery's static voltage when the engine is stopped.
