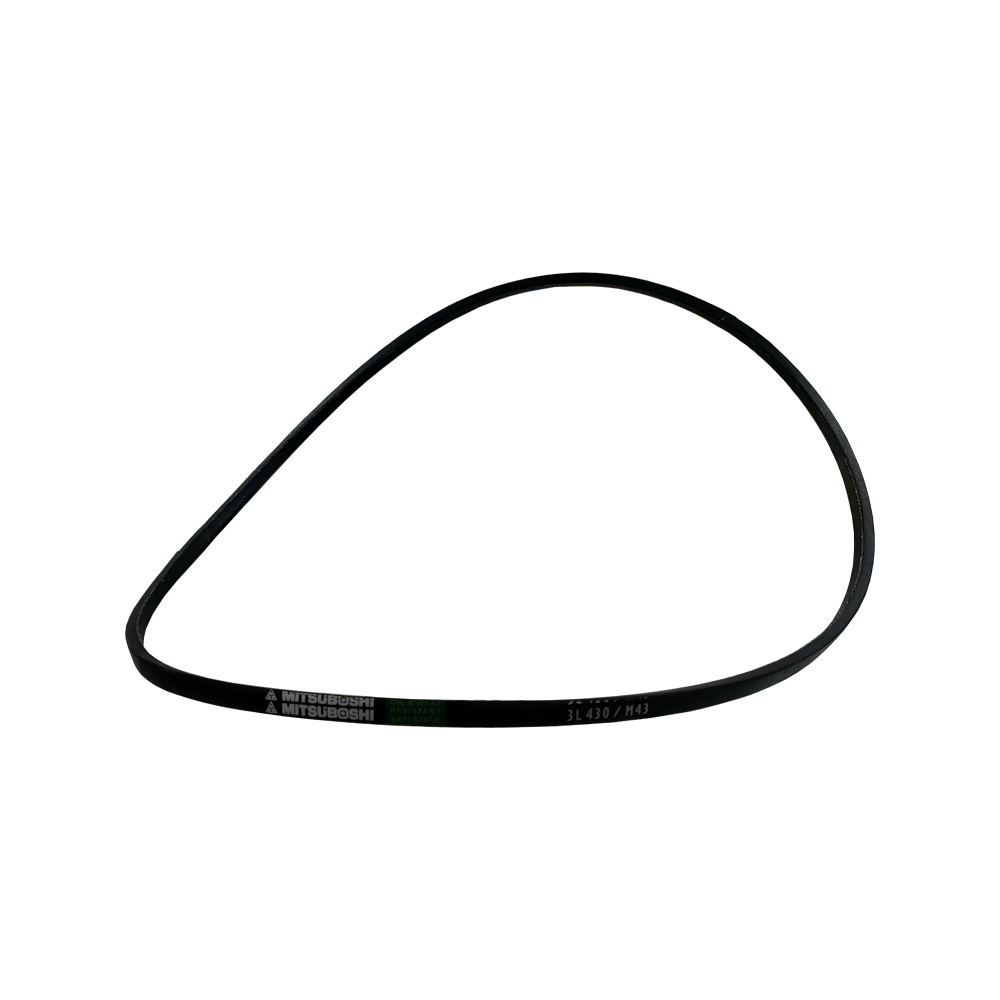

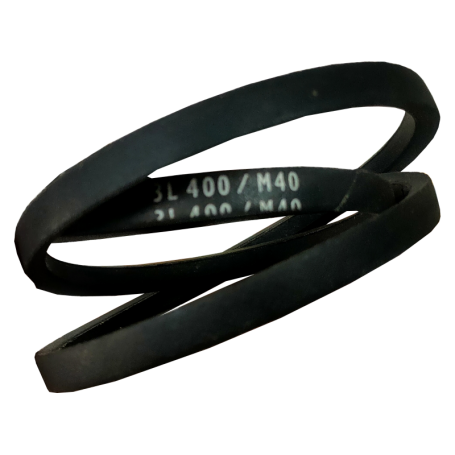

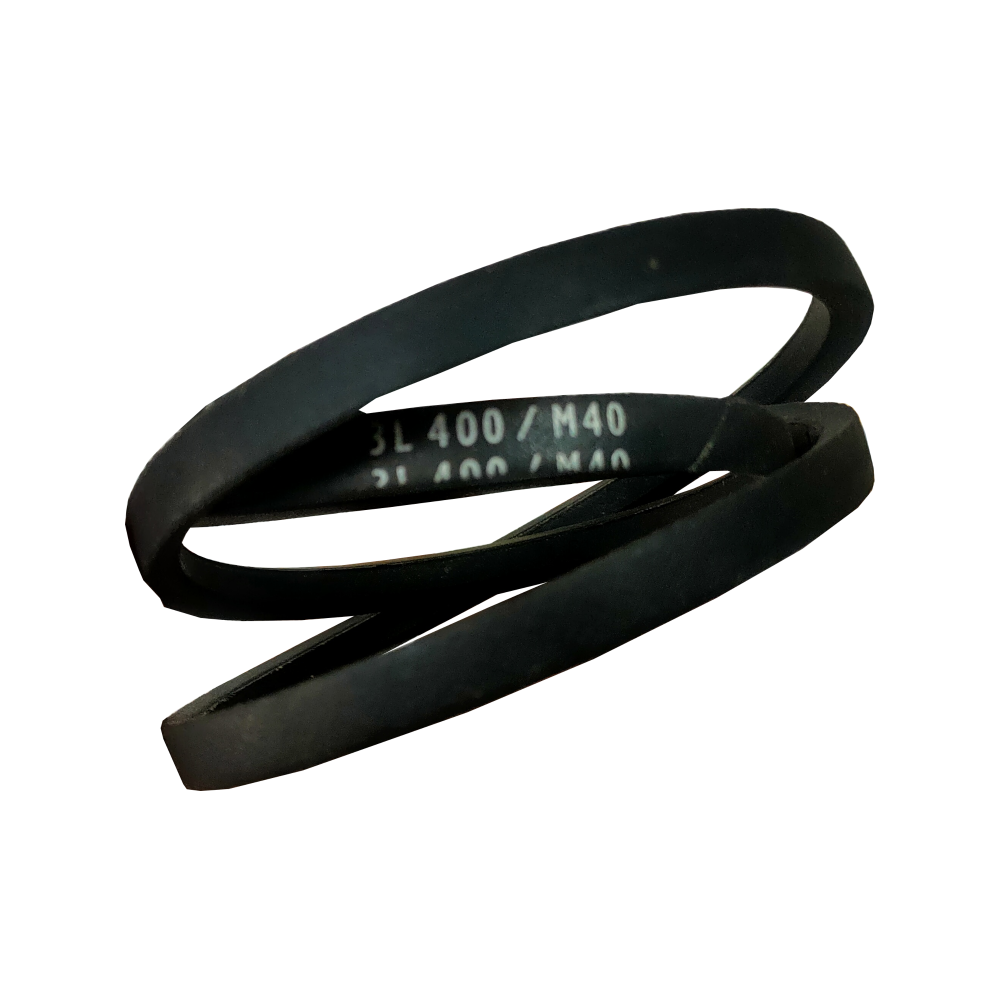

MITSUBISHI JIS STD V-BELT (M)

New

160 Items

RM7.00 tax excl.

More info

Product Description

The Mitsubishi M-Series (equivalent to the 3L profile) is a high-quality, heat-resistant, and anti-static power transmission belt. It follows the JIS (Japanese Industrial Standard), featuring a thinner profile than standard A or B belts to allow for use with smaller pulley diameters.

  • Profile: M / 3L

  • Top Width: 10 mm

  • Height: 5.5 mm

  • Angle: 40°

  • Material: SBR/NR Rubber with high-tensile polyester tension members.


Specifications Table

The number following the "M" indicates the effective pitch length in inches.

Item Code Part Number Effective Length (Inches) Effective Length (mm)
B006-M21 VB-M21 21" 533 mm
B006-M22 VB-M22 22" 559 mm
B006-M23 VB-M23 23" 584 mm
B006-M24 VB-M24 24" 610 mm
B006-M25 VB-M25 25" 635 mm
B006-M26 VB-M26 26" 660 mm
B006-M27 VB-M27 27" 686 mm
B006-M28 VB-M28 28" 711 mm
B006-M29 VB-M29 29" 737 mm
B006-M30 VB-M30 30" 762 mm
B006-M31 VB-M31 31" 787 mm
B006-M32 VB-M32 32" 813 mm
B006-M33 VB-M33 33" 838 mm
B006-M36 VB-M36 36" 914 mm
B006-M43 VB-M43 43" 1092 mm
B006-M45 VB-M45 45" 1143 mm
