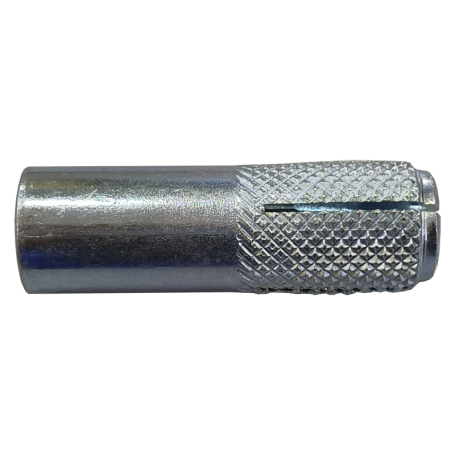

ZP DROP IN ANCHOR - W DROP IN

Reference:

Condition: New

200 Item Items

RM4.00 tax excl.

Size

1/4" X 1-1/8"
5/16" X 1-3/16"
3/8" X 1-1/2"
1/2" X 2"
5/8" X 2-3/8"

Quantity

10pcs

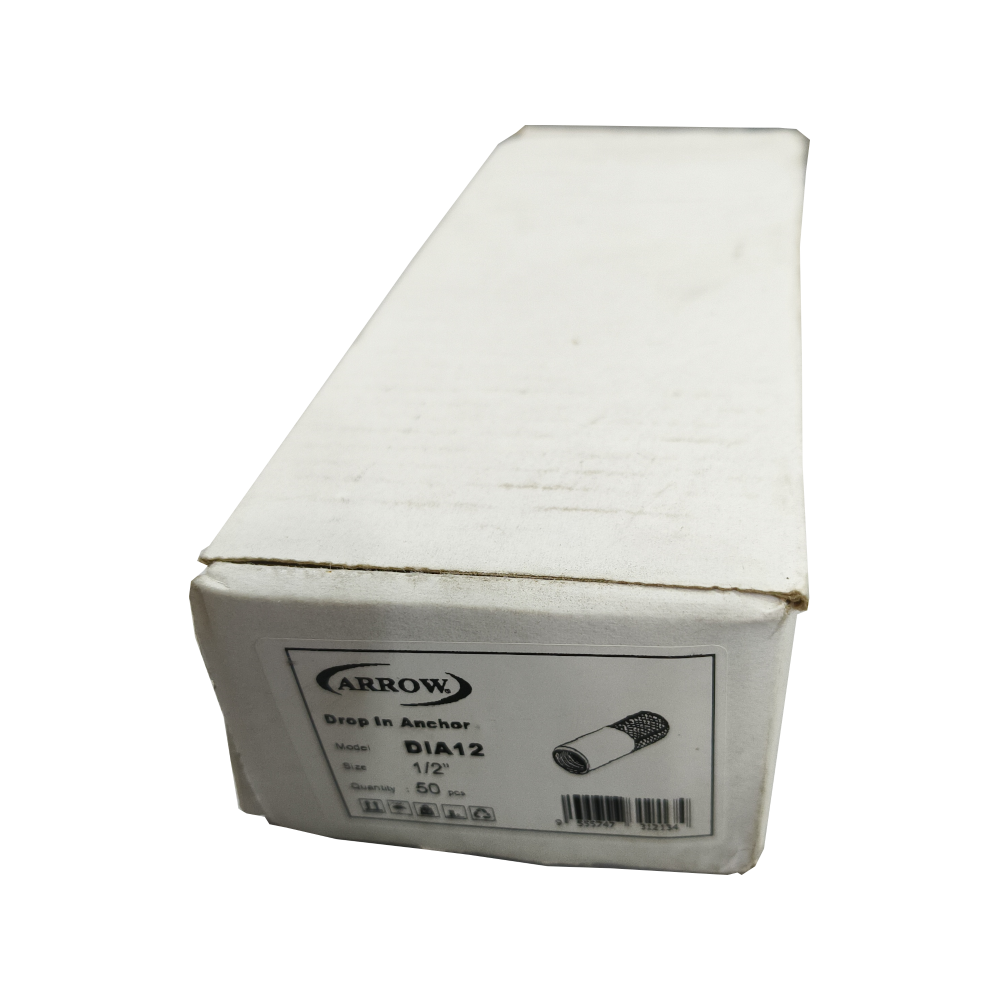

1 box

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Product Overview

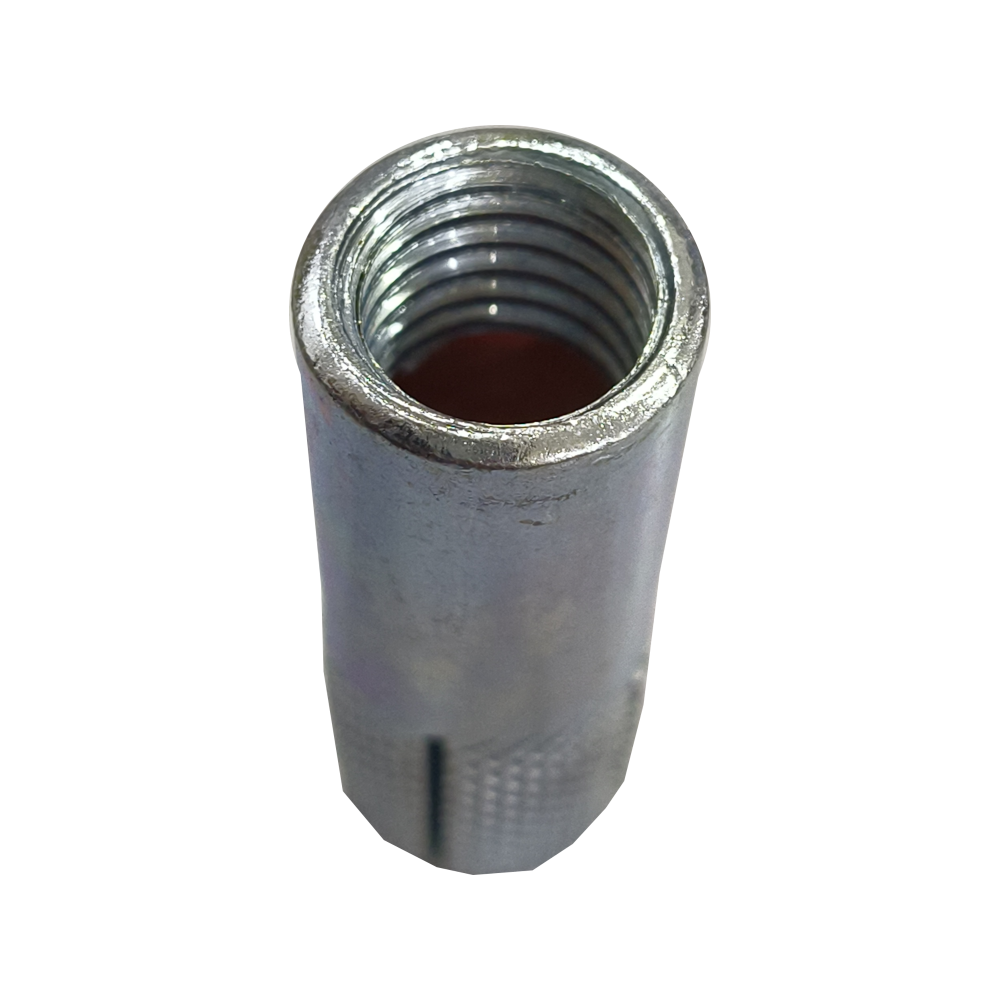

The Arrow Drop-In Anchor is an all-steel, female-threaded expansion anchor designed for use in solid concrete. It is specifically engineered to provide a flush-mount internal thread, allowing for the easy installation and removal of bolts, threaded rods, or machinery mounting points.

Technical Specifications

Brand: Arrow
Product Type: Drop-In Anchor (also known as a Female Expansion Anchor)
Material Finish: Zinc Plated (ZP)

Key Features

Flush Mounting: The anchor sits flush with or below the surface of the concrete, ensuring no protrusions when the bolt or rod is removed.

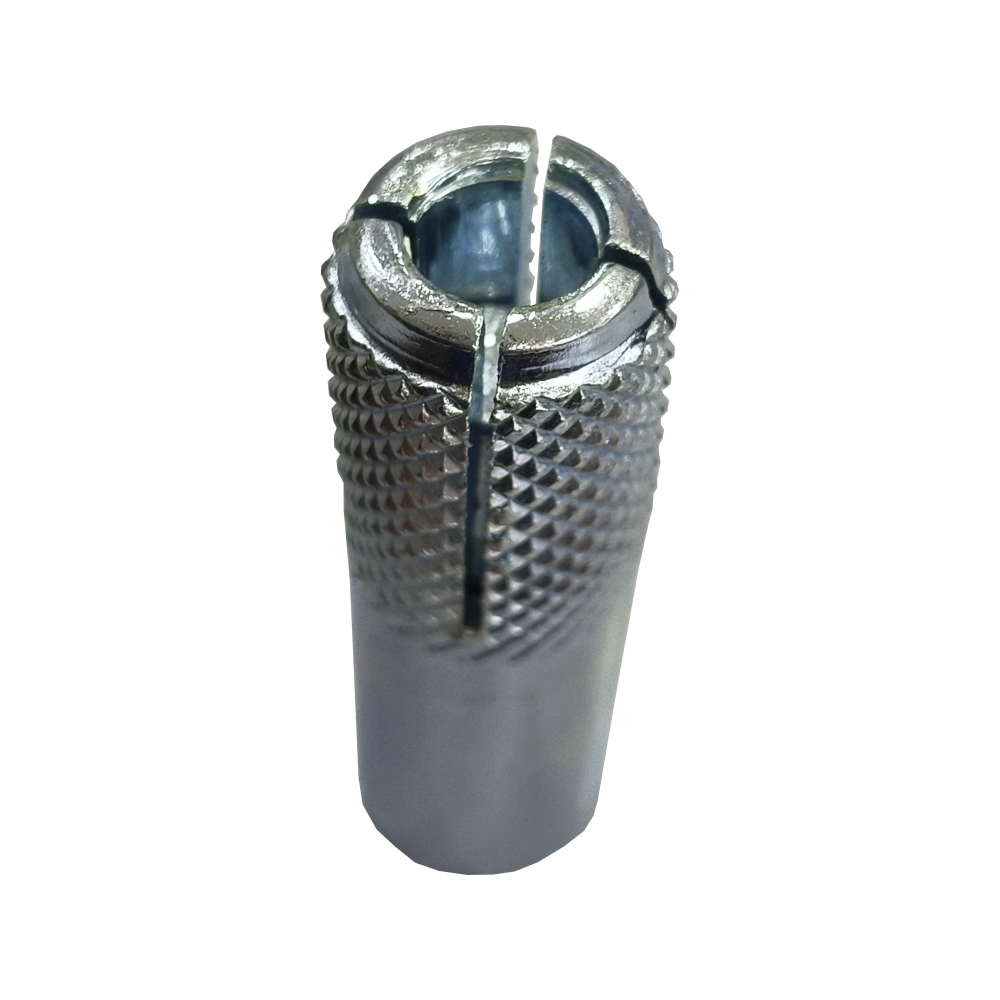

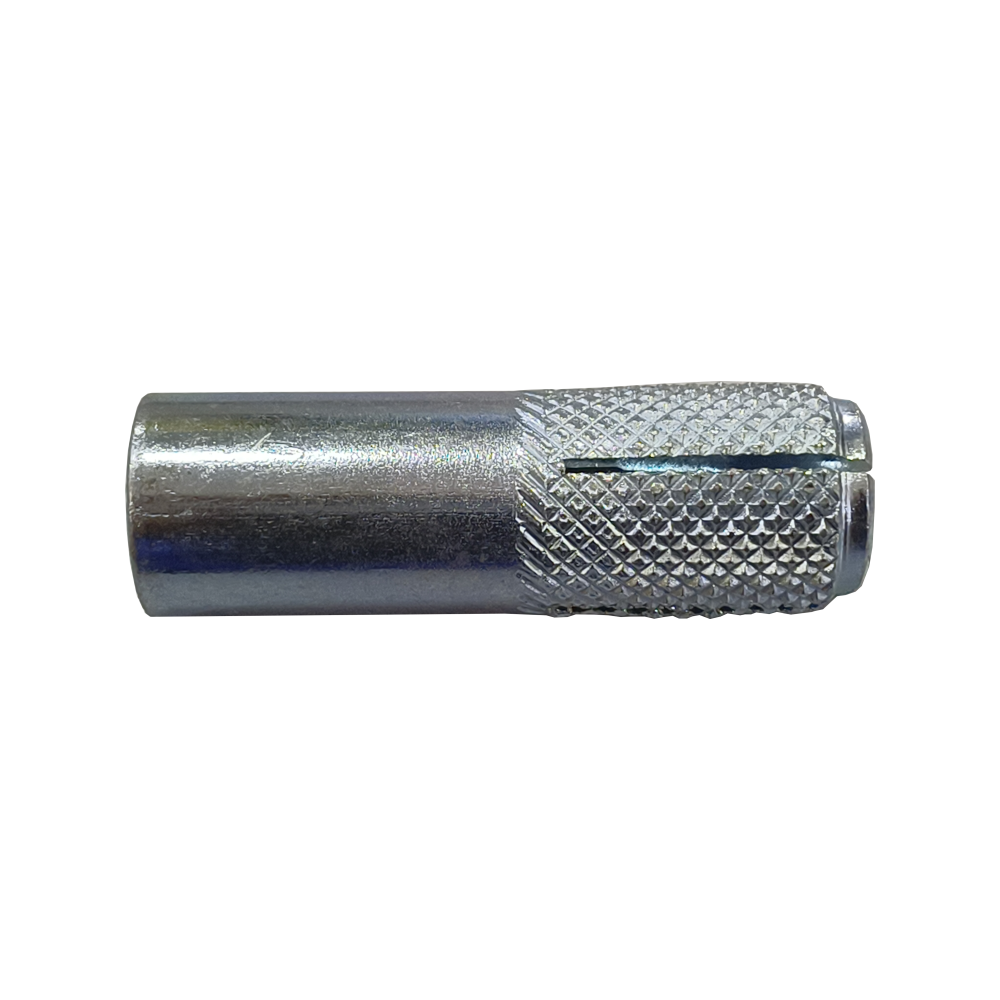

Knurled Body: The outer shell features a diamond-patterned knurling that increases friction and prevents the anchor from spinning in the hole during installation.
Internal Expansion Plug: Features a pre-assembled internal taper plug that is driven down to expand the anchor shell against the concrete walls.

Typical Applications

Suspended Services: Ideal for hanging pipes, air ducting, and cable trays using threaded rods.
Machinery Mounting: Securing equipment that may need to be moved or replaced periodically.
Safety Fixtures: Installing handrails, safety barriers, and stadium seating.
Removable Fixtures: Any application where a permanent protrusion from the floor or wall is not desired.

Installation Guide

Drill: Drill a hole in the concrete using a masonry bit that matches the outer diameter of the anchor.
Clean: Use a blow pump or vacuum to remove all dust and debris from the hole.
Insert: Drop the anchor into the hole (threaded end facing up) until it is flush with the surface.
Expand: Insert a Drop-In Anchor Setting Tool (sold separately) into the anchor and strike it firmly with a hammer. This drives the internal plug down and expands the anchor shell.
Fasten: Thread your bolt or rod into the anchor and tighten to secure the fixture.
