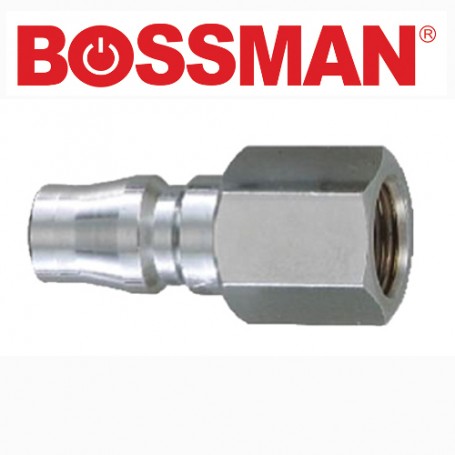

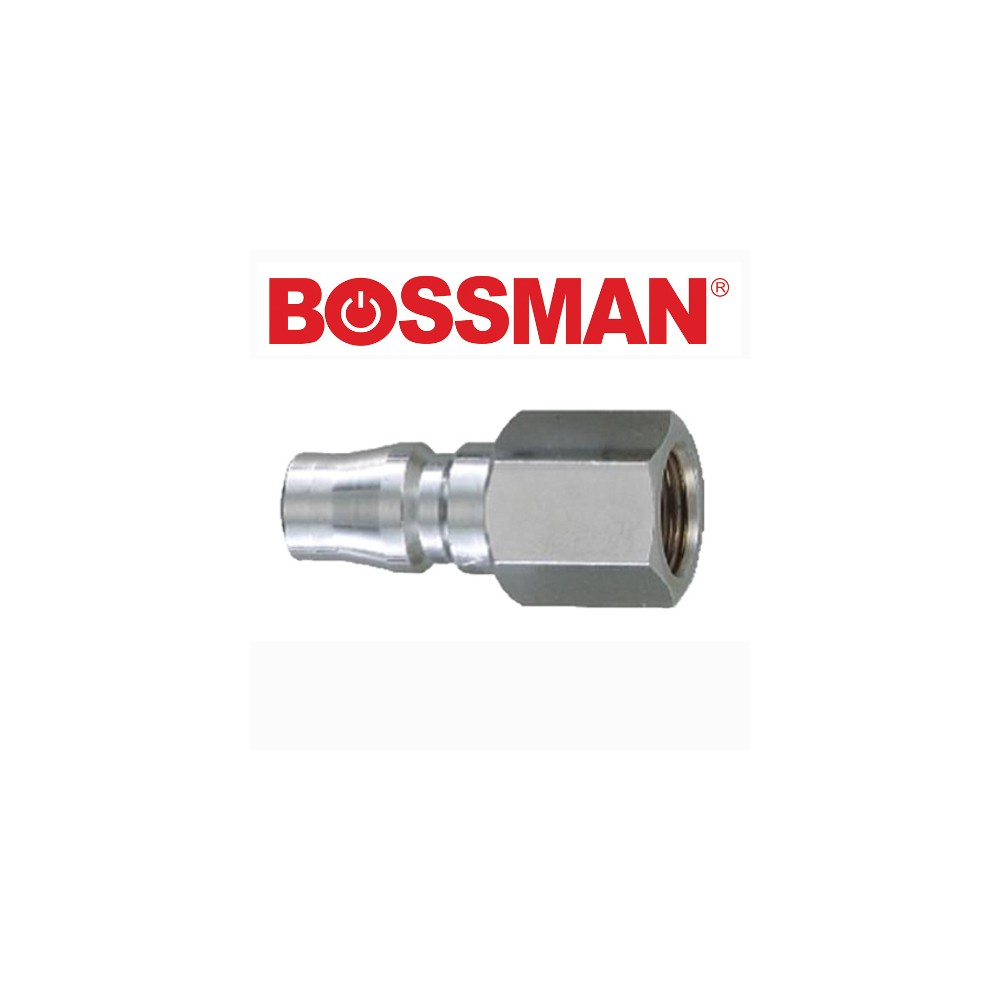

(PF) BOSSMAN PLUG & FEMALE COUPLER

Reference:

Condition: New

This specific model, the PF-20, typically indicates:

P = Plug (The male component that inserts into a coupler/socket).
F = Female Thread (The end connector is a female thread, meaning it has internal threads to screw onto a male-threaded pipe or hose adapter).
20 = A common size designation, generally corresponding to a 1/4-inch (or sometimes 5/16-inch) thread or hose size, depending on the manufacturer's standard (it often aligns with the Japanese industrial standard, sometimes referred to as 'C-type' or 'Nitto style').

More details

30 Item Items

RM3.50 tax excl.

Size

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Key Features and Specifications

Function: It is the plug part of the quick-connect set, designed to be screwed onto a hose or pipe and then inserted into a corresponding socket (coupler) to connect the air line.
Material: Generally made from heat-treated hardened steel with a zinc-plated finish for strength, durability, and resistance to rust and erosion. Some higher-end versions may be stainless steel.
Connection: Features a female thread on the back end for connecting to a male-threaded component (like a hose adapter or a pipe).
Quick Release: The quick-connect design allows for fast connection and disconnection from an air compressor hose or tool, often with a simple push-and-pull mechanism on the socket's sleeve.
Application: Used primarily for industrial and home pneumatic applications, connecting compressed air supplies to various air tools (e.g., spray guns, impact wrenches, blow guns) and air piping.
Pressure: While specific maximum working pressure can vary, these fittings typically handle pressures common in standard compressed air systems, often up to around 1.32 MPa (or about $190$ PSI).

Note: When purchasing quick-connect fittings, ensure that both the plug (PF) and the socket (SF, SH, etc.) share the same profile style (e.g., 20 series in this case) and thread size (e.g., 1/4", 3/8", or 1/2" BSP) to ensure a proper and leak-free connection.
