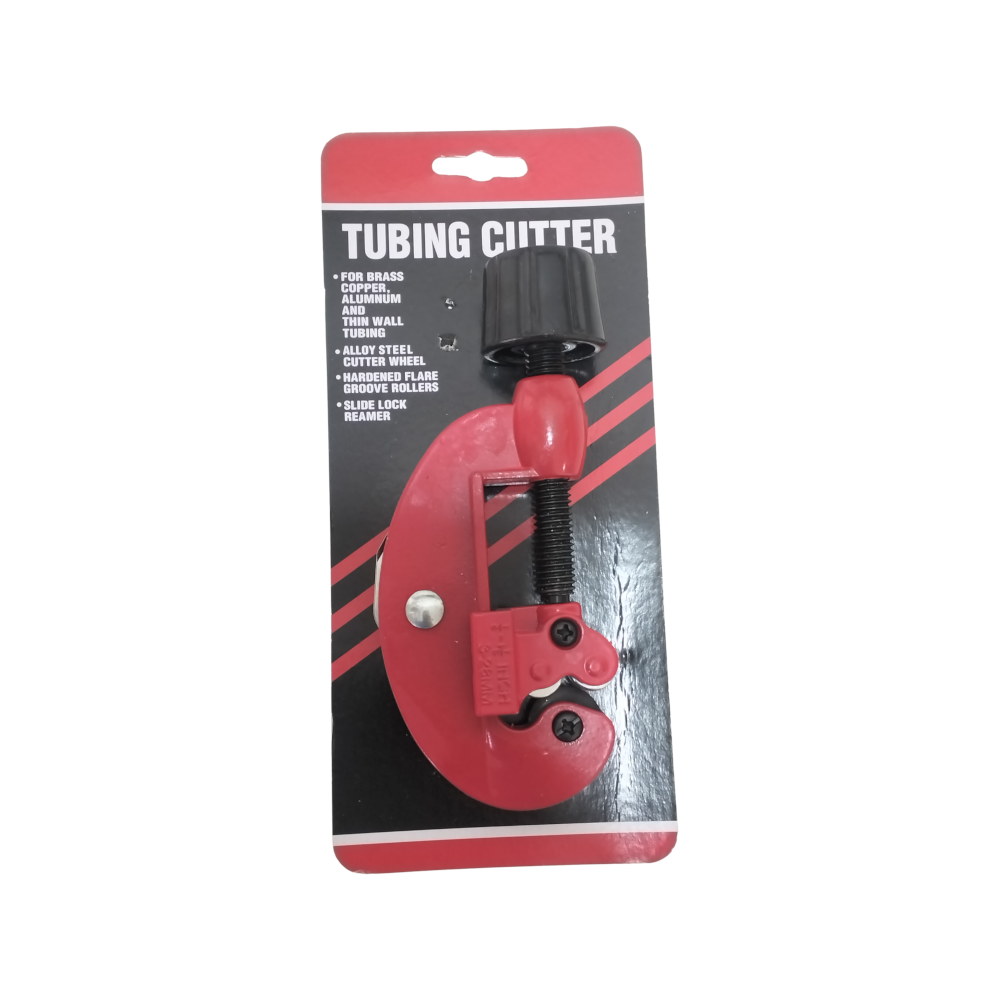

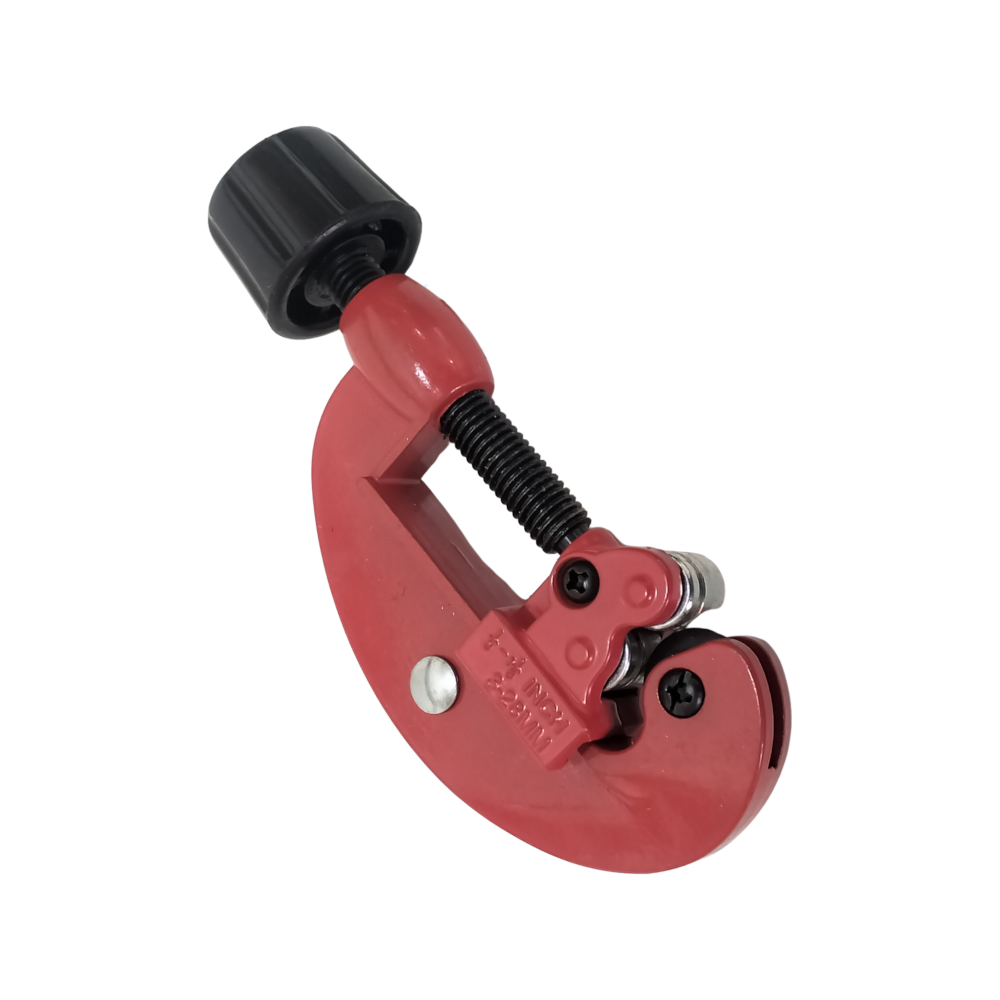

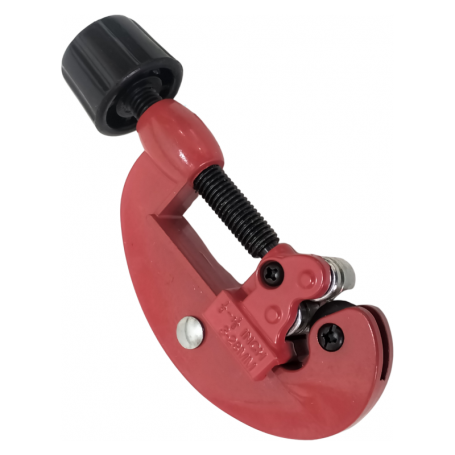

LIGHT DUTY TUBING CUTTER - TC-1030 (1/8" - 1-1/8")

Reference: T001-022

Condition: New

10 Item Items

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Light Duty Tubing Cutter (1/8" - 1-1/8")

This manual tubing cutter is designed for clean, square cuts on a variety of soft metal pipes. It features a compact, adjustable design that makes it ideal for plumbing, automotive, and DIY projects where precision is required in tight spaces.

Key Features

Cutting Range: Versatile capacity handling tubes from 1/8" to 1-1/8" (3mm - 28mm) in diameter.
Material Compatibility: Optimized for brass, copper, aluminum, and thin-wall tubing.
Precision Cutting: Equipped with an alloy steel cutter wheel for durability and a sharp, clean finish.
Smooth Operation: Features hardened flare groove rollers that allow for cuts close to flared ends while maintaining tube stability.
Integrated Tool: Includes a slide-lock reamer tucked into the frame to remove internal burrs after cutting.

Technical Specifications

Attribute	Specification
Model	TC-1030 / T001-022
Capacity	1/8" to 1-1/8" (3mm - 28mm)
Blade Material	High-strength Alloy Steel
Body Material	Cast Aluminum/Zinc Alloy
Adjustment Type	Large Knurled Screw Knob

Operating Instructions

Position: Open the cutter by turning the black knob counter-clockwise and place the tube between the cutter wheel and the rollers.
Tighten: Turn the knob clockwise until the wheel makes light contact with the tube.
Score: Rotate the cutter around the tube once to create a tracking groove.
Cut: Tighten the knob slightly (about a 1/4 turn) and rotate again. Repeat this process until the tube is severed.
Finish: Use the built-in reamer to smooth the inside edge of the cut tube.
