DONGCHENG 24mm 20V 4.0Ah CORDLESS BRUSHLESS ROTARY HAMMER

Reference: DCJ-0424

Condition: New

Feature	Specification / Detail
Model	DCZC04-24EK (DCJ-0424)
Tool Type	Cordless Brushless Rotary Hammer
Motor	Brushless Motor (Provides higher efficiency, longer runtime, and increased tool life)
Voltage	20V MAX
Impact Energy	2.7 J (Joules)
Max Drilling Capacity (Concrete)	$Φ24 mm$ (24mm)
Max Drilling Capacity (Steel)	$Φ13 mm$ (13mm)
Max Drilling Capacity (Wood)	$Φ28 mm$ (28mm)
Chuck Type	SDS-Plus (Optimized for quick bit changes and hammer drilling)
Operation Modes	3-Mode Operation (Drill, Rotary Hammer, and Demolition/Chisel)
No-Load Speed	$0 - 1000 r/min$ (Revolutions per minute)
Rated Impact Frequency	$0 - 4500 /min$ (Impacts per minute)
Electronic Control	Electronic constant speed control (maintains speed under load)
Other Controls	Adjustable speed control with Forward and Reverse Rotation
Clutch	Mechanical and electronic clutch design (for user safety)

More details

2 Item Items

Warning: Last items in stock!

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Dong Cheng 20V Cordless Brushless Rotary Hammer Kit

Model: DCZC04-24EK (Item Code: DCJ-0424)

This is a professional-grade, heavy-duty cordless rotary hammer kit designed for drilling into concrete, masonry, steel, and wood. The "EK" designation signifies a complete kit package.

Kit Contents (DCZC04-24EK Full Set)

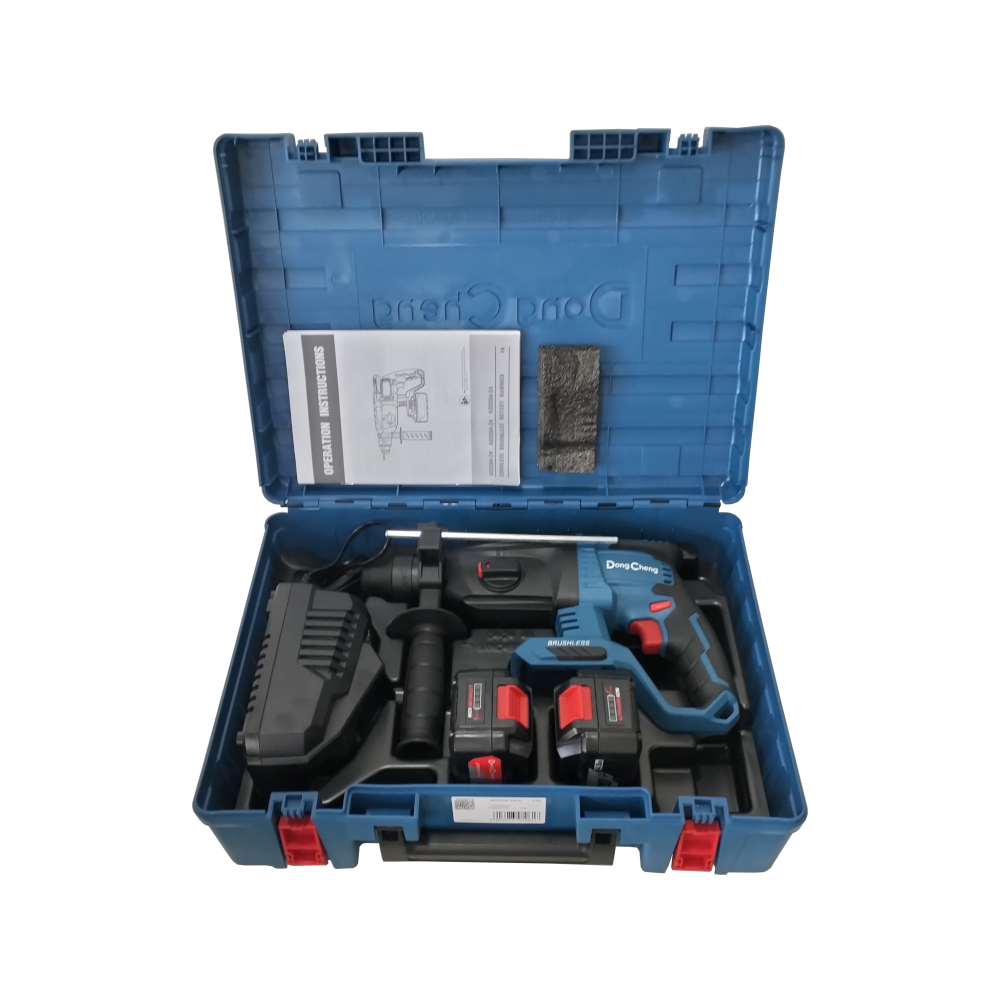

The product is supplied in a robust, blue, molded plastic carrying case for easy transport and storage. The complete kit includes:

Rotary Hammer Tool: The main unit with a comfortable ergonomic design.
Batteries: Two 20V 4.0Ah Lithium-ion Batteries.
Charger: One 4A Fast Charger.
Auxiliary Handle: A detachable side handle for secure, two-handed operation.
Depth Gauge: A metal rod used to set a specific drilling depth.
Operation Instructions Manual.

Applications

The DCZC04-24EK is a versatile tool suitable for professional trades and demanding DIY projects, including:

Drilling anchor and fixing holes in concrete and masonry up to 24mm.
Light chiseling and demolition work (e.g., tile removal) using the hammer-only mode.
Standard drilling in steel and wood.
