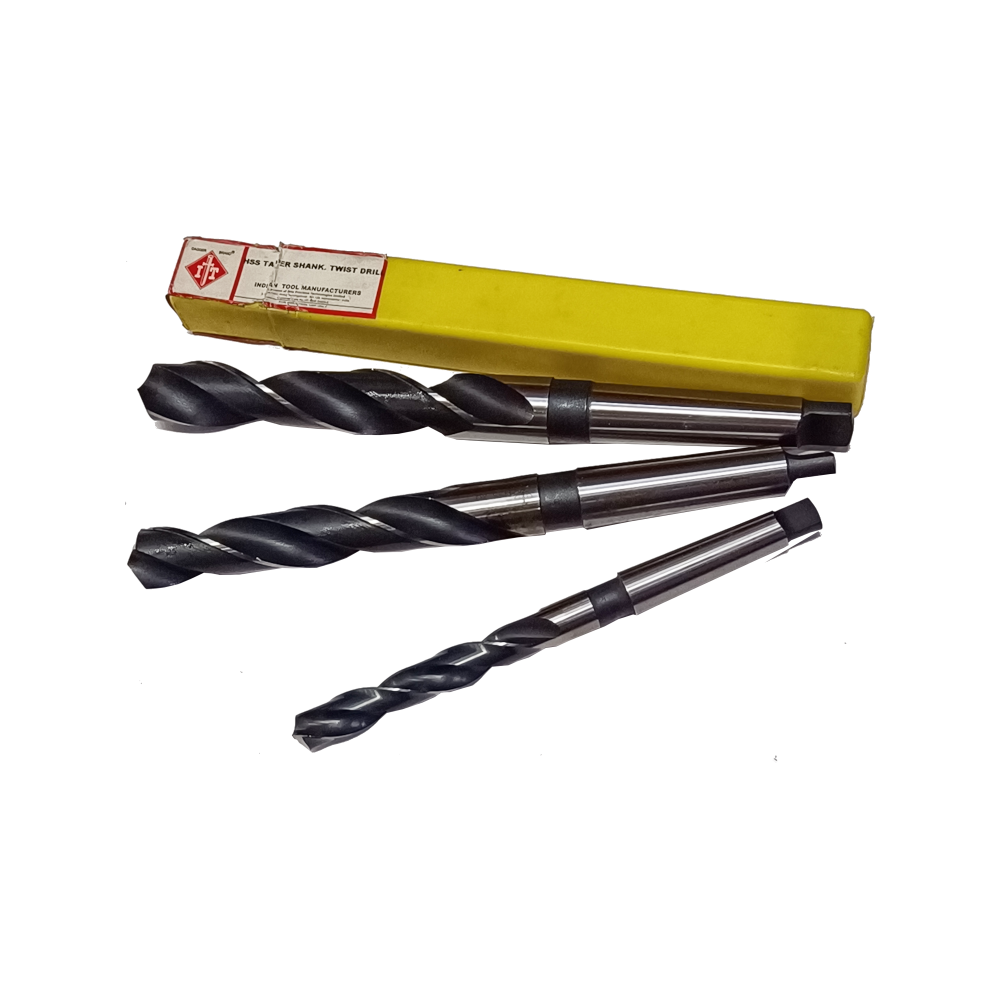

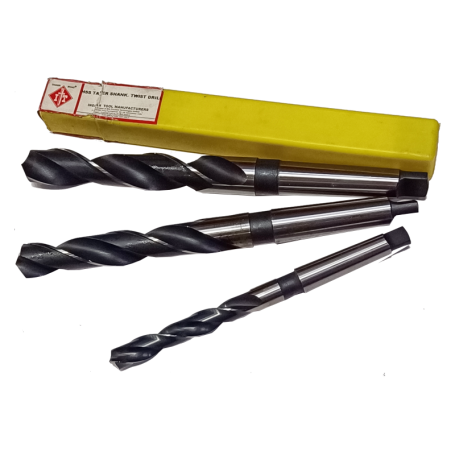

ITM HSS Taper Shank Twist Drill Bit

Indian Tool Manufacturers (ITM) Taper Shank Twist Drill Bits are premium industrial-grade cutting tools designed for heavy-duty drilling operations. These bits feature a Morse Taper shank, allowing them to be mounted directly into the spindle of drill presses, radial drills, or lathes, ensuring superior concentricity and torque transfer compared to straight shank bits.

Key Features

High-Speed Steel (HSS) Construction: Manufactured from high-quality HSS to provide excellent hardness, wear resistance, and the ability to maintain a sharp cutting edge even at high temperatures.

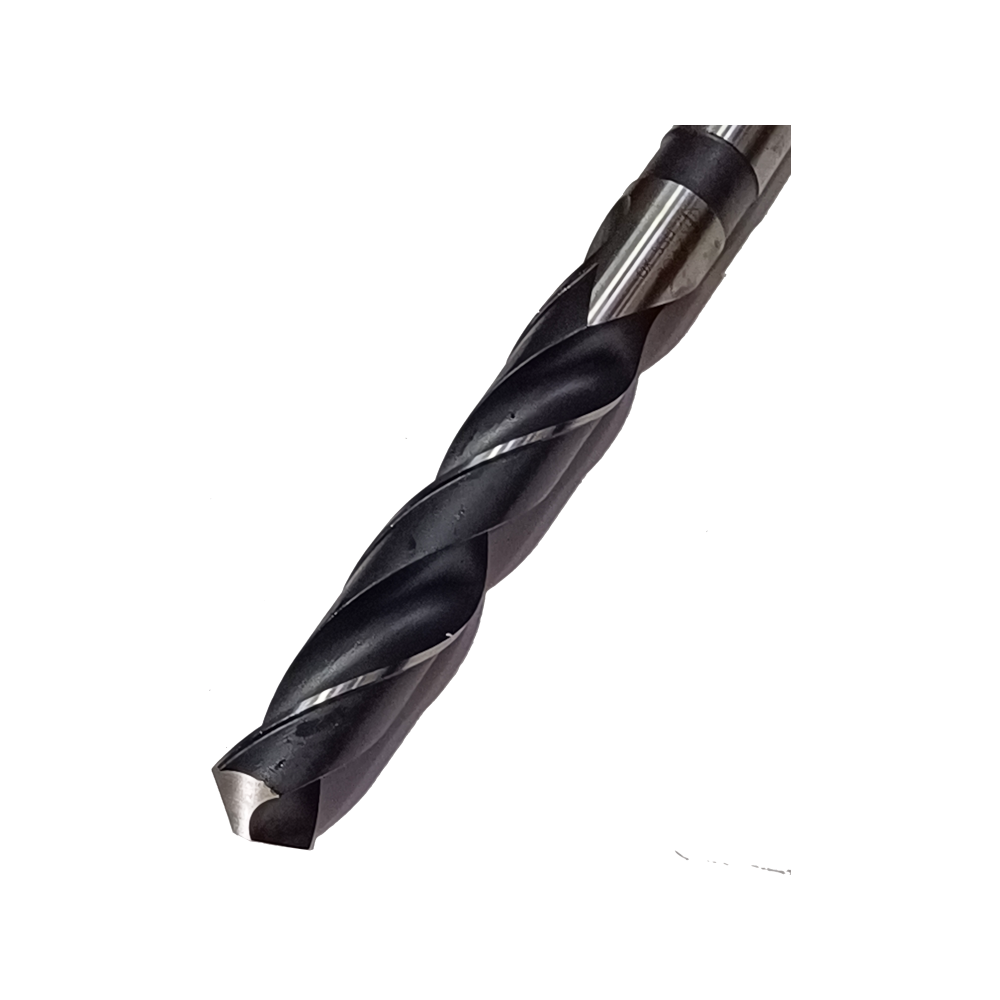

Precision Ground Flutes: Features deep, precision-ground helical flutes that facilitate efficient chip removal, reducing friction and preventing heat buildup.

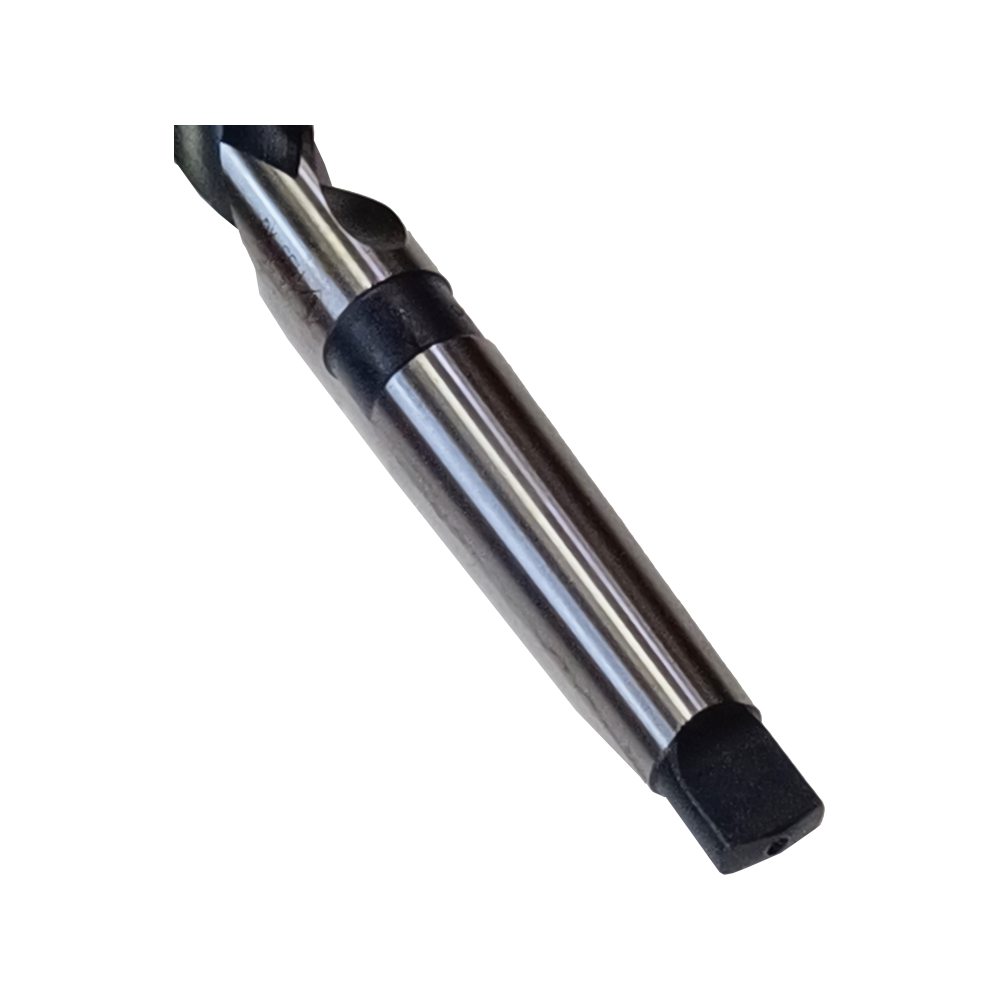

Morse Taper Shank: Designed for a secure, non-slip fit in machine spindles, making it ideal for high-torque applications where a standard chuck might slip.
Industrial Durability: Specifically engineered for drilling into a wide range of materials, including alloy steel, cast iron, and carbon steel.
118-Degree Point Angle: The standard point angle provides an optimal balance between cutting speed and tool life for general-purpose industrial use.

Technical Specifications

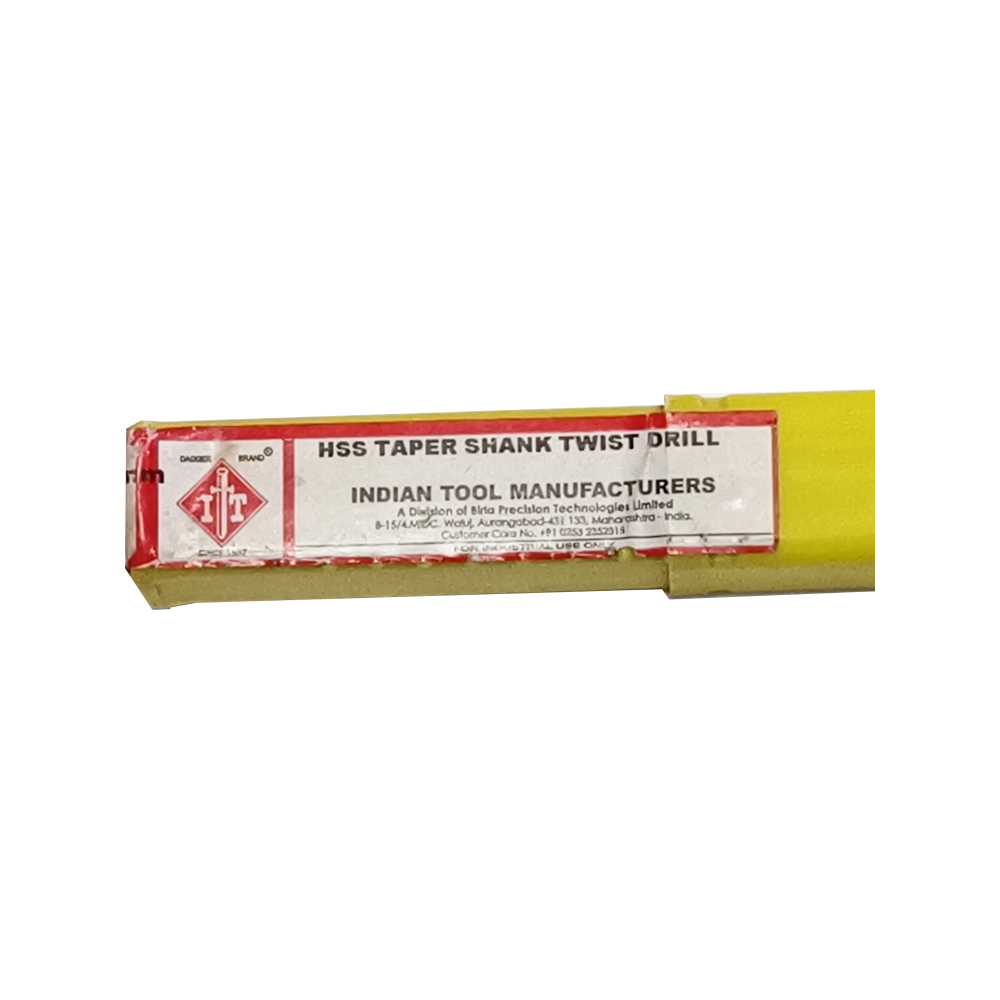

Brand: ITM (Indian Tool Manufacturers) / Dagger Brand
Model/Item Code: D131
Size Range: 13mm to 30mm
Material: High-Speed Steel (HSS)
Shank Type: Taper Shank (Morse Taper)
Application: Heavy-duty metalworking, automotive repair, and industrial fabrication
