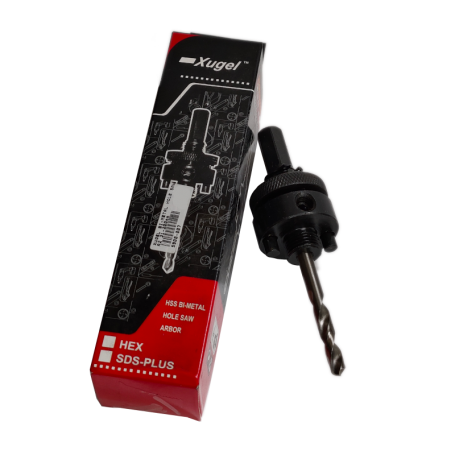

KUGEL D-B03116 (A4) Hex Shank Hole Saw Arbor
The KUGEL D-B03116 (A4) is a precision-engineered arbor designed for smaller diameter Bi-Metal hole saws. It features a specialized hex shank that provides a secure grip in standard drill chucks and prevents slippage during high-torque drilling operations.
Key Features
-
Quick Compatibility: Specifically designed to fit Bi-Metal hole saws ranging from 14mm to 30mm in diameter.
-
Non-Slip Hex Shank: The hexagonal shank design ensures maximum power transmission from the drill to the hole saw without the risk of the arbor spinning in the chuck.
-
Replaceable Pilot Drill: Comes equipped with a high-speed steel (HSS) pilot bit that can be easily replaced if worn, ensuring consistent centering for every cut.
-
Durable Construction: Built from hardened alloy steel to withstand the stresses of professional electrical and plumbing installations.
Technical Specifications
| Feature |
Details |
| Model |
D-B03116 (A4) |
| Hole Saw Range |
14mm – 30mm (9/16" – 1-3/16") |
| Shank Size |
1/4" Hex Shank |
| Pilot Drill Size |
6.35mm x 75mm |
| Thread Size |
1/2" - 20 UNF |
KUGEL S900-007 (A2) Hex Shank Hole Saw Arbor
The KUGEL S900-007 (A2) is a heavy-duty arbor designed for large-diameter hole saws. It incorporates a dual-pin locking mechanism essential for managing the high torque required when cutting holes up to 152mm. This model is a staple for HVAC, plumbing, and general construction work.
Key Features
-
Wide Diameter Range: Engineered to support Bi-Metal hole saws from 31mm all the way up to 152mm.
-
Dual Locking Pins: Features two sliding pins that engage with the base of the hole saw. This prevents the saw from overtightening on the arbor and allows for much easier removal after use.
-
High-Torque Stability: The 7/16" hex shank is built for heavy-duty power drills, providing the stability needed for large-scale boring.
-
Easy Plug Removal: The design allows for better access to the pilot drill and hole saw interior, facilitating faster removal of waste material.
Technical Specifications
| Feature |
Details |
| Model |
S900-007 (A2) |
| Hole Saw Range |
31mm – 152mm (1-1/4" – 6") |
| Shank Size |
7/16" Hex Shank |
| Pilot Drill Size |
6.35mm x 75mm |
| Thread Size |
5/8" - 18 UNF |
