Product Overview
The G012-3 series is a high-quality mortise lockset that combines traditional vintage aesthetics with modern security features. It is designed for users looking for a more ornate, classical look for their home or office doors while maintaining the reliability of a 7025-standard lock body.
Key Specifications
-
Brand: ALine
-
Product Type: Lever Mortise Lockset
-
Model: G012-3
-
Item Codes: * 280112-036: Antique Copper (AC) Finish
-
Lock Body Standard: 7025 Series
Design & Material Features
-
Classic "S-Curve" Handles: The lever handles feature an elegant, flowing ergonomic shape that provides a comfortable grip and a sophisticated appearance.
-
Decorative Backplate: The handles are mounted on pointed, decorative backplates with pre-drilled holes for secure face-fix installation.
-
Available Finishes:
-

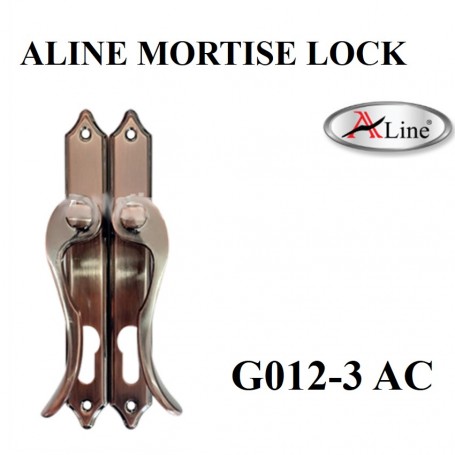

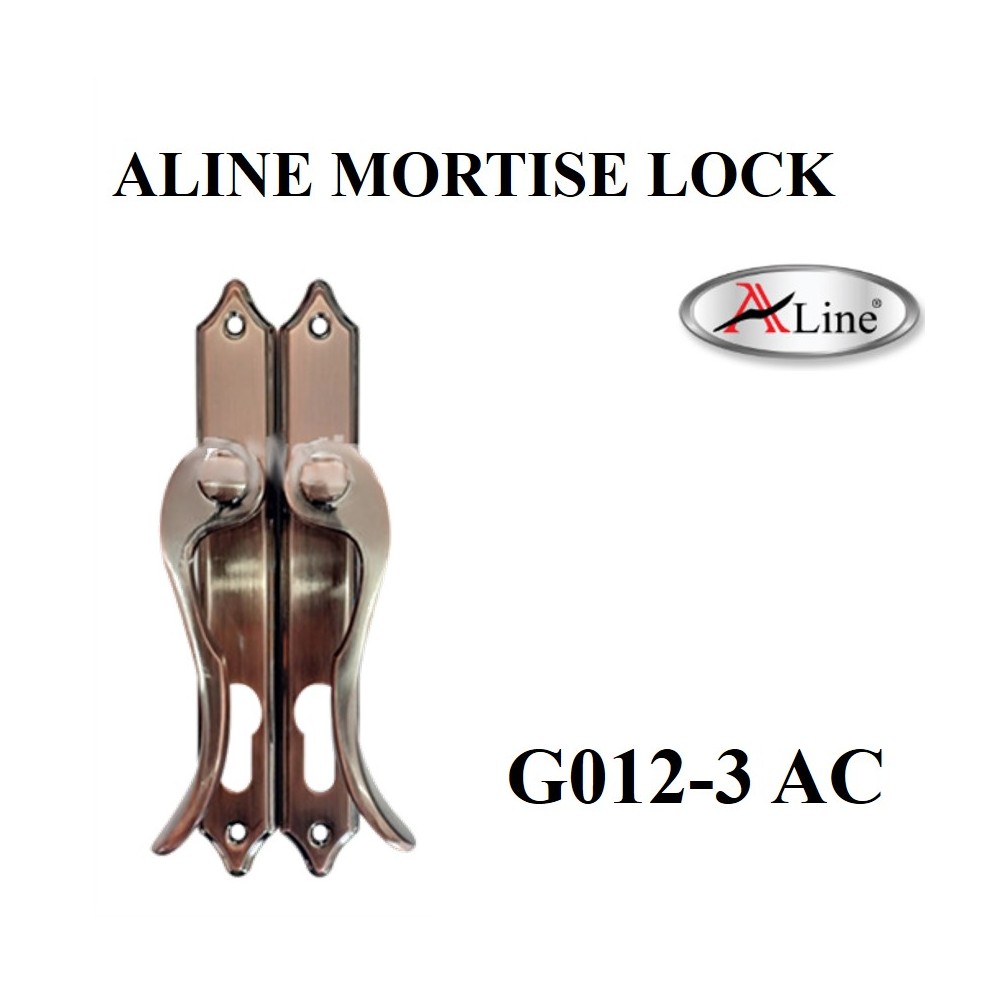

Antique Copper (AC): Offers a warm, rustic, and weathered look, perfect for traditional or vintage-themed interiors.
-

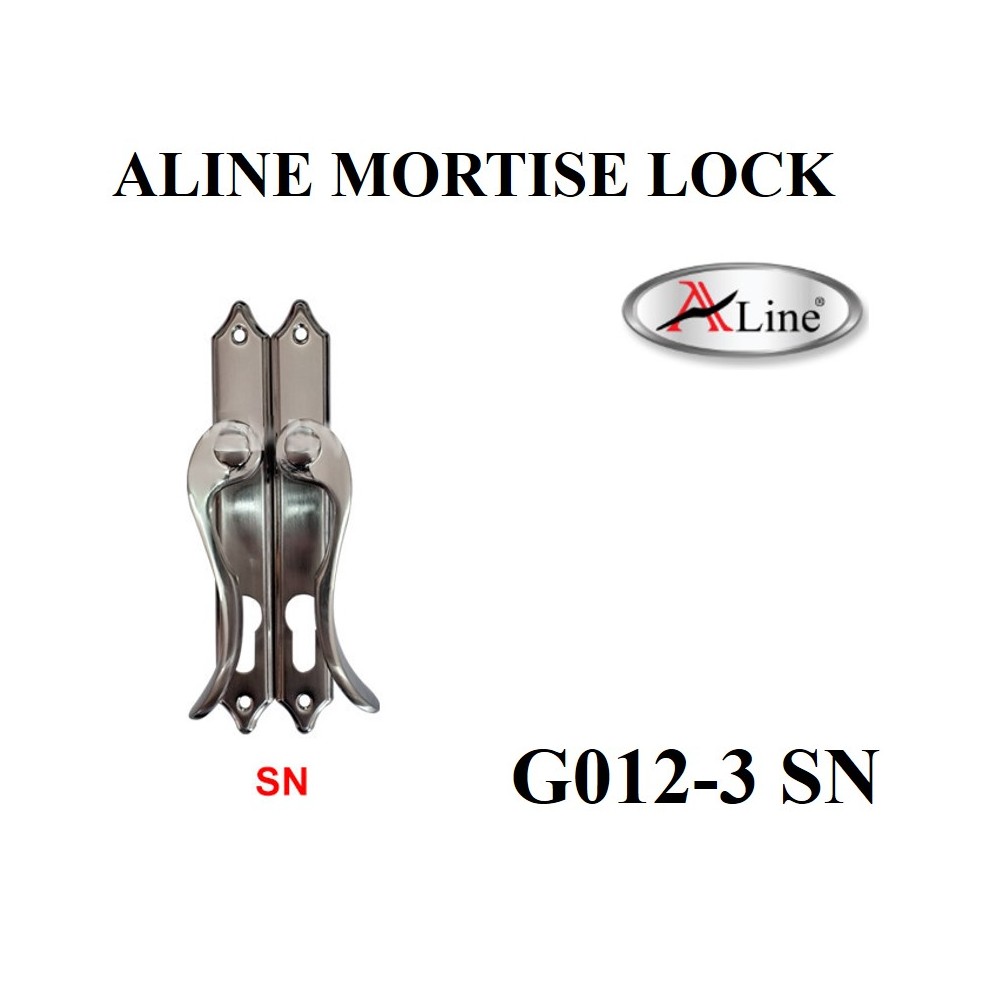

Satin Nickel (SN): Provides a sleek, brushed metallic finish that is resistant to fingerprints and suits contemporary or transitional styles.
-
Durable Mechanism: The internal 7025 mortise body is constructed from treated steel for high cycle life and smooth latch operation.
Technical Dimensions
(Based on standard 7025 configuration)
-
Lock Body Height: ~145mm
-
Backset (Edge to Center): ~45mm
-
Center-to-Center (Handle to Cylinder): ~70mm
-
Backplate Total Height: ~195mm

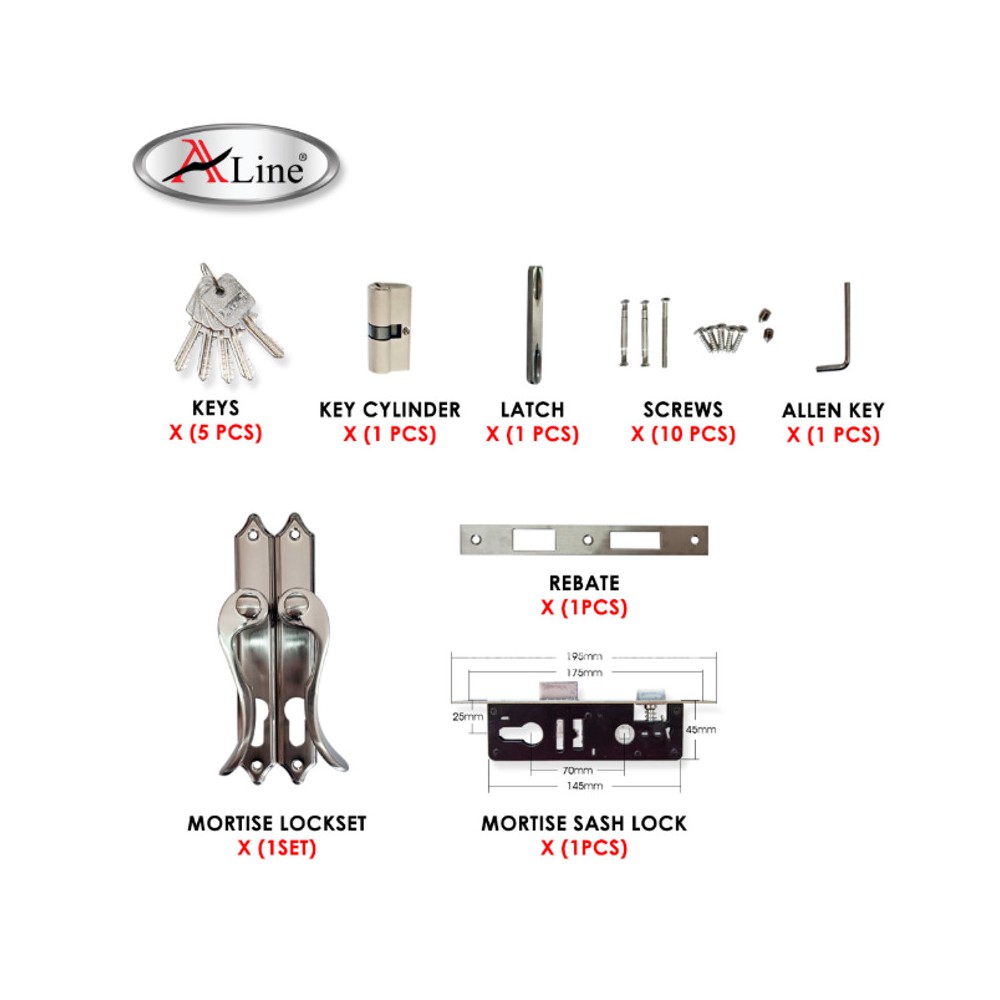

Package Components

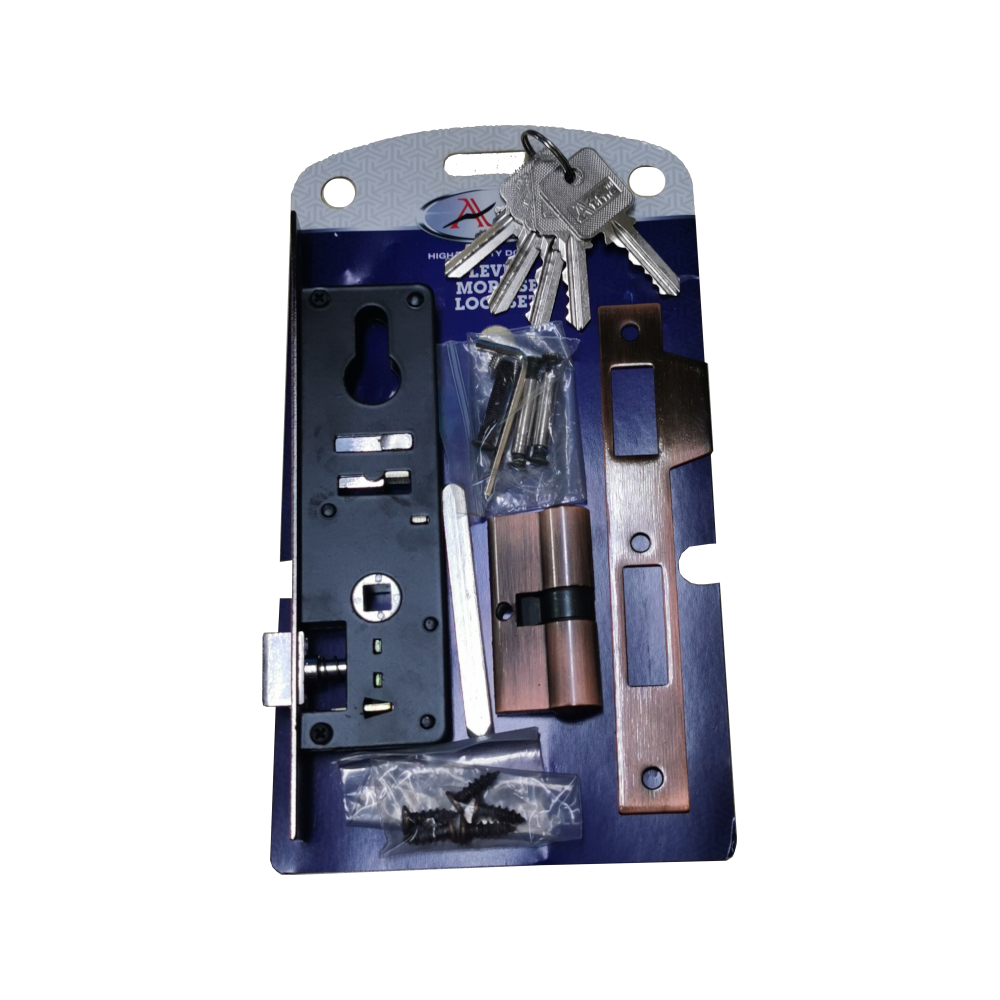

The set is provided in a transparent retail pack containing:
-
Lever Handles: 1 Pair (Internal and External).
-
Mortise Lock Body: Heavy-duty internal latch and bolt mechanism.
-
Euro-Profile Cylinder: Matching finish with double-sided key entry.
-
Keys: 5x high-security computer keys.
-
Strike Plate & Box: Finished to match the handles.
-
Installation Kit: Includes the spindle and all necessary mounting screws.
Applications
-
Residential Doors: Specifically suited for main entrance doors or bedroom doors where a premium, decorative finish is desired.
-
Renovations: An excellent choice for replacing standard round knobs with a more accessible and stylish lever system.
-
Universal Handing: The latch can typically be reversed, making it suitable for both left-hand and right-hand opening doors.
