SCREW PITCH GAUGE (4 TO 62 & 0.25 TO 6mm)

Reference: 201300-305

Condition: New

1 Item Items

Warning: Last items in stock!

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

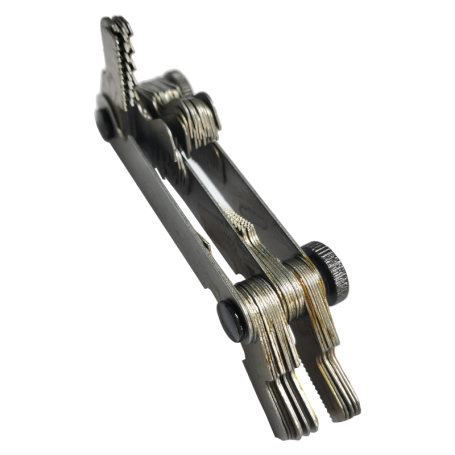

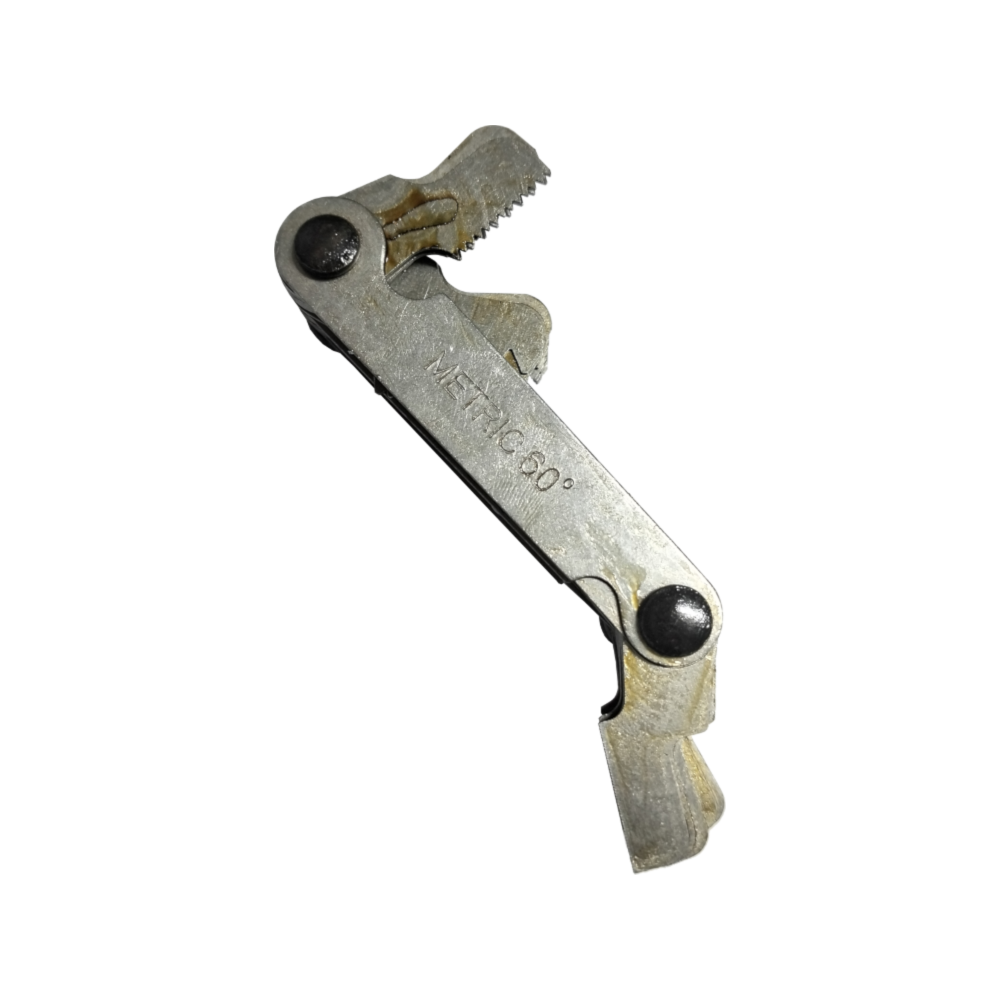

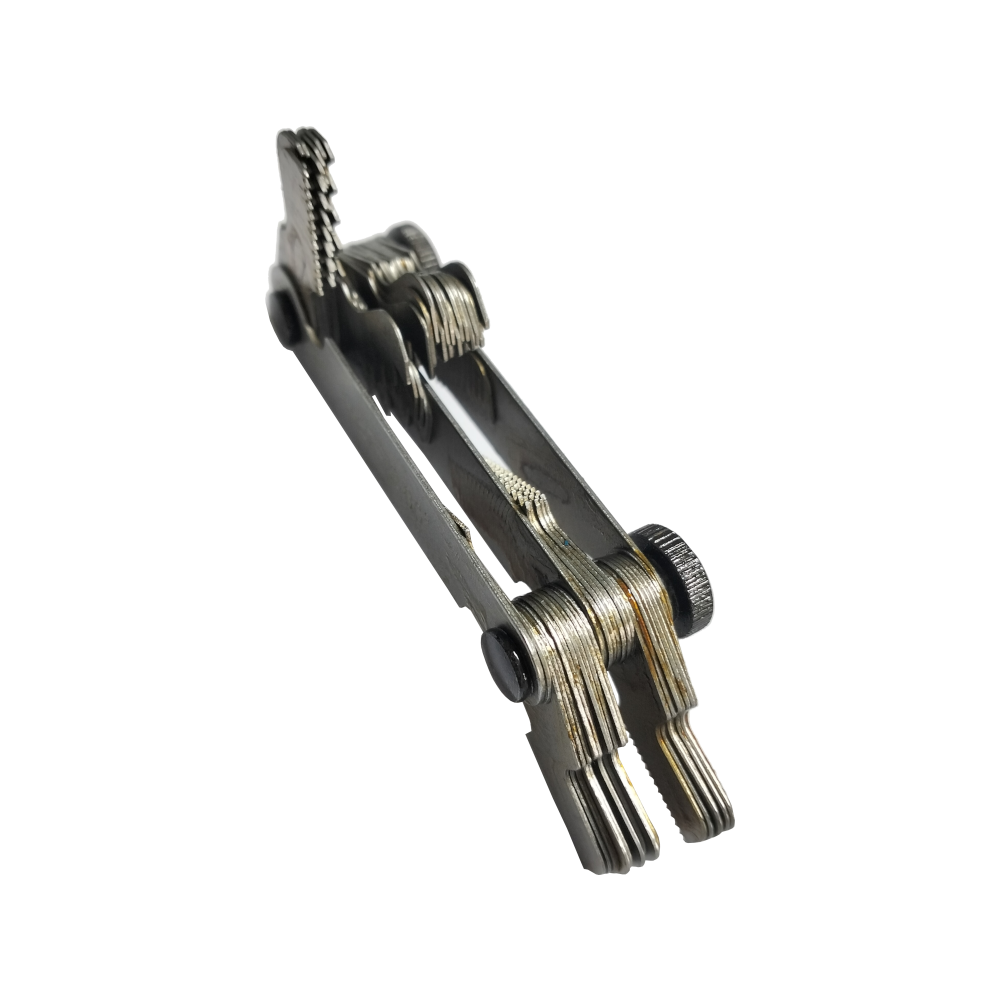

52-Blade Screw Pitch Gauge (Metric & Imperial)

The 52-Blade Screw Pitch Gauge is a versatile and essential measuring tool for any workshop. Designed for high accuracy, it allows you to quickly identify the pitch of various screws and threaded fasteners in both Metric (mm) and Imperial (Whitworth/TPI) systems.

Key Features

Wide Range: * Metric: 24 blades ranging from 0.25mm to 6.0mm.
- Imperial: 28 blades ranging from 4 to 62 TPI (Threads Per Inch).
Durable Construction: Made from high-quality polished steel for rust resistance and long-lasting performance.
Compact & Portable: Features a folding design with a locking thumb nut, keeping the blades organized and easy to carry in a pocket or toolbox.
Clear Markings: Each blade is deeply stamped with its specific size for quick and easy reading even in low-light conditions.

Product Specifications

Total Blades: 52
Item Code: 201300-305
Metric Range (24 pcs): 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0mm.
Imperial Range (28 pcs): 4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62 TPI.

How to Use

Match the teeth of the gauge blade to the threads of the screw or bolt.
Ensure the "teeth" fit perfectly into the thread grooves without any gaps.
Read the measurement stamped on the matching blade to identify your thread pitch or TPI.

Xian Yik Hardware Tip: Always clean the threads of the bolt or screw before measuring to ensure a perfect fit and an accurate reading!
