WEST LING WDM HIGH SPEED CUT-OFF MACHINE C/W 3HP X 415V MOTOR (J3GE-400B - 16")

Reference: M013-002

Condition: New

5 Item Items

Warning: Last items in stock!

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

That is a reference for a Heavy-Duty High-Speed Metal Cut-Off Machine, typically used in fabrication, construction, and metalworking shops for quickly and accurately cutting various metal profiles.

The model mentioned is a robust, industrial-grade saw.

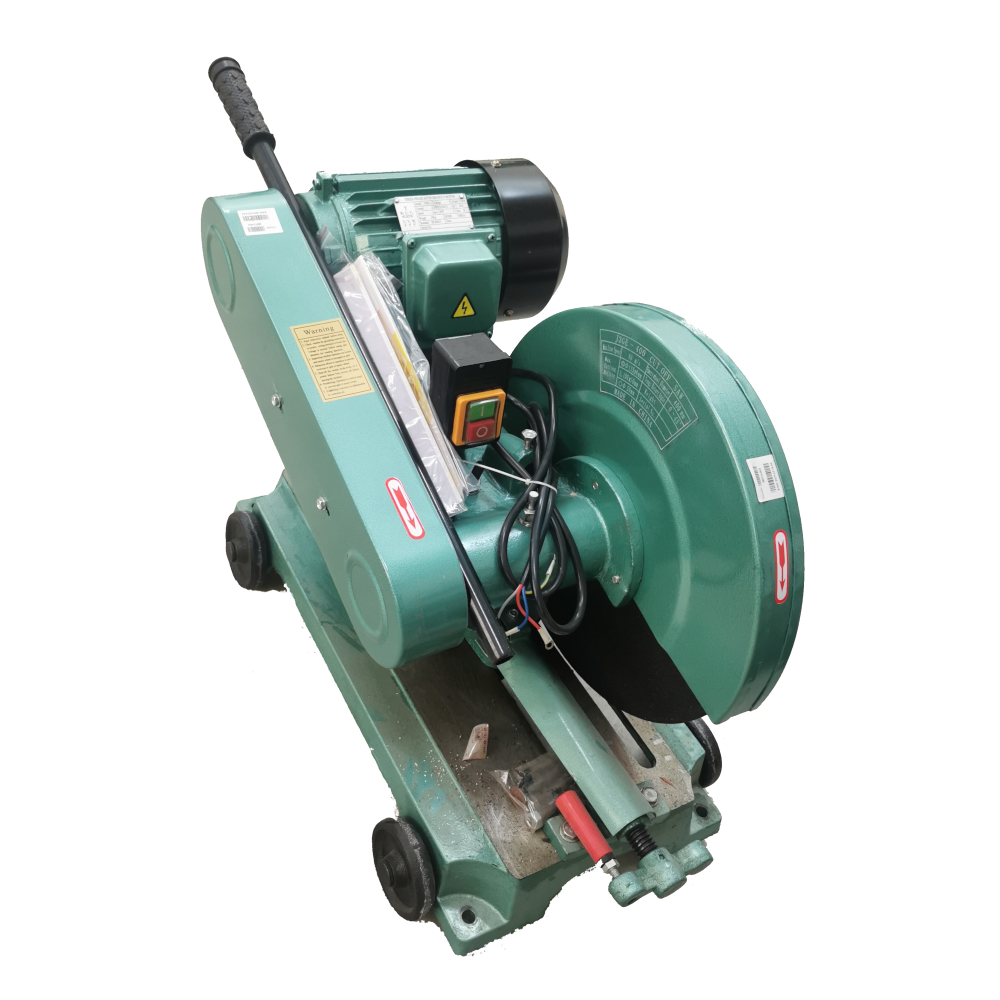

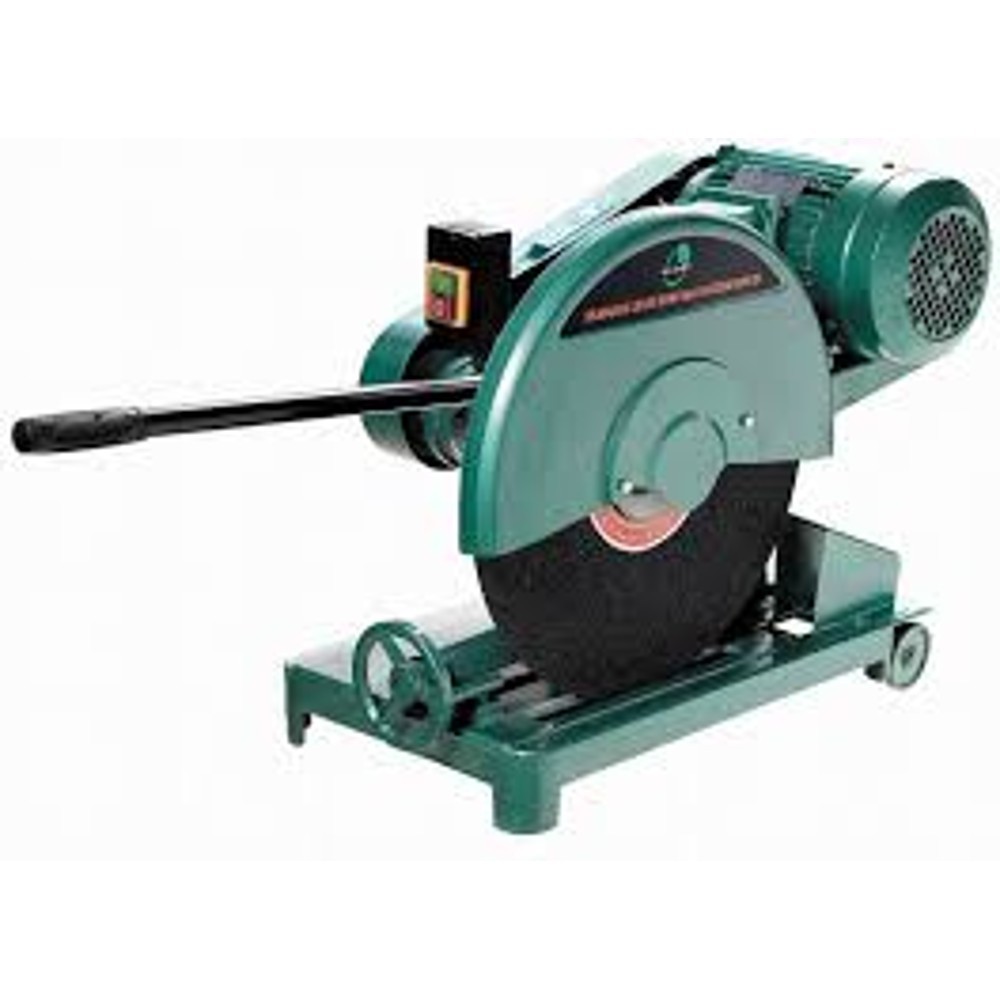

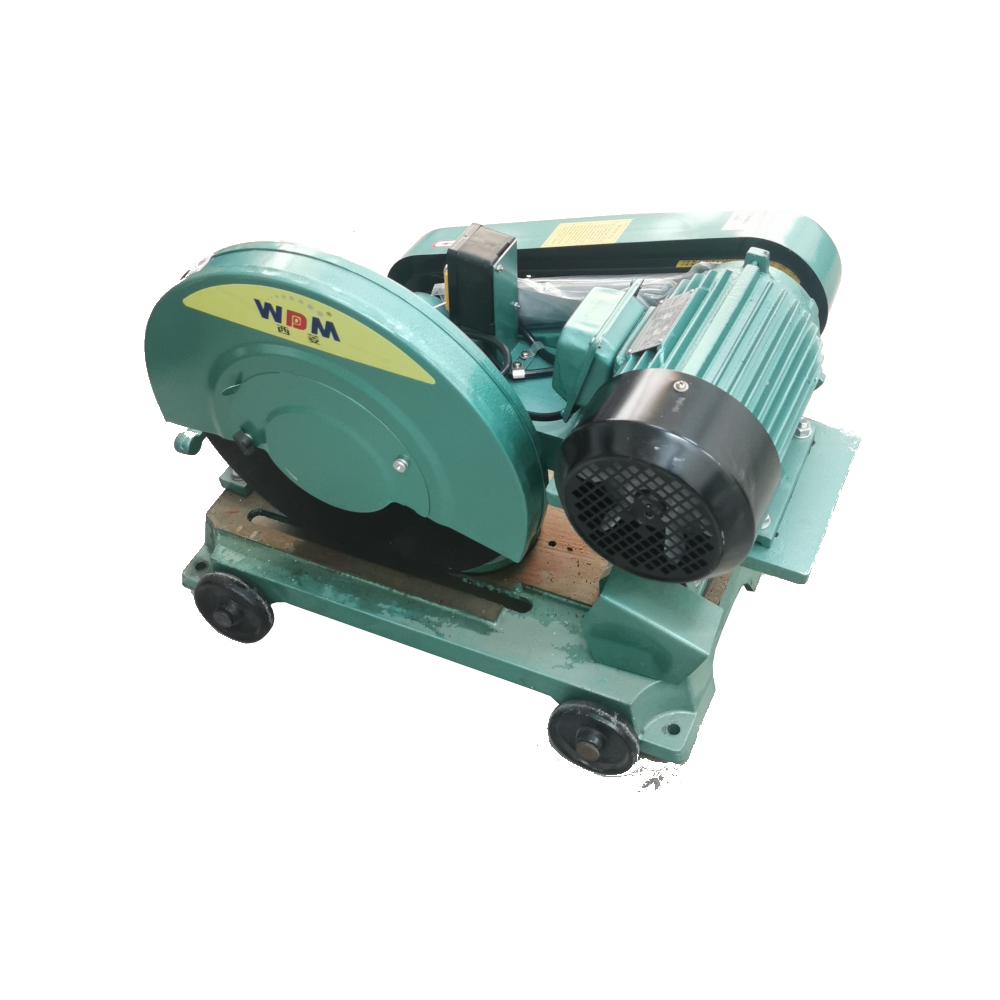

WEST LING WDM Cut-Off Machine (J3GE-400B - 16")

The machine details are:

Specification	Detail
Brand	WEST LING (or XEST LING / WDM)
Model	J3GE-400B (or similar variants like J3GE-400 or J3GE-400T)
Blade/Wheel Size	16 inches (400mm or 405mm)

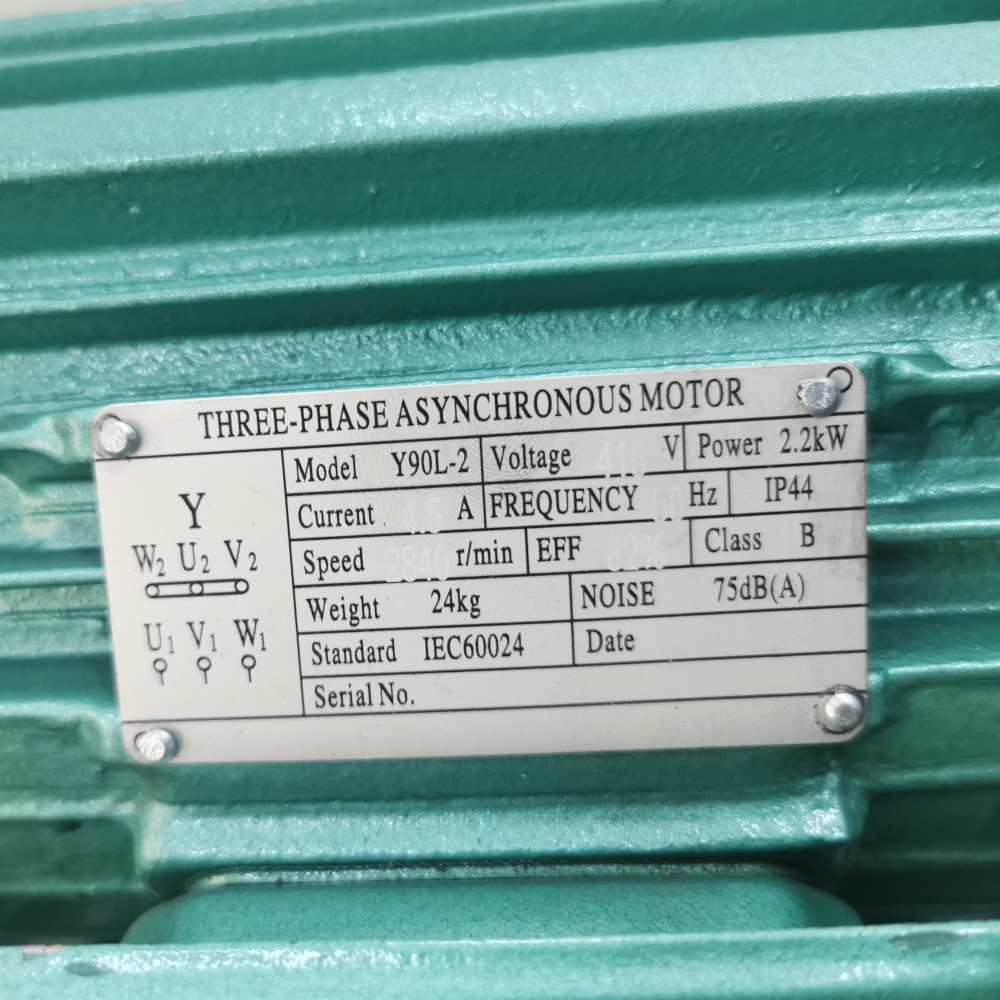

Motor Power	3 Horsepower (HP) (Equivalent to approximately 2.2kW)
Voltage	415 Volts (V), 3-Phase (3PH)
No-Load Speed	Approximately 2280 revolutions per minute (rpm)
Base/Construction	Heavy-duty, high-quality cast iron for stability and long life.
Net Weight	Approx. 80 kg

Cutting Capacity (Approximate)

This machine is typically rated for heavy-duty material sizes:

Material Type	Capacity (Diameter/Size)
Round Bar Steel	Ø 50 mm
Steel Tube	Ø 135 mm
Angle Iron	100 mm x 10 mm
Channel Steel	126 mm x 53 mm
Cutting Angle	Adjustable up to ± 45°

Key Features

High-Speed Cutting: The machine is designed for use with abrasive cut-off wheels for fast, high-friction cutting of ferrous metals.
3-Phase Power (415V): This indicates a machine built for continuous, industrial use, as 3-phase motors (like the 3HP motor included) offer better efficiency and power than single-phase motors for this application.¹
Mobility and Stability: It often includes wheels on the base for movement, but also utilizes bolts to securely fasten the base for reliable operation.²
Durability: The use of a 100% copper induction motor and a solid cast iron body contributes to its heavy-duty and long-lasting nature
