WF - INLET STEM NUT (NIPPLE & NUT) - OXYGEN / ACETYLENE 3/8" X 1/4"

Reference:

Condition: New

20 Item Items

RM10.50 tax excl.

MODEL

OXYGEN
ACETYLENE

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

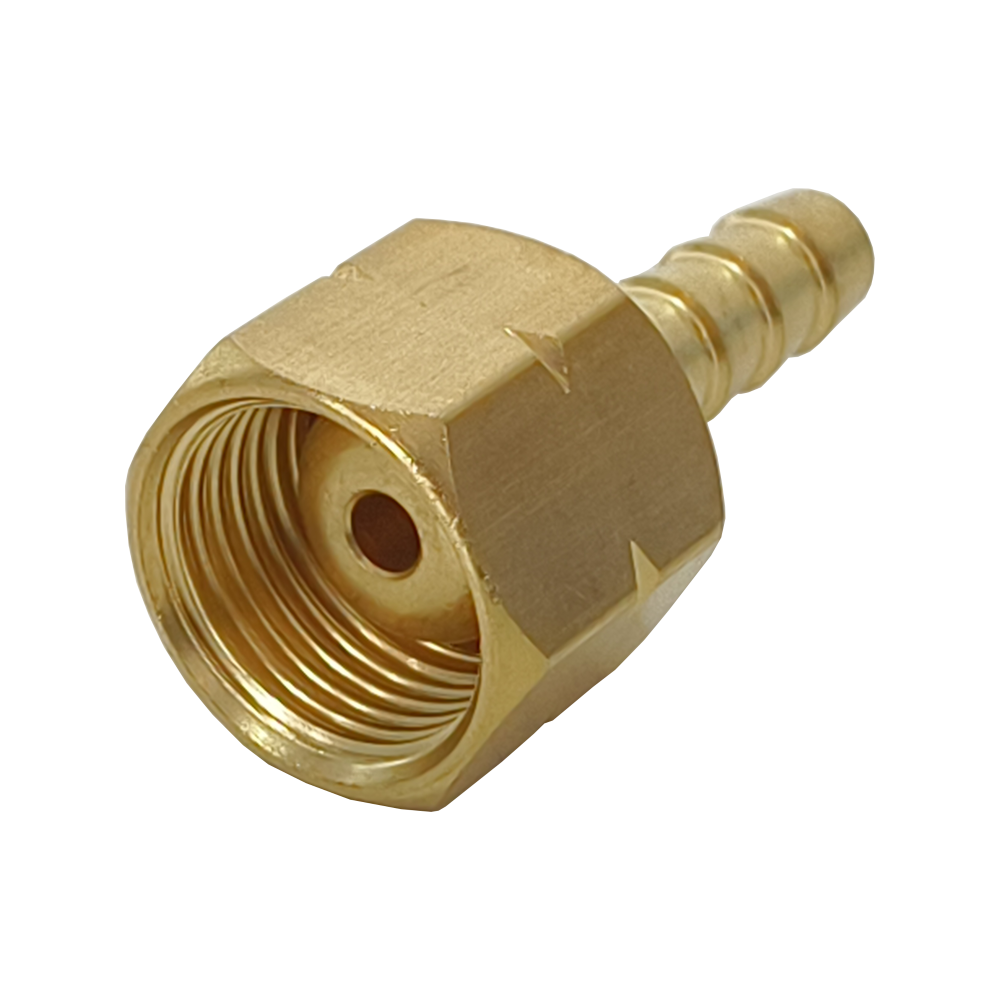

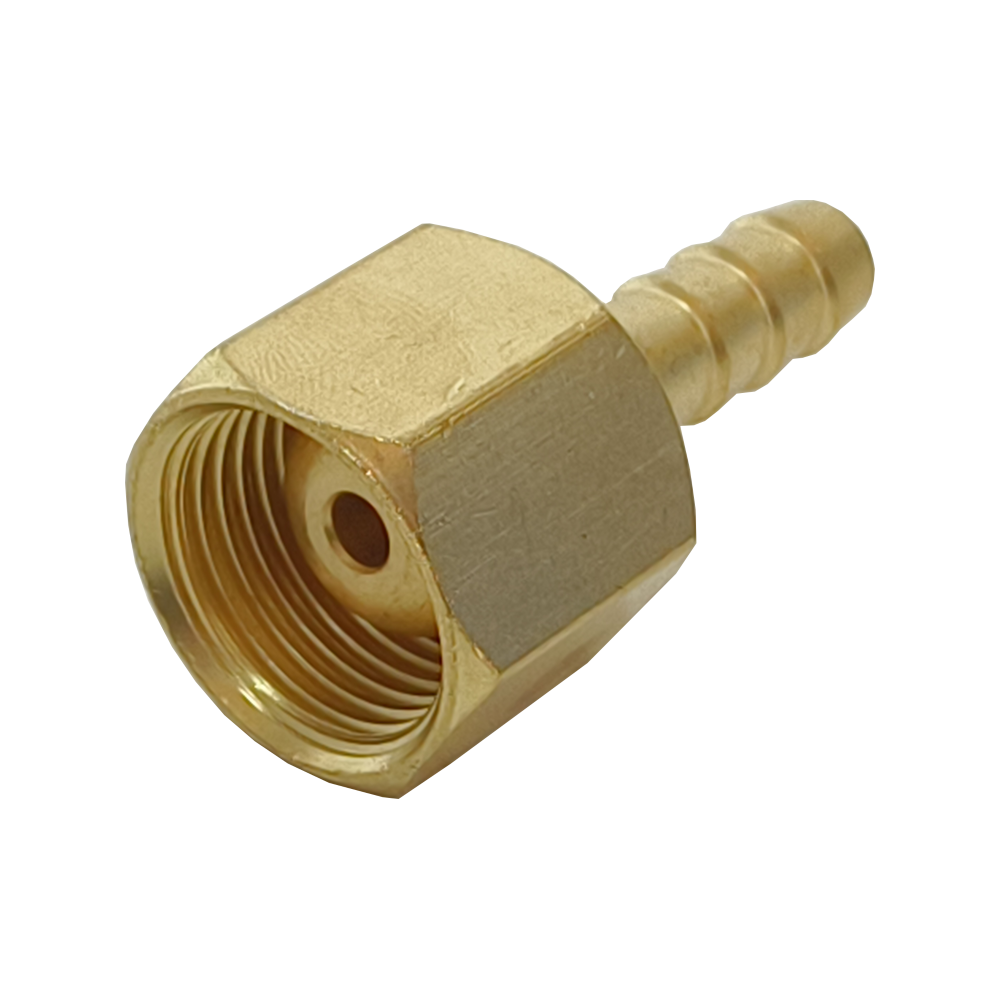

These two products are brass inlet stem nut and nipple sets designed for gas welding and cutting equipment. While they share the same physical dimensions, they are designed for specific gas types with distinct safety features.

Product Overview

Feature	Oxygen Set (OXY)	Acetylene Set (ACE)
Model	OXY 3/8" X 1/4"	ACE 38 X 1/4"
Item Code	11105-027	11105-028

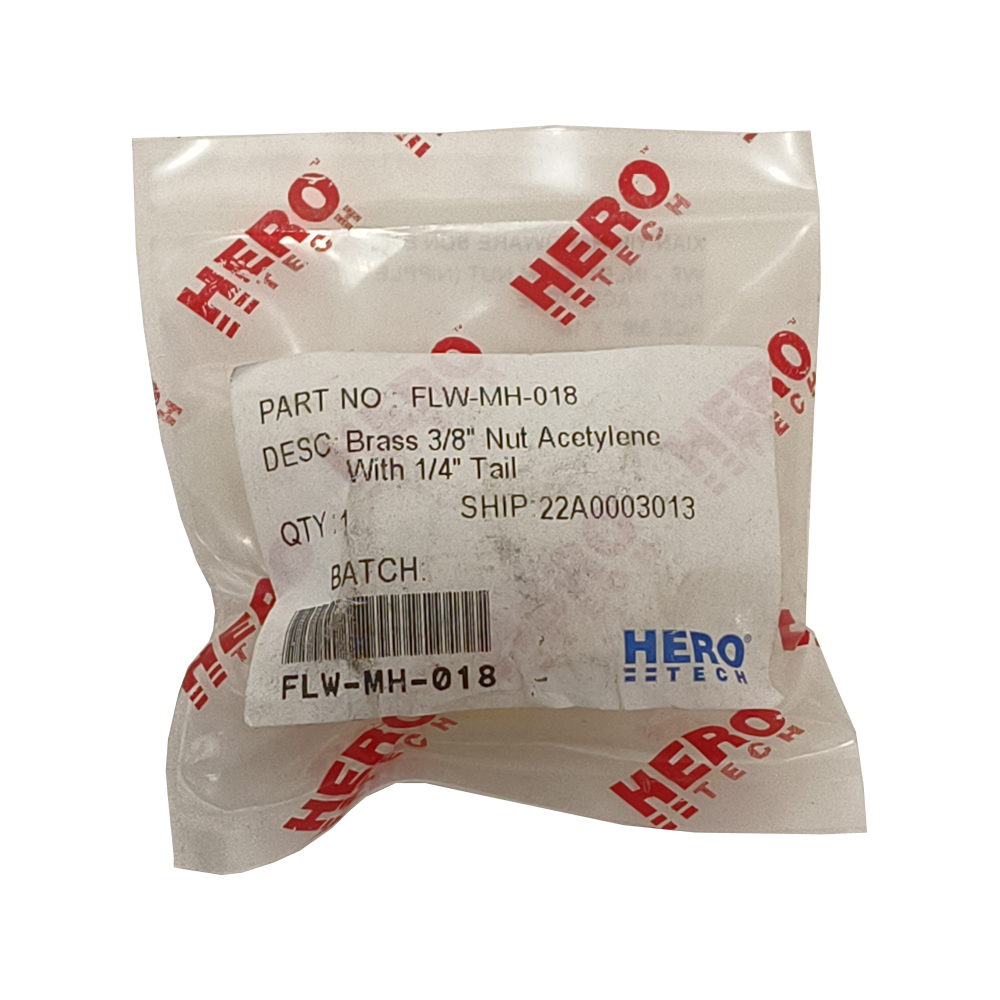

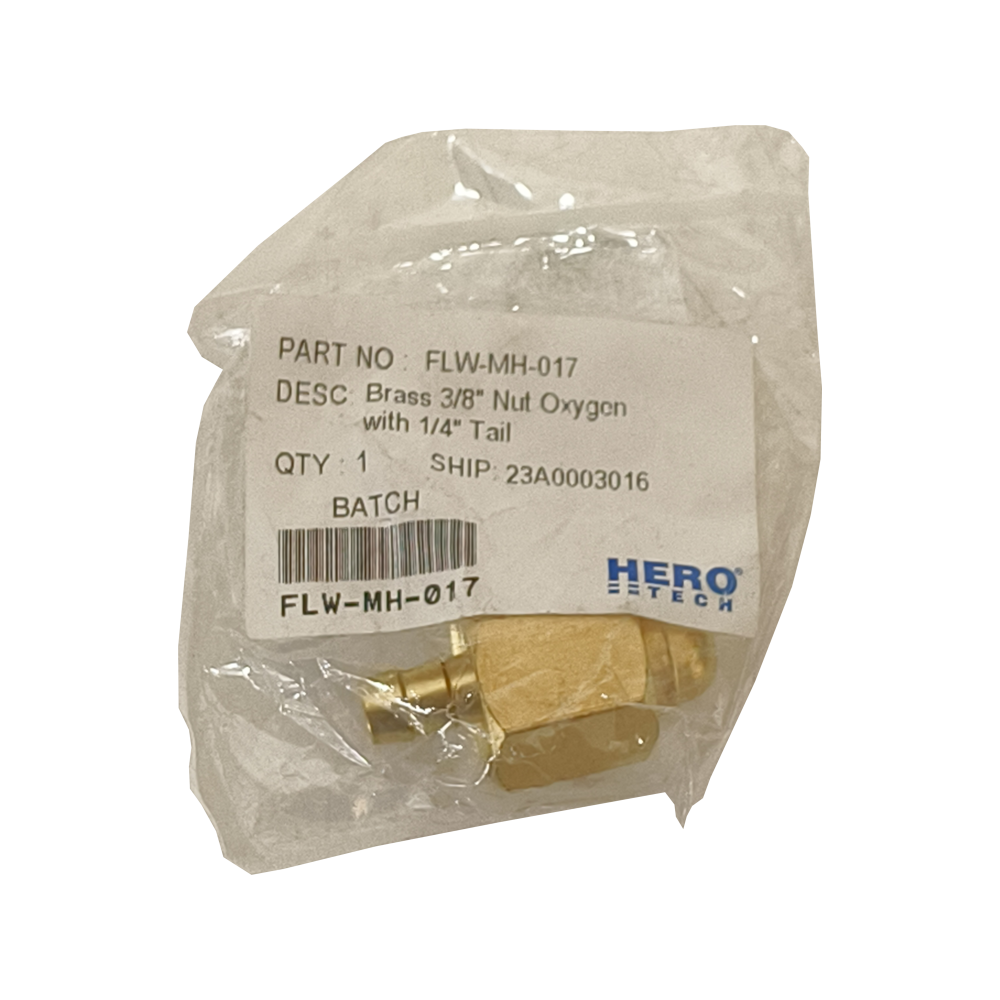

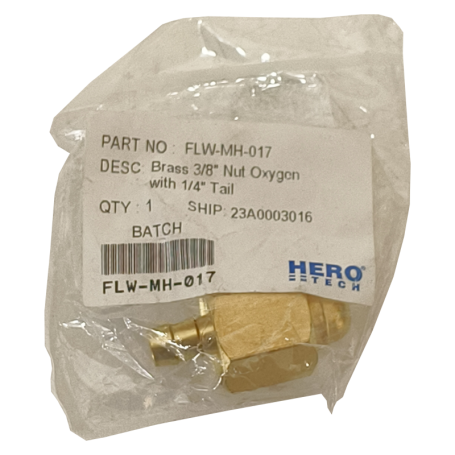

Part Number	FLW-MH-017	FLW-MH-018
Nut Thread	Right-Hand (RH) Thread	Left-Hand (LH) Thread
Identification	Smooth hexagonal nut	Notched hexagonal nut
Material	High-quality Brass	High-quality Brass

Technical Specifications

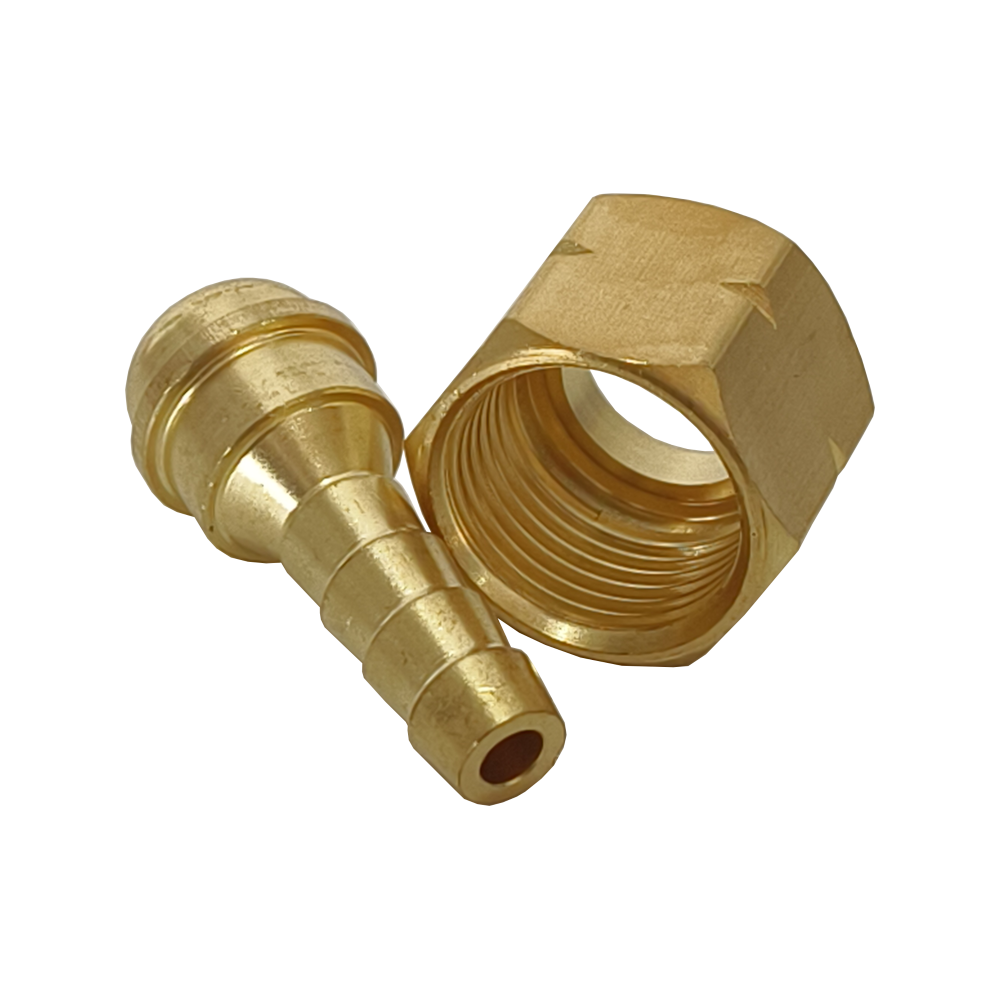

Components: Each set includes one Inlet Stem (Nipple) and one Inlet Nut.
Dimensions: * Nut Size: 3/8" BSP.
- Tail/Hose Size: 1/4" (6.3mm) tail for connection to industrial gas hoses.
Safety Engineering:
- Oxygen (11105-027): Uses standard right-hand threads. The nut faces are smooth to indicate non-fuel gas.
- Acetylene (11105-028): Uses left-hand threads to prevent accidental cross-connection with oxygen lines. The nut features notches (grooves) cut into the corners of the hexagon as a visual and tactile warning that it is a fuel gas fitting.

Applications

These fittings are used to connect gas hoses to regulators or torches in oxy-fuel welding, brazing, and cutting setups. The barbed nipple ensures a secure fit inside the hose (typically secured with a hose clip), while the nut provides the threaded connection to the equipment.
