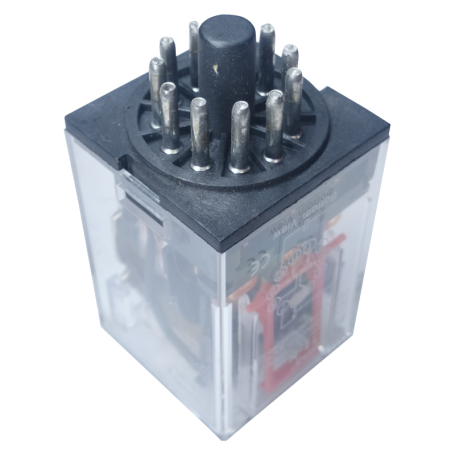

PLASMA RELAY C/W NEON - PMK-11

More info

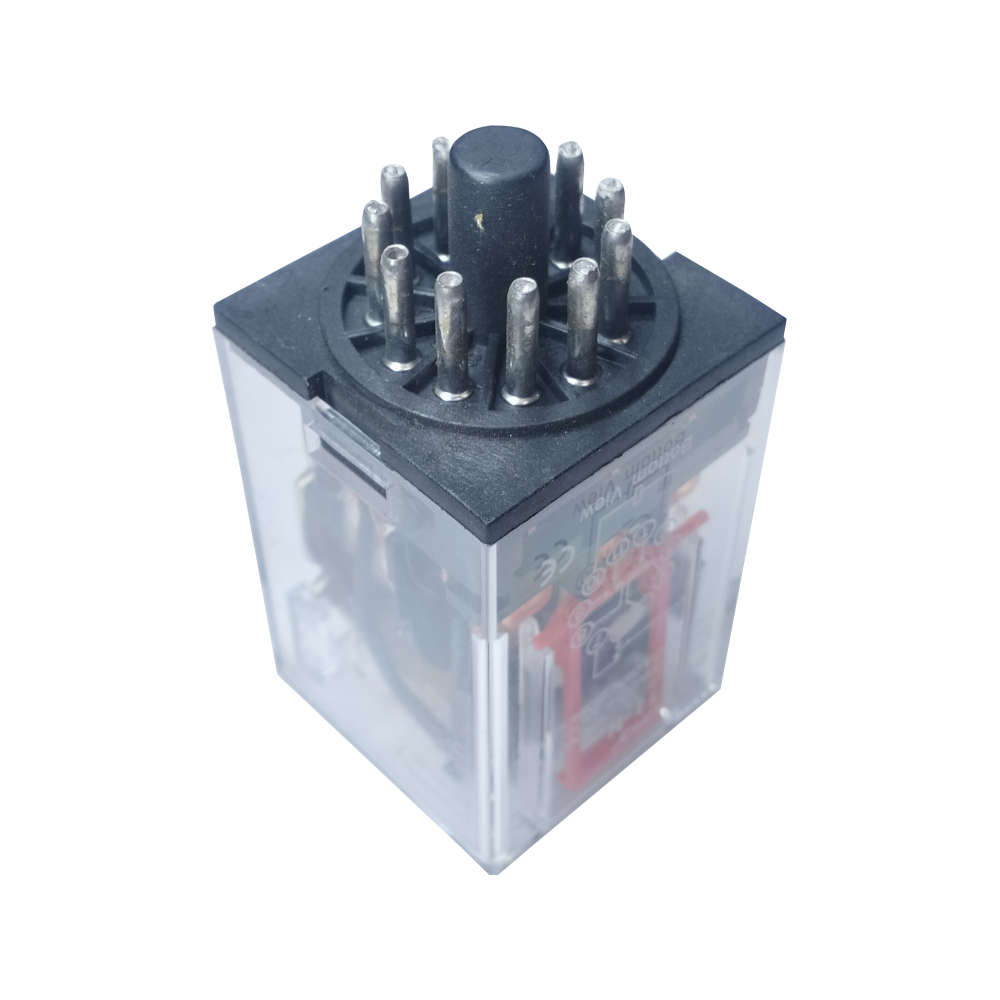

Product Description: PMK11 Series 11-Pin Relay with Neon Indicator

The PMK11 Series is a high-performance 11-pin circular (octal-style) plug-in relay designed for complex switching requirements in industrial control systems. This model features a transparent dust cover for easy internal monitoring and includes an integrated neon indicator (for AC models) to provide a quick visual status of the coil’s energization.

With its 11-pin configuration, the PMK11 offers more contact points than standard 8-pin models, making it ideal for more intricate automation sequences and circuit logic.

Key Features

Extended Logic Capacity: 11-pin design allows for multiple pole switching in a single compact unit.
Instant Diagnostics: Built-in neon indicator light allows for fast troubleshooting by showing when power is reaching the coil.
Clear Housing: Transparent casing enables inspection of contact health and mechanical movement without opening the unit.
Versatile Applications: Suitable for a wide variety of industrial machinery, control panels, and power distribution setups.
Wide Voltage Range: Available in numerous AC and DC coil configurations to match your specific power source.

Specifications

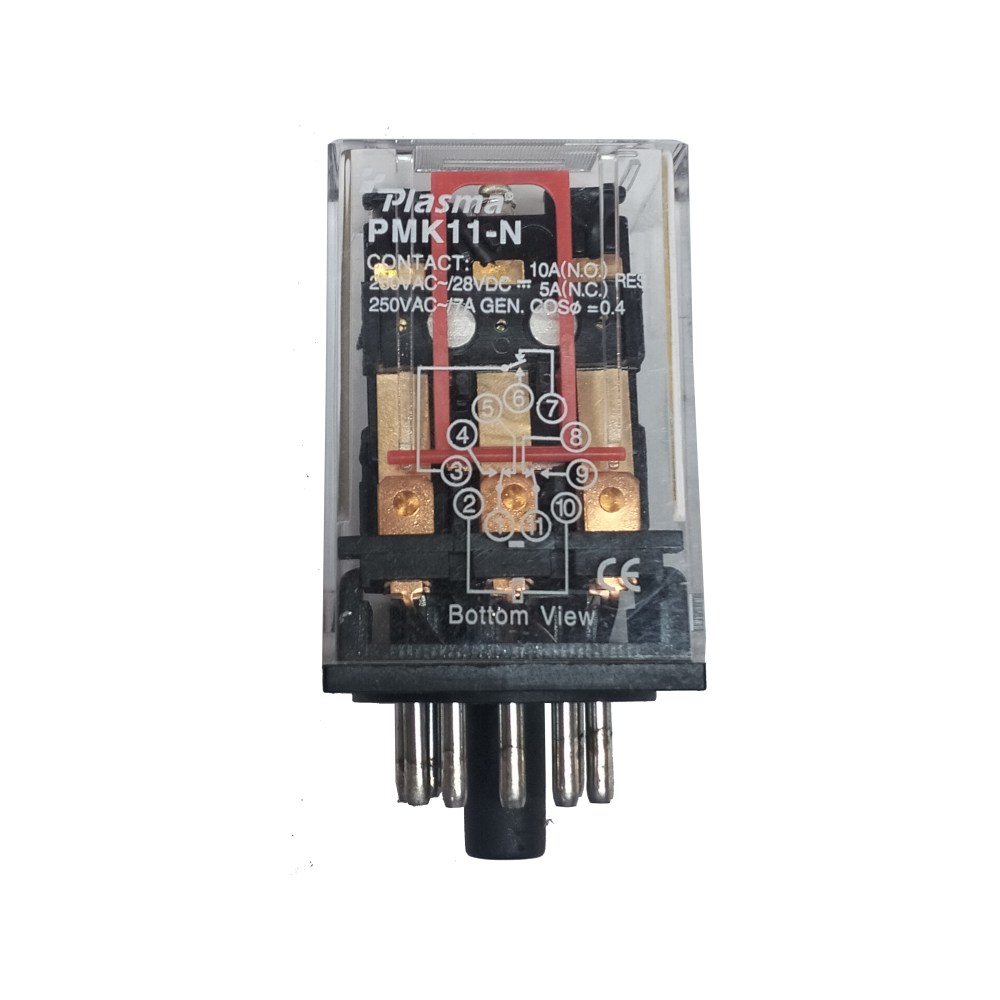

Model: PMK11-N
Pin Configuration: 11-Pin (Circular)
Contact Rating: 10A (N.O.) / 5A (N.C.) at 250VAC or 28VDC
Available Coil Voltages: * AC: 12VAC, 24VAC, 48VAC, 110VAC, 240VAC, 415VAC
- DC: 12VDC, 24VDC
