JAPAN SANWA MULTI TESTER - ORIGINAL (XY360TRF)

Reference: E063-011

Condition: New

5 Item Items

Warning: Last items in stock!

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

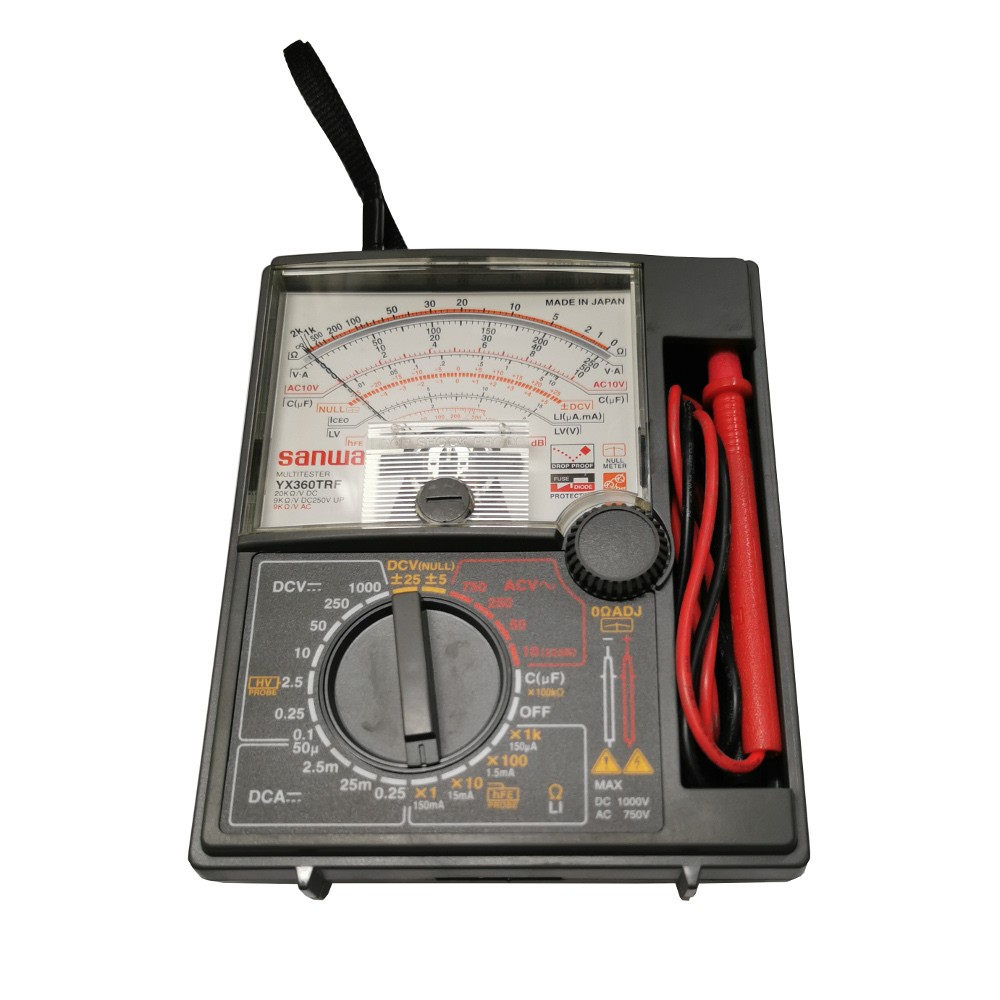

The JAPAN SANWA MULTI TESTER - ORIGINAL (Model YX360TRF) is a popular, portable analog multimeter designed for measuring low-voltage circuits in small communications equipment, home electric appliances, and general electrical/electronic work.¹

It is a Japanese-made, drop-shock-proof meter featuring a taut-band structure for high sensitivity and resistance to impact.²

Here is a summary of its key features and specifications:

Key Features

Analog Display: Features a clear, easy-to-read analog scale.³
Drop Shock Proof: Utilizes a taut-band meter element and impact-resistant design for durability.⁴
Protective Body Cover: A solid cover protects the meter face and can also be folded to serve as a tilt stand.⁵
Null (Zero Center) Meter: Provides ⁶ $pm5/pm25text{V}$ ranges in DCV, allowing for measurements of both positive and negative voltages by centering the indicator.⁷
High Resistance Measurement: Capable of measuring resistance up to ⁸ $mathbf{200text{M}Omega}$ with low voltage.⁹
Additional Measurements: Includes functions for Capacitance (¹⁰ $text{C}$ ), Decibel (¹¹ $text{dB}$ ), and Load Current (¹² $text{LI}$ ) measurement.¹³
Circuit Protection: The circuit is protected by a fuse (rated ¹⁴ $Phi5.2times20text{mm}, 250text{V}/text{0.5A}$ ).¹⁵
Optional Measurements: Can measure high DC voltage (up to ¹⁶ $25text{kV}$ ) and DC current amplification factor (¹⁷ $text{hFE}$ ) with optional probes.¹⁸

Main Specifications (Measurement Ranges)

Function	Measuring Range	Input Impedance / Notes
DC Voltage (DCV)	0.1 / 0.25 / 2.5 / 10 / 50 / 250 / 1000V	$20text{k}Omega/text{V}$ (lower ranges), $9text{k}Omega/text{V}$ (higher ranges)
DCV (NULL)	pm5 pm25V	40k OmegaV
AC Voltage (ACV)	10 / 50 / 250 / 750V	9k OmegaV
DC Current (DCA)	50 2.5m 25m 0.25A
Resistance ( $Omega$ )	$2text{k} / 20text{k} / 200text{k} / 2text{M}Omega$ ( $text{x}1, text{x}10, text{x}100, text{x}1text{k}$ ) $200text{M}Omega$ ( $text{x}100text{k}$ )
Capacitance ( $text{C}$ )	10muF	Approximate value
Decibel ( $text{dB}$ )	$-10text{dB}sim+22text{dB}$ (for $10text{VAC}$ ) $sim+62text{dB}$	Approximate value
Load Current ( $text{LI}$ )	0-150m / 15m / 1.5m / 150mu / 1.5muA	Approximate value
