MCV-SS STAINLESS STEEL WATER FILTER HEAD MANUAL MULTI PORT VALVE (FOR FRB1044 )

The products listed are both Manual Multi-Port Control Valves (MCV) designed for use with a FRB1044 filter media tank, which is a common size for residential or light commercial water filtration systems.

These valves are essential components that allow an operator to manually direct the flow of water through the filter tank to perform different maintenance cycles.

F080-47D

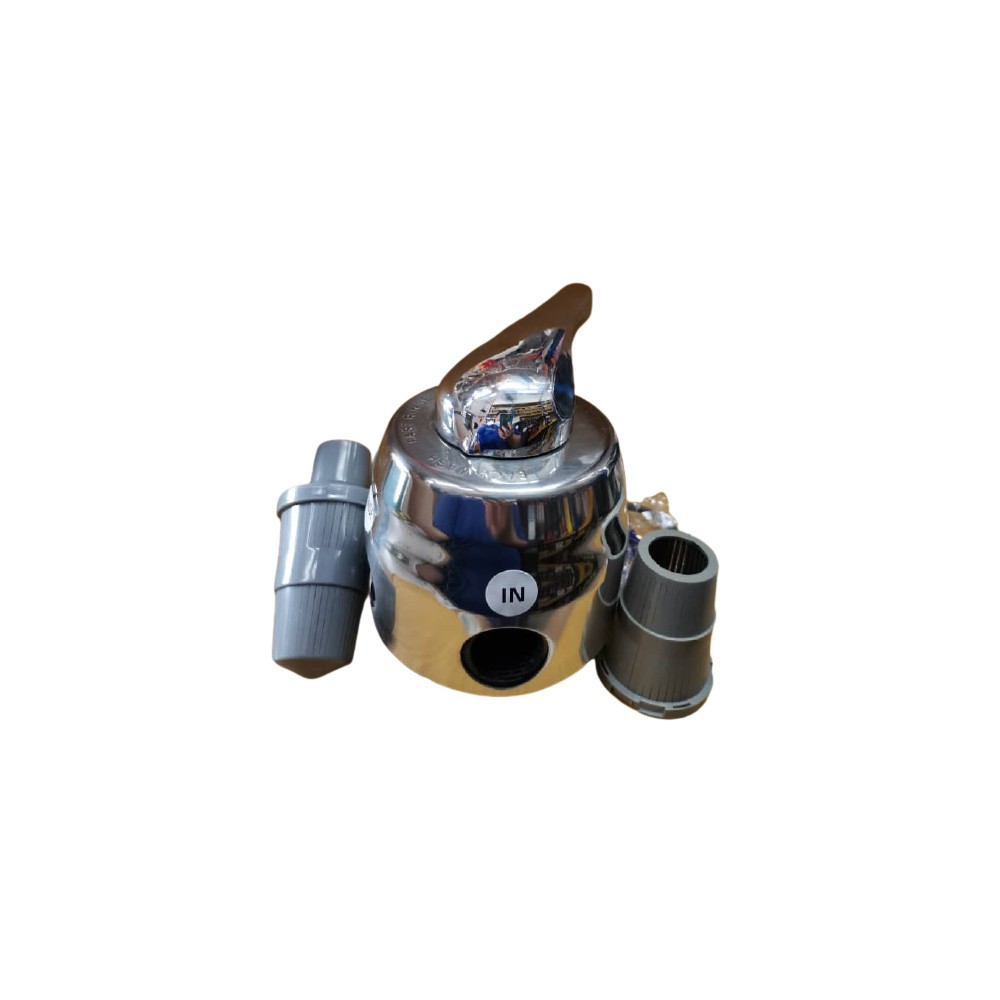

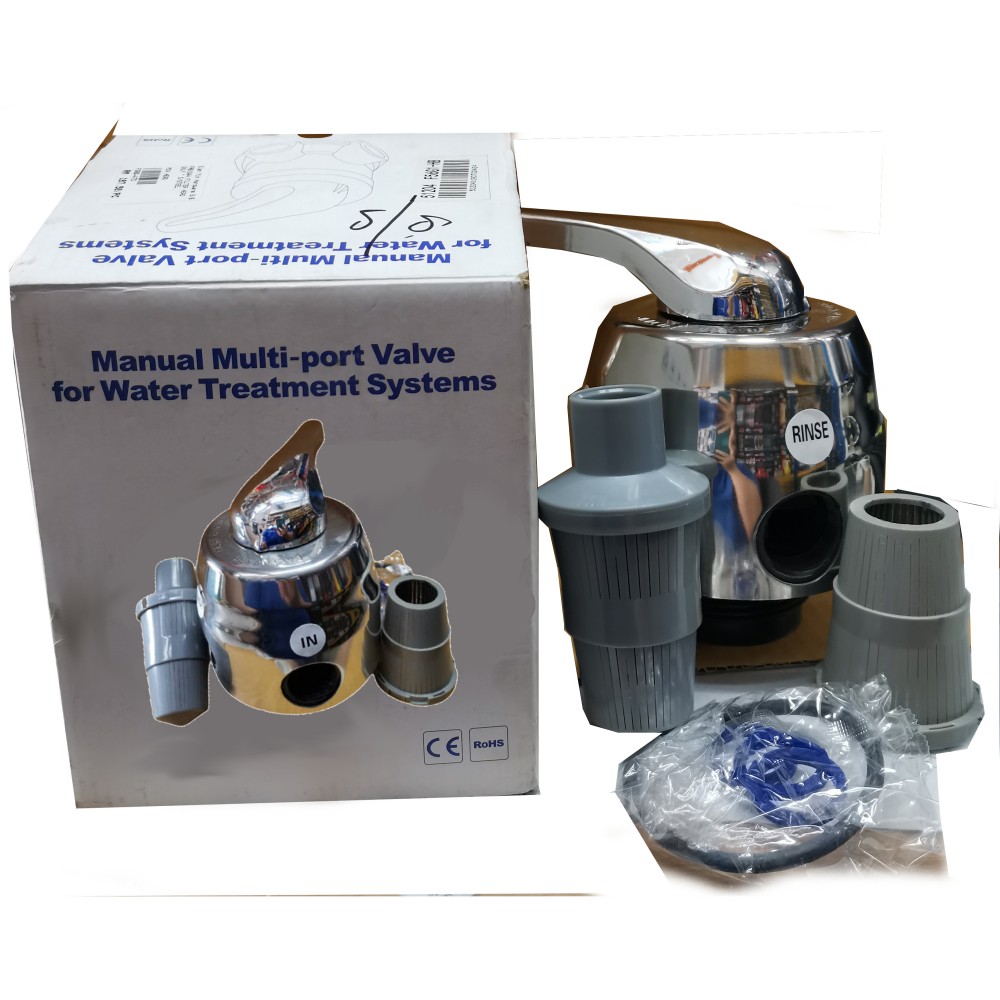

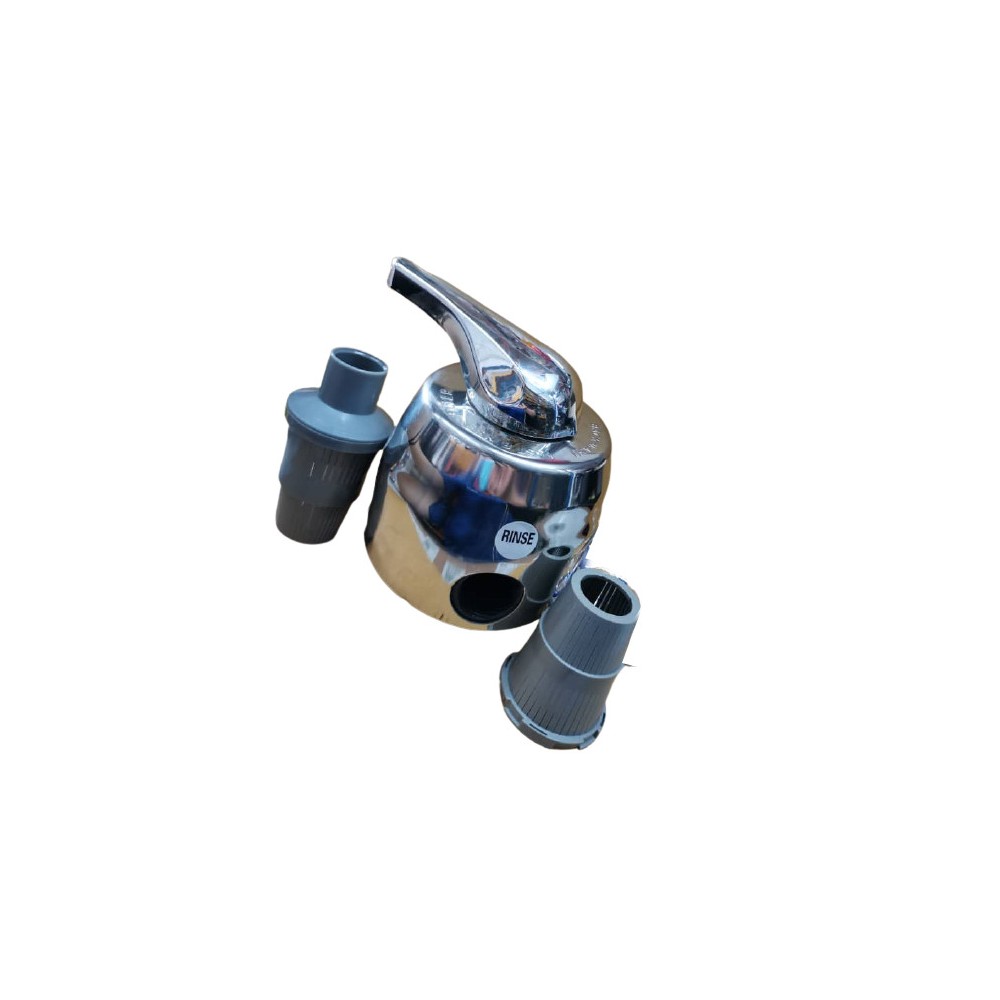

MCV-SS STAINLESS STEEL WATER FILTER HEAD MANUAL MULTI PORT VALVE (FOR FRB1044)
This model is an upgraded version of the standard plastic MCV, incorporating stainless steel components for enhanced durability.

Feature Description
Type Manual Multi-Port Valve (MCV) Head with Stainless Steel components (MCV-SS)
Material Typically, a plastic body with a stainless steel cover/handle or internal components.

The Stainless Steel (SS) element provides superior durability and corrosion resistance, especially in harsh environments or with certain water chemistries.

Application Same as the plastic version, fits an FRP filter tank with a standard top opening, designed for the FRB1044 tank model.

Function Provides the same core functions: Filter/Service, Backwash, and Fast Rinse, allowing for manual cleaning and media bed maintenance.

Advantage The stainless steel construction makes it more robust and potentially longer-lasting than the all-plastic model, particularly where the valve head is exposed to weather or high operational demands.


Multi-Port Valve Functions
A manual multi-port valve is a crucial component for filter media tanks, as it enables the necessary cycles to maintain the filter media's effectiveness. The main positions include:

Filter/Service: The normal operating position where raw water flows down through the filter media, is purified, and then exits for use.

Backwash: The maintenance position where water flow is reversed (upwards) to lift the media bed, flush out trapped contaminants (dirt, sediment, etc.), and send the wastewater to a drain. This cleans the filter media.

Fast Rinse: A cycle performed after the backwash. Water flows back in the normal filtration direction (downwards) to settle the media bed, remove any residual impurities dislodged during backwash, and ensure the initial filtered water is clear before switching back to Filter/Service mode.

By-Pass / Closed / Waste (optional): Other positions might allow for the water to bypass the filter entirely for maintenance on the valve/tank or to drain water to the waste line.
