HITTO THREAD REPAIR KIT C/W INSERT COIL 20pcs (RECOIL HAND TAP)

HITTO Thread Repair Kit (HTRK-Series)

The HITTO Thread Repair Kit (HTRK-Series) is an essential solution for mechanics, engineers, and DIY users to repair damaged, stripped, or worn-out screw threads in metal components. By installing a new thread insert (recoil coil), the original thread size and integrity are restored, often resulting in a stronger thread than the original.

This series includes various kits tailored for different metric thread sizes, such as M5x0.8mm, M6x1.0mm, M8x1.25mm, M10x1.25mm, M10x1.50mm, and M12x1.25mm.

Key Features and Components

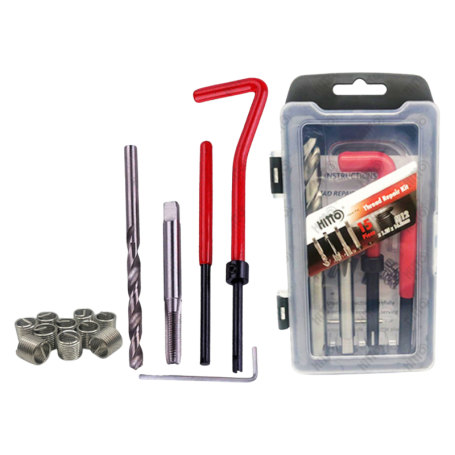

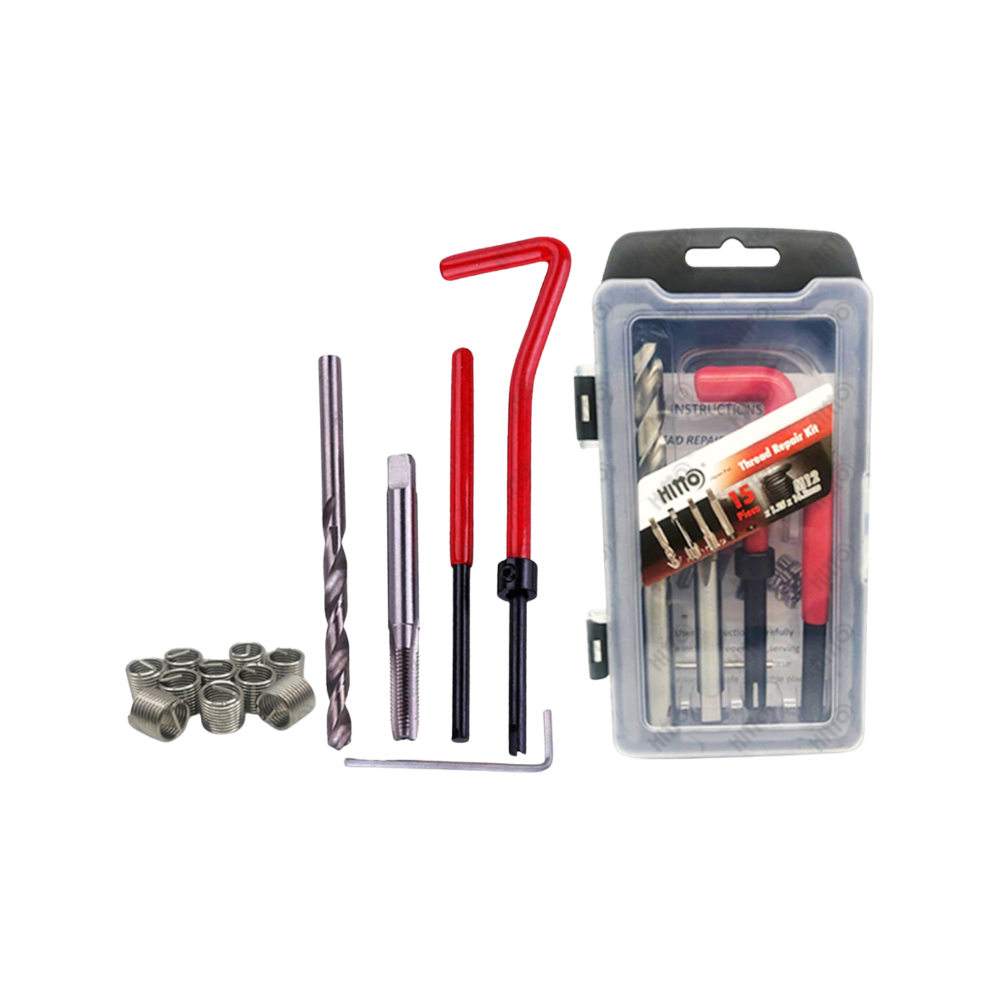

Each comprehensive kit is designed to provide all the specialized tools required for a professional thread repair and includes the following:

• Drill Bit: A correctly sized high-speed steel (HSS) drill bit to drill out the damaged thread.

• Recoil Hand Tap: A specialized tap (often a combined intermediate and bottoming tap) to re-tap the drilled hole, creating the new oversized thread required for the insert.

• Coiled Thread Inserts (Recoil Coils): Precision-formed stainless steel coils that form the new, restored thread. The quantity varies by kit (e.g., 20pcs for smaller sizes, 10pcs for larger sizes).

• Insert Applicator/Installation Tool: A tool used to smoothly load the coil insert and screw it into the newly tapped hole.

• Pin Breaking Tool: Used to break off the tang (the small drive pin on the coil) once the insert is fully seated and the thread is repaired.

• Storage Case: All components are packaged in a durable case for organization and portability.

Thread Repair Process (As illustrated)

The repair process is a simple six-step operation:

1. Drill out the damaged thread using the correctly sized drill bit.

2. Tap the re-drilled hole using the special recoil hand tap.

3. Load the coiled insert into the applicator tool.

4. Screw the coil into the tapped hole in the casting/material.

5. Using the pin breaking tool, break off the insert's pin.

6. The thread is now repaired and ready to use.

Applications

Ideal for repairing damaged threads in soft materials like aluminum and magnesium alloy castings, commonly found in engine blocks, transmissions, and machinery.
