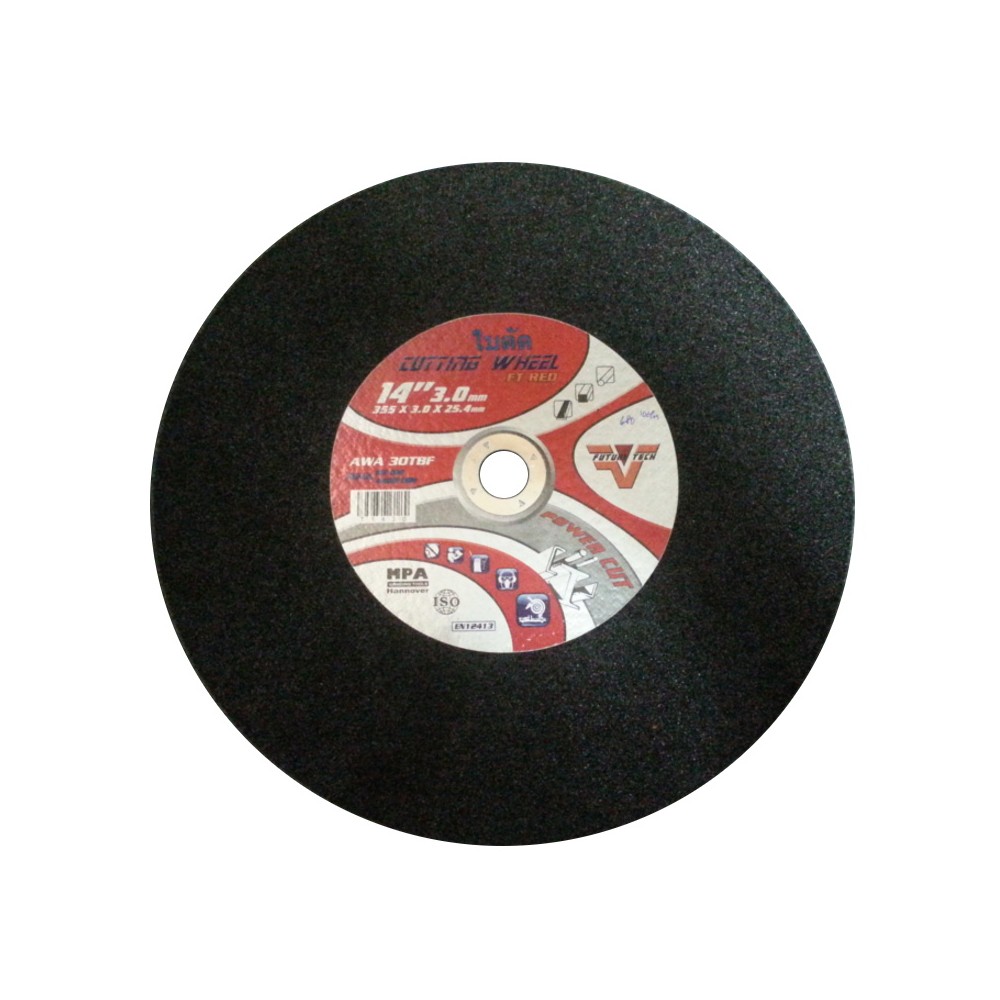

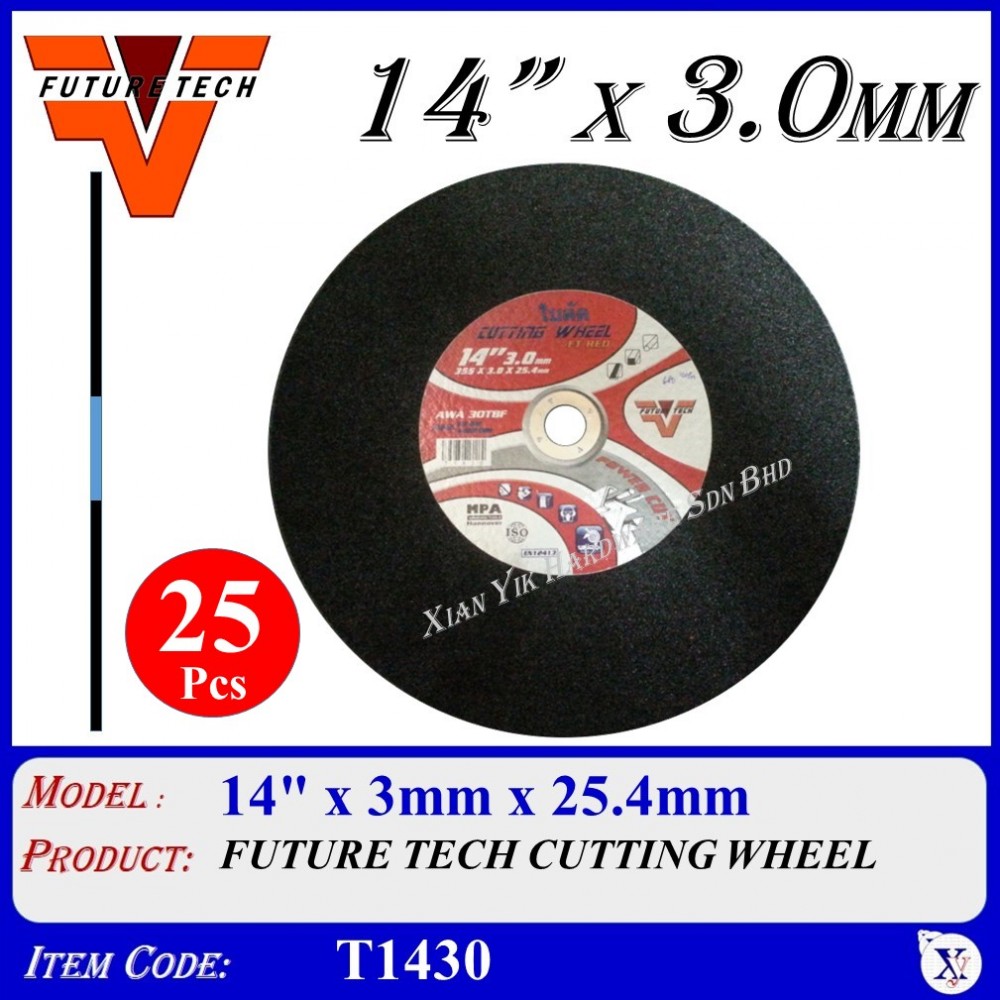

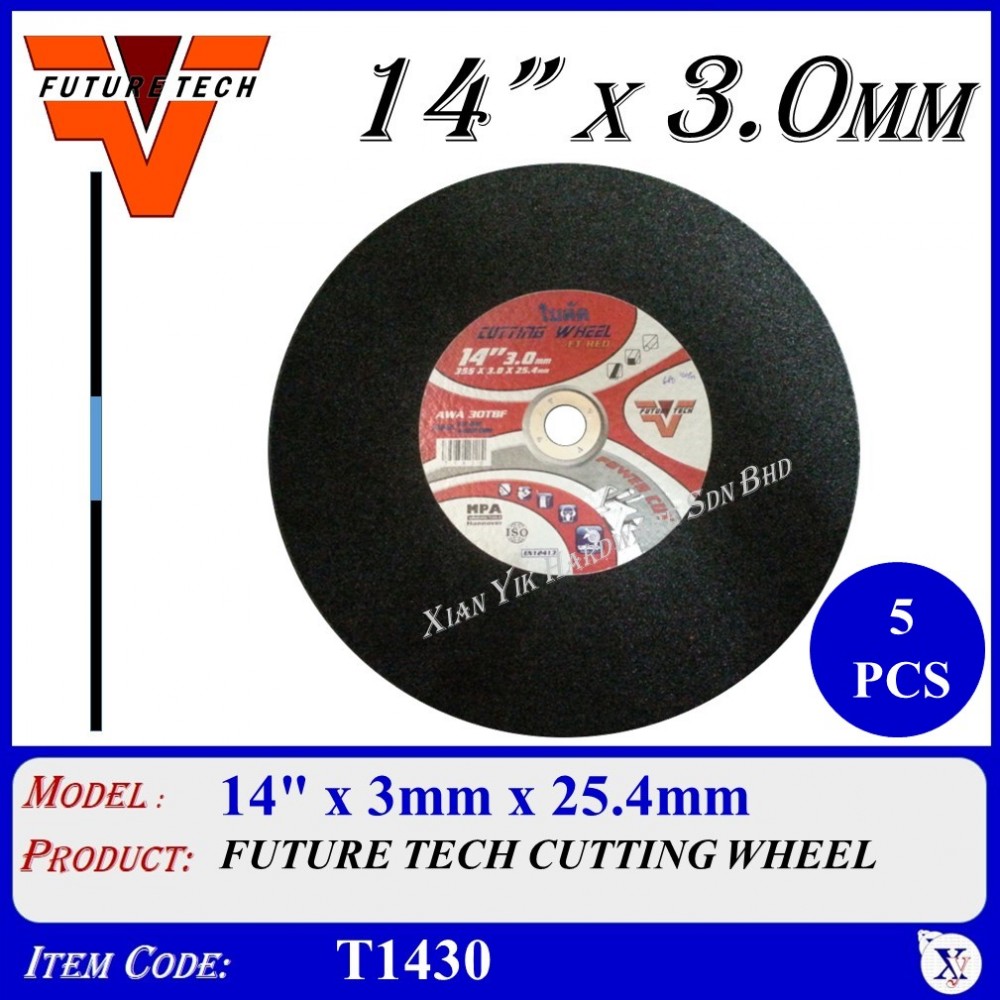

FUTURE TECH CUTTING WHEEL - 14" 355mm x 3mm x 25.4mm (1box / 25pc)

Reference:

Condition: New

Future Tech Cutting Wheel 14”

Red Colour

Cutting Wheel

Fast & Clean cut

Size : 355mm x 3.0mm x 25.4mm

Abrasive Gain : Single Aluminium Oxide

Grit No : AWA 30TBF

Max Speed : 80 m/s 4400 min

More details

1000 Item Items

RM49.50 tax excl.

Quantity

5 pcs
25 pcs

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The FUTURE TECH CUTTING WHEEL (T1430) is a large, resin-bonded abrasive disc primarily designed for use with a stationary or portable chop saw (or abrasive cut-off machine) for cutting ferrous metals.

The specifications indicate a durable, general-purpose wheel for heavy-duty metal fabrication work.

Here is a detailed breakdown of the product and its specifications:

Feature Specification Description
Model/Code T1430 Product code for the wheel.
Brand FUTURE TECH The manufacturer/supplier name.
Quantity 1 box/25 pcs Packaging unit.

Dimensions
Diameter 14 inches (355mm) The overall size, designed to fit 14-inch chop saws.
Thickness 3mm A standard thickness for chop saw wheels, providing a balance of fast cutting, long life, and high resistance to breakage.

Arbor Hole (Bore) 25.4mm (1 inch) The standard hole size for mounting on most 14-inch chop saw spindles.
Material/Application Steel, Stainless Steel (Inox), and other Ferrous Metals Designed for fast, clean cutting of a wide range of metal materials like pipes, rods, angle iron, and metal profiles.
Abrasive Grain Single Aluminium Oxide (AWA or A) Aluminum Oxide is the standard abrasive for cutting ferrous metals (iron and steel).

Grit No. 30 (AWA 30TBF) A relatively coarse grit (30) for aggressive stock removal, fast cutting, and improved wheel life, typical for a chop saw application.
Max Operating Speed Max Speed: 80 m/s (4400 min
−1
or RPM) The maximum safe surface speed and rotational speed for the wheel. Always ensure this meets or exceeds the RPM of your chop saw.
Type/Shape Type 41 (Flat) A flat, reinforced disc shape, standard for chop saw wheels.

Features Fast & Clean cut The 3mm thickness is balanced for both speed and durability.

In summary, the T1430 FUTURE TECH CUTTING WHEEL is a 14-inch metal cutting disc intended for high-volume cutting on a chop saw, offering excellent durability and good cutting performance on steel and stainless steel.
