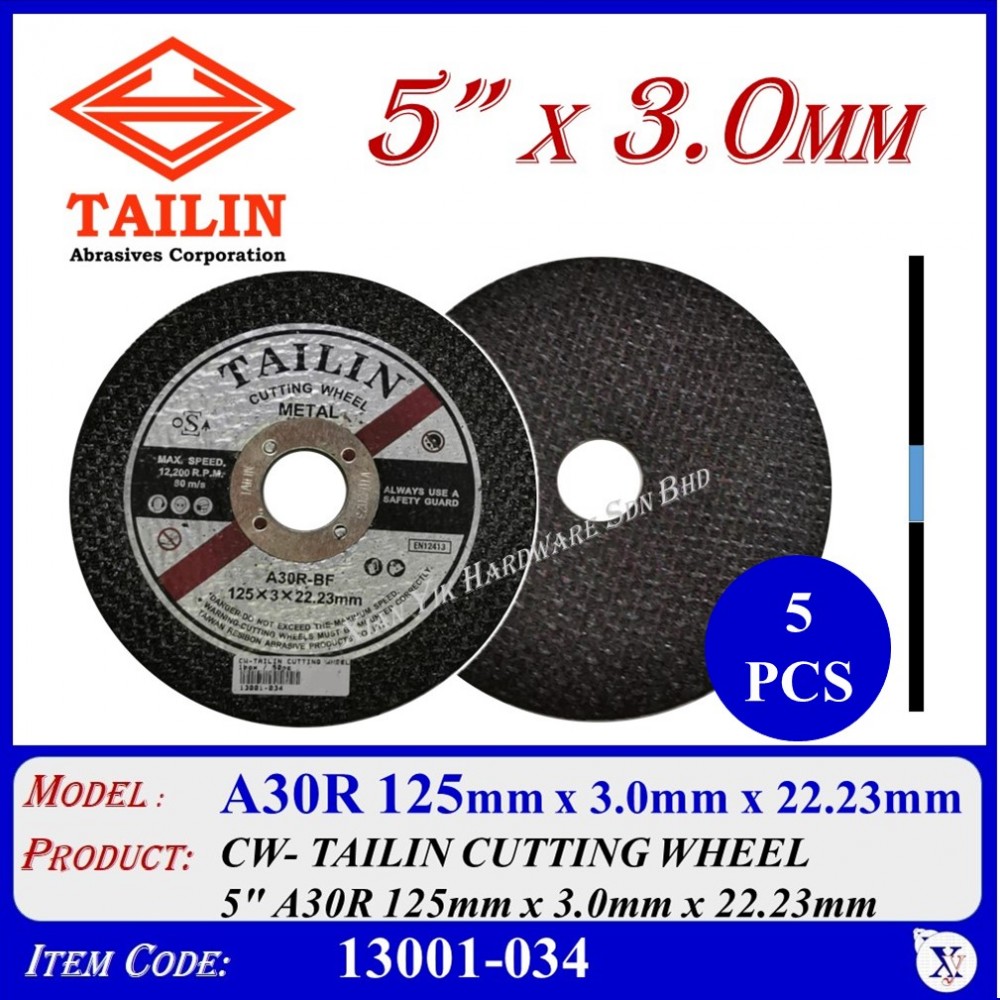

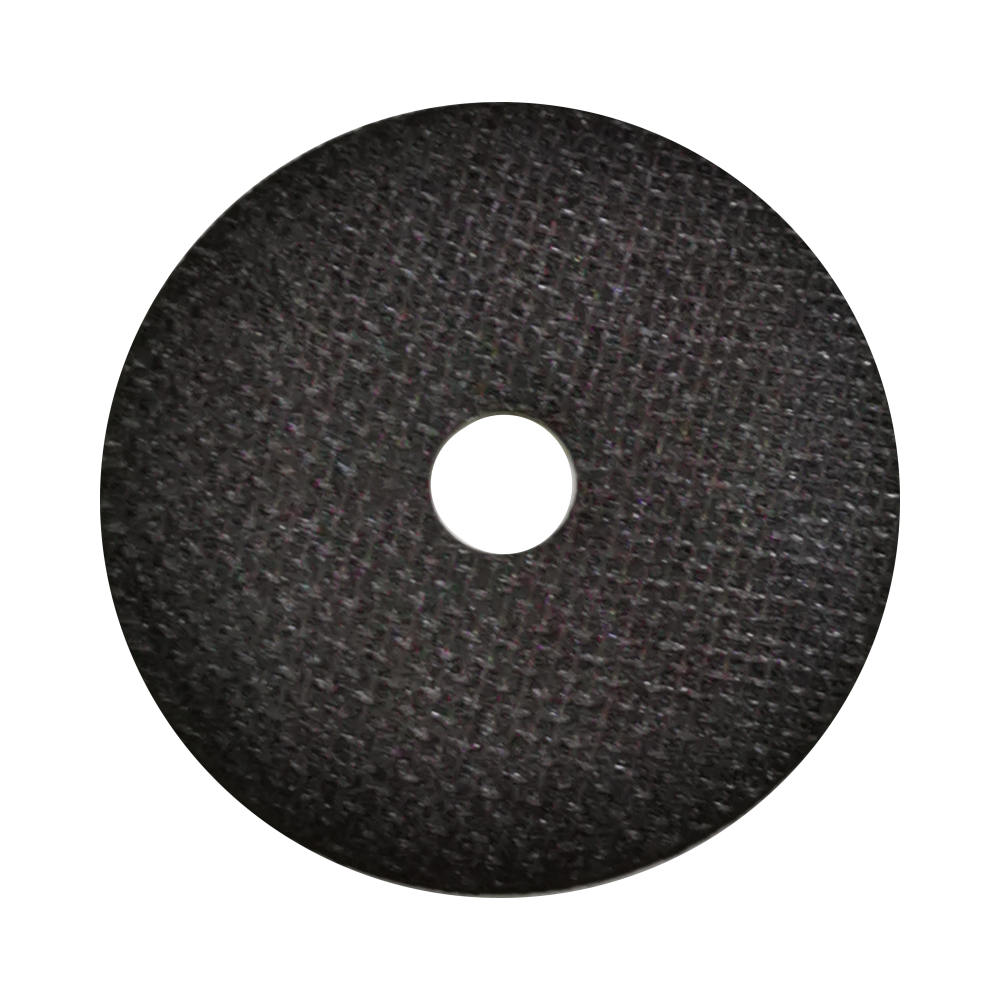

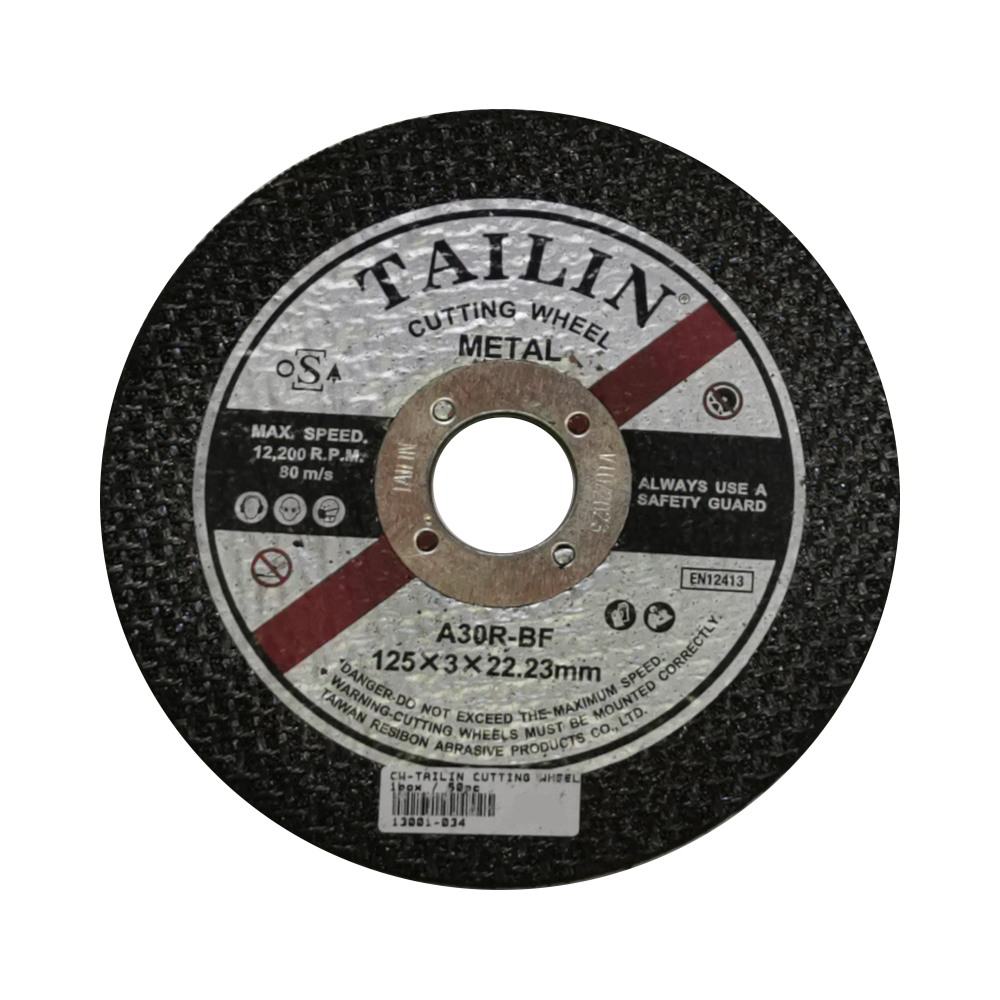

TAILIN CUTTING WHEEL - 5" X A30R 125mm x 3.0mm x 22.23mm (125mm x 3.0mm x 22.23mm)

Reference:

Condition: New

The TAILIN 13001-034 cutting wheel is a reinforced abrasive disc designed for heavy-duty and general-purpose cutting of metal using a 5 inch angle grinder.

Here is a detailed description based on the provided specifications:

TAILIN 13001-034 Cutting Wheel
Characteristic Specification
Product Model 13001-034
Abrasive Specification A30R-BF (Abrasive Grade)
Application Material Metal (Suitable for carbon steel, iron, and general metal fabrication)
Product Type Reinforced Cut-Off Wheel (Standard Thickness)
Dimensions Diameter: 125 mm (5 inches)
Thickness: 3.0 mm
Bore/Arbor Hole: 22.23 mm
Wheel Shape Type 1 (Flat)
Abrasive Grain Aluminium Oxide (A)
Grit Size 30 (Coarse, for aggressive material removal and thick materials)
Bond Hardness R (Hard bond, indicating long life)
Bond Type BF (Resinoid, Fiberglass Reinforced)
Max. Rotational Speed 12,200 RPM (80 m/s) (Maximum speed for a 125 mm disc)

Key Features and Application
General Metal Cutting: This wheel is ideal for general cutting of ferrous metals like structural steel, pipe, angle iron, and rebar, where a longer wheel life is desired.

Standard Thickness: At 3.0 mm thick, it offers a good balance between cutting speed and the durability needed for heavy-duty applications or cutting thicker pieces of material.

Abrasive Grade (A30R):

A (Aluminum Oxide): The standard abrasive material for steel and iron.

30 (Grit): A very coarse grit size. This is designed for the most aggressive cutting action and very fast stock removal, often preferred for thicker or harder materials where a smooth finish is not a primary concern.

R (Hardness): A hard bond, which allows the wheel to last longer, even under high pressure and heavy use.

Reinforced Construction: Manufactured with quality abrasive grains and a unique weave of high tensile fiberglass reinforcement (BF), ensuring high performance and safety strength.

Machine Compatibility: Designed for use on 5 inch (or 125 mm) angle grinders.
