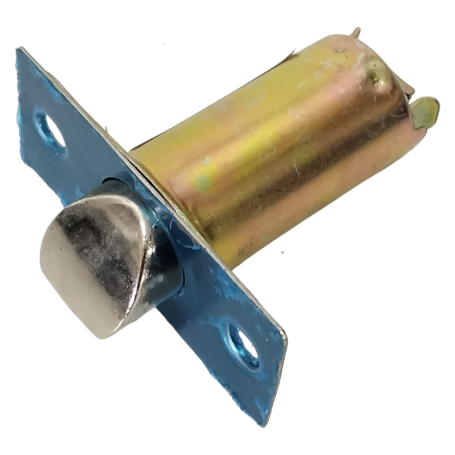

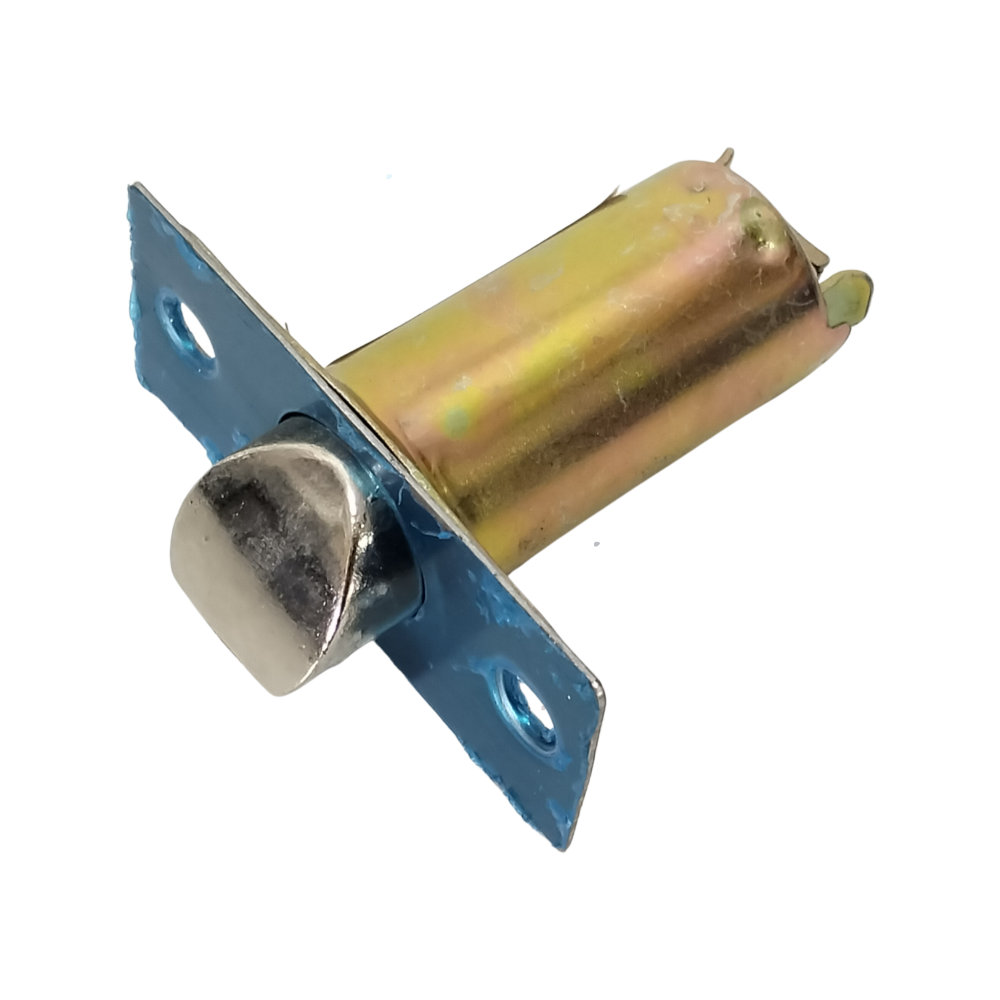

Heavy Duty Tubular Mortice Door Latch – Internal Door Bolt with Chrome Latch Bolt
Product Overview
This tubular latch is a standard, reliable mechanism designed for internal doors that require a latching function without a deadbolt lock. It is compatible with most standard lever handles and doorknobs on rose or backplate. The spring-assisted bolt ensures a smooth and positive closing action every time.
Key Features
-
Smooth Latch Operation: Features a curved chrome-plated latch bolt that reduces friction for a quiet and effortless "soft-close" feel.
-
Durable Construction: The main body is encased in a robust steel housing with a yellow zinc-plated finish to prevent internal corrosion and mechanical wear.
-
Protective Film: The faceplate comes with a blue protective peel-off film to ensure the chrome finish remains scratch-free during installation.
-
Universal Handing: The reversible latch bolt design allows for installation on both left-handed and right-handed opening doors.
-
Standard Fitment: Designed with a two-hole fixing flange for secure mounting to the door edge.
Product Specifications
-
Item Type: Tubular Mortice Latch
-
Body Material: Zinc Plated Steel
-
Latch Bolt Material: Chrome Plated Zinc Alloy
-
Faceplate Finish: Polished Chrome (under protective film)
-
Mechanism: Spring Tension Latch
Common Applications
-
Residential Interiors: Ideal for bedrooms, living rooms, and hallway doors.
-
Office Doors: Suitable for internal timber doors used with lever handles.
-
Renovations: A standard replacement part for worn-out internal door latches.
Installation Guide
-
Mortice: Use a spade bit to drill a hole into the door edge to accommodate the depth of the latch body.
-
Faceplate Recess: Chisel a shallow recess so the faceplate sits flush with the door edge.
-
Spindle Alignment: Ensure the square hole for the handle spindle is perfectly aligned before securing.
-
Secure: Fix the latch in place using two wood screws through the faceplate mounting holes.
-
Strike Plate: Align and install the strike plate on the door frame to receive the latch bolt.
