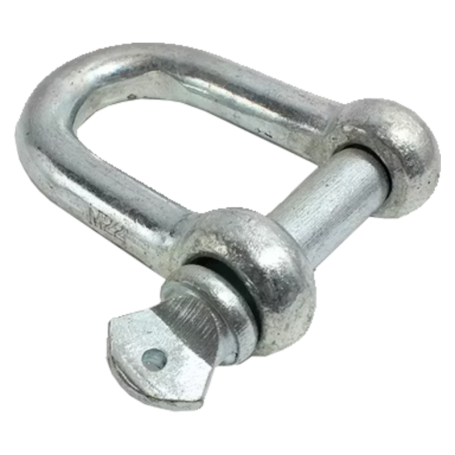

GALVANIZED JIS SHACKLE (GI SHACKLE)

More info

Galvanized JIS Shackle (GI Shackle / 昔加 GI)

The C006-051 Series consists of standard Japanese Industrial Standard (JIS) type shackles, commonly referred to as "GI Shackles" in the local trade. These are D-style shackles featuring a screw pin for quick connection and disconnection. Constructed from carbon steel and finished with a hot-dipped galvanized coating, they are designed for light to medium-duty tethering, pulling, and static suspension tasks where a reliable, weather-resistant connection is required.

Product Specifications

Type: JIS Type D-Shackle (Dee Shackle)
Closure: Threaded Screw Pin
Material: Carbon Steel
Finish: Galvanized (GI) for rust and corrosion resistance
Application: Marine mooring, fencing, general construction, and light-duty rigging

Available Variations

Model Code	Size (Diameter)	Packaging Unit	Primary Use Case
C006-051	05mm	2000 PCS / Bag	Decorative and ultra-light hardware
C006-052	06mm	2000 PCS / Bag	Small garden and DIY projects
C006-053	08mm	800 PCS / Bag	Standard fencing and clotheslines
C006-054	10mm	400 PCS / Bag	General hardware and shade cloth
C006-055	12mm	200 PCS / Bag	Medium-duty tethering
C006-056	16mm	100 PCS / Bag	Industrial site maintenance
C006-057	20mm	50 PCS / Bag	Heavy static loads
C006-058	22mm	40 PCS / Bag	Structural wire rope management
C006-059	25mm	30 PCS / Bag	Large scale agricultural rigging
C006-060	50mm	2 PCS / Bag	Extra-large industrial connections

Key Features

Corrosion Protection: The hot-dipped galvanized finish provides a thick layer of zinc protection, making these shackles suitable for high-humidity and outdoor environments.
JIS Standard Design: Follows traditional Japanese hardware dimensions, ensuring compatibility with standard hooks, eyes, and chain links.
Screw Pin Convenience: Allows for fast assembly and disassembly without the need for specialized tools—ideal for temporary rigging.
Compact Dee Shape: The straight-leg design is perfect for taking heavy loads in a straight line, preventing the shifting often found in bow shackles.
Wide Size Spectrum: Ranging from 5mm for light crafts to 50mm for heavy-duty industrial use.
