PIN NAIL T-SERIES FASTENERS FOR PNEUMATIC NAILER USE

Reference:

Condition: New

100 Item Items

RM13.50 tax excl.

Model

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

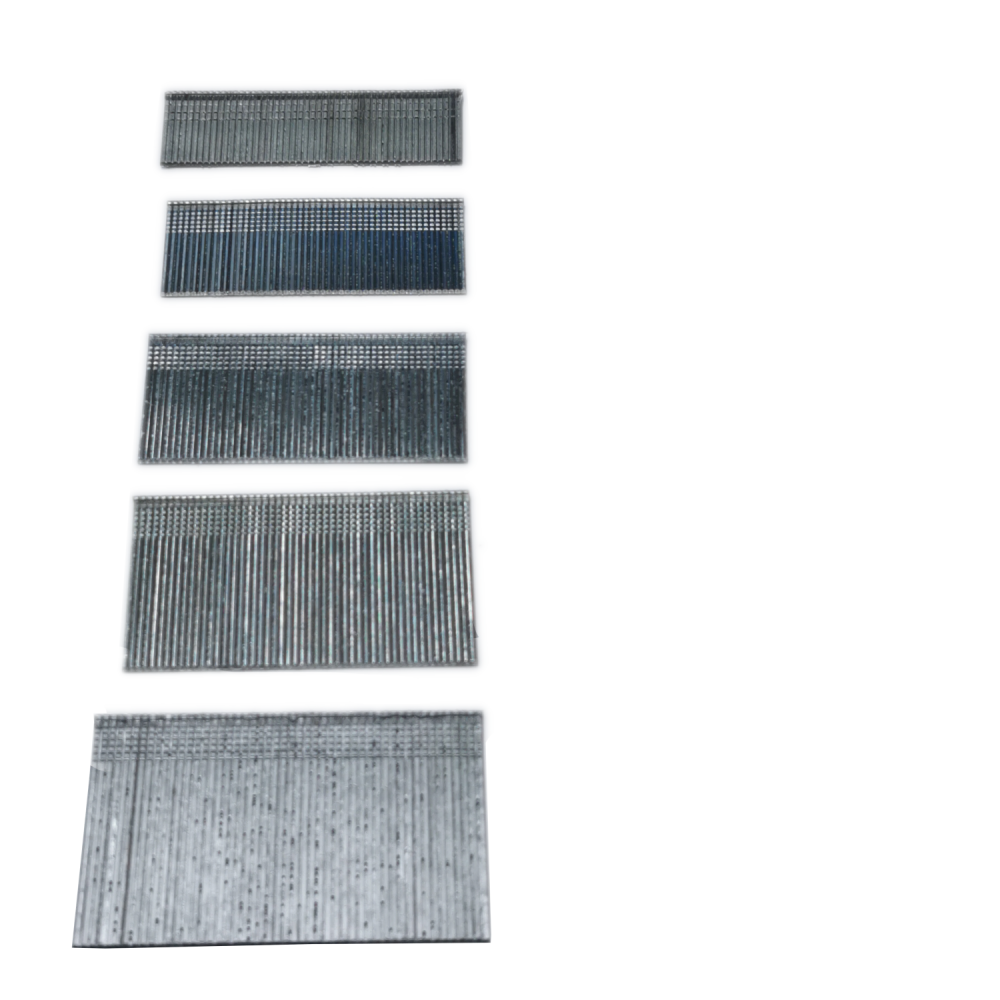

T-Series Straight Finish Nails (Pneumatic T-Nails)

The T-Series (PN) consists of heavy-duty straight finish nails designed for high-power pneumatic nailers. Unlike the lighter F-series, T-nails feature a thicker shank and a more pronounced head, providing significantly higher holding power and shear resistance. These are the preferred fasteners for heavy-duty timber construction, pallet assembly, hardwood flooring, and structural woodworking where a robust, permanent mechanical bond is required.

Product Specifications

Type: Straight Finish Nails (T-Series)
Material: Galvanized High-Tensile Steel
Head Type: Full T-Head (Maximum grip)
Wire Gauge: 16 Gauge (Heavy-duty standard)
Compatibility: Industrial-grade T-series pneumatic nailers
Application: Timber framing, heavy cabinet assembly, door frame installation, hardwood flooring, and wooden crate construction

Available Variations

Model Code	Ref Code	Nail Length	Description
PN-T25	A14-PN-T25	25mm	Standard cabinetry and heavy trim
PN-T32	A14-PN-T32	32mm	Door frame and internal partitioning
PN-T38	A14-PN-T38	38mm	Structural woodworking and flooring
PN-T45	A14-PN-T45	45mm	Heavy-duty framing and pallet assembly
PN-T50	A14-PN-T50	50mm	Max-penetration for structural timber

Key Features

High-Strength T-Head: The enlarged T-shaped head provides superior pull-through resistance, ensuring that even under tension, the wood remains securely fastened.
Galvanized Coating: Each nail is zinc-plated to resist rust and oxidation, making these fasteners suitable for use in environments where moisture or humidity is present.
Thick Gauge Steel: Manufactured with a 16-gauge wire diameter to prevent bending when driven into high-density hardwoods or multiple layers of plywood.
Precision Chisel Point: Features a diamond-honed chisel point that cuts through wood fibers cleanly, minimizing the risk of splitting even when used near the edge of a board.
Rigid Strip Collation: Nails are bonded into straight strips with industrial-grade adhesive, ensuring smooth feeding through the nailer magazine and reducing downtime caused by jams.
