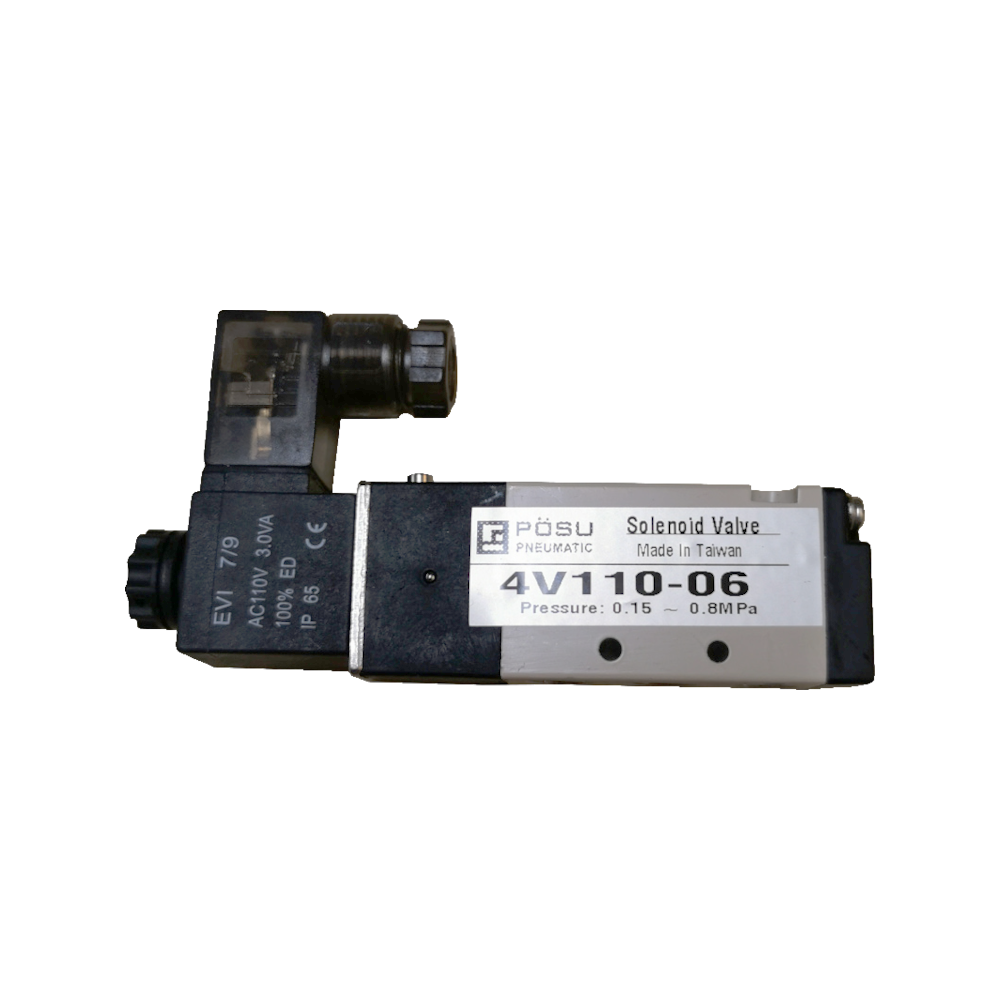

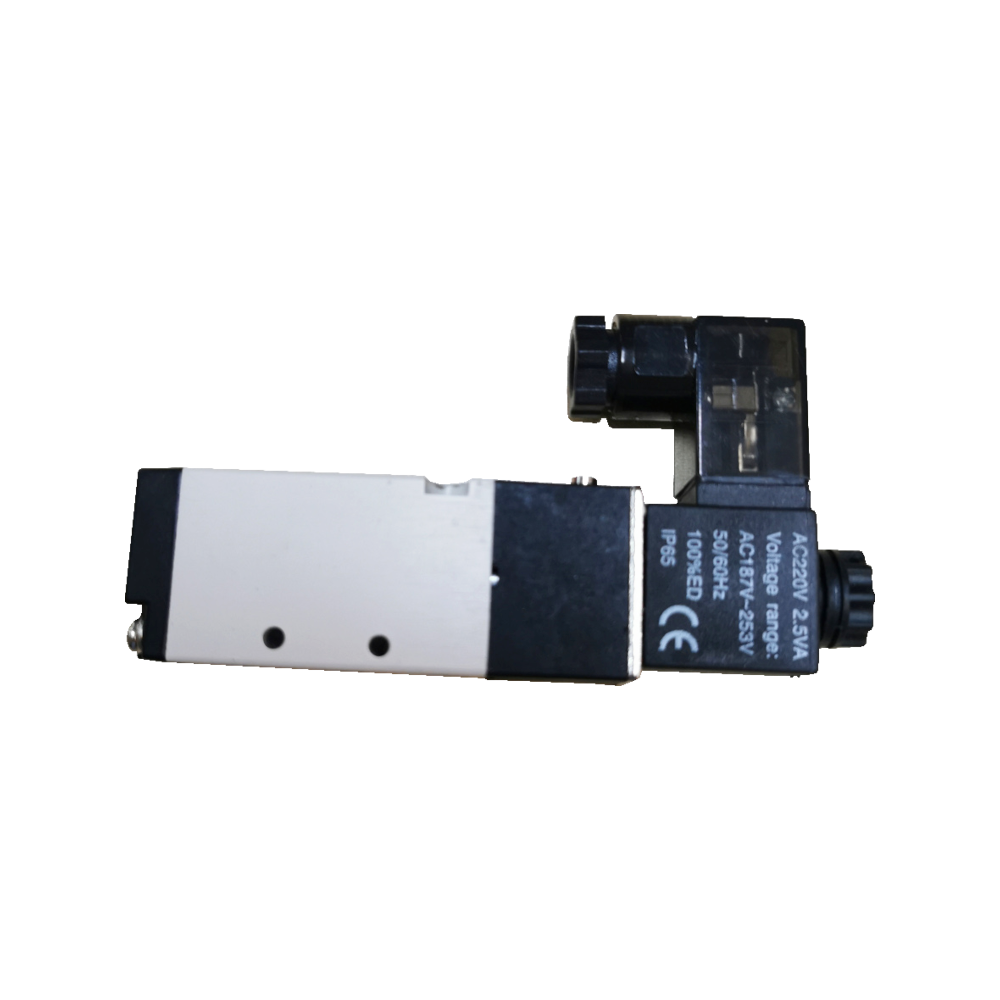

SUN-RISE 4V110-06 SOLENOID VALVE - SINGLE 1/8" X 5/2way 100 SERIES

Reference:

Condition: New

60 Item Items

RM73.00 tax excl.

SIZE

DC24
AC110V
AC220V

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The SUN-RISE 100 Series is a compact 5/2-way single solenoid valve used for controlling double-acting pneumatic cylinders. It is commonly used in automation and machinery due to its small footprint and reliable internal pilot-operated design.

Key Specifications

Type: 5/2 Way (5 ports, 2 positions).
Actuation: Single solenoid with internal spring return.
Port Size: 1/8" G-Thread (standard for the 100 series).
Pressure Range: Typically 1.5 to 8 Bar (Max 10 Bar).
Medium: Filtered compressed air.
Response Time: Very fast (approx. 15–20 milliseconds).

Physical Features

Body Material: Die-cast aluminum alloy for durability.
Manual Override: Usually includes a push-type button for testing without power.
Indicators: Typically equipped with an LED light on the connector to show power status.
Mounting: Can be used individually or mounted on a manifold base.

How It Functions

Energized: The solenoid pulls the internal spool, directing air to Port A and exhausting Port B.
De-energized: A spring pushes the spool back, reversing the airflow (Port B active, Port A exhausting).

Key Point: This valve is "single acting," meaning it will always return to its default position if power is lost.
