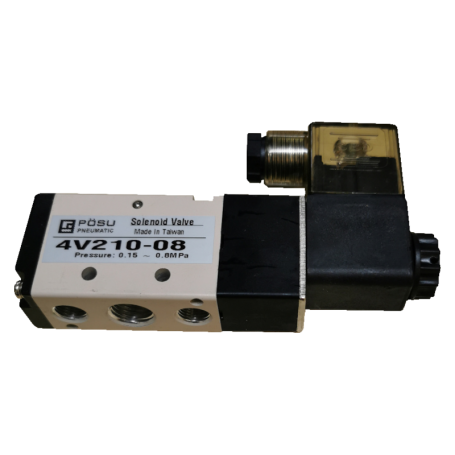

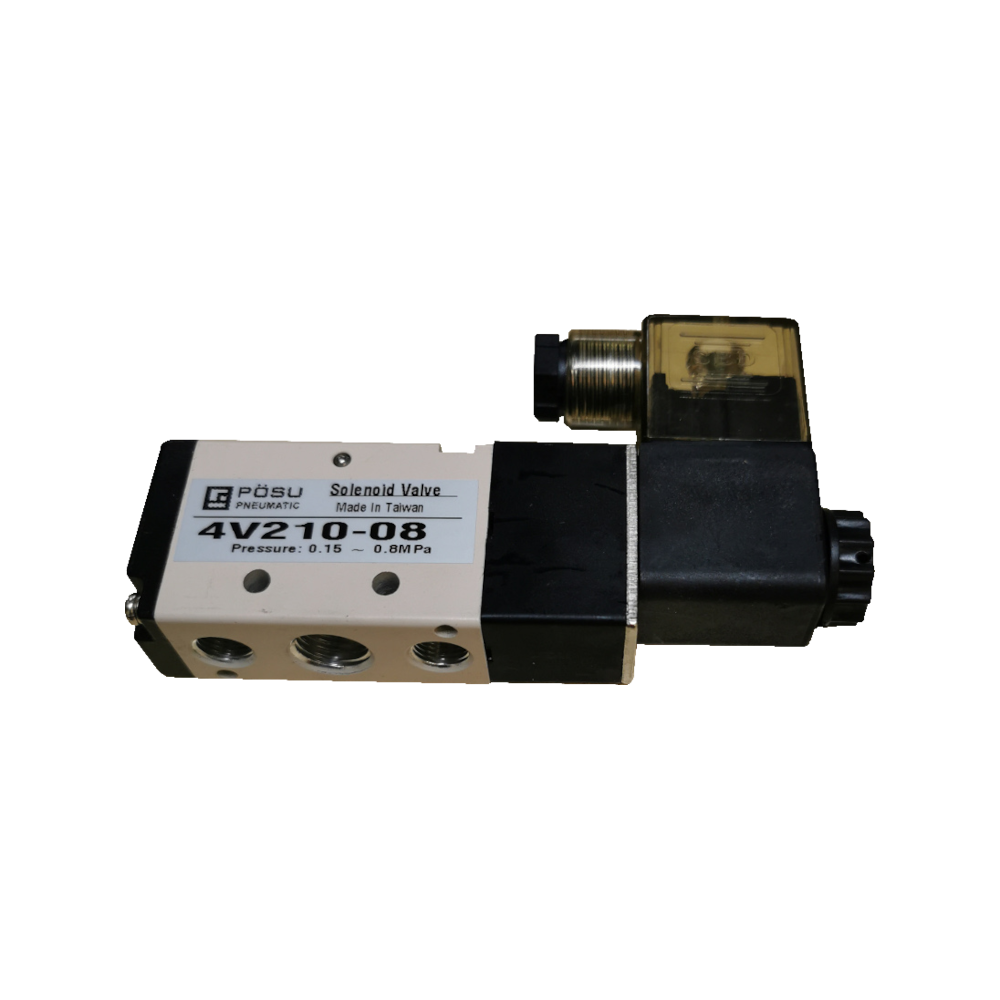

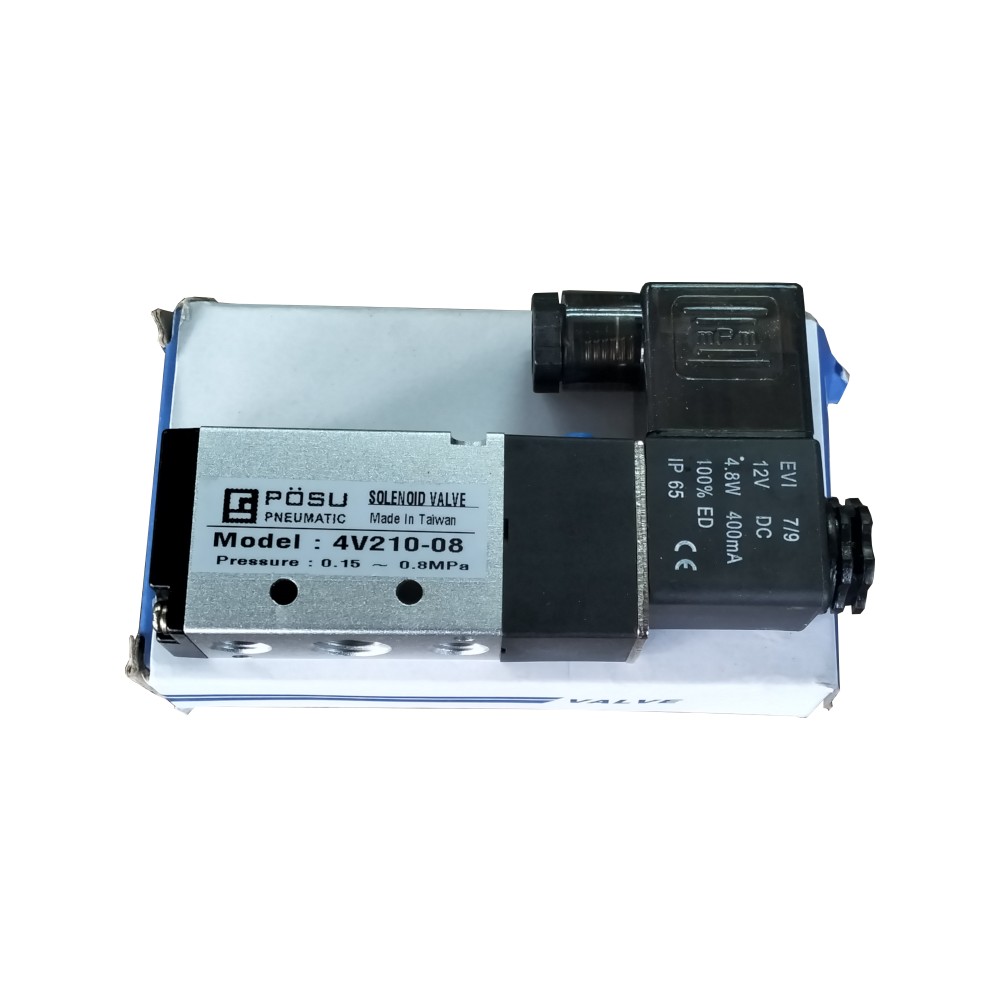

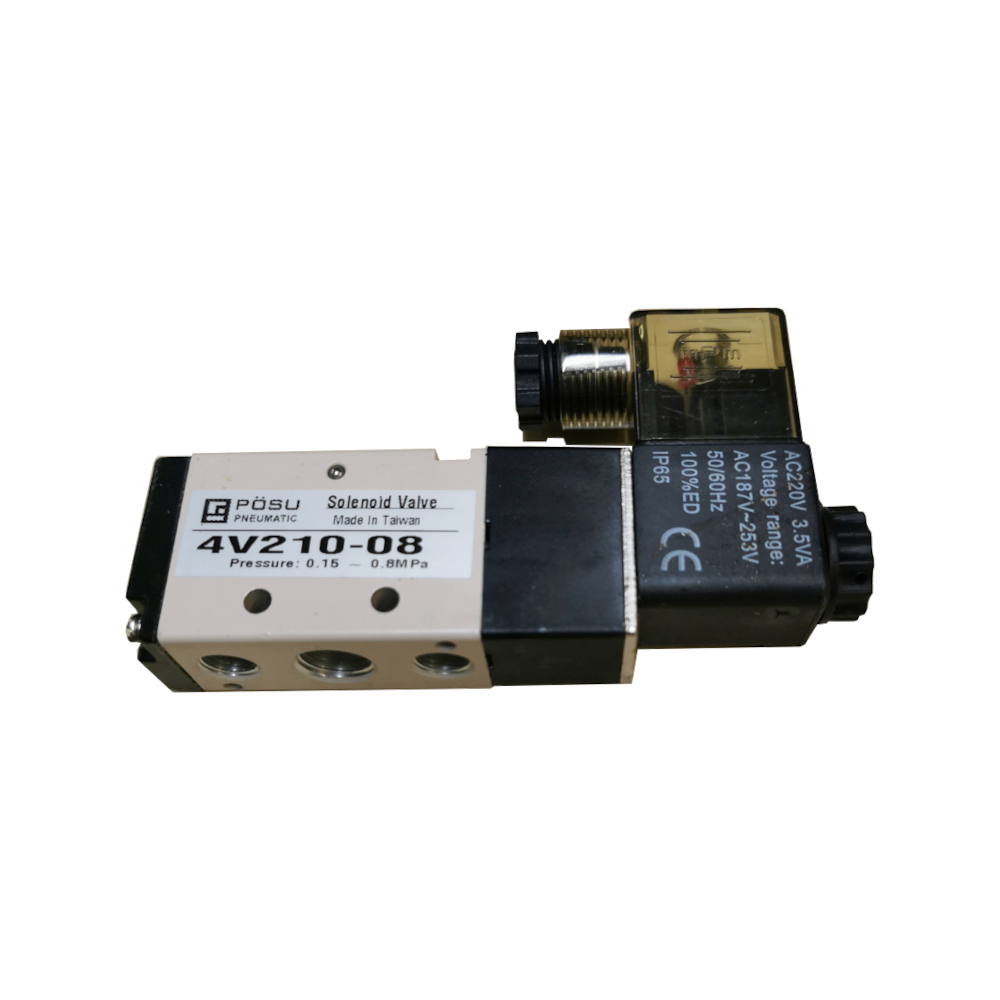

SUN-RISE 4V210-08 SOLENOID VALVE - SINGLE 1/4" X 5/2way 200 SERIES

Reference:

Condition: New

80 Item Items

RM62.00 tax excl.

SIZE

DC24
AC110V
AC220V
AC240V

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The SUN-RISE 4V210-08 is a 200 Series pneumatic solenoid valve that offers a larger 1/4" port size compared to the 4V210-06. It is a 5/2-way single solenoid valve with an internal spring return, primarily used to control double-acting pneumatic cylinders in industrial automation.

Key Specifications

Model: 4V210-08 (200 Series).
Configuration: 5 Port 2 Position (5/2 Way).
Port Size: 1/4" (Input/Output) and 1/8" (Exhaust).
Orifice Size: 17.0mm² ((C_{v}) = 1.0), providing higher flow than the -06 model.
Operating Pressure: 0.15 to 0.8 MPa (1.5 – 8 Bar).
Max Pressure: 1.2 MPa (12 Bar).
Operating Temperature: -20 to 70°C.

Design & Performance Features

Internal Structure: Uses a sliding column structure for high sensitivity and excellent airtightness.
Material: Constructed with a high-quality die-cast aluminum alloy body.
Lubrication: Generally maintenance-free and does not require additional oil lubrication.
Switching Speed: Extremely fast response time of 0.05 seconds or less.
Manual Control: Features a manual override button to allow for testing without electrical power.
