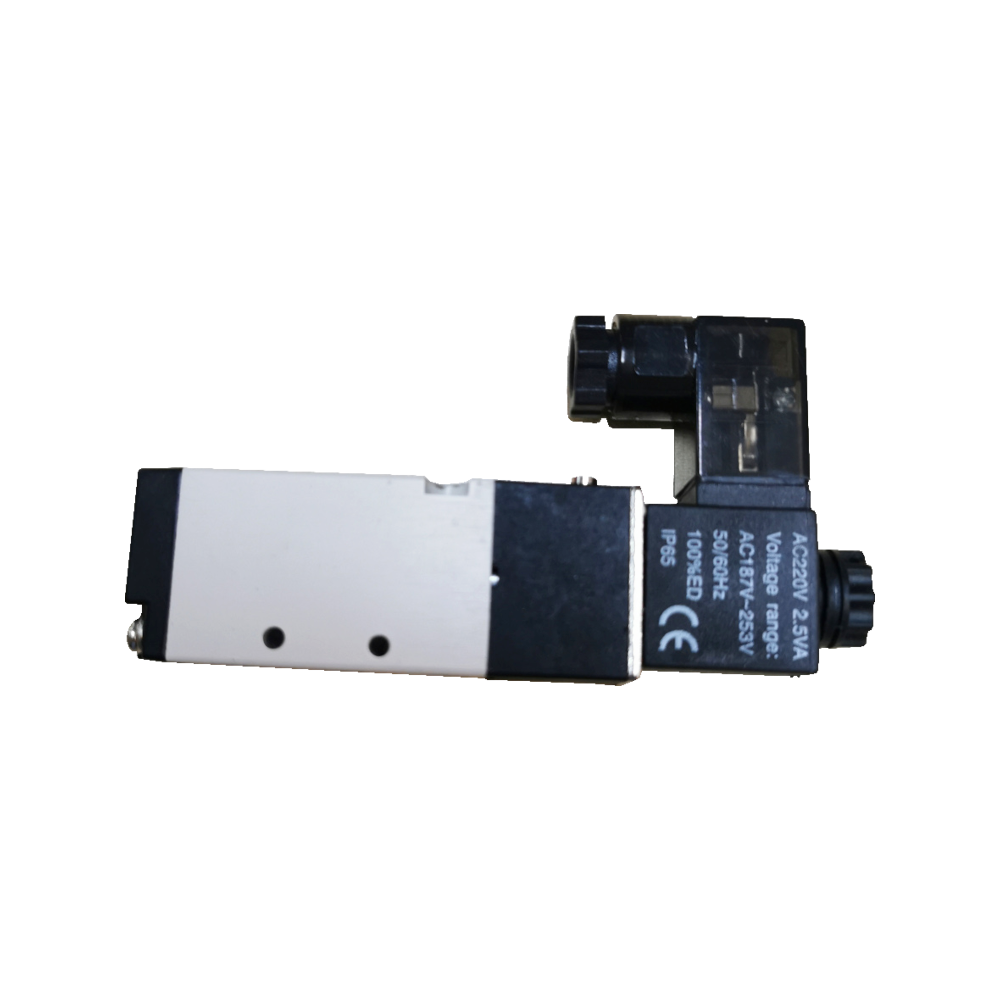

SUN-RISE 4V210-06 SOLENOID VALVE - SINGLE 1/8" X 5/2way 200 SERIES

Reference:

Condition: New

60 Item Items

RM73.00 tax excl.

SIZE

DC24
AC110V
AC220V

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The SUN-RISE 4V210-06 is a 200 Series pneumatic solenoid valve, designed as a higher-flow alternative to the 100 Series. It features a 5/2-way configuration with a single solenoid and internal spring return, primarily used to control double-acting cylinders in industrial automation.

Key Specifications

Model: 4V210-06 (200 Series).
Valve Type: 5 Port 2 Position (5/2 Way).
Port Size: 1/8" G, PT, or NPT thread for all ports.
Orifice Size: 14.0mm² ((C_{v}) = 0.78), offering higher flow than the 100 series.
Operating Pressure: 0.15 to 0.8 MPa (1.5 – 8 Bar).
Proof Pressure: 1.2 MPa (12 Bar).
Operating Temperature: -20 to 70°C.

Design & Performance

Acting Type: Internally piloted with a sliding column structure for high sensitivity and tightness.
Body Material: Durable aluminum alloy.
Lubrication: Not required under normal operating conditions.
Max Frequency: 5 cycles per second.
Manual Override: Equipped with a manual button for testing and debugging during installation.

Electrical Options

Commonly available in multiple voltage configurations to suit different control systems:

DC: 12V or 24V (approx. 2.5W – 3W power consumption).
AC: 24V, 110V, or 220V (approx. 3.5VA – 4.5VA).
Protection: IP65 rated when used with a DIN connector.

Key Point: While the 100 and 200 series both offer 1/8" port sizes (in specific models like the 4V210-06), the 200 series body is larger and provides significantly better airflow ((C_{v}) 0.78 vs ~0.60 in 100 series) for faster cylinder actuation.
