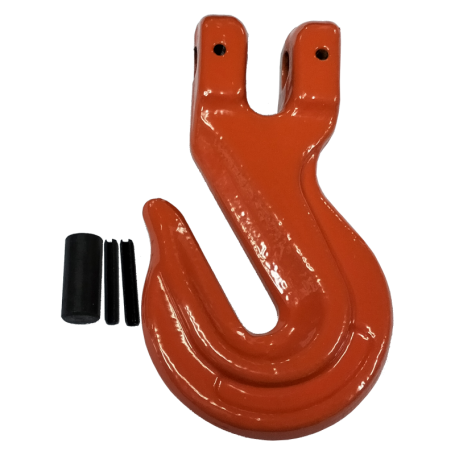

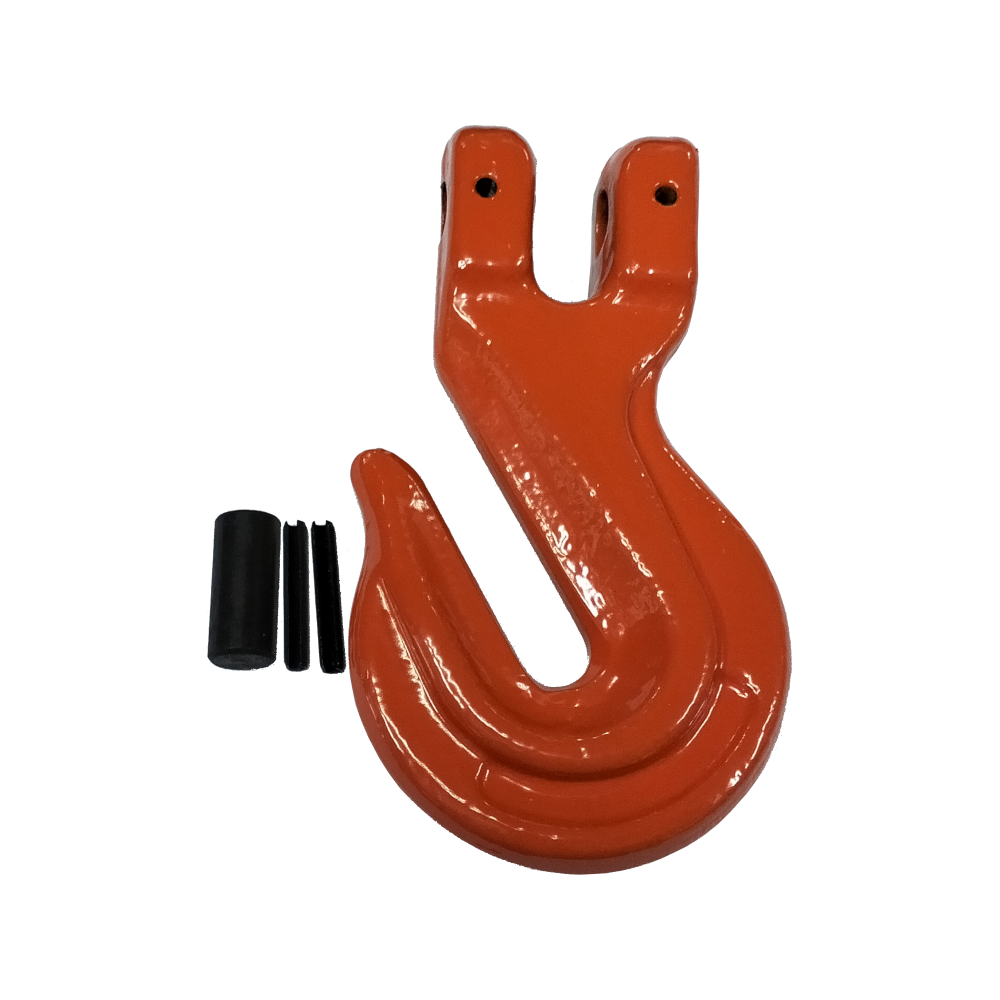

KOREA BST Alloy Clevis Sling Hook with Latch (SLC Type)
The KOREA BST SLC Series is a high-performance Grade 80 (GR80) clevis sling hook designed for secure and efficient chain rigging. These hooks feature a clevis head design, allowing for a direct and permanent connection to a lifting chain of a matching size without the need for additional connecting links. Equipped with a heavy-duty forged safety latch, the SLC series ensures that the load remains securely attached during complex lifting operations.
Product Specifications
-
Brand: BST (Korea Technology)
-
Model Series: SLC
-
Type: Clevis Sling Hook with Latch
-
Material: Forged Grade 80 (GR80) Alloy Steel
-
Finish: Yellow Powder Coated (High Visibility)
-
Safety Feature: Heavy-Duty Spring Loaded Safety Latch
-
Application: Chain slings, overhead lifting, towing, and industrial rigging
Available Variations
| Model Code |
Chain Size |
Rated Capacity (WLL) |
Description |
| SLC-0112 |
6mm |
1.12 Ton |
Light-duty chain assembly |
| SLC-0200 |
7/8mm |
2.0 Ton |
Standard industrial lifting |
| SLC-0315 |
10mm |
3.15 Ton |
Heavy-duty rigging |
| SLC-0530 |
13mm |
5.3 Ton |
High-capacity industrial use |
| SLC-0800 |
16mm |
8.0 Ton |
Max-strength structural rigging |
Key Features
-
Clevis Connection: The integrated U-shaped clevis allows for a simple, secure pin-and-cotter connection directly to Grade 80 lifting chains, minimizing the assembly profile.
-
Forged Safety Latch: The thick, forged latch is designed to interlock with the hook tip, providing a robust closure that resists sideways movement and accidental release.
-
High Tensile Alloy Steel: Manufactured from quenched and tempered GR80 steel, offering high strength-to-weight ratios and excellent resistance to wear and fatigue.
-
Safety Factor 4:1: Engineered with a 4:1 safety factor, meaning the minimum breaking load is four times the rated Working Load Limit (WLL).
-
Clear Grade Markings: The body is clearly embossed with the WLL and chain size for easy identification during field inspections and safety audits
