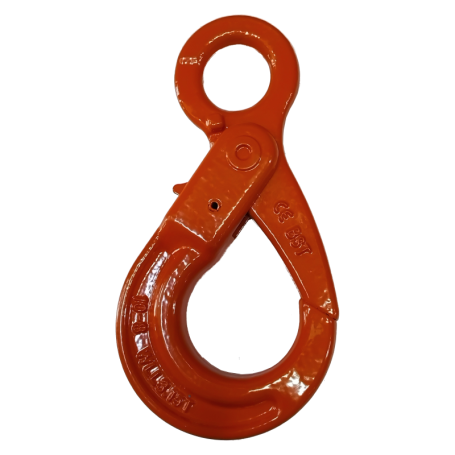

GR80 ALLOY SWIVEL EYE SELF LOCKING HOOK (SLE TYPE) - ORANGE

Reference:

Condition: New

45 Item Items

RM27.00 tax excl.

Size

1 TON
1.5TON
2TON
3TON
3.15TON
7.5TON
11TON
5TON
15TON

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

GR80 Alloy Swivel Eye Self-Locking Hook (SLE Type)

The GR80 SLE Series is a professional-grade lifting component engineered for maximum safety in overhead lifting and rigging applications. These hooks feature a self-locking mechanism that automatically closes and locks when a load is applied, ensuring the hook cannot open under tension. The swivel eye design allows the hook to rotate 360 degrees, helping to align the load and preventing the lifting chain or wire rope from twisting. Manufactured from high-tensile Grade 80 (GR80) alloy steel, these hooks are finished in high-visibility orange powder coating.

Product Specifications

Type: Swivel Eye Self-Locking Hook (SLE Type)
Material: Forged Grade 80 (GR80) Alloy Steel
Finish: Orange Powder Coated (High Visibility)
Safety Feature: Automatic Self-Locking Trigger
Rotation: 360° Swivel Eye (Positioning only)
Application: Industrial lifting, chain slings, wire rope assemblies, and crane rigging

Key Features

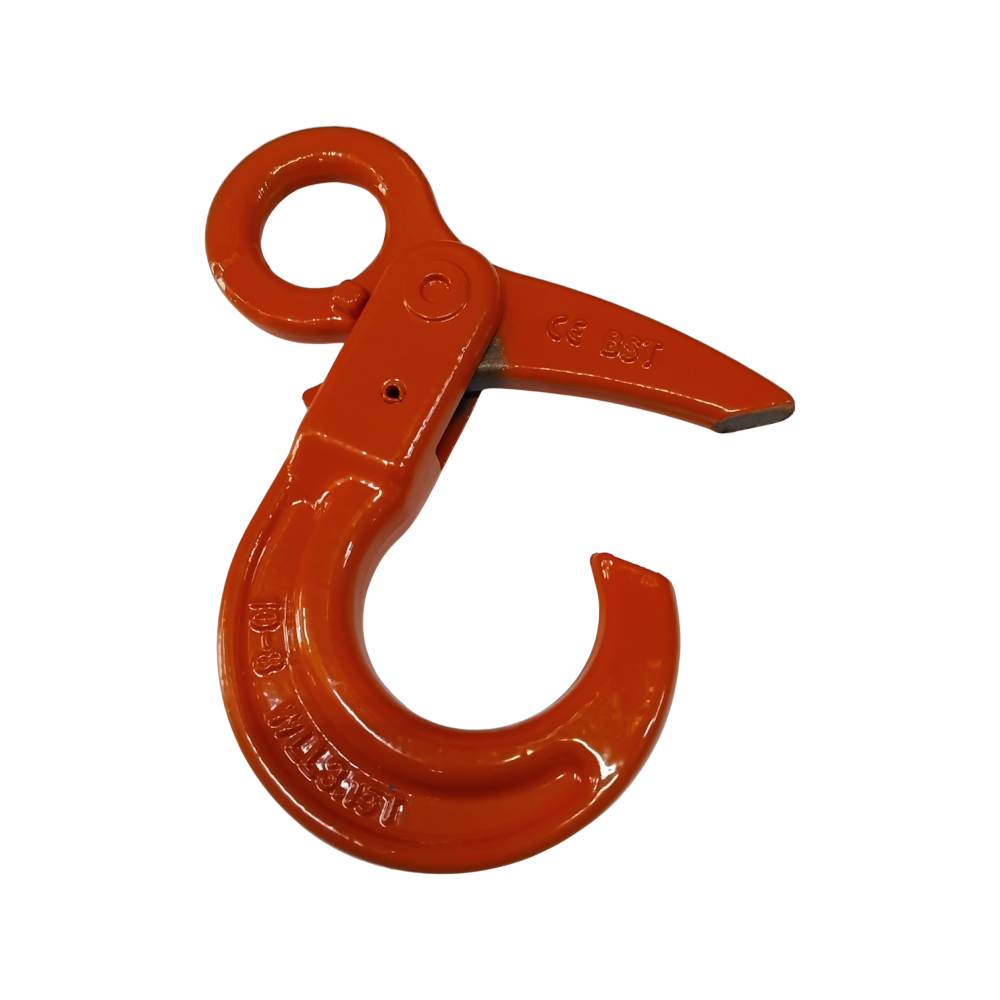

Enhanced Safety Lock: The hook remains locked until the release trigger at the back is manually pressed, virtually eliminating the risk of accidental load slips.
360° Swivel Eye: Provides excellent flexibility during the rigging process, allowing for easier attachment and ensuring the load remains balanced without kinking the chain.
GR80 Alloy Strength: Forged from quenched and tempered alloy steel, providing a high strength-to-weight ratio and superior durability compared to standard mild steel hooks.
Fail-Safe Design: If the hook is subjected to an extreme overload, it is designed to stretch slowly rather than snap, providing a visual warning for safety.
Easy Inspection: Large, clear markings for WLL (Working Load Limit) and Grade (80) are forged into the body for rapid identification during safety audits
