KOREA BST HAMMER LOCK

Reference:

Condition: New

80 Item Items

RM19.00 tax excl.

Size

1.12TON
2TON
3.15TON
5.3TON
8.0TON
12.5TON
15TON
21.2TON

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

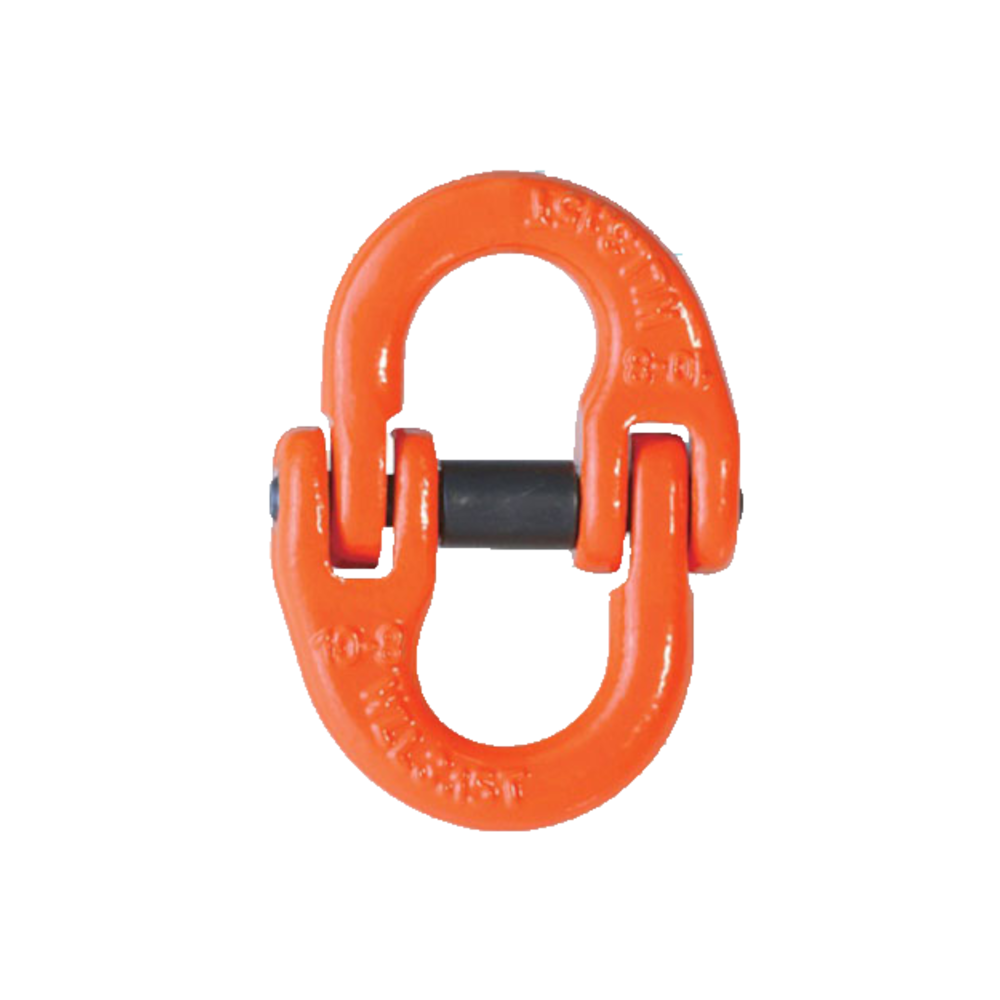

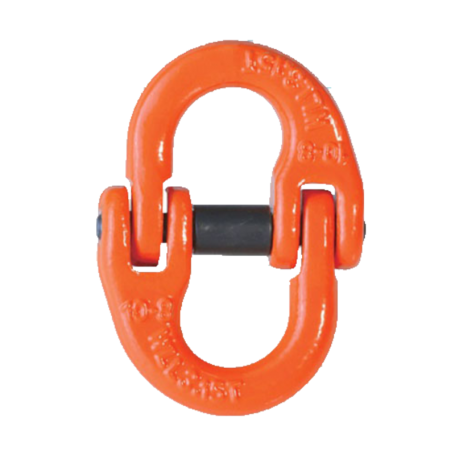

KOREA BST Hammer Lock / Connecting Link (SLH Type)

The KOREA BST SLH Series, commonly known as a Hammer Lock or Coupling Link, is a high-strength mechanical connector used to join lifting chains to master links, hooks, or other rigging components. Designed for permanent or semi-permanent chain assemblies, it features a two-part body held together by a central load pin and a locking sleeve. Manufactured from Grade 80 (GR80) alloy steel, these links are essential for constructing custom chain slings and ensuring secure connections in heavy-duty lifting.

Product Specifications

Brand: BST (Korea Technology)
Model Series: SLH
Type: Hammer Lock / Connecting Link
Material: Forged Grade 80 (GR80) Alloy Steel
Finish: Yellow Powder Coated (High Visibility)
Application: Chain sling assembly, connecting hooks to chains, and industrial rigging

Available Variations

Model Code	Chain Size	Rated Capacity (WLL)	Description
SLH-0530	13mm	5.3 Ton	Heavy-duty industrial coupling
SLH-0800	16mm	8.0 Ton	Structural rigging connector
SLH-1250	20mm	12.5 Ton	High-capacity lifting link
SLH-1500	22mm	15.0 Ton	Max-strength infrastructure rigging
SLH-2120	26mm	21.2 Ton	Extra heavy-duty industrial connector

Key Features

Simple & Secure Assembly: Requires only a hammer to drive the load pin through the locking sleeve, creating a permanent mechanical bond that is highly resistant to vibration.
Compact Profile: The streamlined design allows the link to pass through narrow openings and prevents snagging during lifting operations.
GR80 High-Tensile Steel: Forged from quenched and tempered alloy steel, providing superior toughness and a high strength-to-weight ratio.
Field Serviceable: While designed for permanent use, the link can be disassembled with a punch and hammer if the assembly needs to be reconfigured.
Standard Compatibility: Sized specifically to match Grade 80 lifting chains, ensuring a perfect fit and maintaining the rated capacity of the entire sling.
