PLASMA HOIST PUSH BUTTON

Reference:

Condition: New

15 Item Items

RM33.00 tax excl.

ELECTRICAL SERIES

2GANG
4GANG
6GANG

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

PLASMA Hoist Push Button Switch - COB Series

The PLASMA COB Series consists of high-quality, rain-proof pendant control stations designed specifically for hoists and cranes. These switches feature a durable, high-visibility orange ABS enclosure that is impact-resistant and chemically resilient, ensuring longevity in demanding industrial environments.

Each unit includes a flexible rubber cable sleeve to maintain a water-tight seal at the entry point, protecting the internal mechanical components from dust and moisture.

Product Features

Mechanical Interlock: Prevents simultaneous engagement of opposing directions (e.g., Up and Down) for enhanced safety.
Rain-Proof Construction: Rated for outdoor use and damp industrial settings.
Contact Rating: 5A at AC 250V / 2A at AC 500V.
Durable Housing: High-impact ABS plastic.
Clear Labeling: High-contrast legible text on buttons for easy operation.

Specifications by Model

Model	Gang	Button Configuration	Typical Application

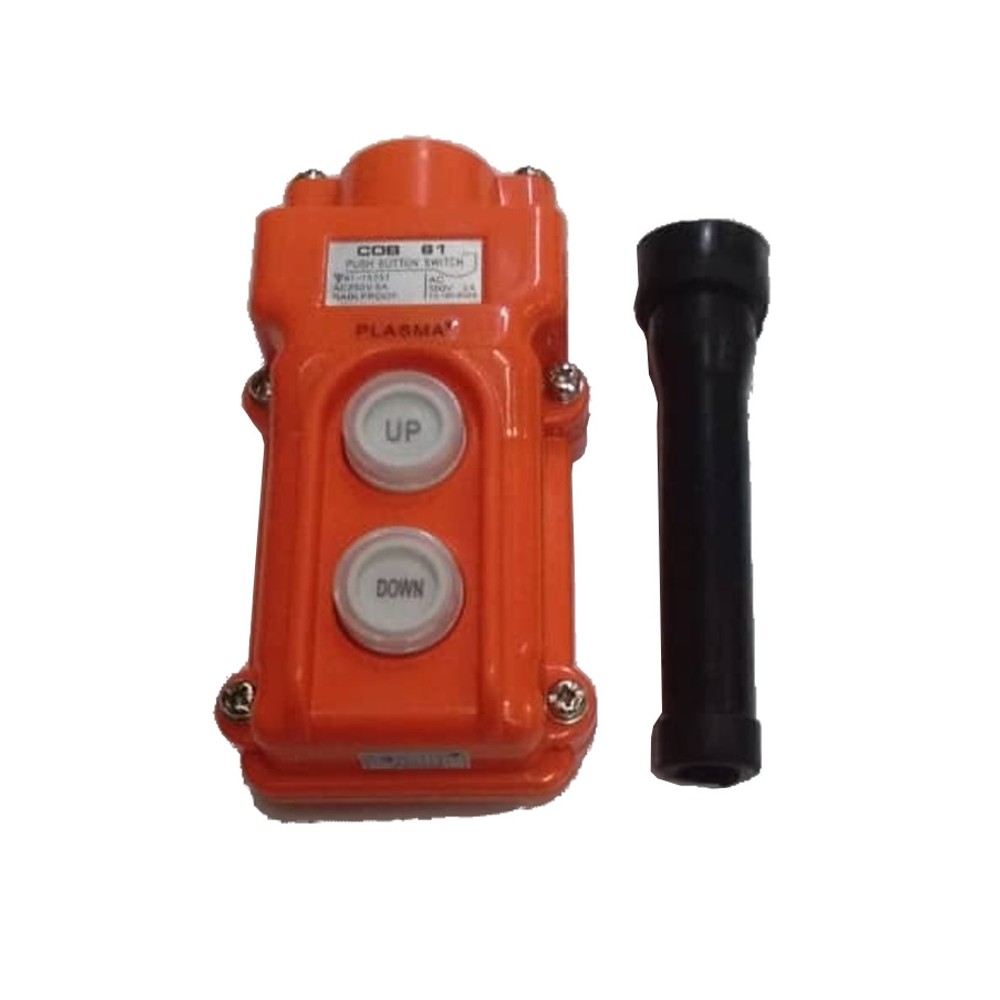

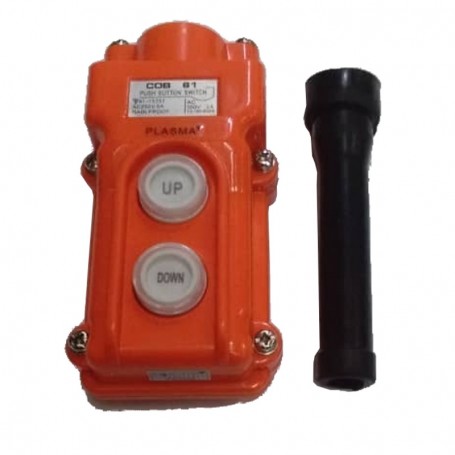

COB61-2	2-Gang	Up, Down	Basic electric hoists and winches.

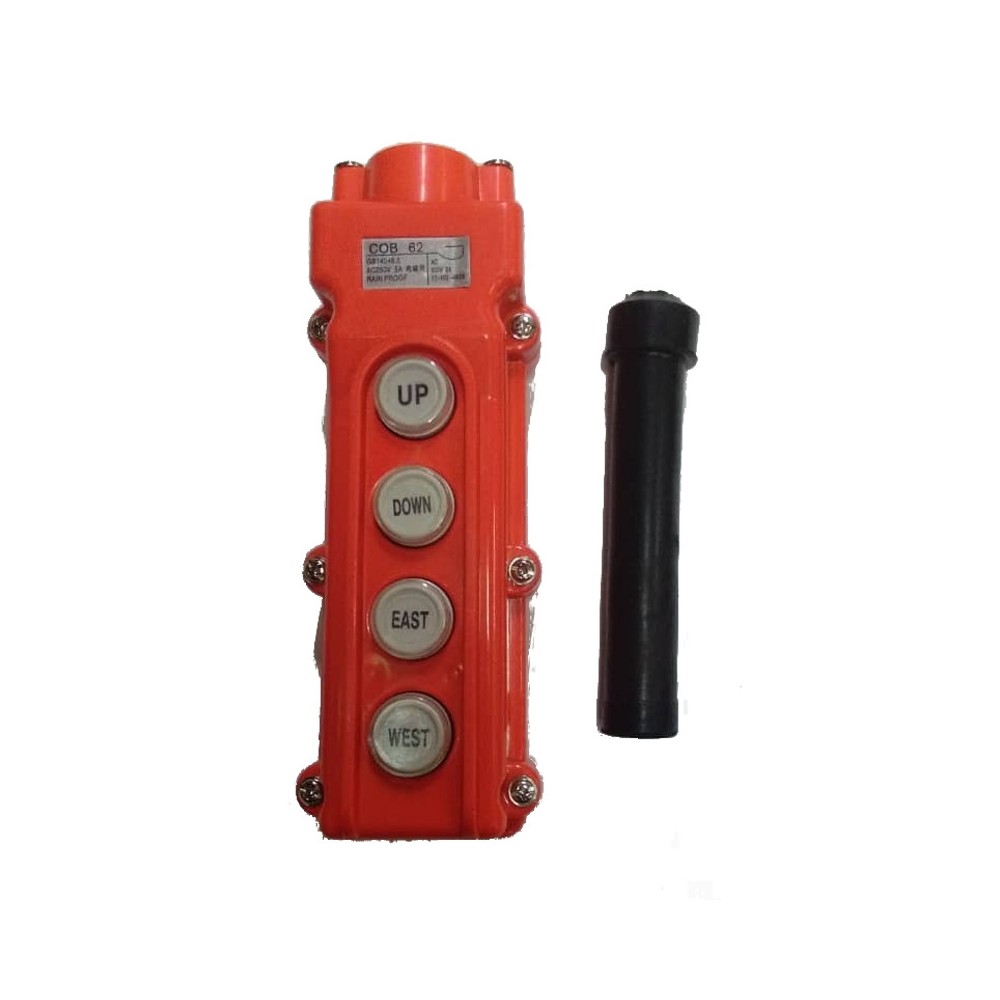

COB62-4	4-Gang	Up, Down, East, West	Hoists with motorized trolleys/monorails.

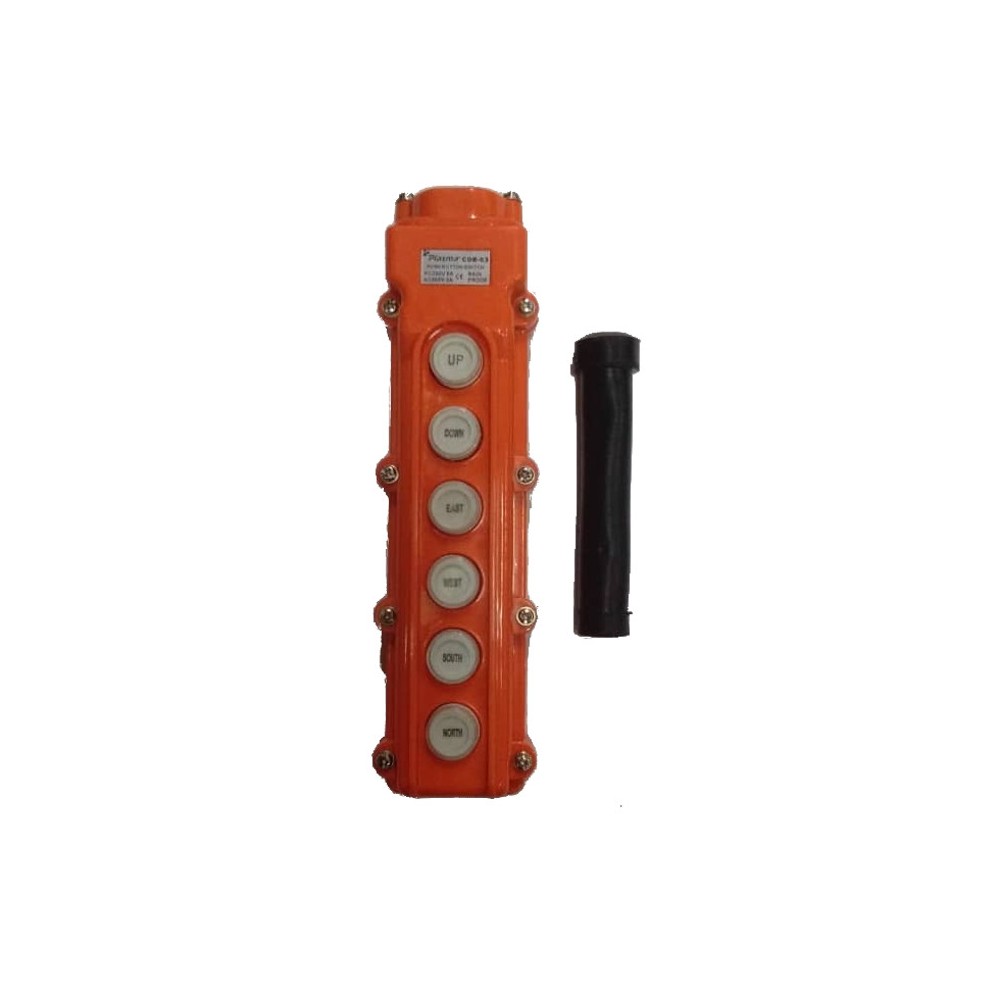

COB63-6	6-Gang	Up, Down, East, West, South, North	Overhead cranes with full 3-axis movement.
