UMS PVC LAMP FLUSH SWITCH - (6011-1W, 6021-1W, 6031-1W, 6041-1W)

Reference:

Condition: New

80 Item Items

RM4.50 tax excl.

ELECTRICAL SERIES

2G X 1W
3G X 1W
4G X 1W
1G X 1W

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The UMS 6 Series (6011-1W to 6041-1W) is a popular line of slim-profile PVC flush switches. They are widely recognized for their clean, minimalist design and are a standard choice for modern Malaysian homes and offices.

Product Range Breakdown

Each model number corresponds to the number of buttons (Gangs) on the single plate:¹

Model No.	Description	Button Config	Switching

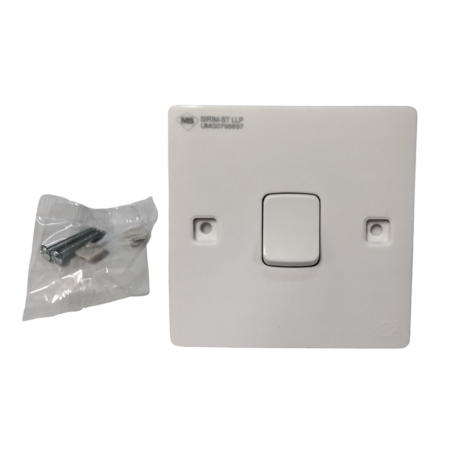

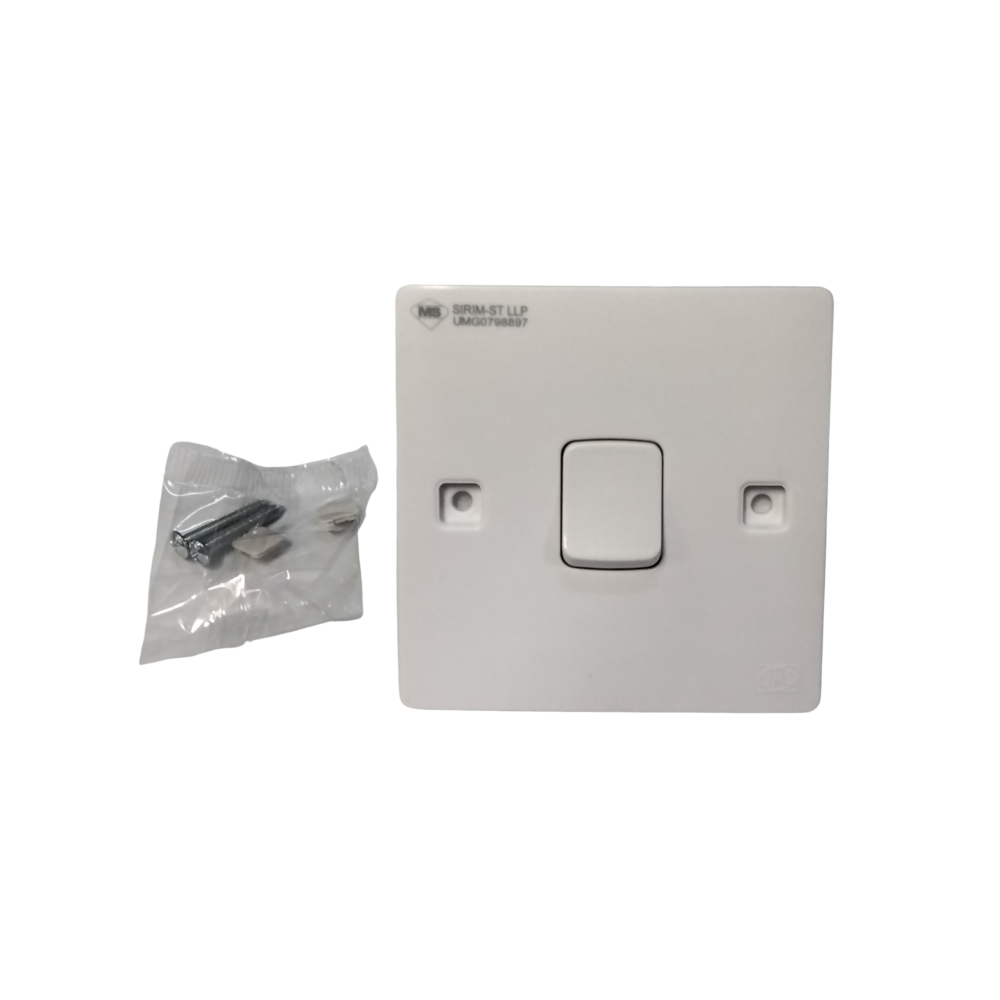

6011-1W	1 Gang 1 Way	Single Button	1-Way (1 Location)

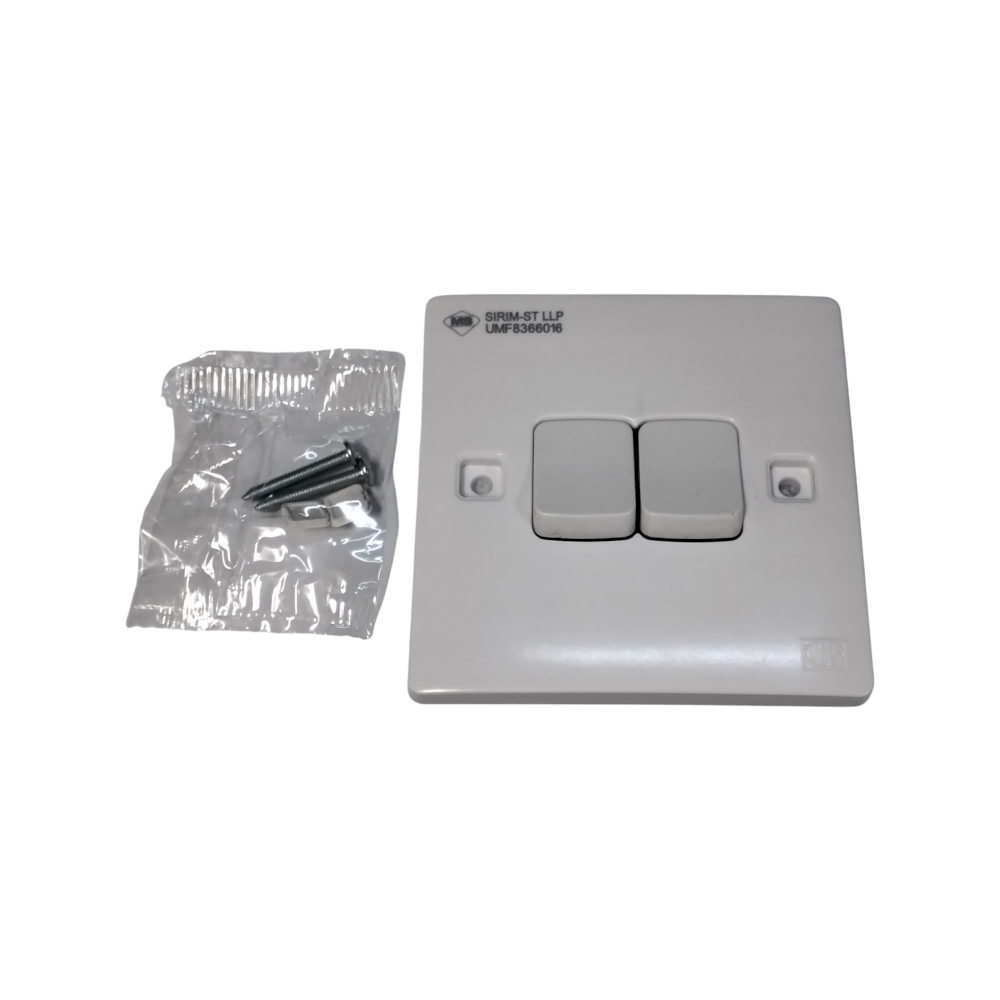

6021-1W	2 Gang 1 Way	Double Button	1-Way (1 Location)

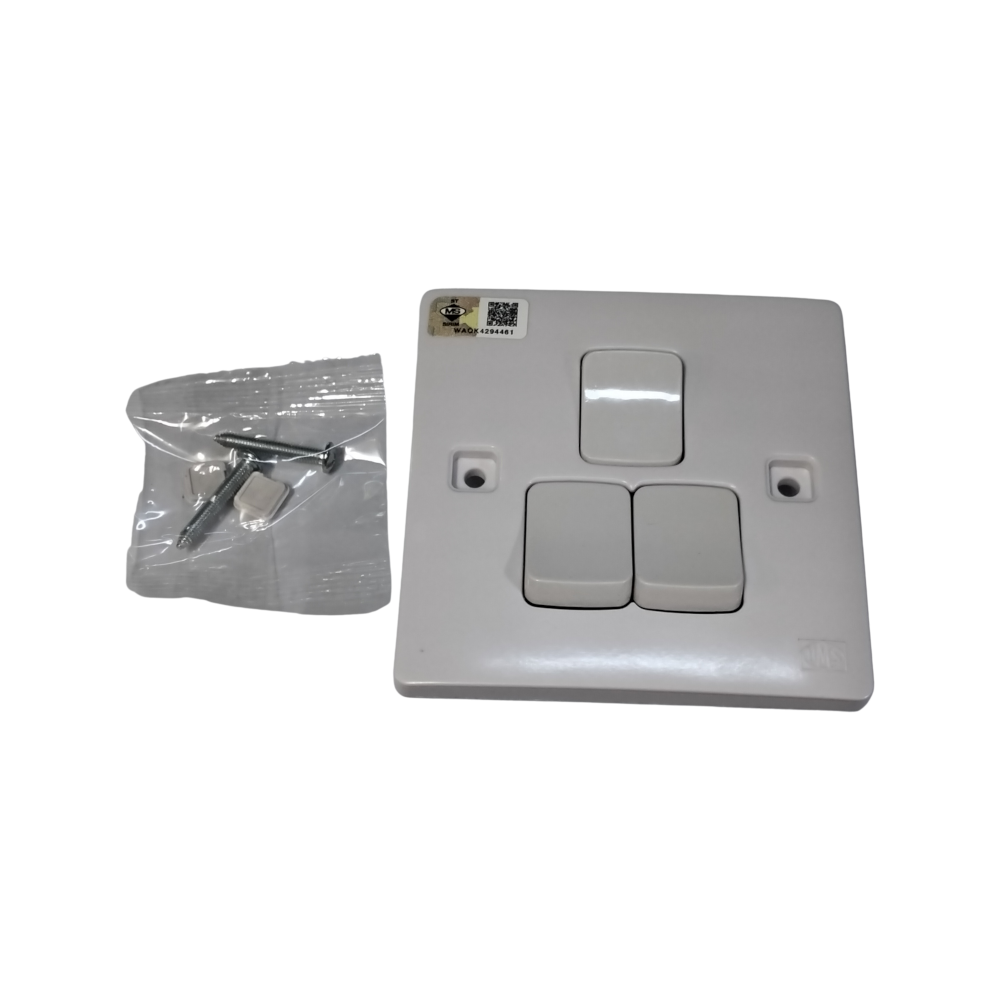

6031-1W	3 Gang 1 Way	Triple Button	1-Way (1 Location)

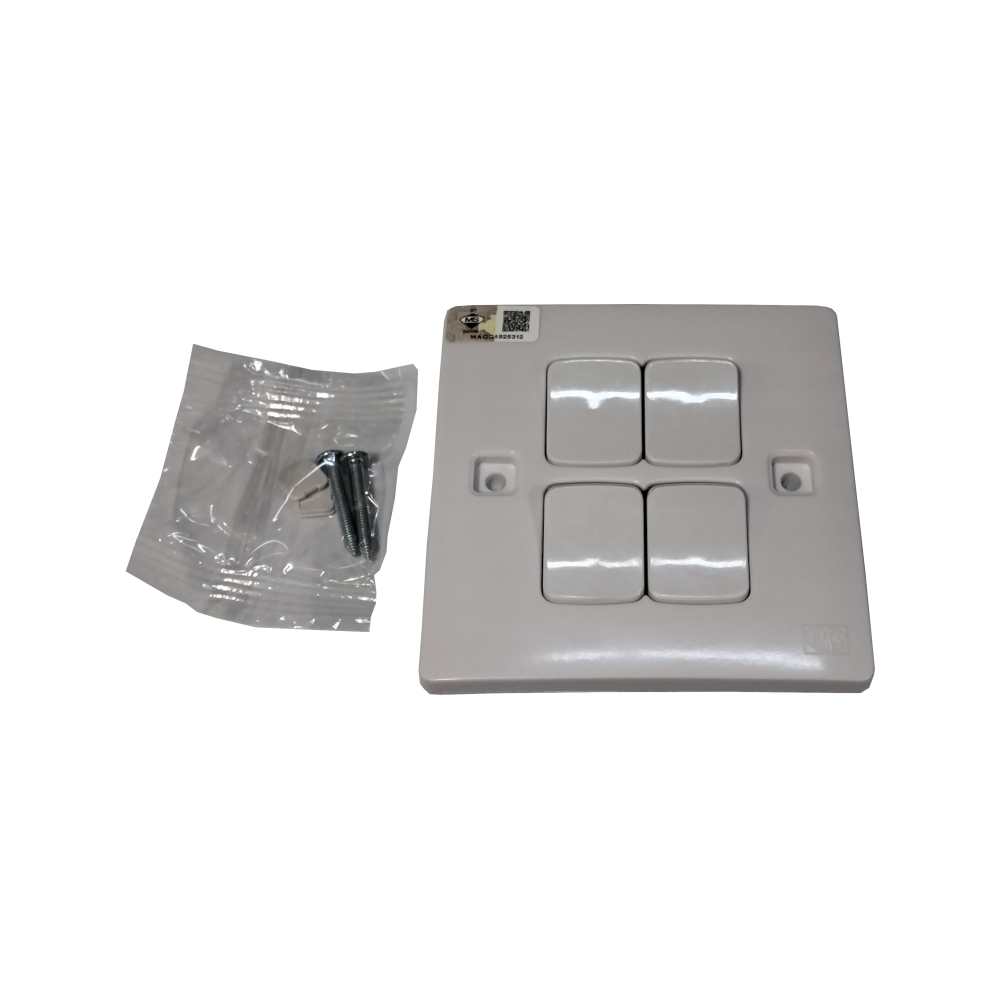

6041-1W	4 Gang 1 Way	Quad Button	1-Way (1 Location)

Technical Specifications

Current Rating: 10AX (Suitable for all standard LED, fluorescent, and incandescent lighting).²
Voltage: 250V AC (Standard).³
Material: High-grade Polycarbonate (PC) which is UV-resistant (doesn't yellow easily) and flame-retardant.⁴
Compliance: Fully SIRIM Approved and complies with MS IEC 60669-1 and BS EN 60669-1.⁵
Design: Part of the "6 Series," which features a slightly curved, sleek rocker for a soft click feel.

Installation & Compatibility

Mounting: Designed for flush mounting using a standard $3text{x}3$ PVC or metal concealed box.
Color: Pure White.⁶

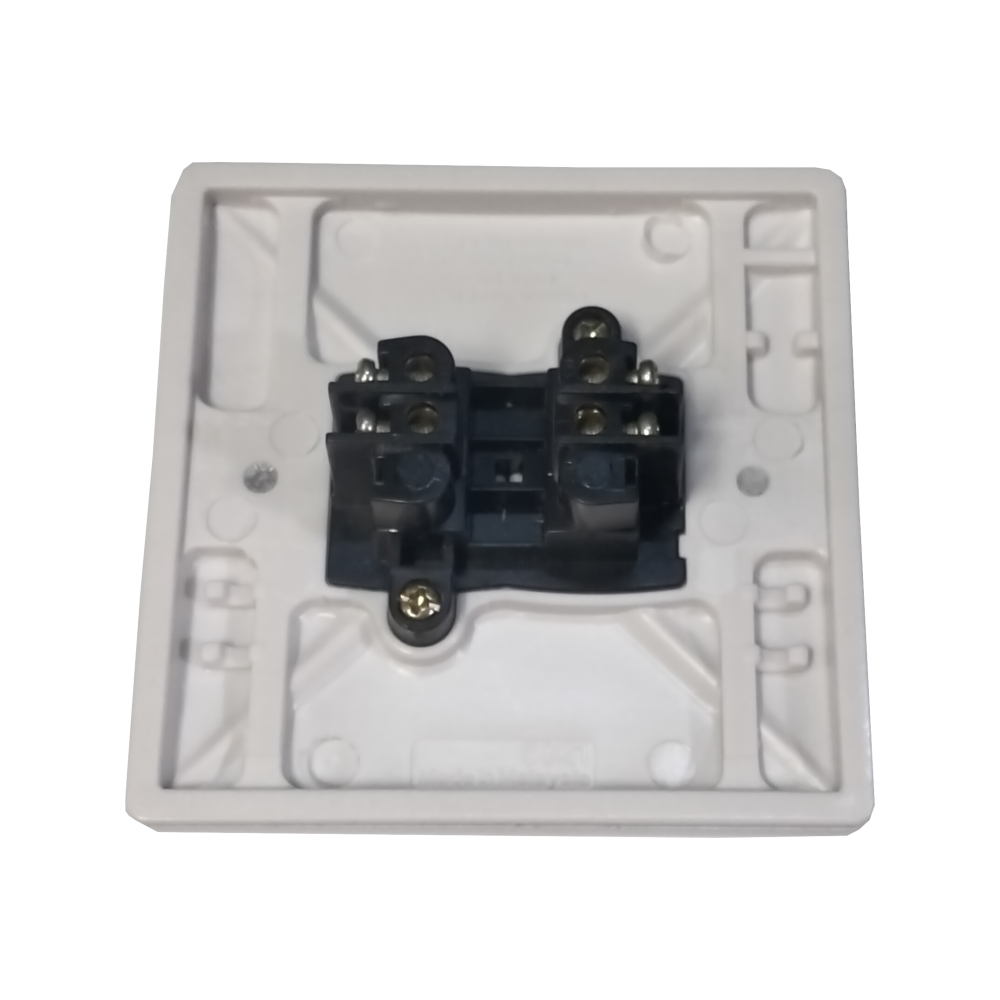

Terminals: Features easy-to-wire screw terminals at the back.

Comparison: 6 Series vs. Others

vs. 200 Series: The 6 Series has a more modern, flatter look compared to the older "chunky" 200 series.
vs. Metal Clad: Unlike the metal clad series you mentioned earlier, these are strictly for indoor use where aesthetics matter and the risk of physical impact is low.

Pro-Tip: If you need to control a light from two different locations (like the top and bottom of a staircase), you should look for the 6012-1W (2-Way) variant instead of the 6011-1W.
