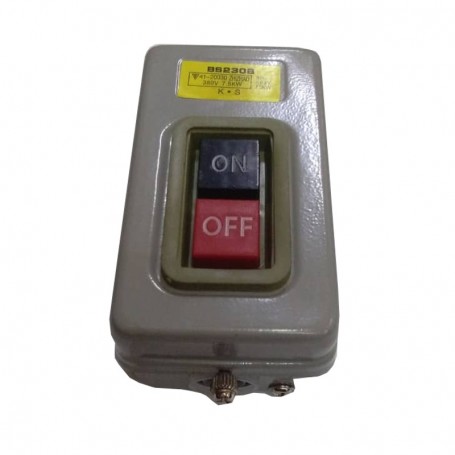

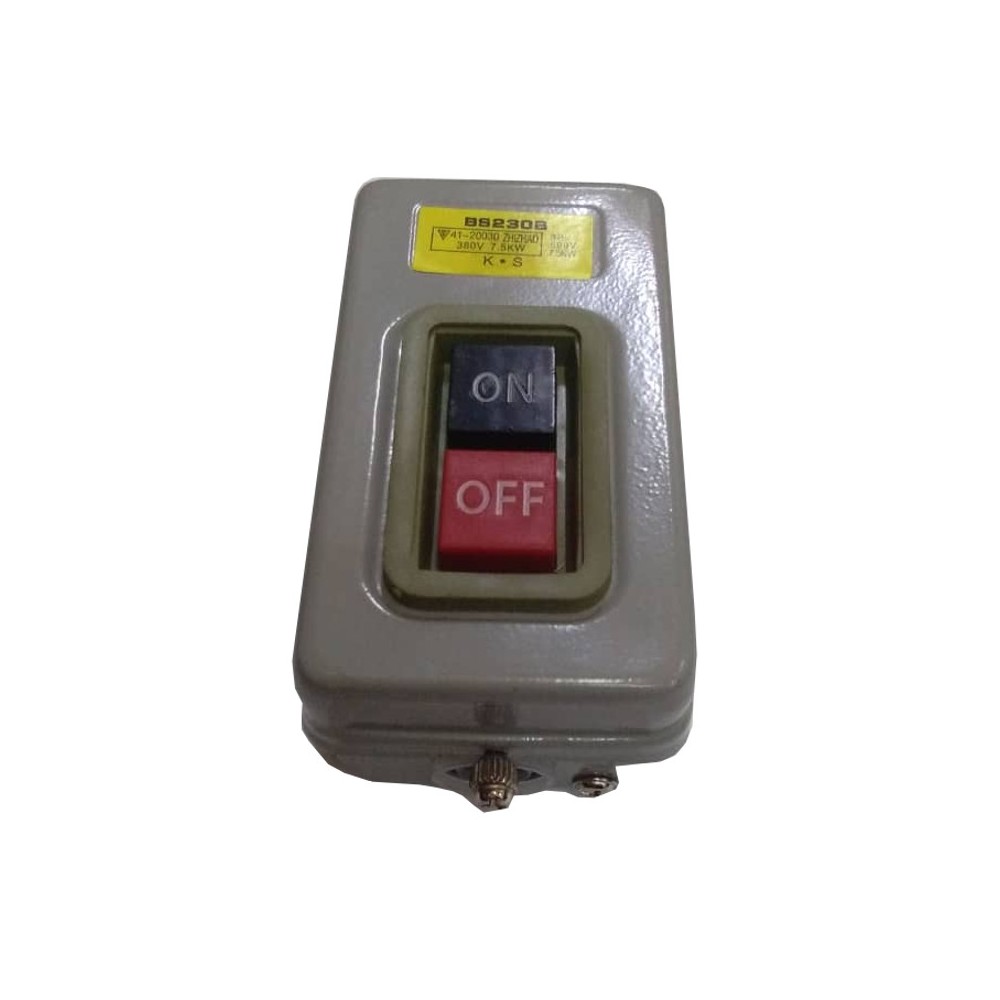

ON/OFF PUSH BUTTON SWITCH (230B 30A)

Reference: E067-028

Condition: New

10 Item Items

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The BS230B ON/OFF Power Push Button Switch is a high-capacity industrial controller designed for the direct starting and stopping of motors without the need for an external contactor. It features a robust, self-locking mechanism where the "ON" button remains latched until the "OFF" button is pressed.

Product Specifications

Model: BS230B
Phase: 3-Phase (3P)
Voltage Rating: AC 380V – 500V
Current Rating: 30A (Resistance load) / 10A (Inductive load)
Power Capacity: Supports motors up to 3.7kW (approx. 5HP) at 380V, or up to 7.5kW depending on configuration
Terminal Type: 6 Screw terminals for secure wiring

Key Features

Durable Construction: Built with an impact-resistant metal or high-grade plastic housing designed for industrial environments.
Integrated Safety: The "ON" button can be locked in some models to prevent unauthorized use, ensuring a safer workspace.
Direct Control: Capable of controlling mechanical equipment directly, simplifying the electrical setup for machine tools and textile machinery.
Internal Protection: Often includes a dust plug or closed structure to protect internal electrical contacts from debris and moisture.
