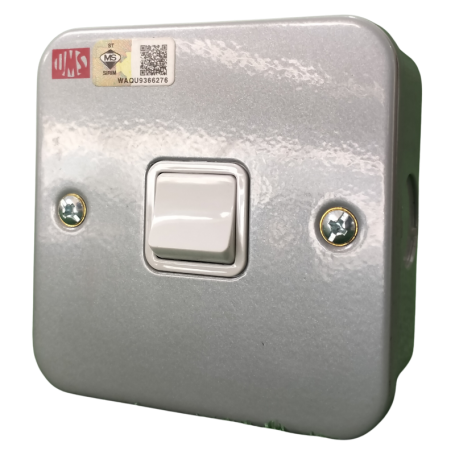

UMS METAL CLAD SWITCH - MODULAR (1G, 2G, 3G, 4G X 1W)

Reference:

Condition: New

80 Item Items

RM15.50 tax excl.

ELECTRICAL SERIES

UMS211-1
UMS221-1
UMS231-1
UMS241-1

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

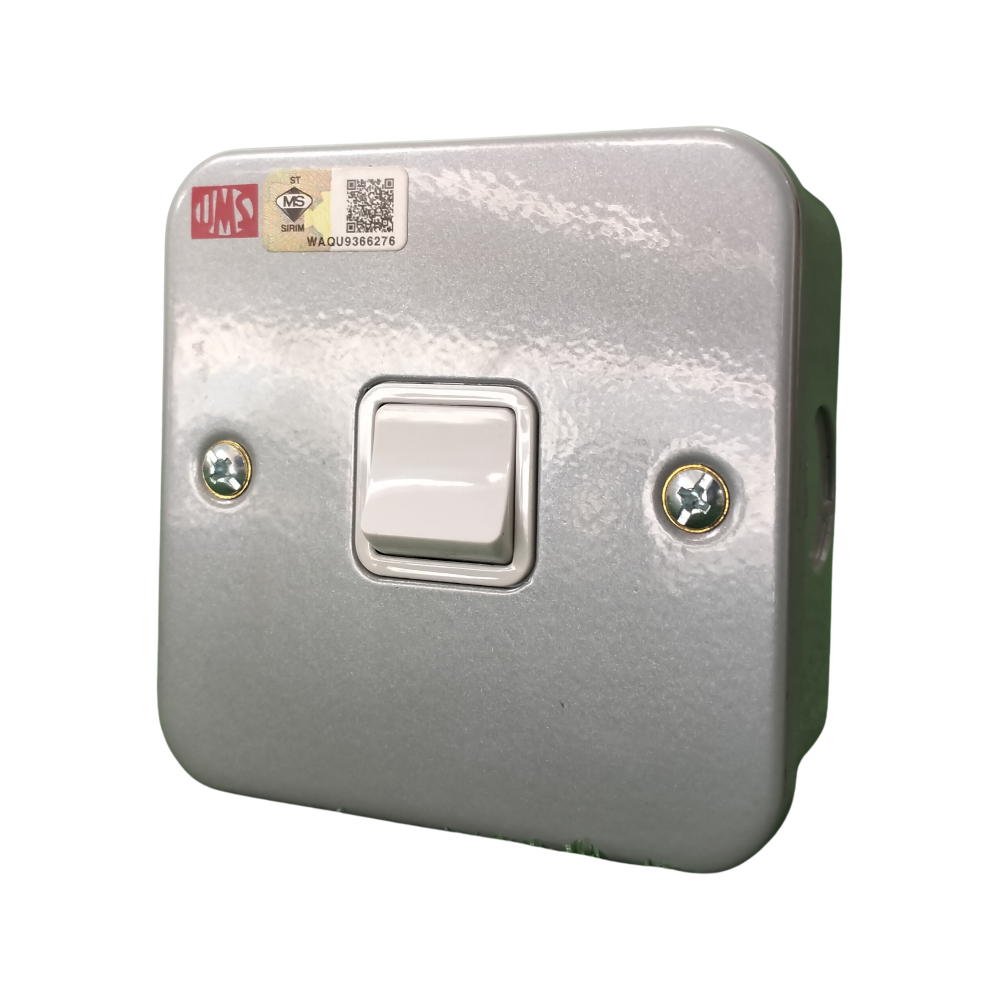

The UMS Metal Clad Switch (Modular Series) is a heavy-duty wiring solution designed for industrial, commercial, and workshop environments where durability and impact resistance are essential.¹

The "1G, 2G, 3G, 4G x 1W" notation refers to the number of Gangs (switches) on a single plate, all operating as 1-Way switches.²

Key Specifications

Feature	Details
Material	Heavy-gauge galvanized steel / Alloy
Configuration	1 Gang, 2 Gang, 3 Gang, or 4 Gang
Switch Type	1-Way (Single control point)
Current Rating	Usually 10AX or 16AX (Standard lighting/fan loads)
Mounting	Surface mounted with supplied metal backbox
Inlet/Outlet	20mm knockouts for conduit entry

Modular Advantage

Unlike traditional one-piece metal switches, the Modular design allows for:

Easier Maintenance: You can replace a single switch module if it fails without replacing the entire metal faceplate.
Customization: You can often mix and match modules (e.g., swapping a 1-way switch for a 2-way or a bell press) within the same metal frame.
Durability: The powder-coated finish provides protection against rust and scratches in harsh environments like garages or factories.

Usage Guide (Gangs Explained)

1G (1 Gang): Controls one circuit (e.g., one set of lights).

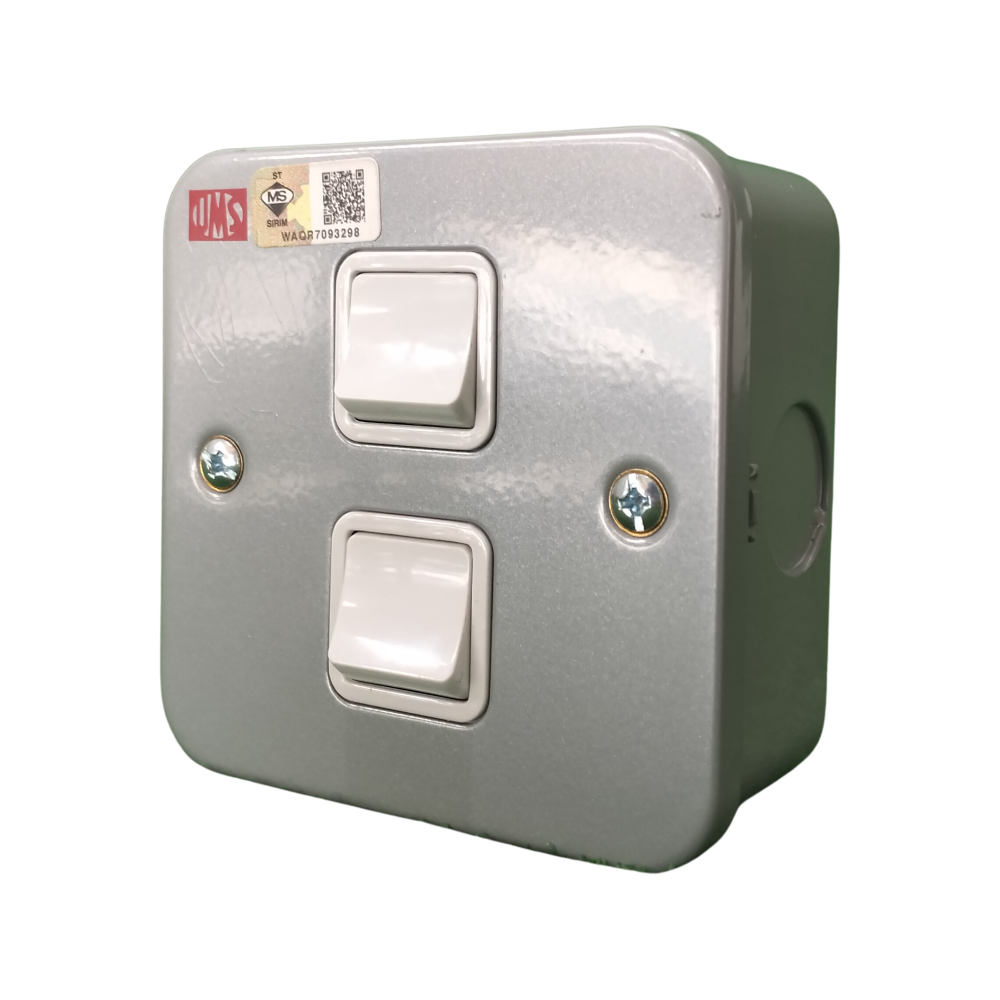

2G (2 Gang): Controls two separate circuits from one plate.

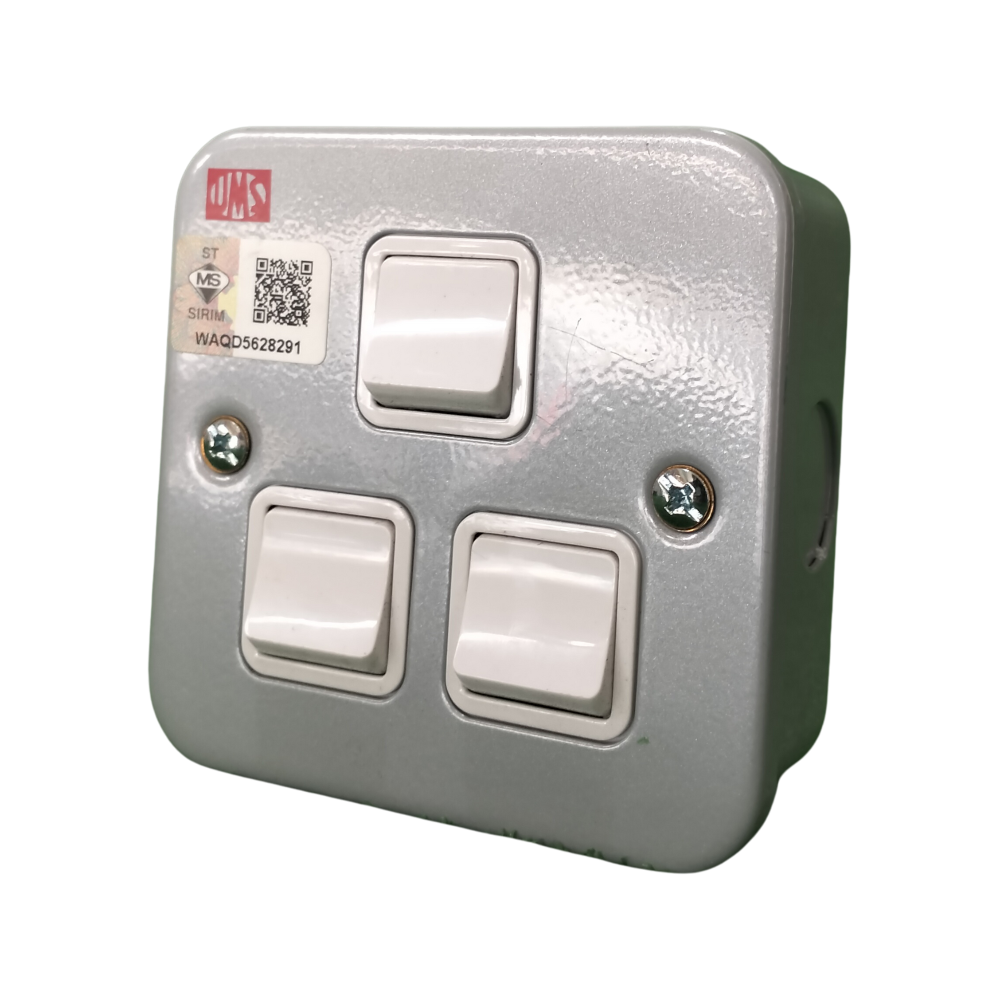

3G (3 Gang): Controls three separate circuits.³

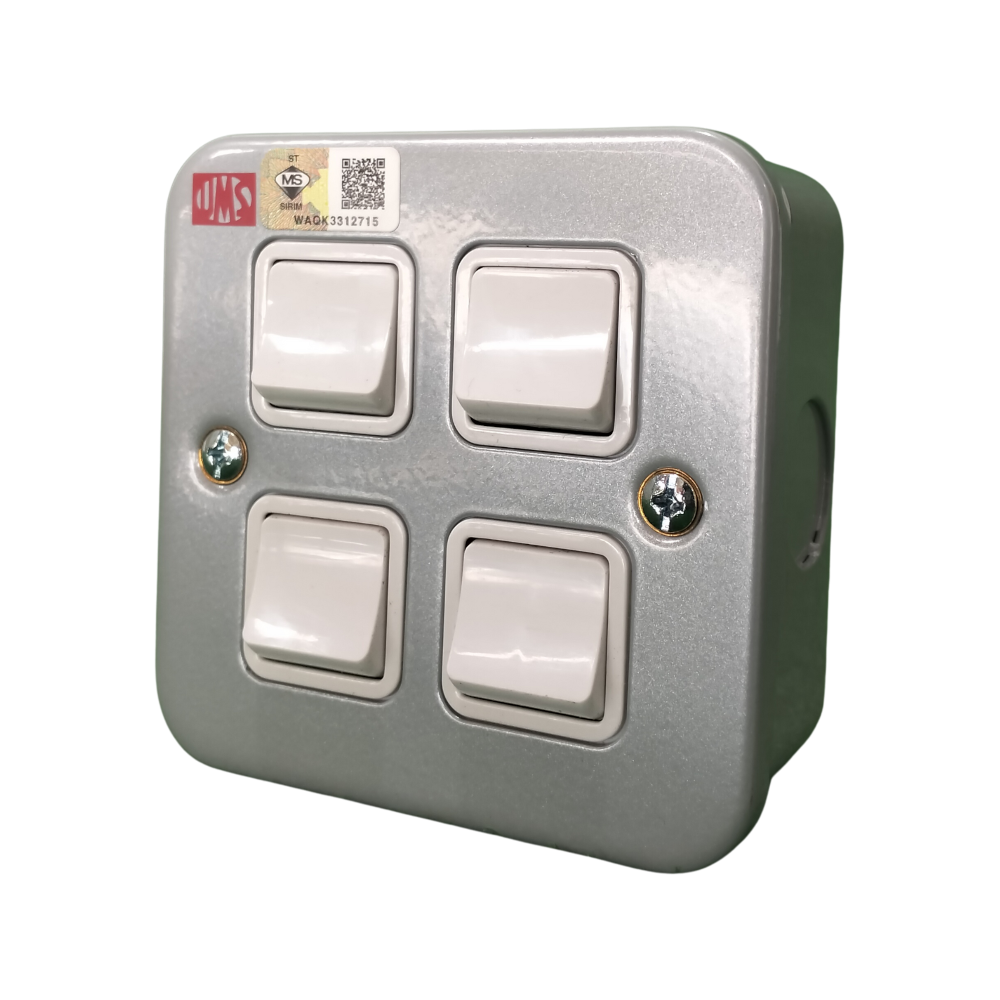

4G (4 Gang): Controls four separate circuits (common in large rooms or workshops).

Installation Note

Because these are metal-clad, proper earthing is mandatory. The metal casing must be connected to the earth wire to prevent the housing from becoming live in the event of a fault.

Safety Warning: Always ensure the main power supply is turned off before attempting installation. If you are not a qualified electrician, please consult one to ensure compliance with local wiring regulations.
