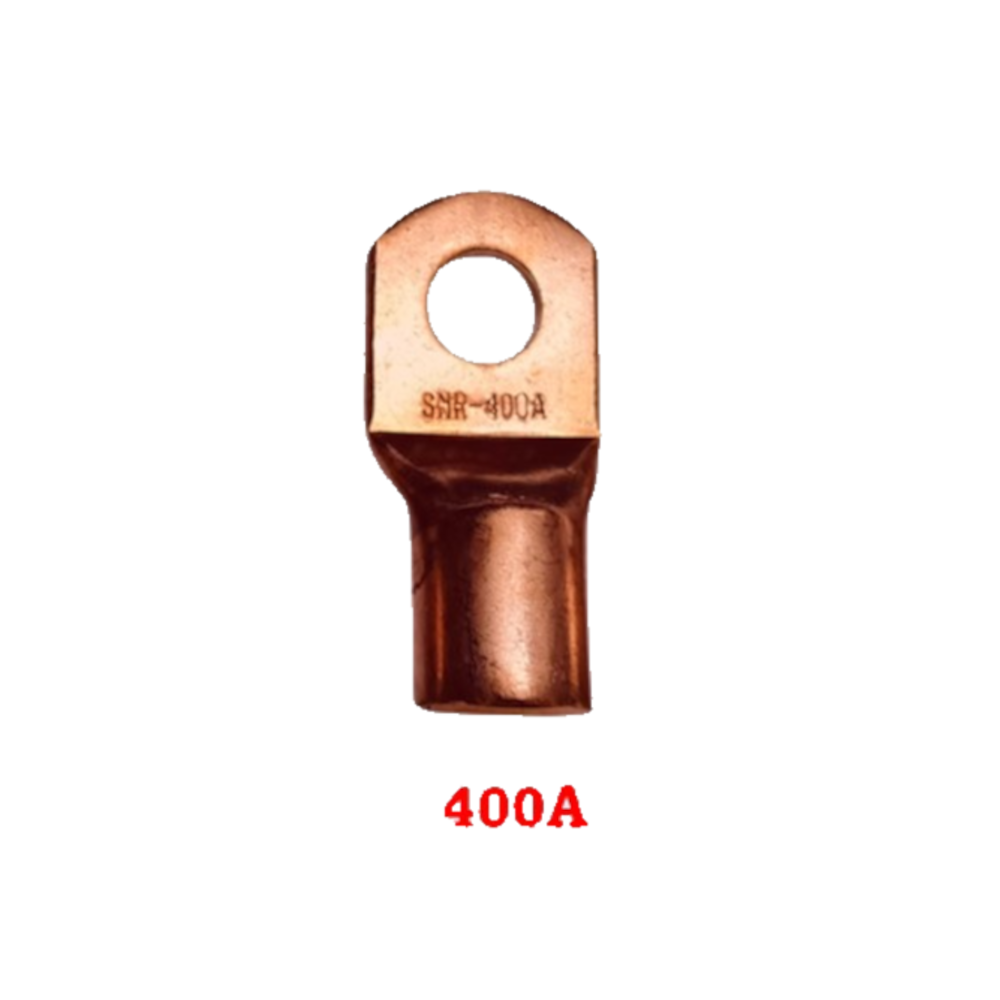

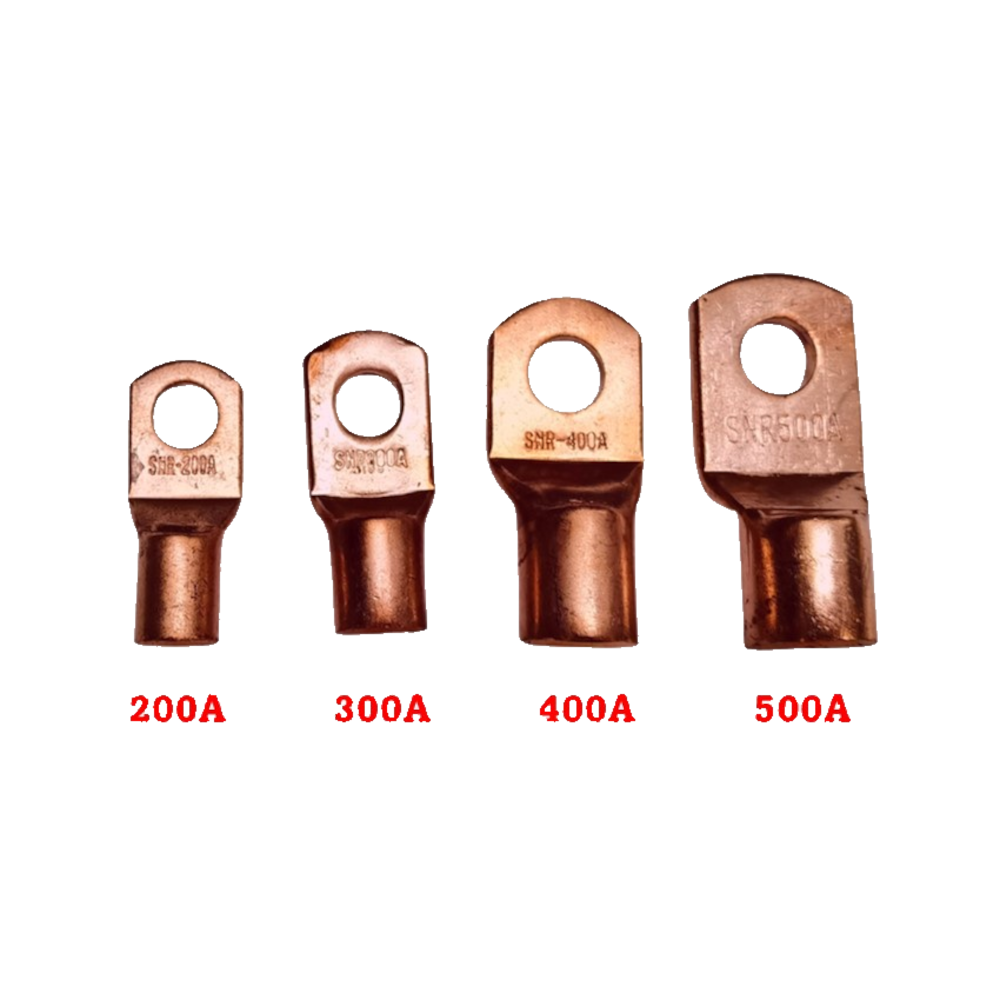

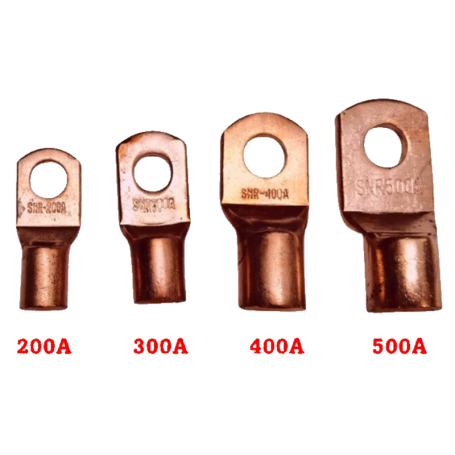

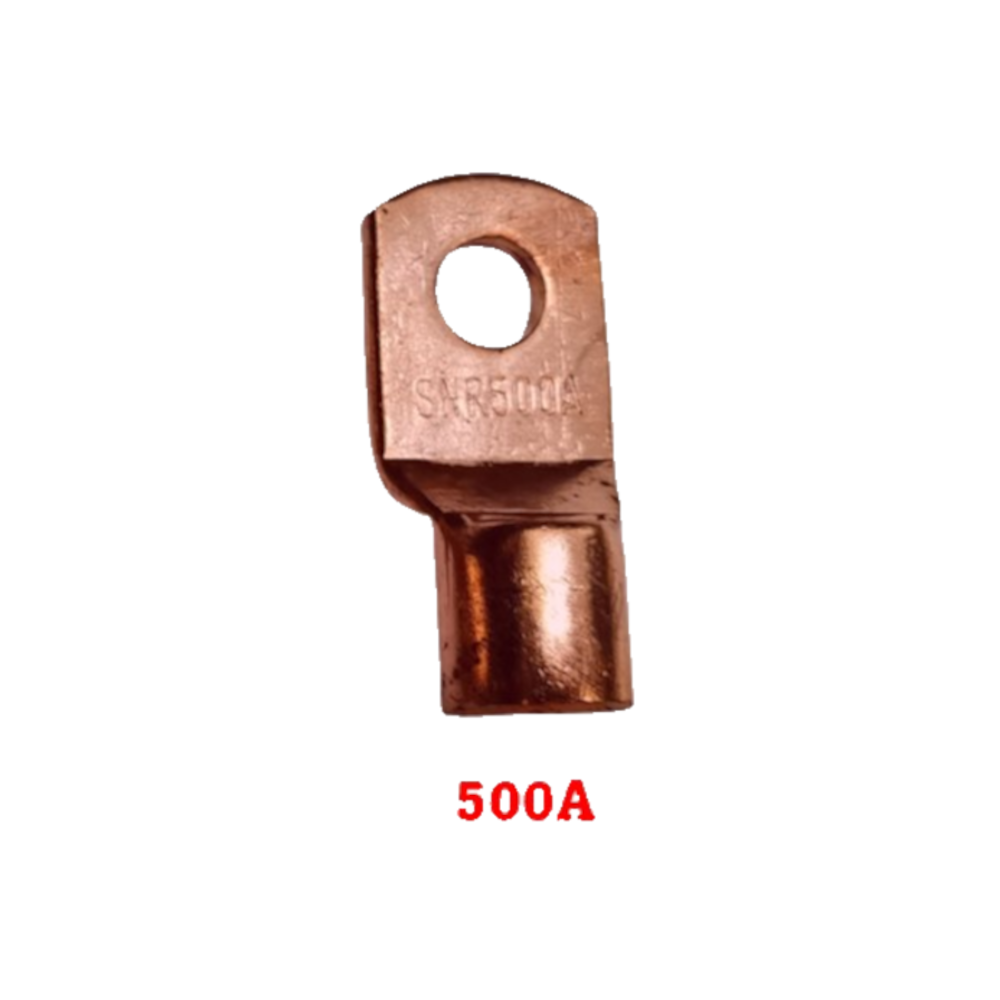

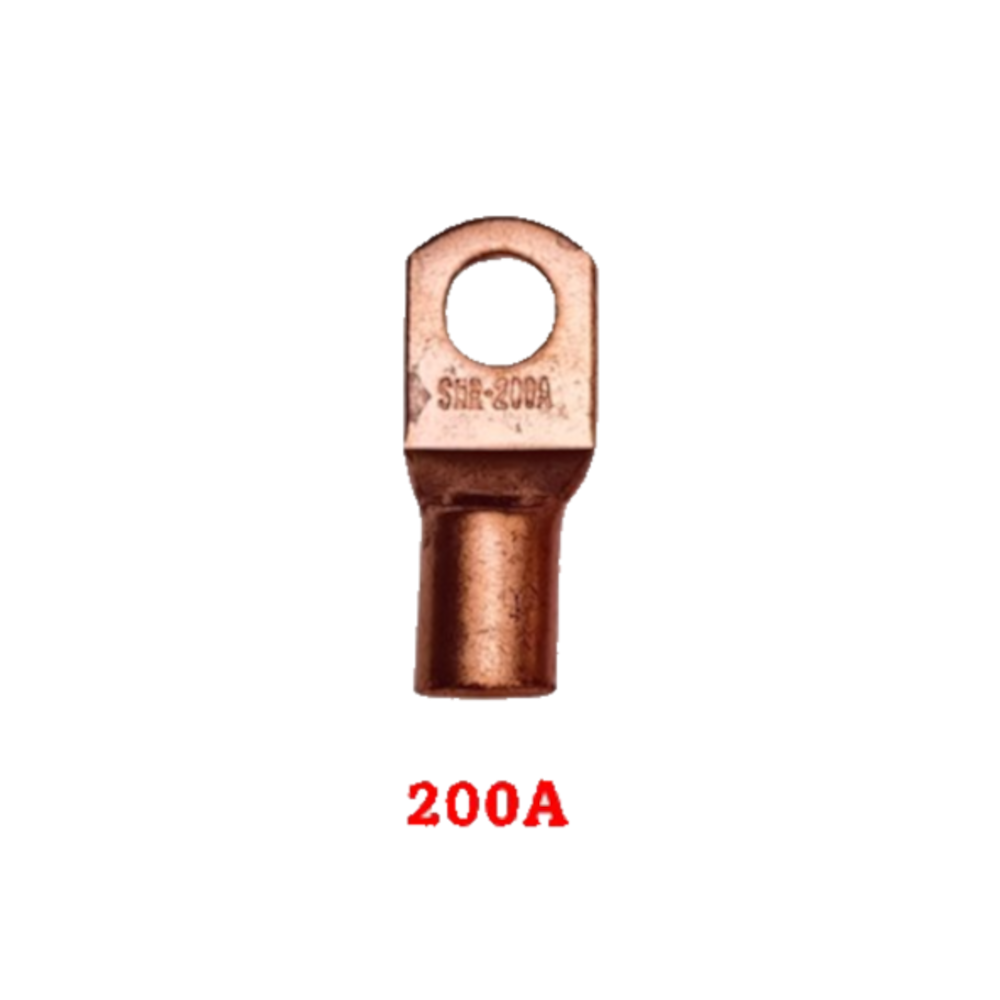

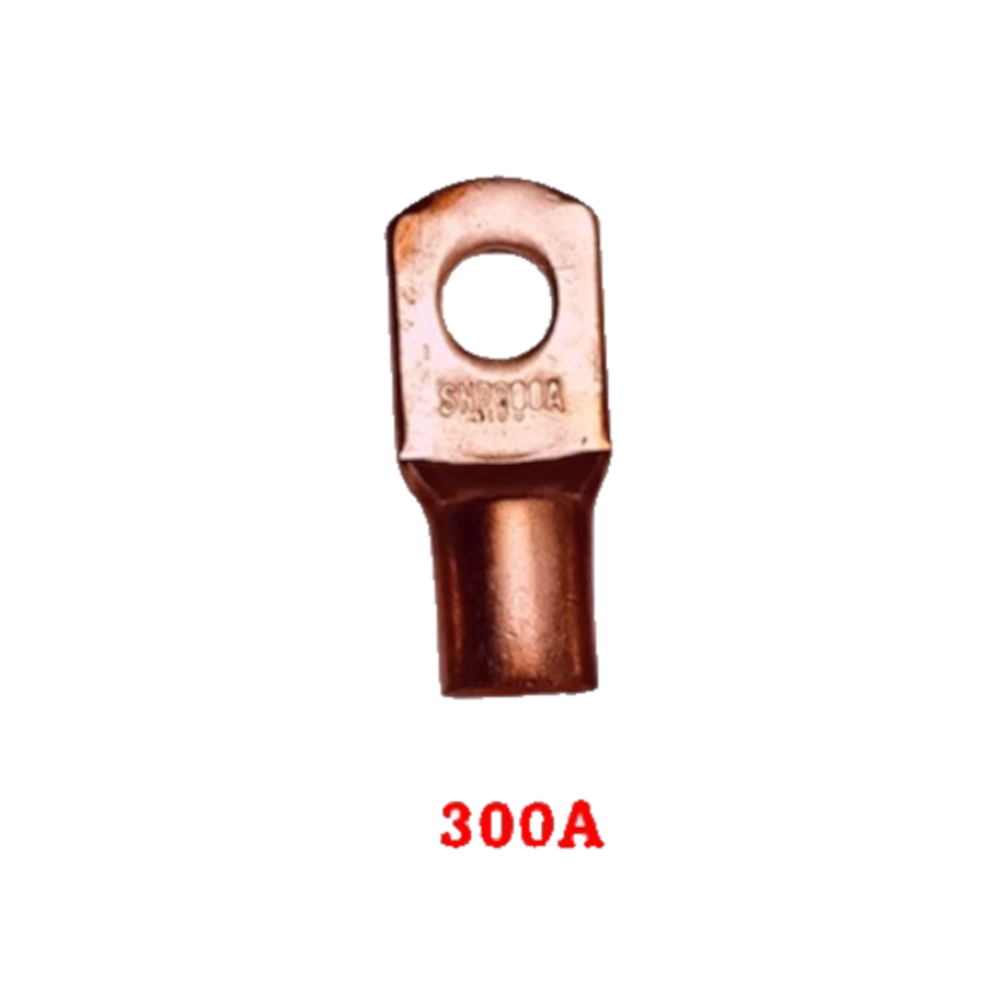

WELDING CABLE LUG 200, 300, 400, 500AMP (12mm Hole)

Reference:

Condition: New

800 Item Items

RM2.90 tax excl.

Size

200AMP
300AMP
400AMP
500AMP

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Welding Cable Lug Description (200A - 500A)

Welding cable lugs (also called termination lugs) are heavy-duty connectors used to securely terminate a flexible welding cable, allowing it to be bolted or clamped to a piece of equipment (like the welder, an electrode holder, or an earth clamp). The amp rating of the lug must match or exceed the ampacity (current-carrying capacity) of the cable it is attached to.

1. Key Characteristics

Feature	Description
Primary Purpose	To create a low-resistance, secure, and permanent electrical connection between the fine-stranded welding cable and a terminal post or stud.
Material	100% Electrolytic Copper (E-Cu) or Tin-Plated Copper. Copper is mandatory due to its maximum electrical conductivity and mechanical strength, which are essential for high-current welding applications.
Construction	Typically a seamless tubular design with a closed barrel (sleeve) on one end to accept the cable, and a flat palm (or tongue) on the other end with a pre-drilled bolt hole.
Installation	Requires a heavy-duty crimping tool (hydraulic or mechanical) to permanently compress the lug barrel onto the cable's copper strands, ensuring a gas-tight, low-resistance joint.
