MIG160S TORCH ACCESSORIES: MIG GAS NOZZLE COPPER 2.0 STRAIGHT FOR MIG160S

Reference:

Condition: New

W160-D2 D2 MIG TIP HOLDER FOR MIG160S

W160-D3 D3 MIG GAS NOZZLE COPPER 2.0 STRAIGHT FOR MIG160S

W160-D4 D4 MIG SWAN NECK FOR MIG160S

PN350-08 PN45-0.8mm (F1) M6 X 45mm X 6mm MIG CONTACT TIP

More details

600 Item Items

RM3.40 tax excl.

MODEL

1# 1.0mm
1# 1.2mm
F1
D2
D3
D4

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The "MIG160S" typically refers to the rating of the welding machine (a 160 Amp Synergic MIG welder), and the torch supplied with it is usually a smaller, air-cooled model, most commonly an MB15 (or Binzel-style 15 series) or a similar compact torch.1

The accessories for a MIG160S torch are the standard consumables that attach to the end of the swan neck.

Here is a breakdown of the common torch accessories and their functions:

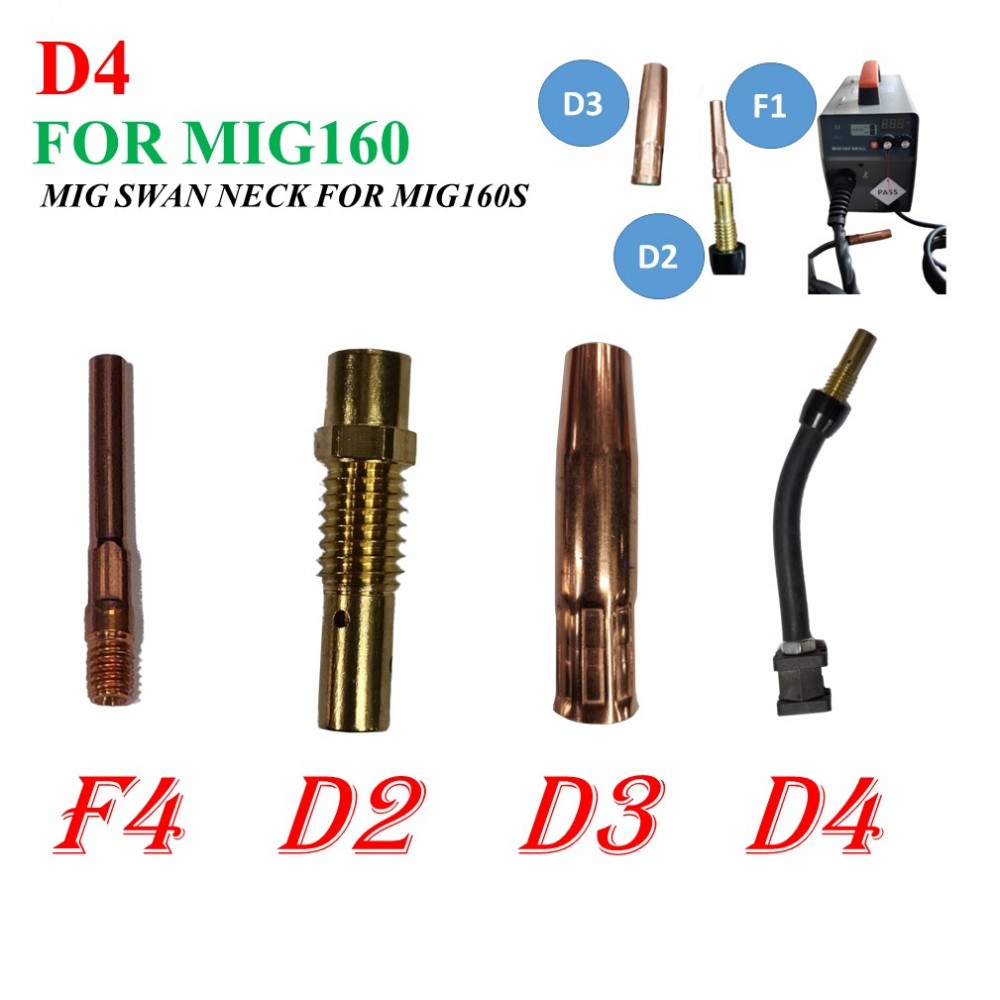

AccessoryFunctionKey Details

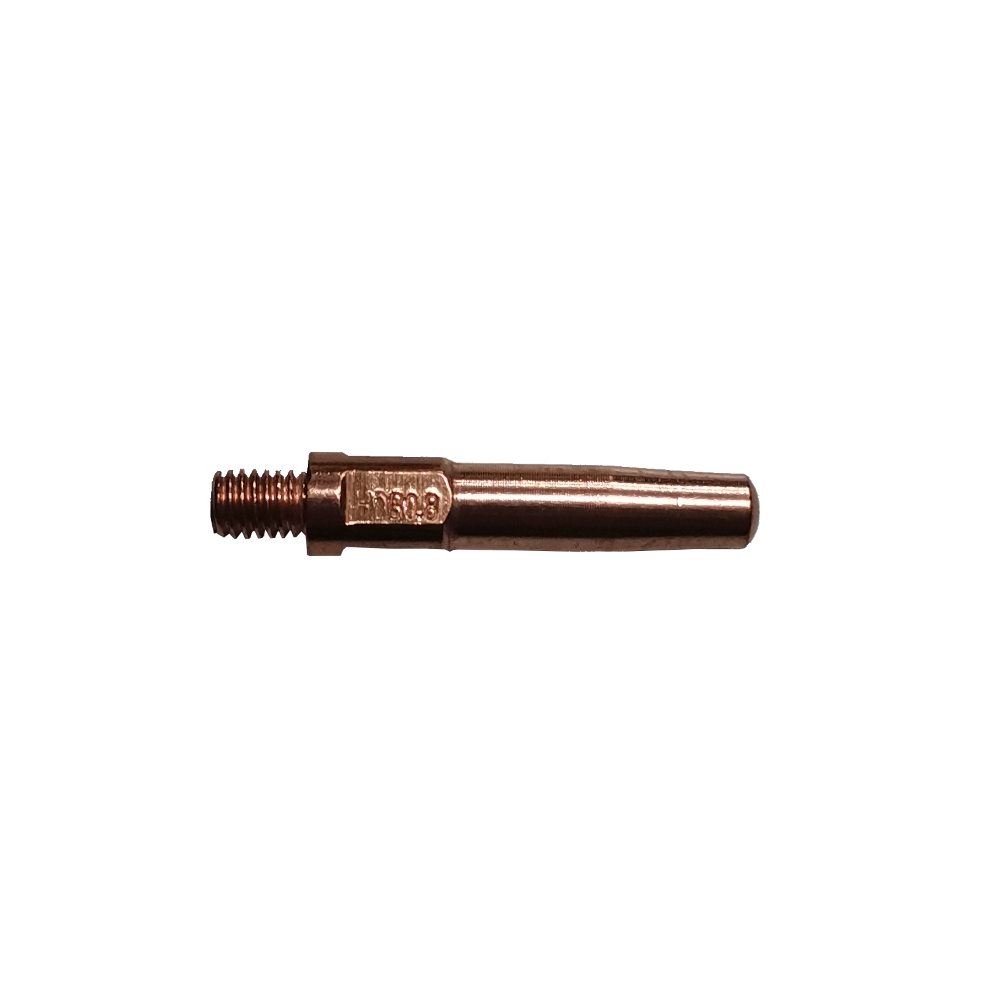

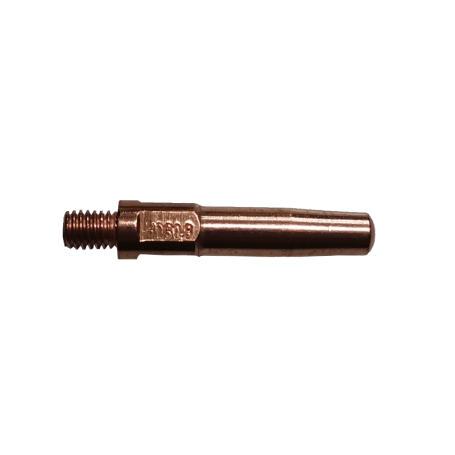

F1. Contact Tip

Transfers the electrical welding current to the wire.Size: Must match the welding wire diameter (e.g., 0.8mm, 0.9mm, 1.0mm).

Thread: Often has an M6 or sometimes an M8 thread, depending on the specific torch.

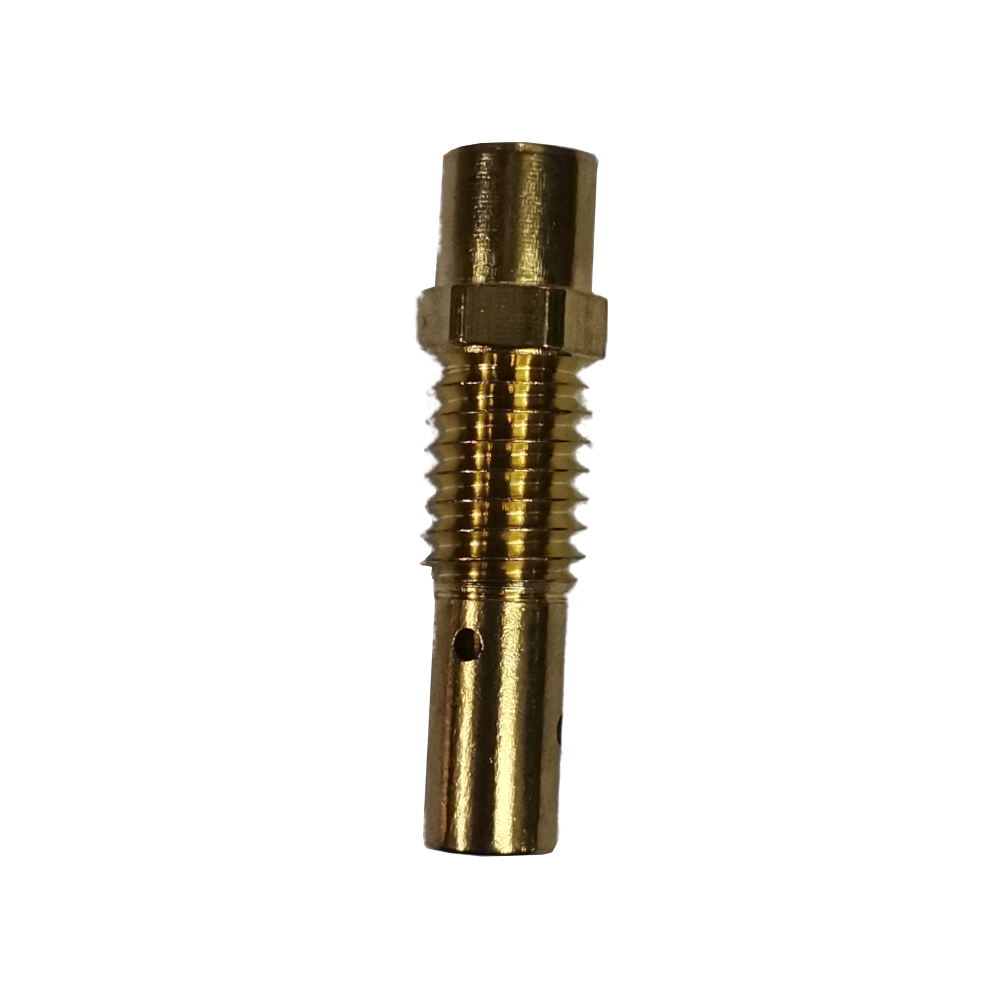

D2. Tip Adaptor (or Tip Holder)Screws into the swan neck, holding the contact tip in place.

Role: Also acts as a conduit for the shielding gas before it enters the nozzle. Its thread must match the contact tip (e.g., M6 or M8).

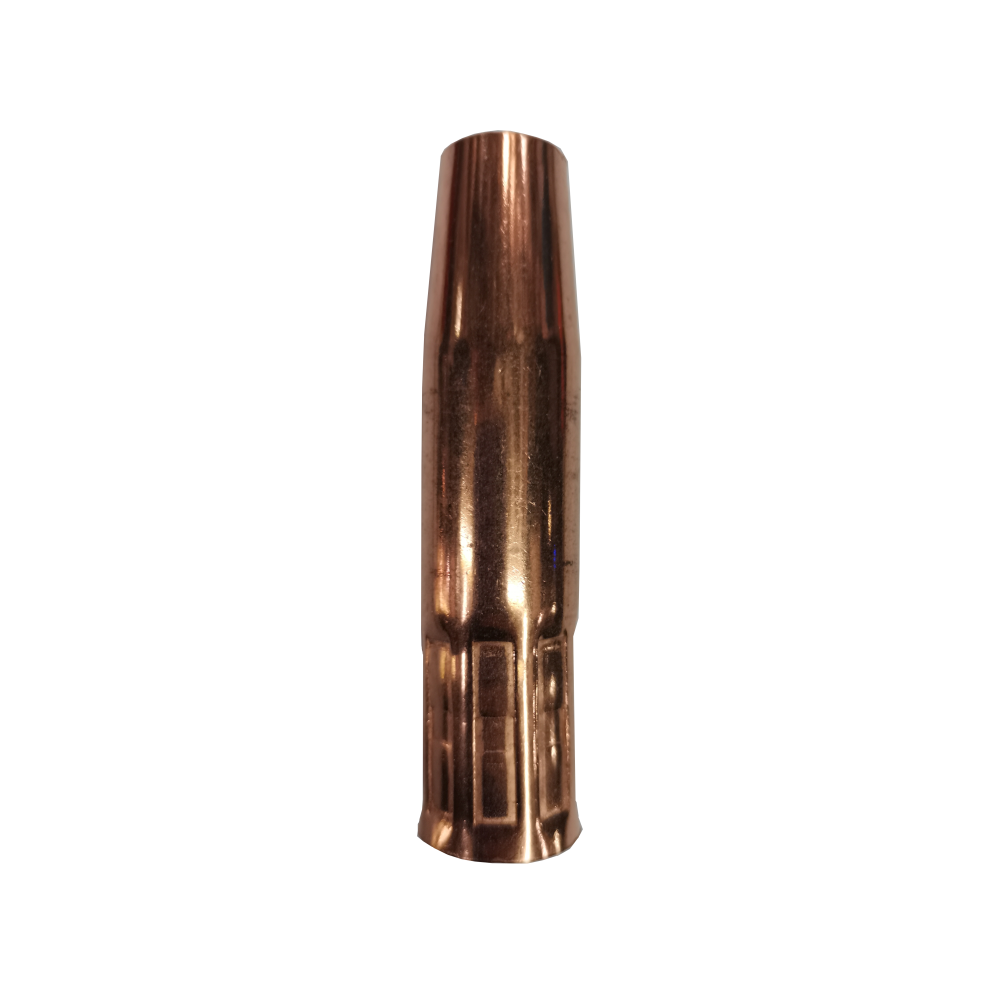

D3. Gas Nozzle (or Shroud)Directs the shielding gas stream to protect the molten weld pool.

Types: Commonly Conical (tapered for better visibility) or Cylindrical (for wider gas coverage). They are typically push-fit/slip-on.

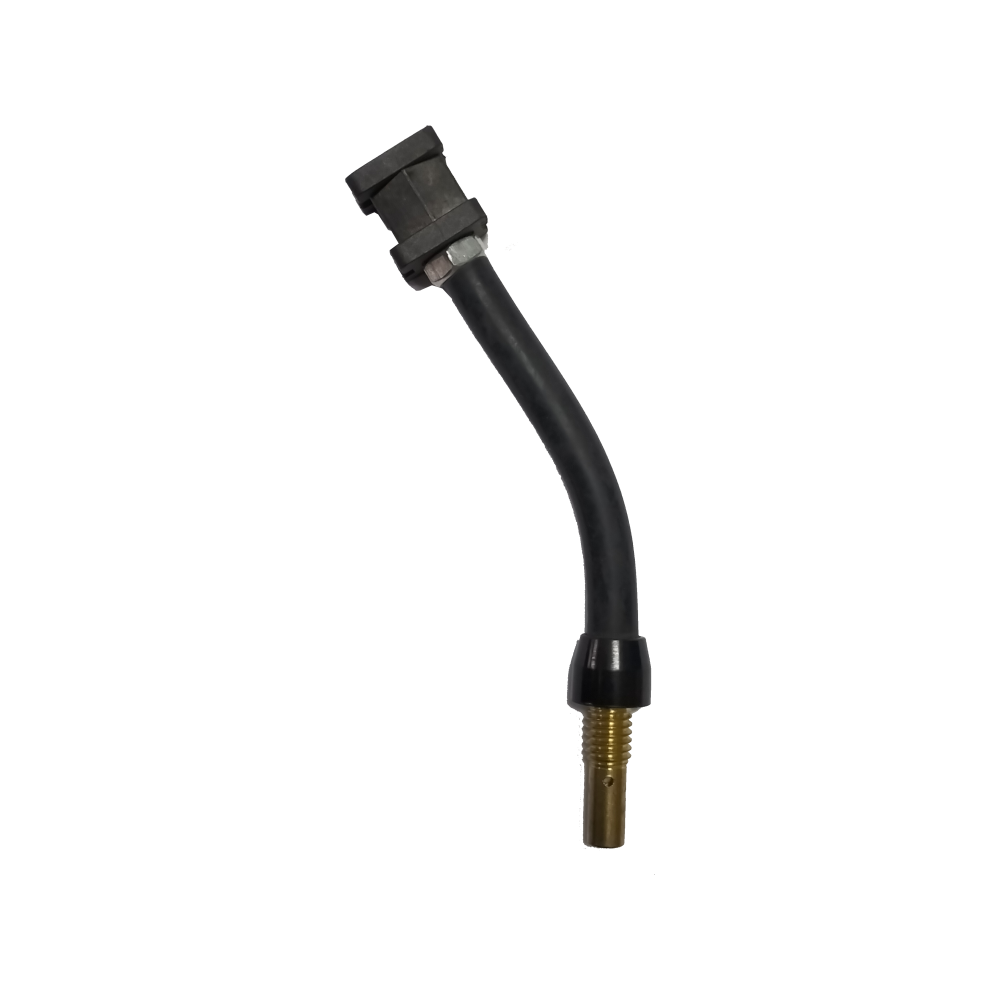

D4. Swan NeckThe curved metal tube that holds all the front-end consumables.Role: Provides the necessary angle for welding. While not a consumable, it is a key replaceable spare part.
