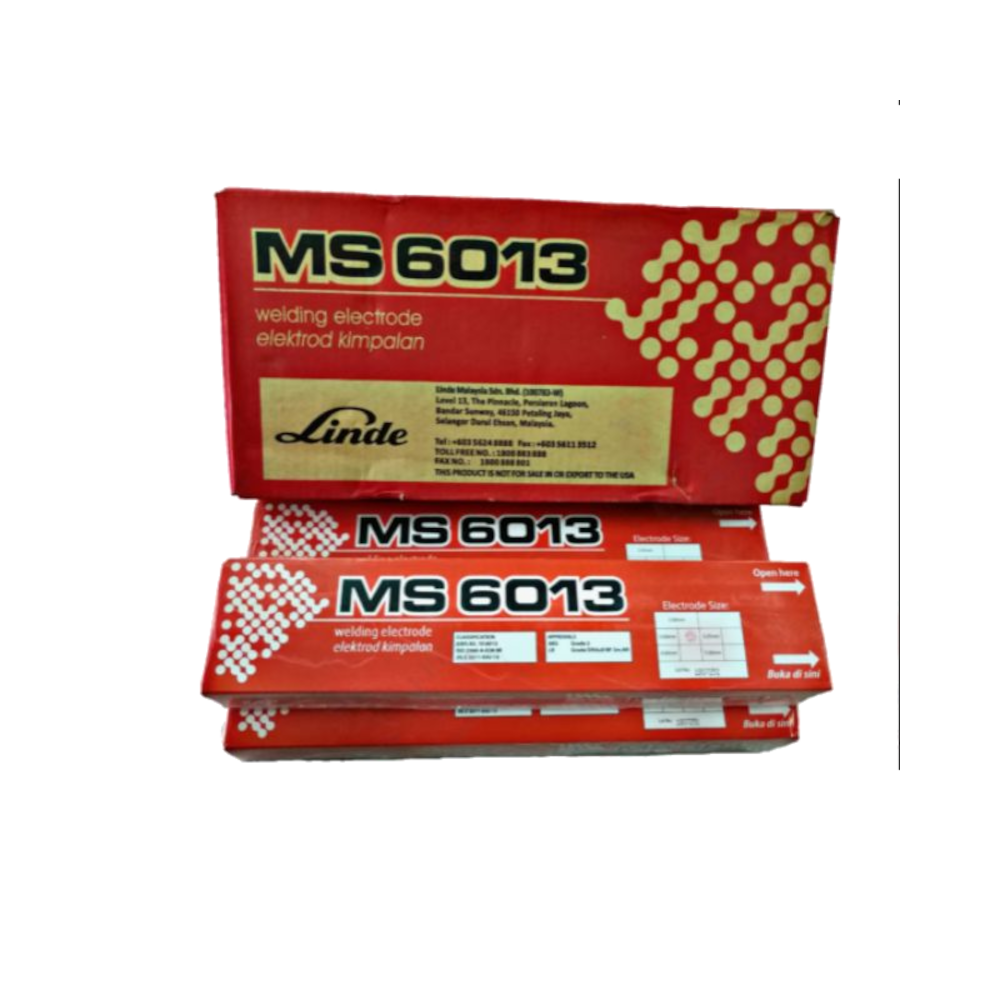

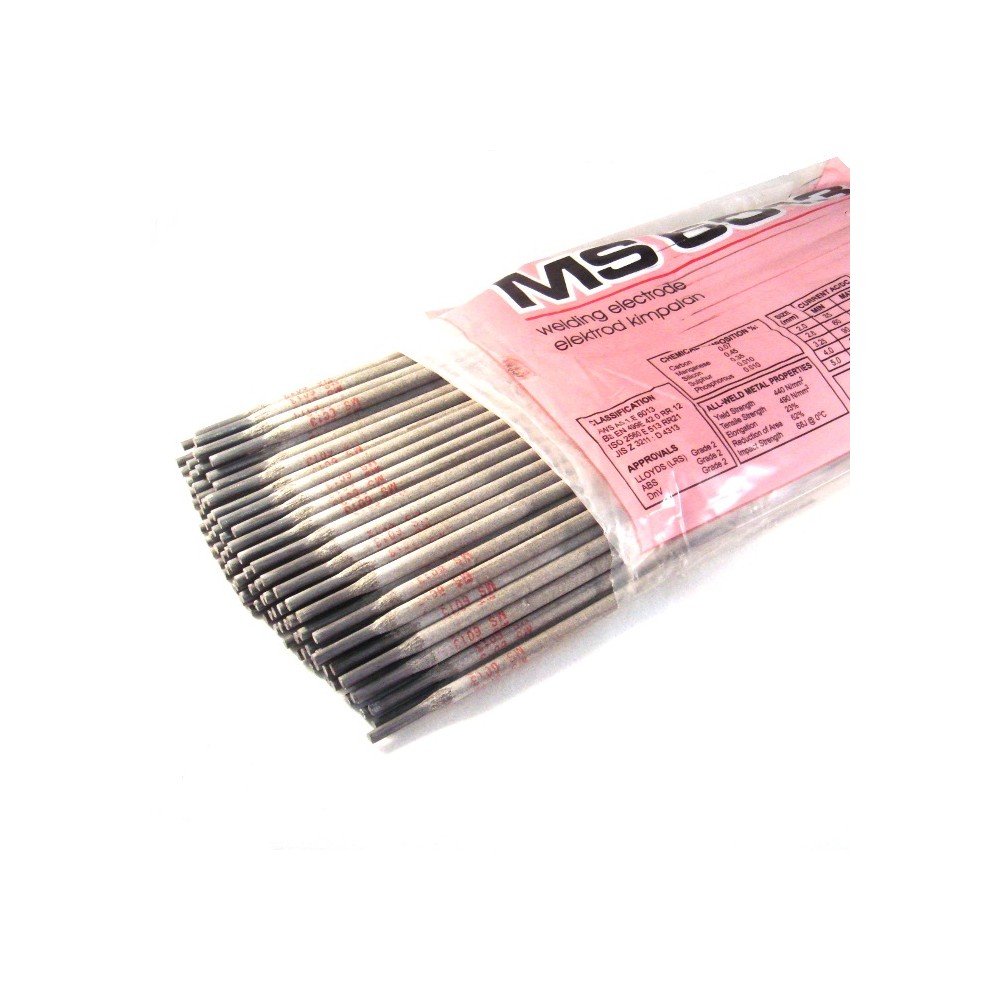

MOX (KOBELCO) LINDE WELDING ELECTRODE - MS6013

The MOX (KOBELCO) LINDE MS6013 welding electrode is a high-titania type electrode, which is a common and versatile choice for manual metal arc (MMA) welding of mild steel.

Here is a breakdown of its characteristics and the specific sizes you listed:

General Description (MS6013 / E6013 Classification)
Type and Classification: It falls under the AWS A5.1 classification E6013, and is also classified as EN ISO 2560-A-E 38 0 R and JIS Z3211 E4313 by various bodies.

E: Electrode

60: Minimum tensile strength of 60,000 psi (approx. 415 N/mm²)

1: Suitable for all welding positions (flat, horizontal, vertical up/down, overhead).

3: Indicates a rutile-type (high titania) flux coating, which means it runs well on both AC (Alternating Current) and DC (Direct Current) welding machines.

Key Features:

User-Friendly: Known for being extremely versatile and easy to use, making it popular for beginners and general fabrication.

Arc Performance: Provides a smooth, steady, and stable arc with medium penetration.

Slag: Features easy and often self-peeling slag removal.

Weld Appearance: Produces a fine, smoothly rippled weld bead with minimal spatter.

Low Fume Level (Compared to some other types).

Weld Quality: Deposits high X-ray quality weld metal, often meeting specifications like Grade 2 shipping body standards (e.g., LLOYDS, ABS, DnV Grade 2 approvals).

Typical Applications:

General mild steel fabrication.

Steel structures (trusses, portal frames).

Sheet and plate metal structures and containers (tanks, hoppers, bins).

Field jointing of pipes for water, gas, and fluid.

Maintenance and repair jobs.

Works well on thin sheet metal due to its medium to shallow penetration.

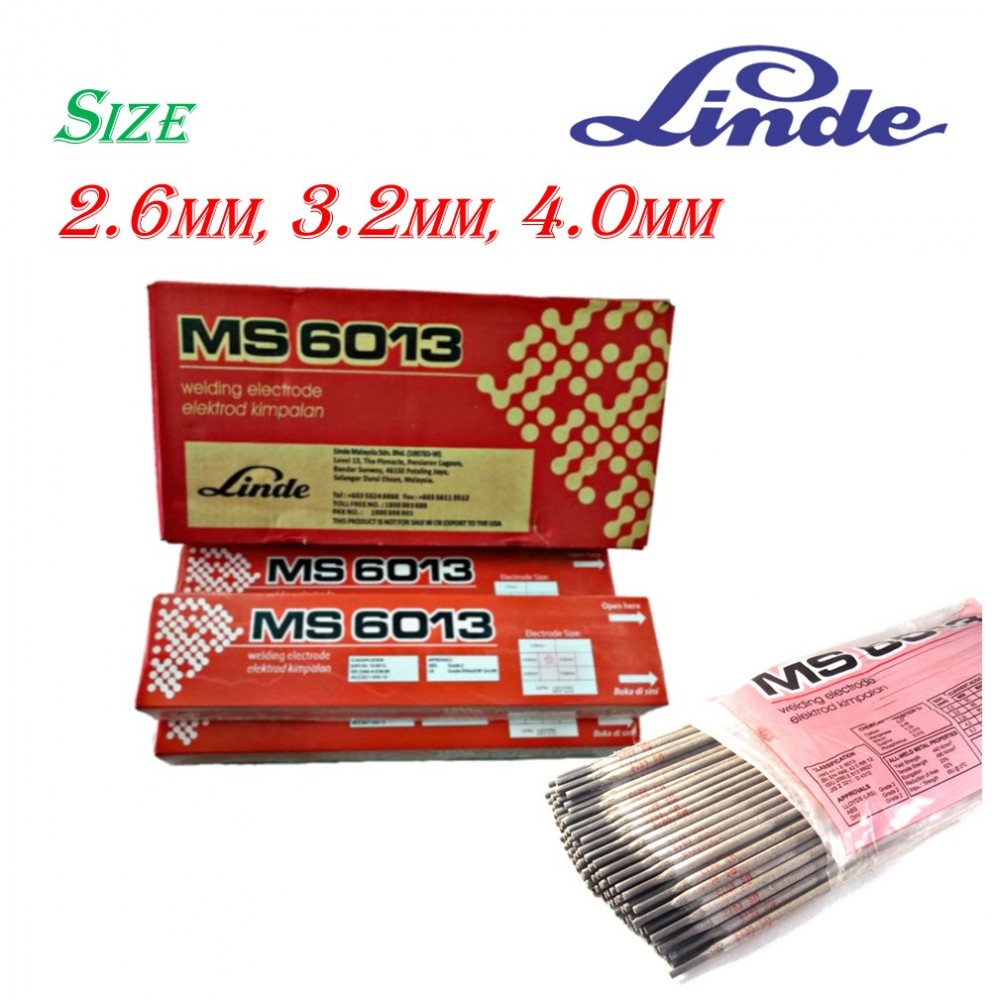

Specific Sizes and Gauges
The different sizes correspond to the electrode diameter and the current range used for welding:

Electrode Diameter Wire Gauge (Approx.) Typical Application Recommended Amperage Range (Approx.)

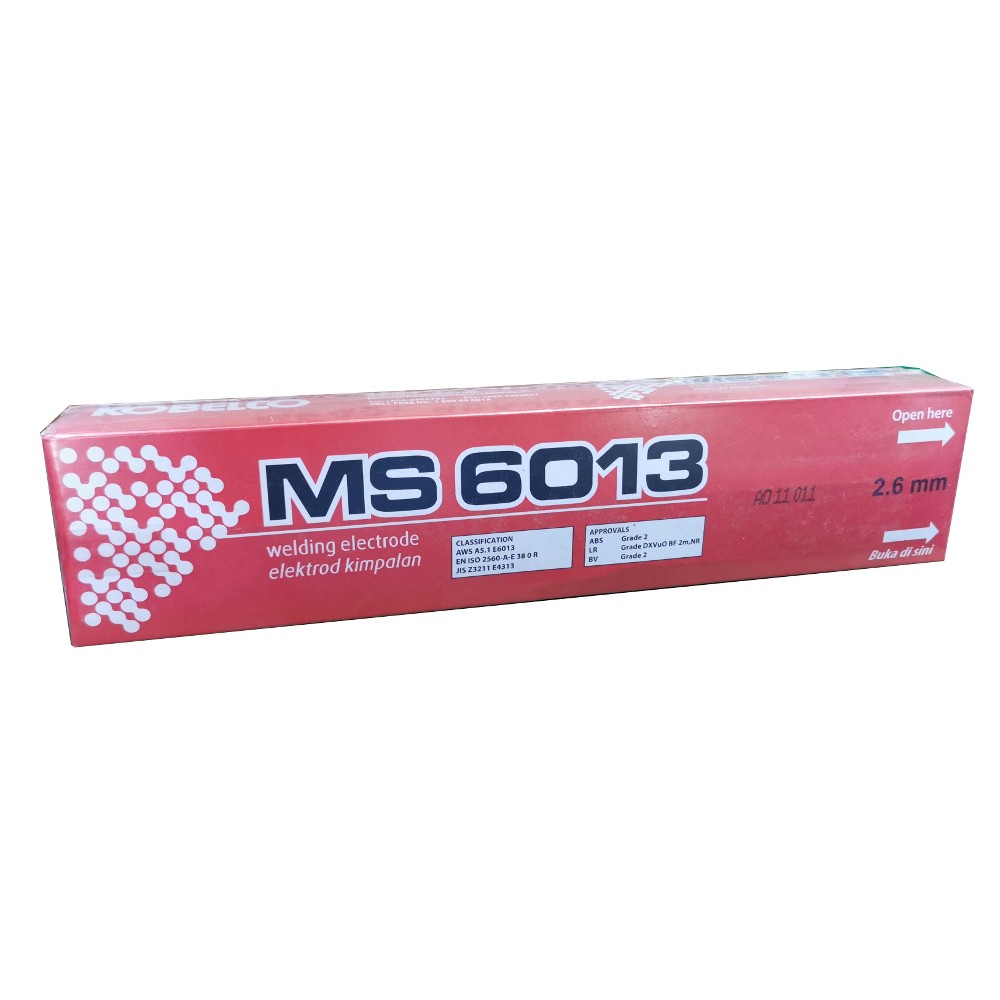

2.6 mm 12G Light structural fabrication, sheet metal work, root passes. 70 - 100 Amps
3.2 mm 10G Medium-duty fabrication, general-purpose welding. 100 - 150 Amps
4.0 mm 8G Heavy sheet or plate welding, larger fabrication tasks. 130 - 180 Amps


Note: The current ranges are typical recommendations and can vary slightly based on the manufacturer, welding position, and specific job requirements.
