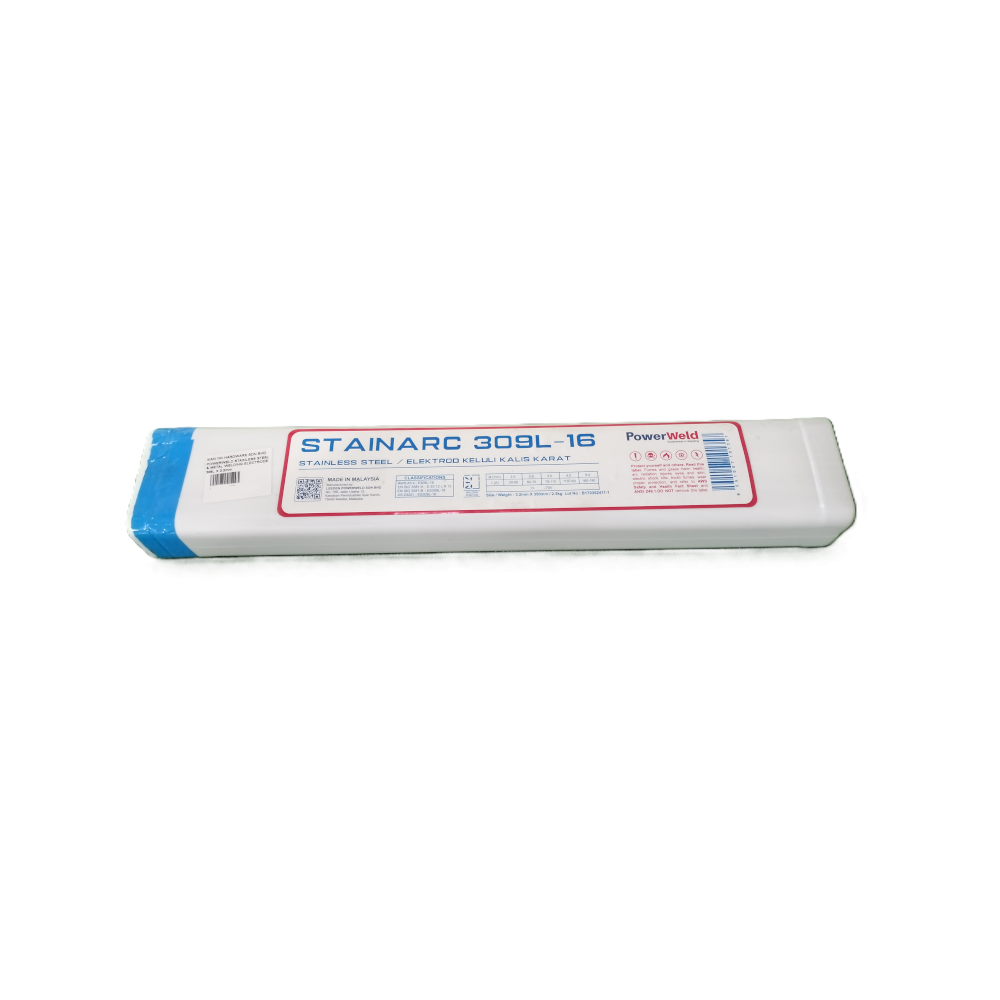

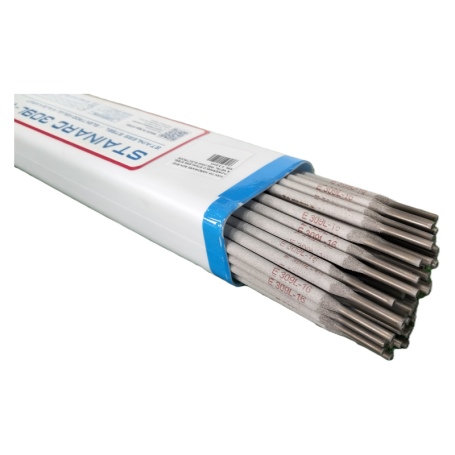

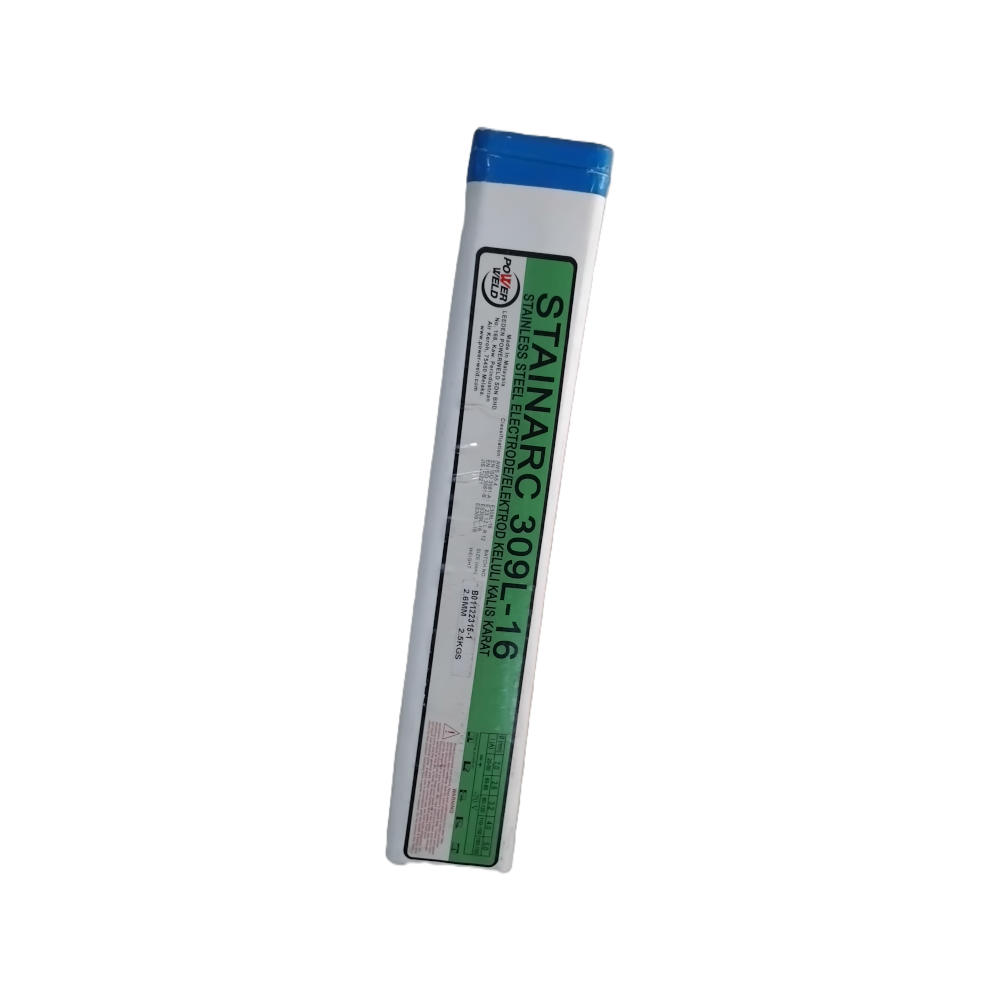

PowerWeld STAINARC 309L-16: High-Alloy Dissimilar Metal Electrode
The PowerWeld STAINARC 309L-16 is a top-tier, extra-low carbon, rutile-coated electrode designed for critical welding applications, most notably the joining of dissimilar metals. This electrode meets the strict requirements of AWS A5.4 E309L-16.
Core Composition and Benefits
The key to the STAINARC 309L-16’s performance lies in its highly alloyed weld metal, which possesses an austenitic-ferritic microstructure. It boasts a substantial alloying content, typically containing approximately 23% Chromium and 12% Nickel.
The essential "L" designation signifies an extra-low carbon content, held at a maximum of 0.04%. This critical feature provides outstanding resistance to intergranular corrosion (weld decay) and sensitization, especially when the final welded component is exposed to corrosive environments or operates under high heat.
Welding Performance and Ease of Use
As a rutile-type electrode (16 designation), the STAINARC 309L-16 ensures superior operational characteristics. Welders experience a smooth, stable arc, minimal spatter, excellent control of the slag, and, critically, easy slag detachability. The resulting weld bead is uniform and aesthetically pleasing.
This versatility is further enhanced by its operational compatibility: it performs exceptionally well in all welding positions (excluding vertical-down) and can be used with both Direct
Primary Applications
The main purpose of the 309L electrode is bridging the gap between different material types:
-
Dissimilar Joints: It is the ideal choice for joining stainless steels (such as 300 and 400 series) to carbon steels, mild steels, or low-alloy steels. The high alloy content of the deposited metal safely dilutes with the carbon steel, preventing cracking.
-
Cladding and Buffer Layers: It is widely used to lay down the buffer layer on mild steel prior to applying a final layer of 18/8 (304-type) stainless steel cladding.
-
Fabrication and Repair: It is perfect for manufacturing and repairing chemical equipment, furnace parts, heat exchangers, and various components exposed to moderately high temperatures and corrosive media.
