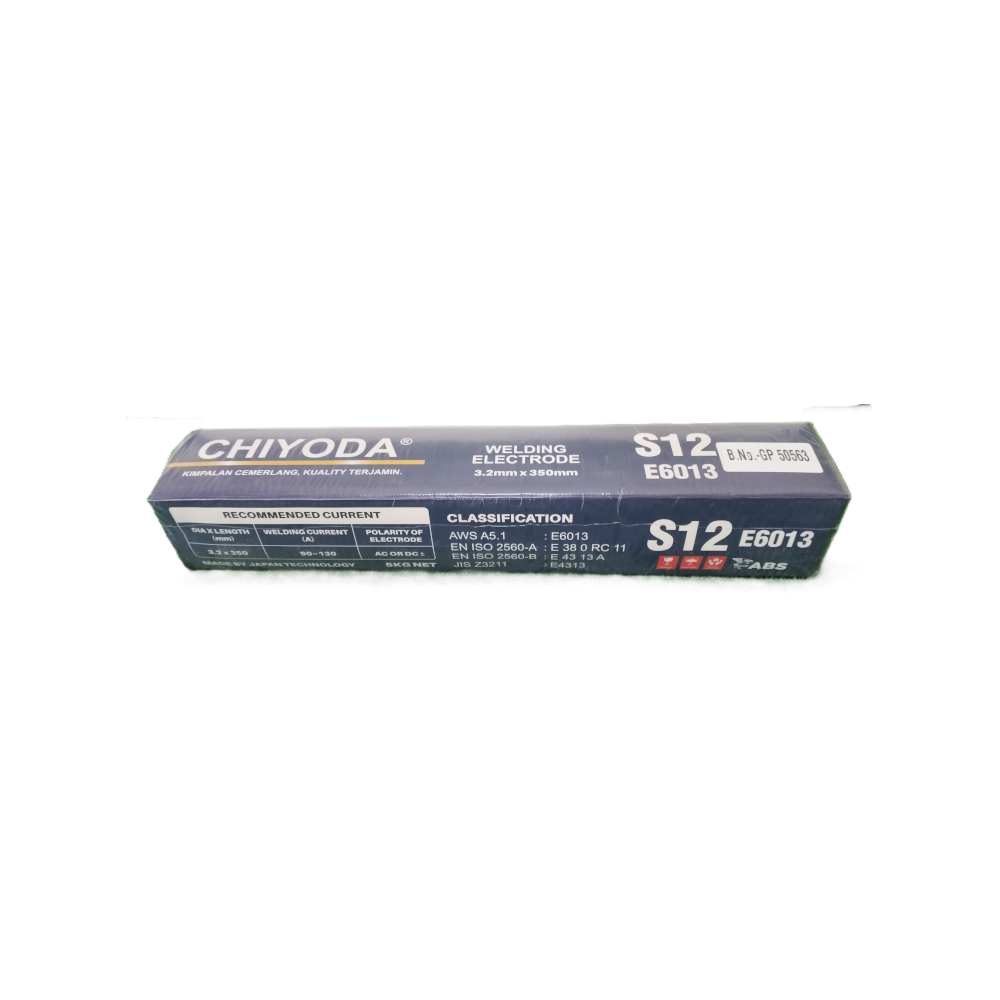

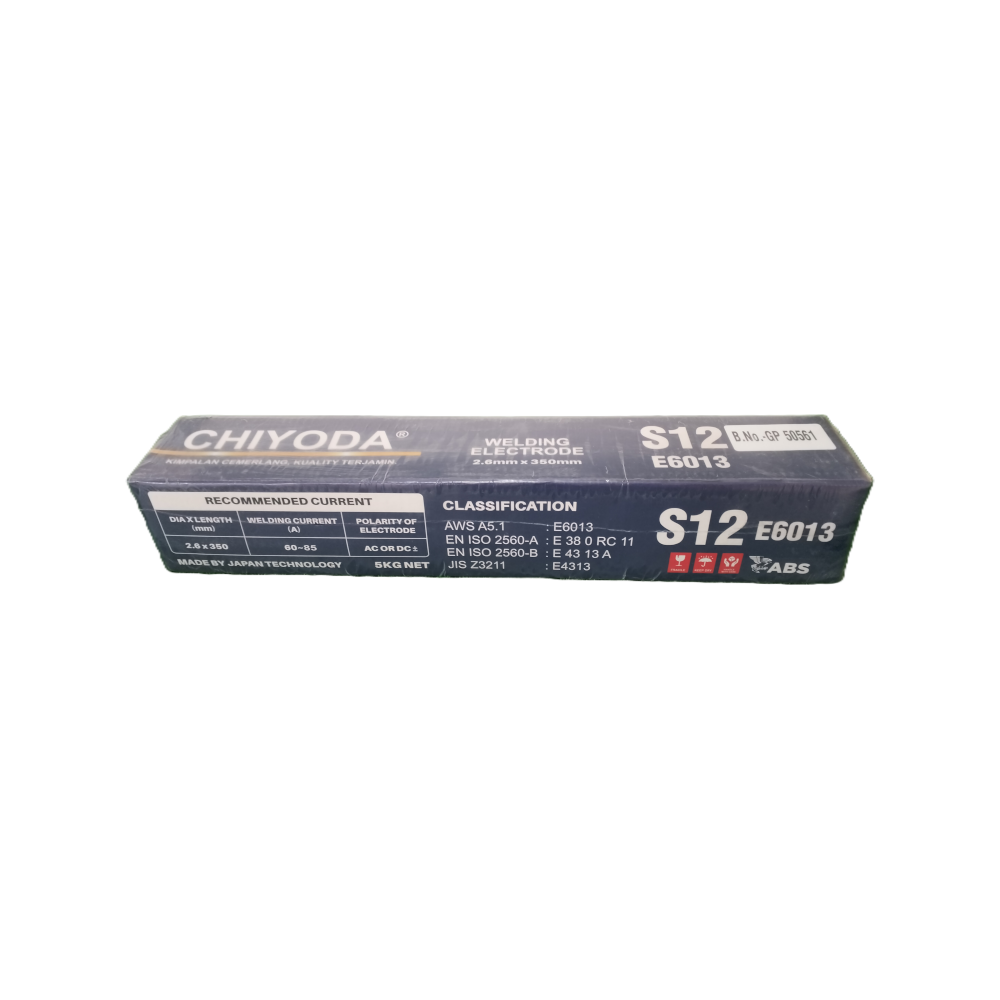

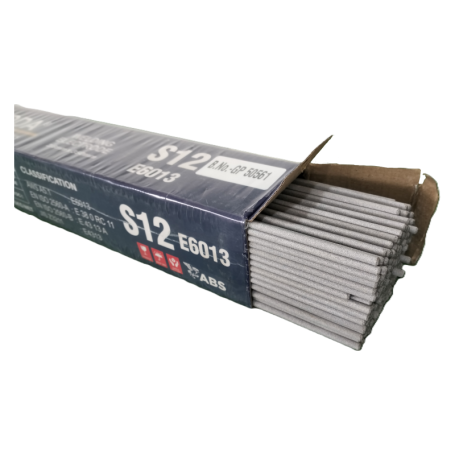

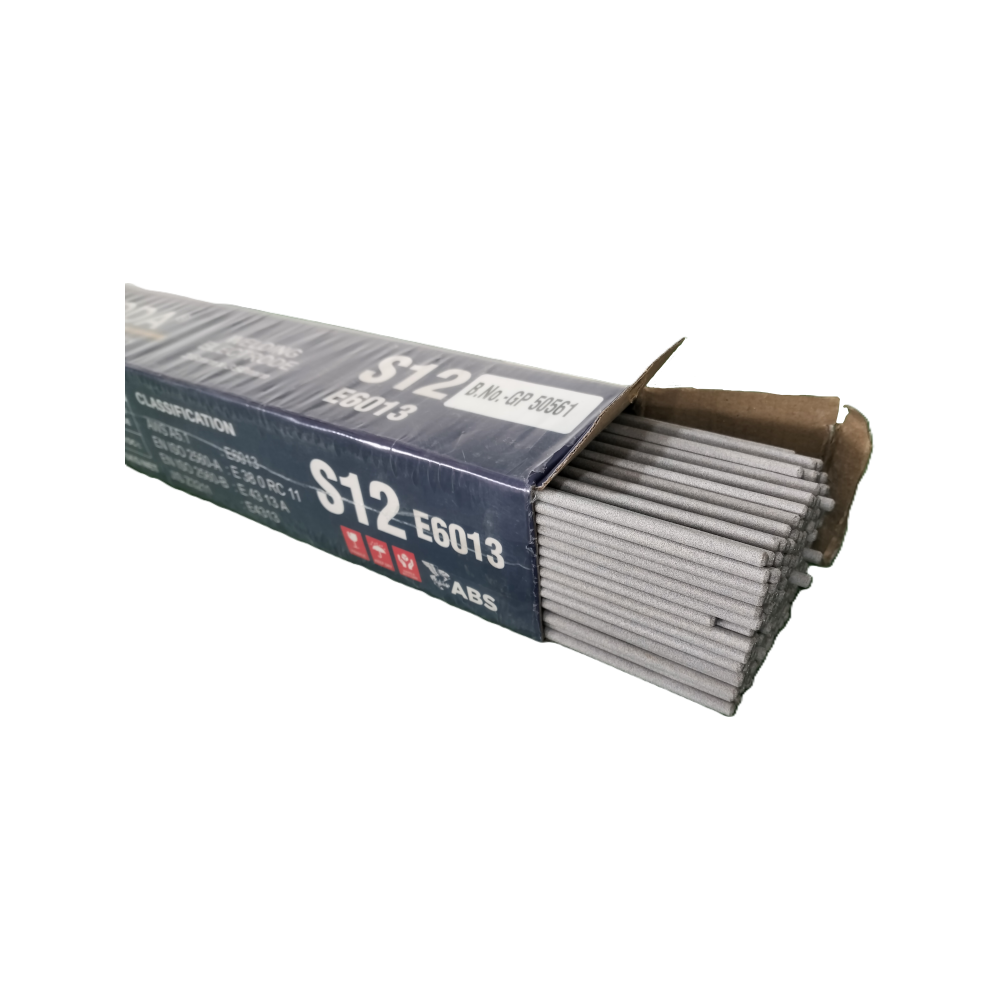

CHIYODA WELDING ELECTRODE - E6013 S-12 (12G - 2.6mm, 10G - 3.2mm, 8G - 4.0mm)

Reference:

Condition: New

600 Item Items

RM39.50 tax excl.

Size

5kg
20kg

Size

12G - 2.6mm
10G - 3.2mm
08G - 4.0mm

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

The CHIYODA E6013 S-12 is a Mild Steel Welding Electrode.¹

The classification E6013 is based on the AWS (American Welding Society) specification A5.1, and it indicates the following general properties:²

E stands for Electrode.³
60 indicates a minimum tensile strength of 60,000 psi (approximately 414 MPa).⁴
1 means it can be used in all welding positions (flat, horizontal, vertical, and overhead).⁵
3 indicates a rutile-based coating (high-titania potassium) and compatibility with both AC and DC welding current.⁶

The "S-12" designation is likely a specific product identifier used by Chiyoda (or a similar manufacturer like Powerweld in the search results) for their premium, general-purpose E6013 electrode.

Key Characteristics & Applications (Typical for E6013 S-12):

Feature	Description
Classification	AWS A5.1: E6013 (Also often meets JIS Z 3211: D4313)
Coating Type	High-rutile (Rutile-potassium)
Welding Position	All positions (Flat, Horizontal, Vertical, Overhead)
Current Type	AC or DC (straight polarity DCEN, or reverse polarity DCEP)
Arc & Slag	Smooth and soft arc, low spatter, and easy slag removal.
Penetration	Moderate to shallow penetration.
Suitability	Excellent for general-purpose welding, especially with intermittent welds and on thin sheet metal.
Common Uses	General structural steel fabrication (gates, fences, trailers, steel furniture), mild steel constructions, piping systems, tanks, and general repair/maintenance.
