New Reduced price! PJ SLEEVE ANCHOR WALL PLUG SCREW (1/4" - 3/4") View larger

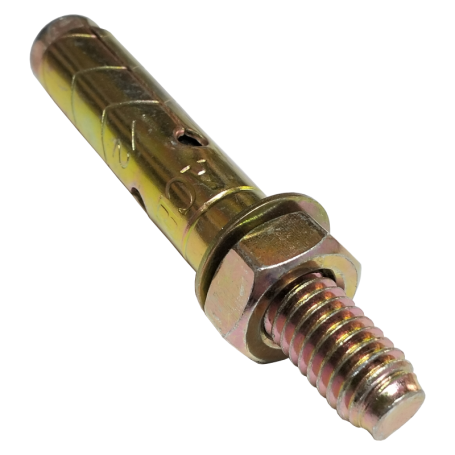

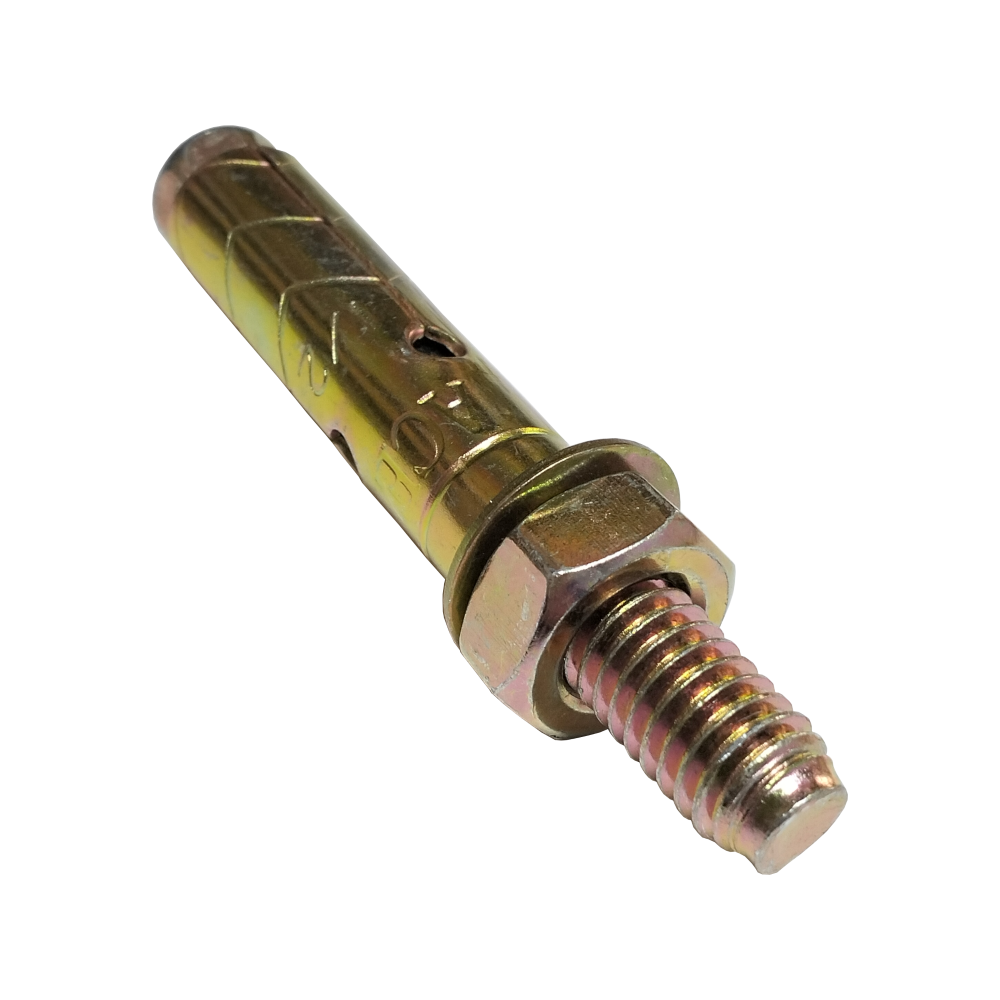

PJ SLEEVE ANCHOR WALL PLUG SCREW (1/4" - 3/4")

New

20000 Items

RM22.50 tax excl.

RM25.00 tax excl.

-10%

  • 1/4" X 2"
  • 5/16" X 2-3/8"
  • 5/16" X 2-5/8"
  • 3/8" X 3"
  • 3/8" X 4-1/2"
  • 1/2" X 3-1/8"
  • 1/2" X 4"
  • 1/2" X 5"
  • 5/8" X 5"
  • 3/4" X 6"
  • 1-PC
  • 1 box

More info

If you want to mount something on a brick or concrete wall, you’re sure to need wall plugs.

These wall plugs are intended for fixings that have to support heavy loads such as large shelves or racks.

When the nut is tightened, the conical anchor is pulled inwards. The resulting pressure causes the metal segments to expand and press strongly against the surrounding material (example: wall).

Finish treatment:

Yellow zinc plated

Applications:

- Light to medium duty into concrete, brick and block

- Cable trays

- Window and door frames

- Shelving and racking

Features:

- Heavy loading capacity

- Pre-assembled for faster & easier installation

- Sleeve design improve holding power

- Anti corrosion

Technical Information:

- Drill correct diameter hole to recommended depth.

- Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.

- Insert anchor through fixture and tap in until washer contacts fixture.

- Tighten bolt with torque wrench to recommended assembly torque.
