WEDGE ANGCHOR - ZP - Xian Yik Hardware

More info

Product Overview

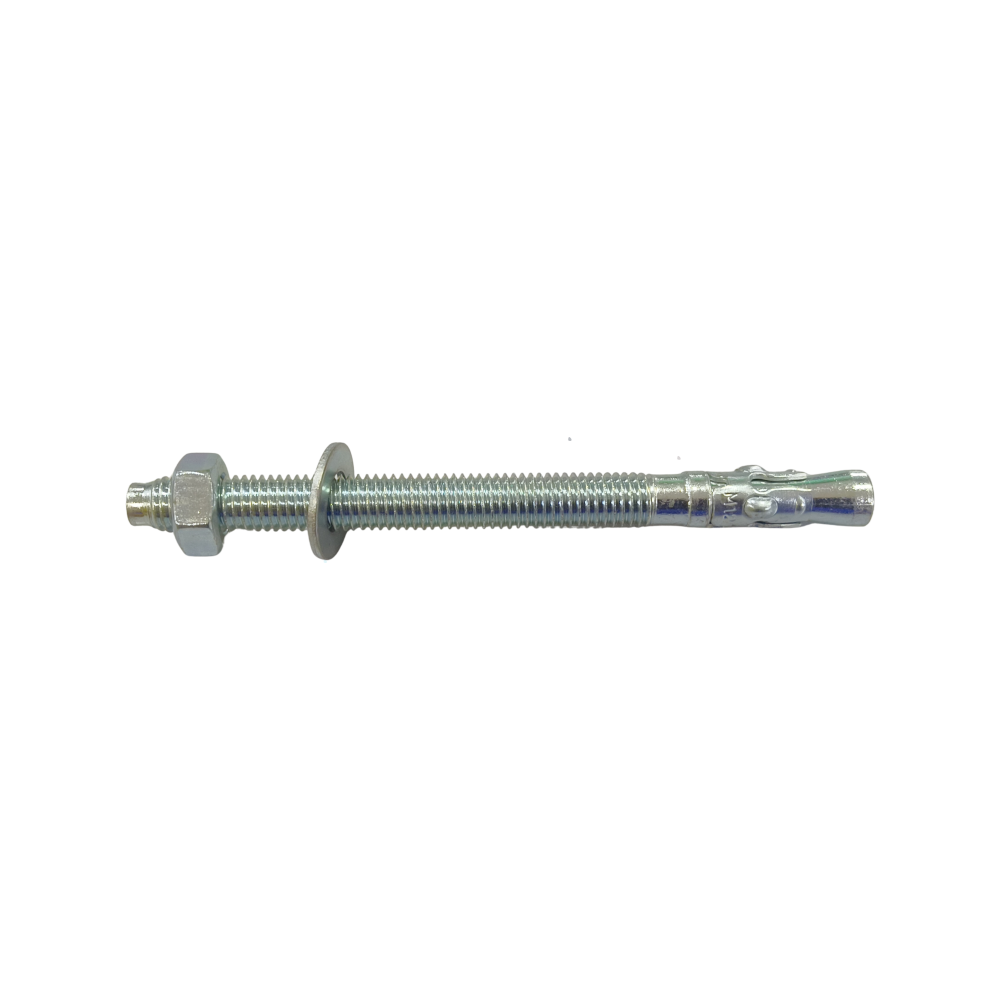

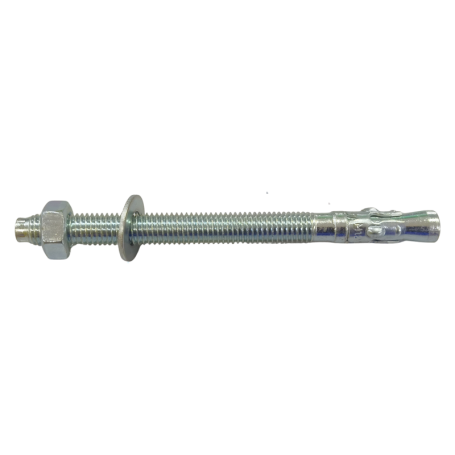

The Arrow Wedge Anchor is a high-strength, torque-controlled mechanical expansion anchor designed for permanent anchoring into solid concrete. It features a Zinc Plated (ZP) finish for basic corrosion resistance and comes pre-assembled with a heavy-duty washer and hexagonal nut.

Technical Specifications

Brand: Arrow
Product Type: Wedge Anchor (also known as a Stud Anchor or Through-Bolt)
Material Finish: Zinc Plated (ZP)

Key Features

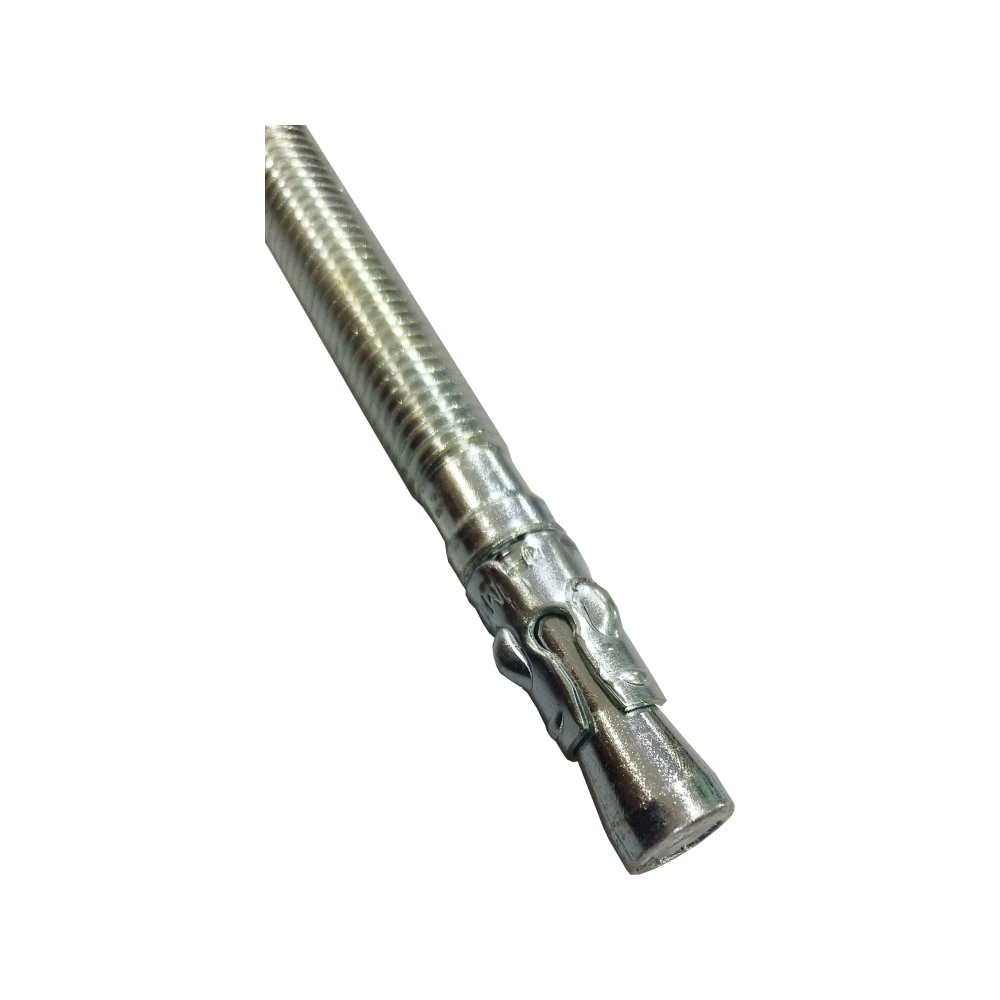

Expansion Clip Design: The 360° expansion clip ensures uniform loading and high pull-out resistance even in cracked or inconsistent concrete.
"Through-Fixing" Capability: Can be installed directly through the fixture being fastened, eliminating the need for marking and re-positioning.
Cold-Formed Thread: Provides increased tensile strength and smoother nut installation.
Impact End: The top of the anchor is designed to resist deformation when being hammered into the drilled hole.

Typical Applications

Structural Steel: Fixing columns, beams, and base plates.
Industrial Equipment: Securing heavy machinery, racking systems, and conveyors.
Infrastructure: Installation of guardrails, handrails, and stadium seating.
Mechanical/Electrical: Support for pipe hangers and cable trays.

Installation Guide

Drill: Use a hammer drill with a masonry bit to drill a hole to the required embedment depth.
Clean: Clear the hole of all dust and debris using a blow pump or vacuum.
Drive: Hammer the wedge anchor through the fixture and into the hole until the washer is flush against the surface.
Tighten: Use a torque wrench to tighten the nut to the specified torque. This pulls the tapered end of the bolt up through the clip, expanding it against the concrete walls.
