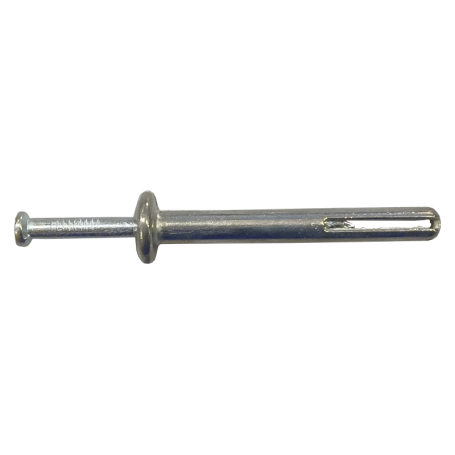

ALUMINIUM HAMMER DRIVER ANCHOR

Reference:

Condition: New

500 Item Items

RM9.00 tax excl.

SIZE

M6 X 65mm
M6 X 30mm
M6 X 40mm
M6 X 50mm
M6 X 75mm

Quantity

10pcs
1 box

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Product Overview

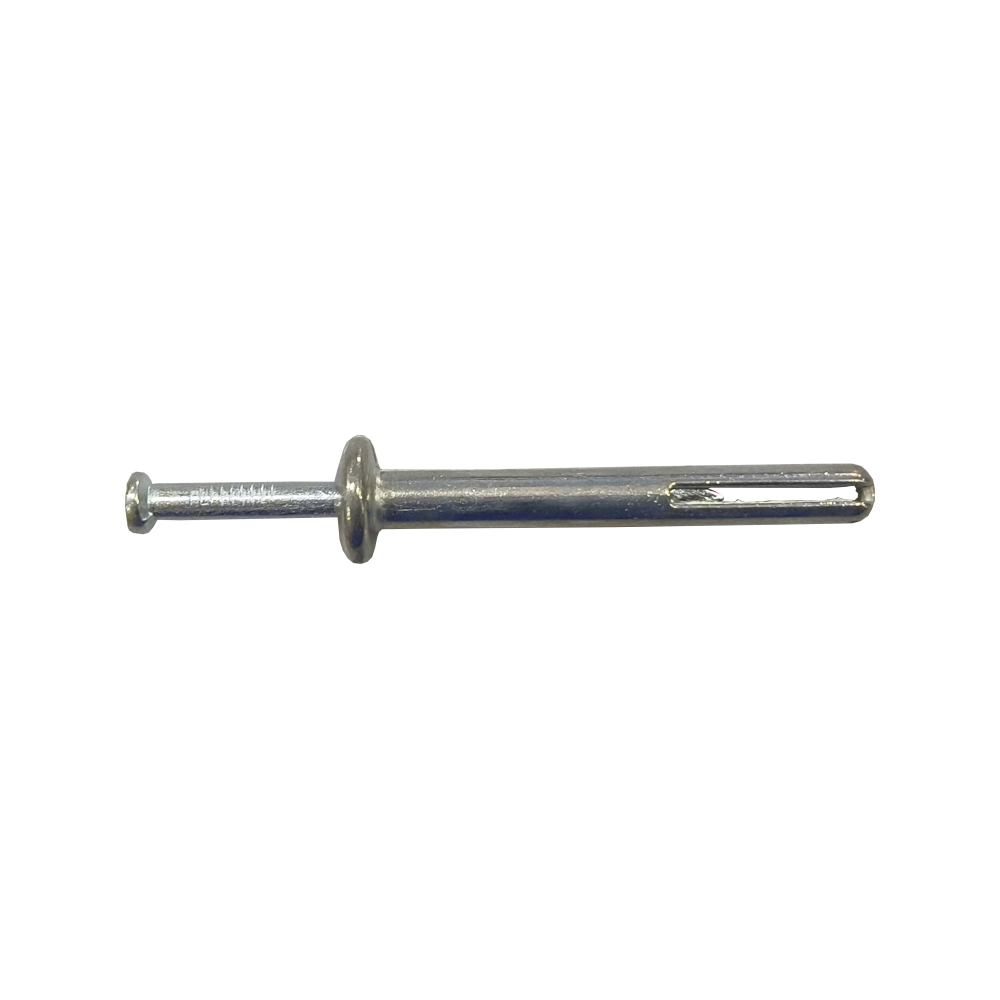

The Ace Brand Hammer Drive Anchor is a fast, easy-to-install masonry fastener designed for light-duty applications in concrete, brick, or block. It consists of a corrosion-resistant Zinc Alloy body and a steel drive nail. When the nail is driven into the anchor body, it expands the base to create a secure, permanent grip.

Technical Specifications

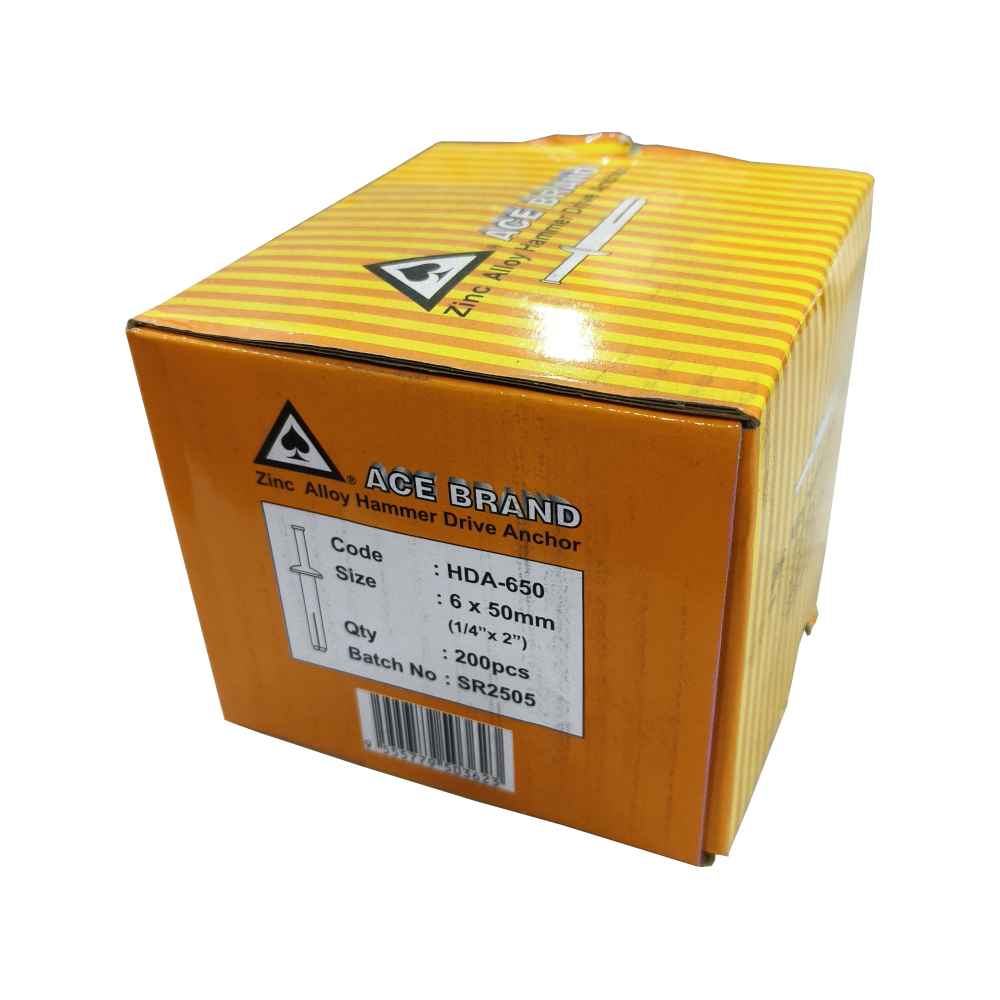

Brand: Ace Brand
Product Type: Hammer Drive Anchor (also known as a Nail-in Anchor)
Material: Zinc Alloy Body with Steel Nail

Key Features

Rapid Installation: Designed for "hammer-set" installation, significantly reducing time compared to traditional mechanical anchors that require threading or torquing.
Tamper-Resistant: Once the nail is driven flush with the mushroom head, it is difficult to remove, providing a level of security for the fixture.
Mushroom Head Profile: Features a large, low-profile head that provides a wide bearing surface to hold fixtures securely against the base material.
Durable Construction: The zinc alloy body offers excellent resistance to atmospheric corrosion, making it suitable for various environments.

Typical Applications

General Construction: Fixing termite shields, flashing, and brick ties.
Electrical & Plumbing: Securing conduit clips, junction boxes, and pipe brackets.
Interior Finishing: Attaching drywall track, wall furring, and kick plates to concrete floors.
Signage: Mounting light-weight signs or nameplates to masonry walls.

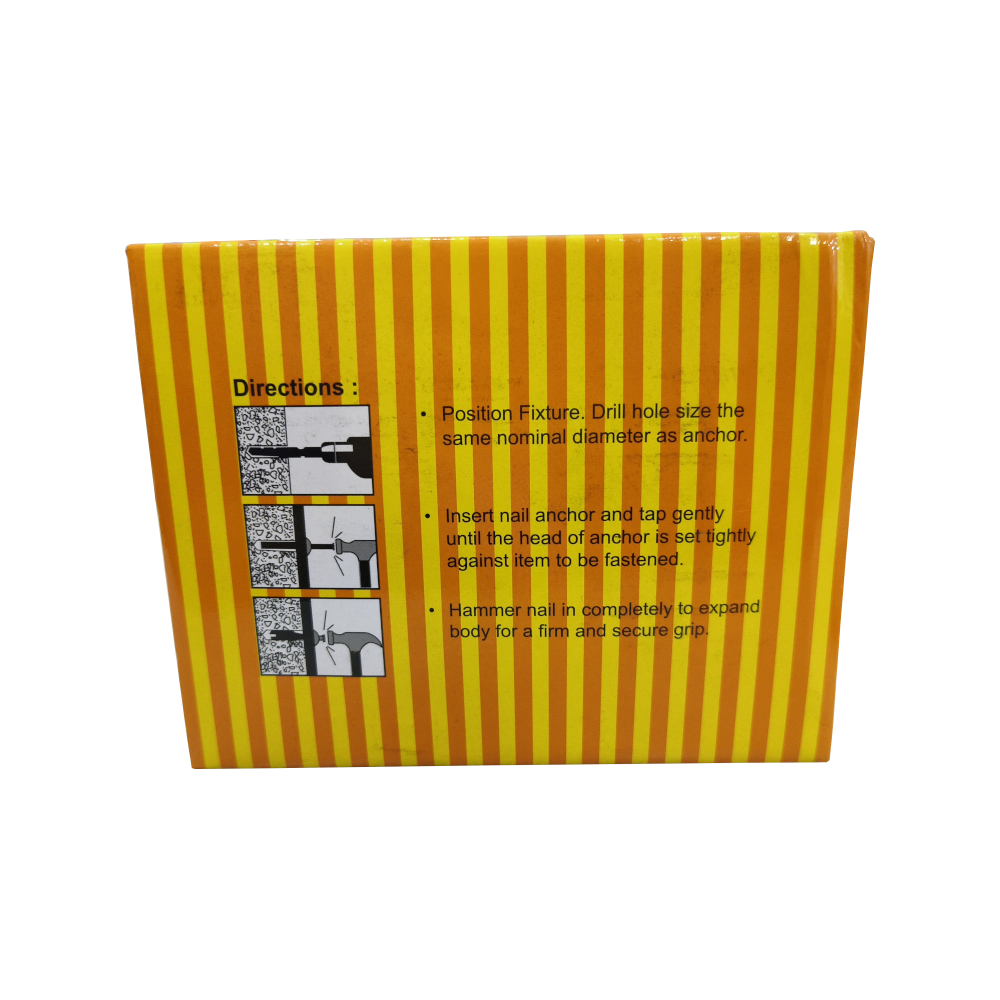

Installation Directions

Position Fixture: Place the item to be fastened in the desired location.
Drill: Using a $6text{mm}$ masonry bit, drill a hole through the fixture and into the base material. The hole size should match the nominal diameter of the anchor ( $6text{mm}$ .
Insert: Push the anchor through the fixture and tap the head of the alloy body gently until it sits tightly against the item.
Set: Use a hammer to drive the nail in completely. This expands the split body of the anchor inside the hole for a firm and secure grip.
