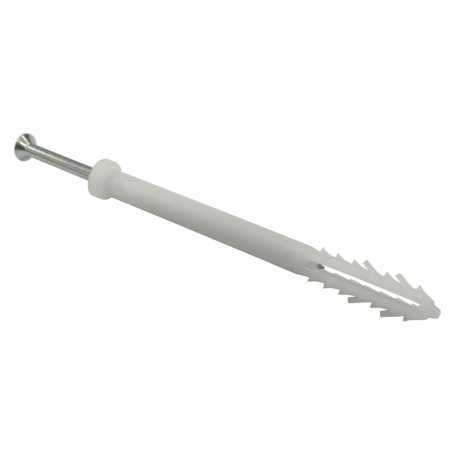

PVC WALL PLUG WITH SCREW

Reference:

Condition: New

900 Item Items

RM0.30 tax excl.

Size

2" X 8#
3" X 8#
4" X 8#

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

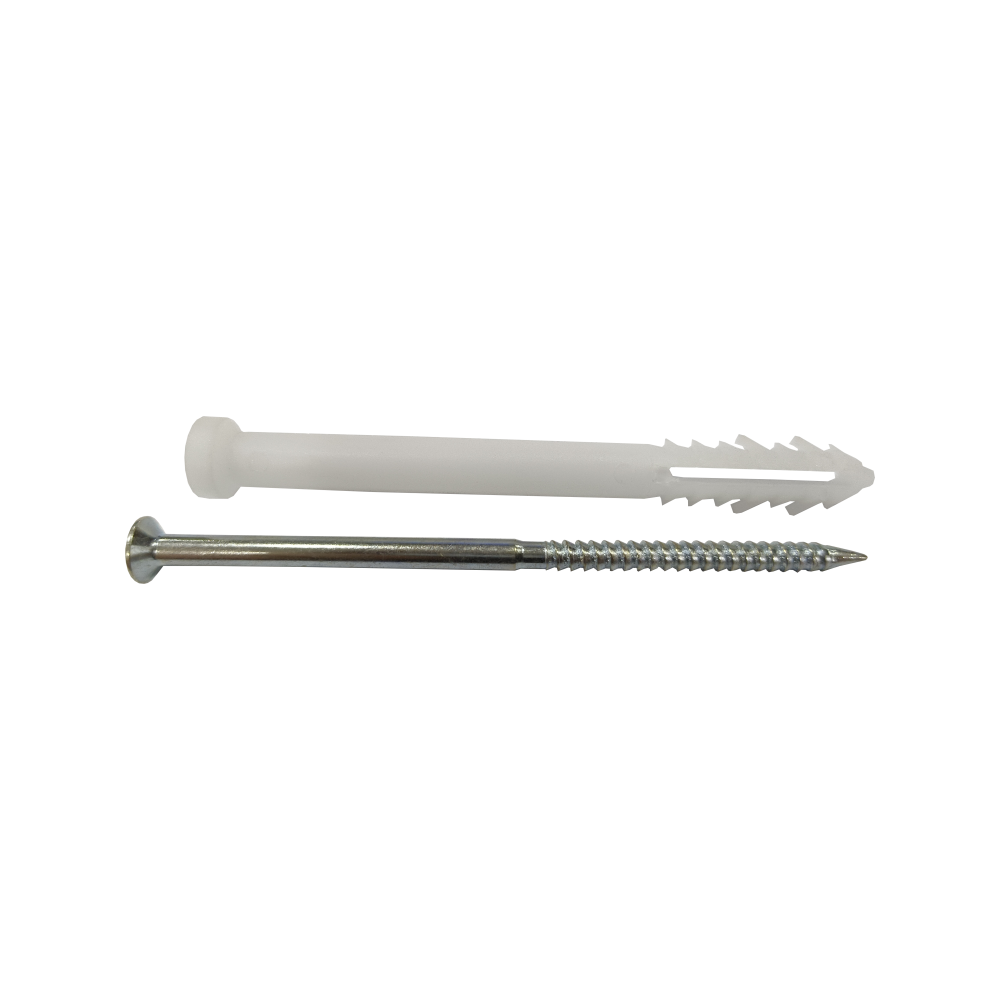

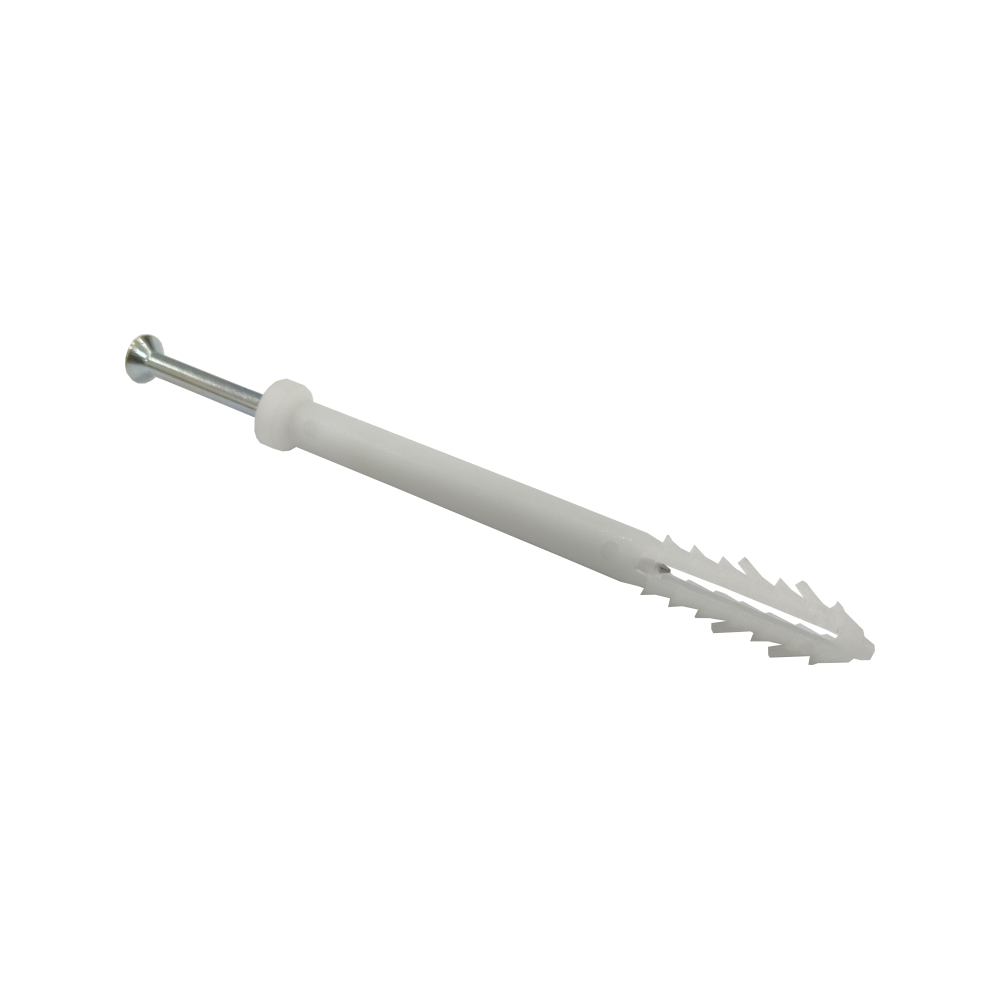

This item is a PVC Wall Plug and Screw Set, a standard light-to-medium duty fastening solution designed for securing fixtures into masonry, concrete, and brick walls. This kit provides a matched pair of anchors and screws to ensure a perfect fit and maximum holding power.

Product Specifications & Features

Anchor Material: High-grade Polyvinyl Chloride (PVC). The material is chosen for its flexibility and ability to expand without splitting, providing a long-lasting grip.
Screw Type: Includes countersunk cross-head (Phillips) steel screws, typically zinc-plated for basic corrosion resistance.
Anti-Rotation Wings: The PVC plugs feature small external "fins" or wings that prevent the plug from spinning inside the hole while the screw is being driven in.
Split-Body Design: The plug is split down the center to allow for uniform expansion against the walls of the substrate as the screw is inserted.

Primary Applications

Application	Description
Electrical	Mounting switch boxes, conduit clips, and light fixtures.
Home Decor	Hanging mirrors, picture frames, curtain rails, and bathroom accessories.
Small Hardware	Securing coat hooks, door stops, and small shelving brackets.
Signage	Attaching lightweight plastic or metal signs to exterior or interior walls.

Technical Installation Guide

Drill: Use a masonry drill bit of the same diameter as the PVC plug (e.g., a 8mm bit for a 6mm plug).
Depth: Drill the hole slightly deeper than the length of the plug to allow for the screw tip.
Clean: Remove dust from the hole for a better grip.
Insert: Push the PVC plug into the hole until it is flush with the wall surface.
Fix: Place the item you are mounting over the plug and drive the screw through the item and into the plug until tight.
