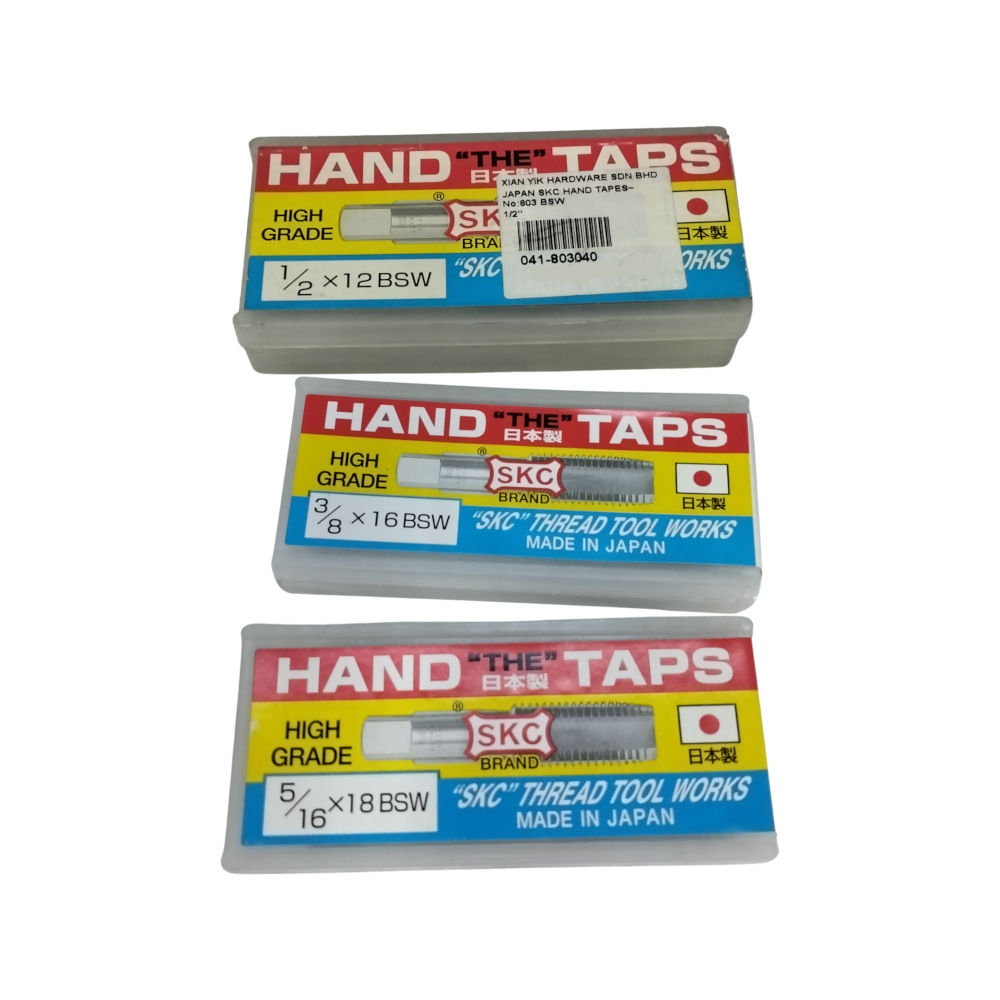

JAPAN SKC HAND TAPES - No:803 BSW

More info

The Japan SKC No. 803 BSW (British Standard Whitworth) series is a professional-grade 3-piece hand tap set made from SKS Carbon Steel. In Malaysia and Singapore, these are the most common tools for repairing or creating threads in older machinery, vintage vehicles, and some colonial-era infrastructure where Whitworth threads were the standard.

SKC 803 BSW Technical Specifications

The 803 series features a 55° thread angle (unlike the 60° angle of UNC/Metric) and is sold as a set of three: Taper, Plug, and Bottoming.

Important: BSW 1/2" vs. UNC 1/2"

If you are working on a 1/2" bolt, you must double-check whether it is BSW or UNC:

1/2" BSW has 12 TPI.
1/2" UNC has 13 TPI.
Warning: They look almost identical, but they are not compatible. If you use a BSW tap in a hole meant for UNC, you will destroy the threads. Use a thread pitch gauge if you are unsure.

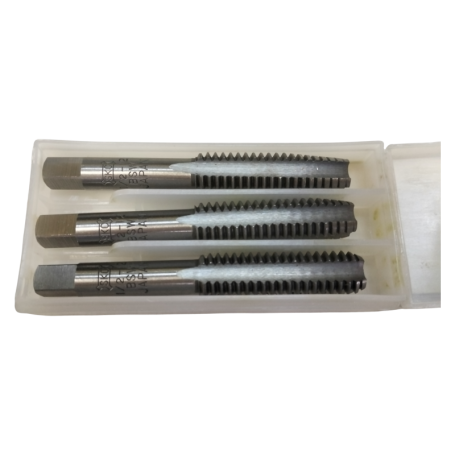

Why 3 Pieces?

SKC No. 803 sets provide three different "leads" to ensure accuracy:

Taper (No. 1): Has a long 8-10 thread chamfer. It is used to start the thread and ensure it is perfectly square to the hole.
Plug (No. 2): Has a 3-5 thread chamfer. This is the "workhorse" that cuts the full thread depth.
Bottoming (No. 3): Has a very short 1.5 thread chamfer. Used only for "blind holes" where you need threads to go all the way to the very bottom.

Recommended Tooling

For the 1/2" x 12 BSW tap, you should use:

Tap Wrench: SKC No. 6 or No. 7 for enough leverage.
Lubricant: Standard cutting oil or WD-40 Specialist Cutting Oil to prevent the carbon steel from overheating and snapping.
