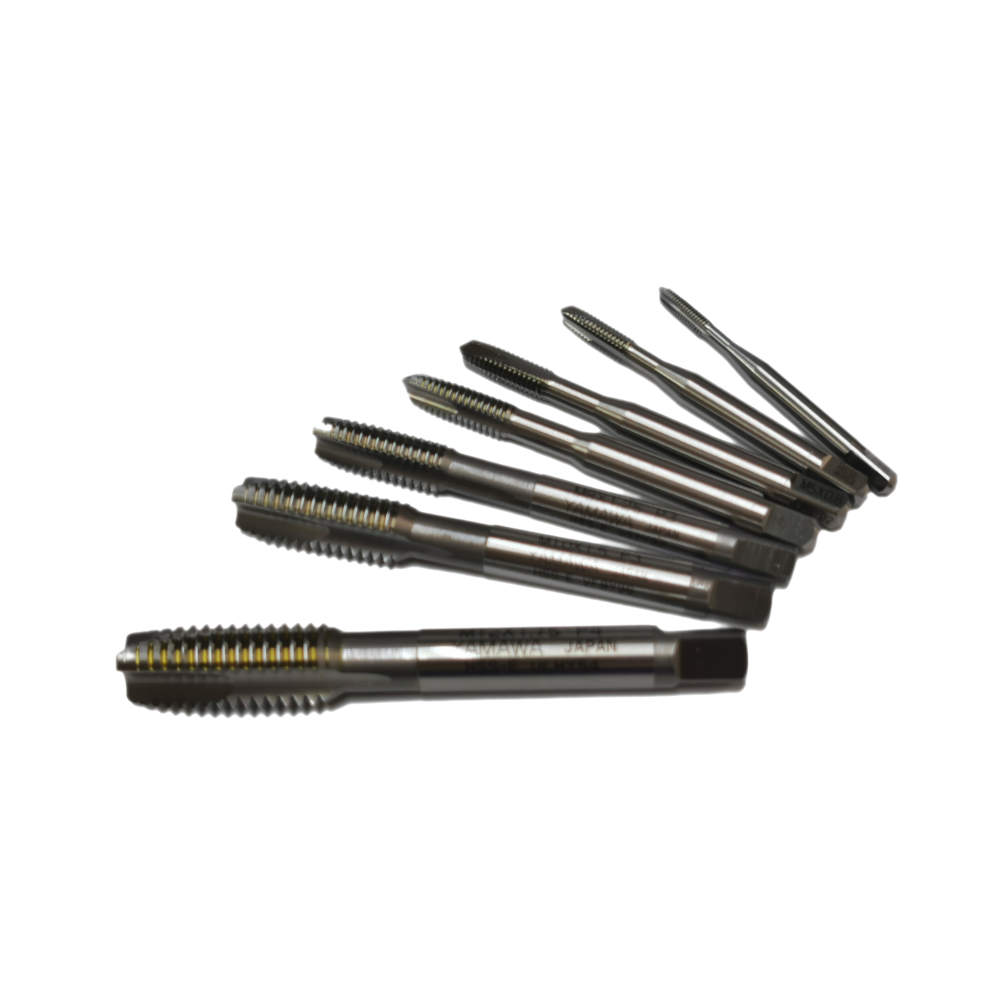

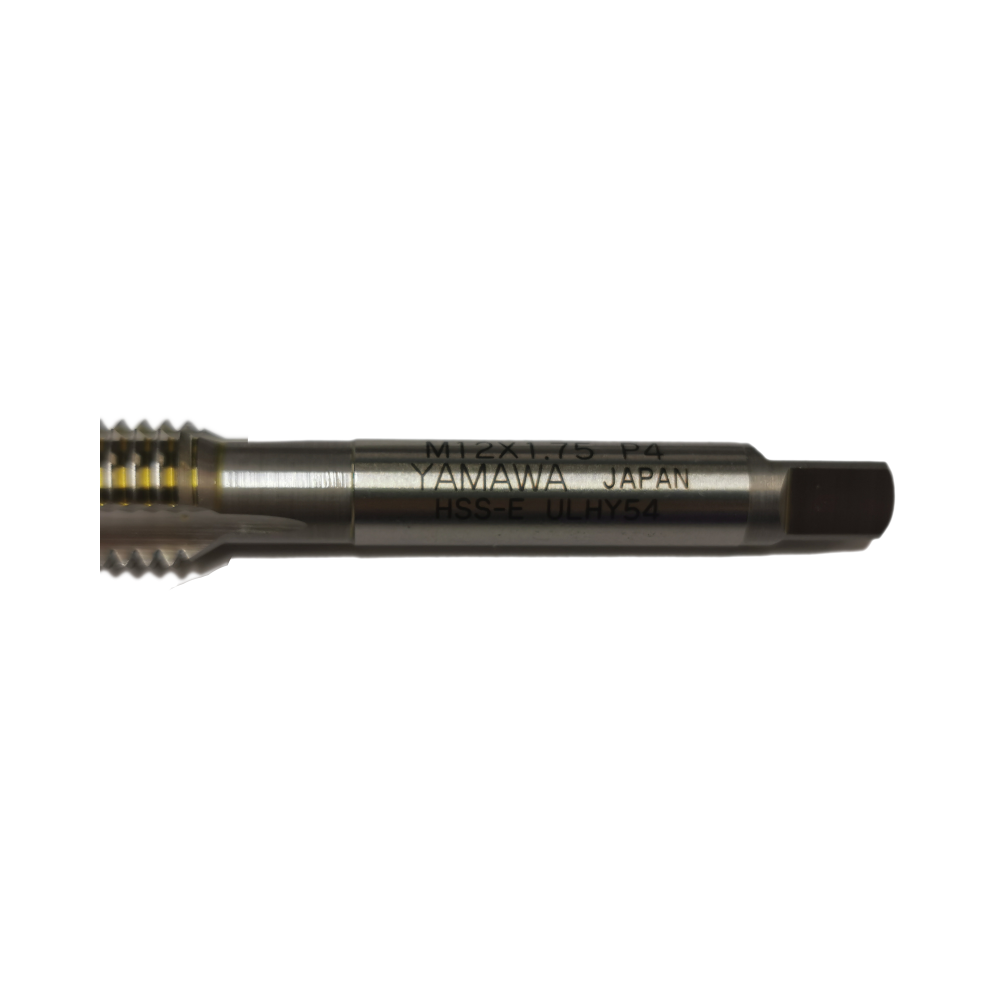

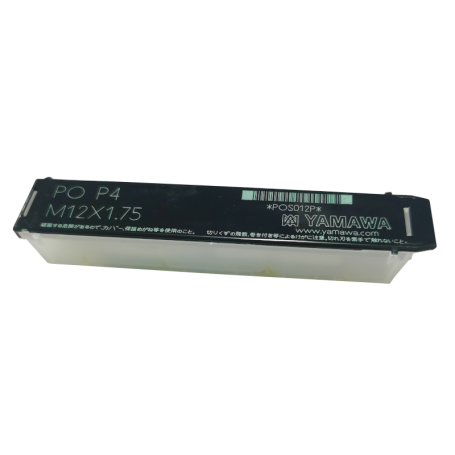

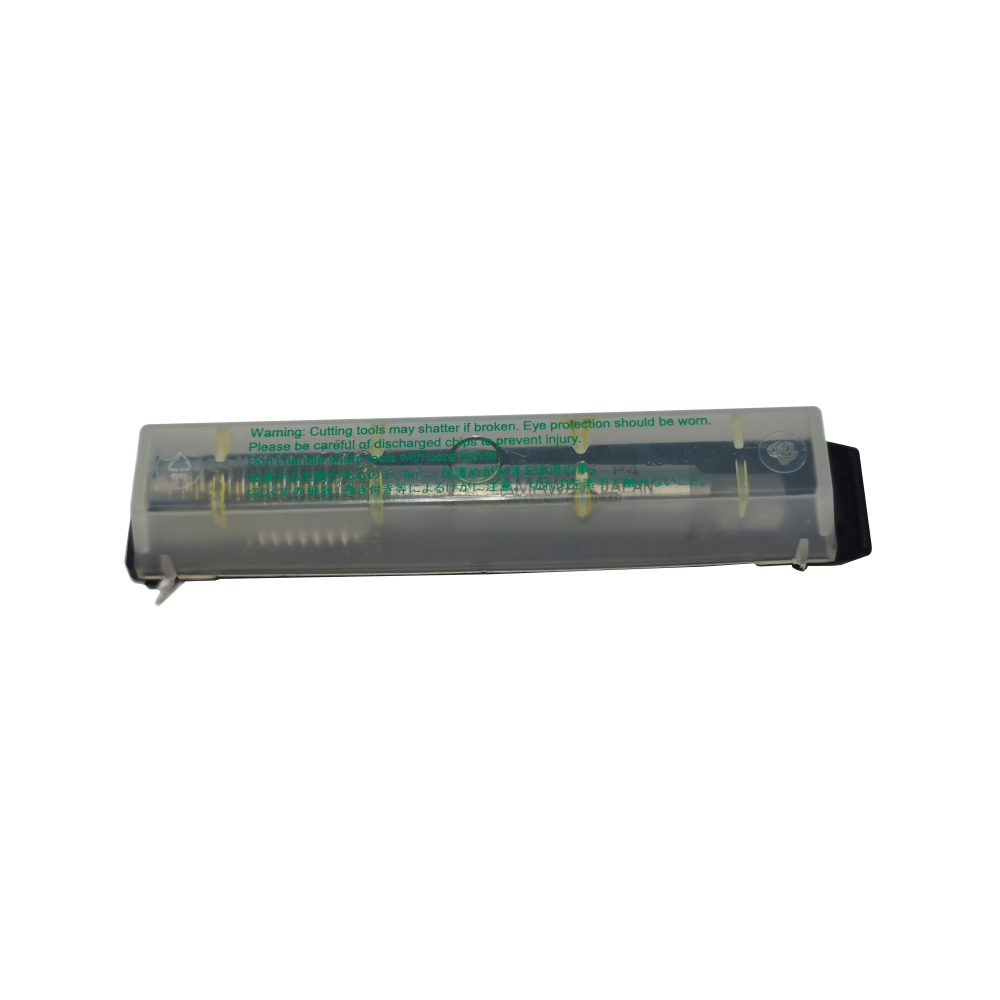

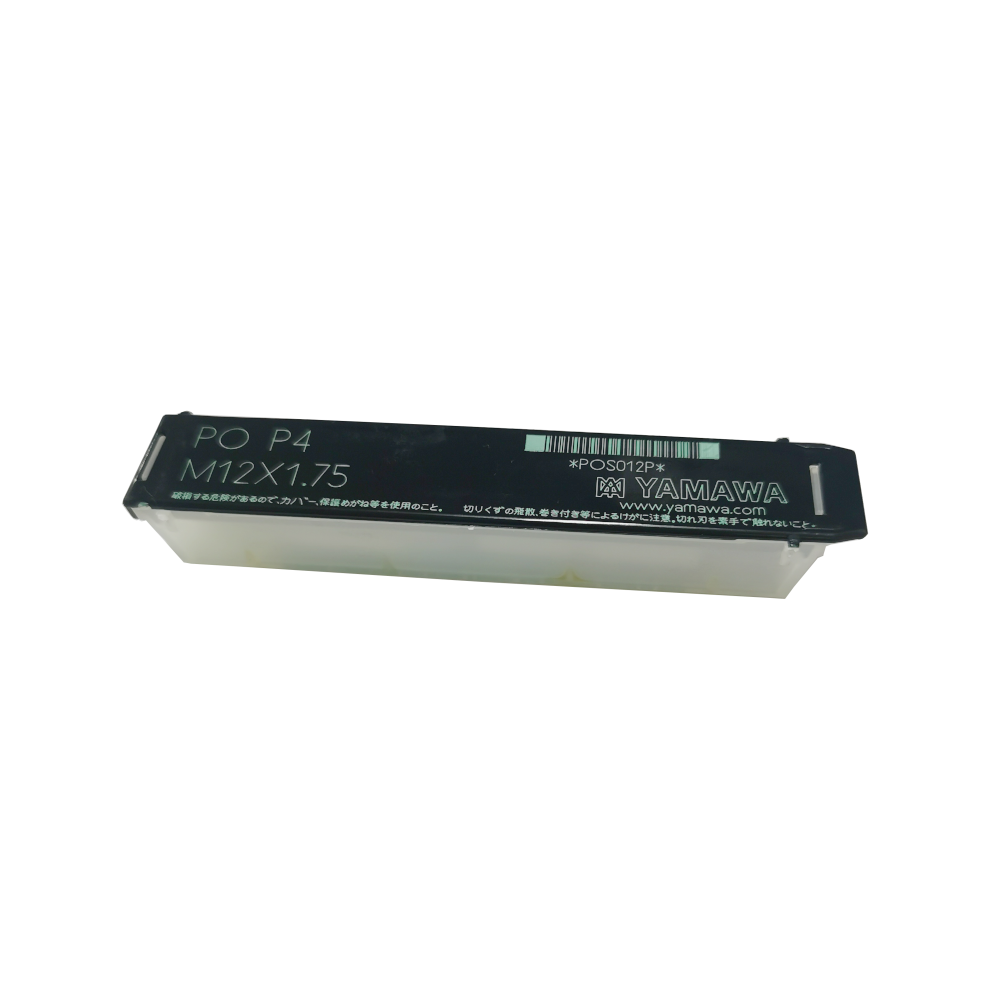

D606- YAMAWA JAPAN SP SPIRAL FLUTED BLIND HOLE MACHINE TAP M3 to M12 STANDARD PITCH

More info

This high-performance Yamawa Spiral Point Machine Tap is designed for high-speed precision threading in through-hole applications. Manufactured in Japan from premium High-Speed Steel (HSS-E), these taps are engineered to push chips forward, preventing clogging and ensuring a smooth, clean finish.

## Technical Specifications

Brand: Yamawa (Think Threads)
Origin: Japan
Material: HSS-E (High-Speed Steel with Cobalt) for superior heat and wear resistance.
Tap Type: Spiral Point (often referred to as "Gun Taps" or "Pointed Taps").
Application: Specifically designed for through-holes (the design pushes chips ahead of the tap).
Product Code: D606 Series

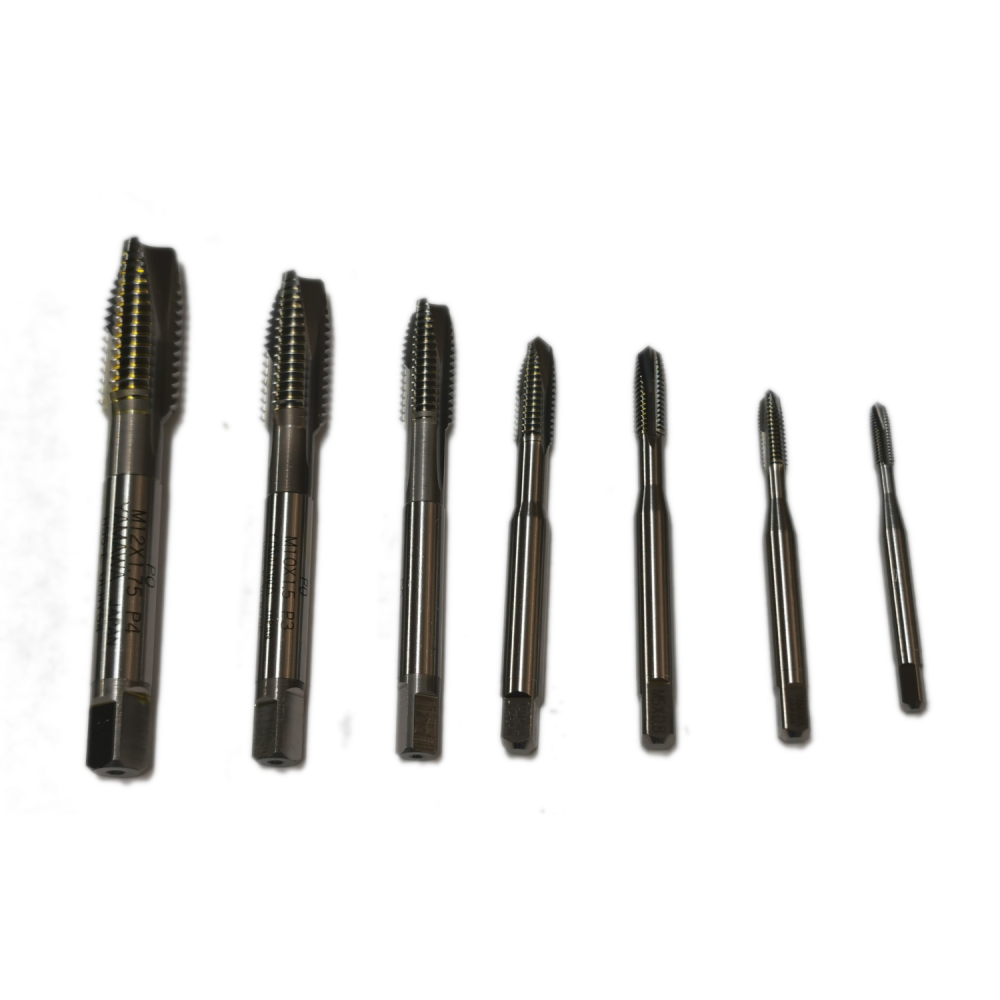

## Available Sizes & Pitch

Size	Pitch (mm)
M3	0.5
M4	0.7
M5	0.8
M6	1.0
M8	1.25
M10	1.5
M12	1.75

## Key Features

Efficient Chip Removal: The unique spiral point geometry ejects chips forward, making it ideal for automated machine tapping without the risk of bird-nesting or tool breakage in through-holes.
Durable Performance: Constructed from HSS-E, these taps maintain hardness even at higher temperatures, ensuring a longer tool life when working with tougher materials.
Original Quality: Guaranteed 100% authentic Japanese-made Yamawa products, known for strict tolerance control and reliability in industrial settings.

Note: These taps are best suited for high-production environments using CNC or conventional tapping machines. For blind holes, a spiral flute tap is generally recommended instead.
