JAPAN SKC ROUND DIE - No: 820 BSPT (1-1/2")

Reference:

Condition: New

40 Item Items

RM38.00 tax excl.

Size

1/8" x 28
1/4" x 19
3/8" x 19
1/2" x 14

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

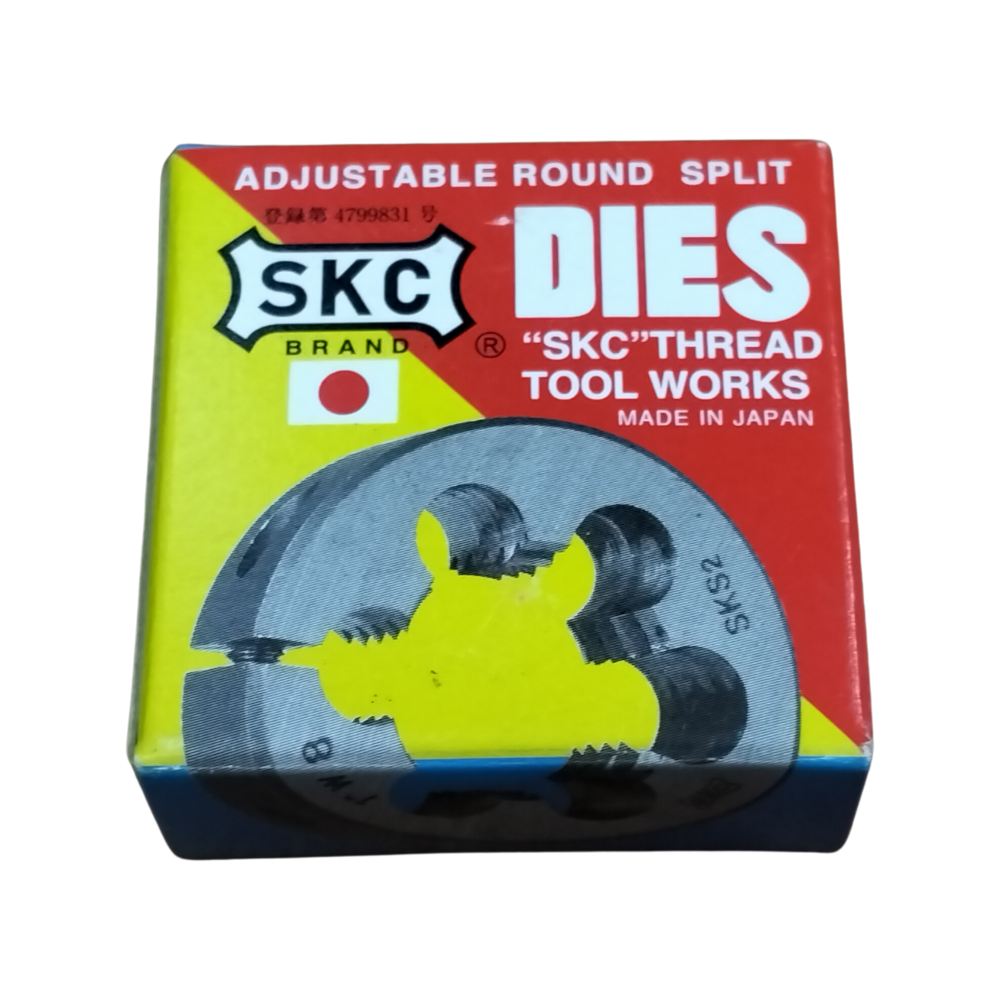

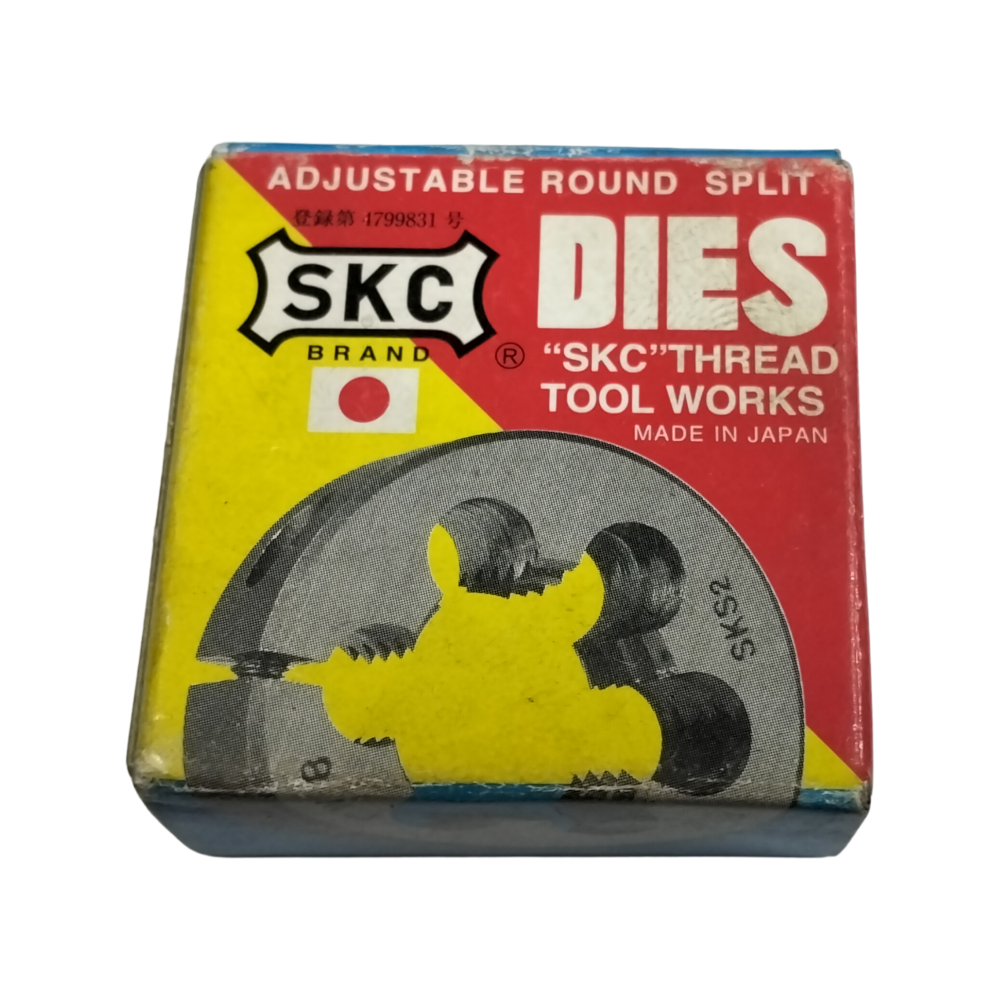

The SKC Japan Round Die No. 820 is specifically designed for pipe threading. Unlike the No. 822 (which is for standard bolts like BSW), the 820 series is used for Pipe Threads (BSPT/NPT).

In your specific request for 1-1/2", there is an important distinction to make between the Thread Size and the Outside Diameter (OD) of the die itself.

Technical Specifications

Thread Type: BSPT (British Standard Pipe Taper). This is a tapered thread (1:16 ratio) used to create pressure-tight seals in plumbing and hydraulic systems.
Thread Angle: 55°.
Material: SKS (Alloy Tool Steel / High Carbon Steel).
Model Number: No. 820 (Adjustable Round Die for Pipe).

Understanding the 1-1/2" Size

In the SKC catalog, "1-1/2" can refer to two different things. Please check your die for the following:

If 1-1/2" is the...	What it means
Outside Diameter (OD)	This is a small die designed to fit a standard 1-1/2" die stock. It usually cuts pipe sizes of 1/8", 1/4", 3/8", or 1/2" BSPT.
Nominal Pipe Size	This is a very large die (often 3" or 4" OD) designed to cut threads onto a 1-1/2" diameter pipe. This size typically has 11 TPI (Threads Per Inch).

Common No. 820 BSPT Sizes (1-1/2" OD)

If you have a die stock handle that is 1-1/2" wide, these are the common BSPT sizes SKC produces to fit it:

1/8" x 28 TPI (OD: 1-1/2")
1/4" x 19 TPI (OD: 1-1/2")
3/8" x 19 TPI (OD: 1-1/2")
1/2" x 14 TPI (OD: 1-1/2")

Important Usage Note for BSPT

Because BSPT is a tapered thread, the die is designed to cut deeper as it moves along the pipe.

Entry Side: Always start threading from the side of the die with the larger chamfer (the lead-in).
Adjusting: If the pipe is not fitting into the female fitting deeply enough, use the adjustment screw on the die to close the split slightly, which will cut a deeper thread.
