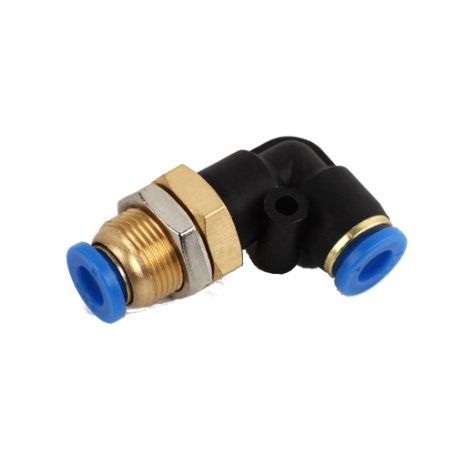

PU UNION BULK HEAD ELBOW - SPLM

Reference:

Condition: New

120 Item Items

RM8.50 tax excl.

Size

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

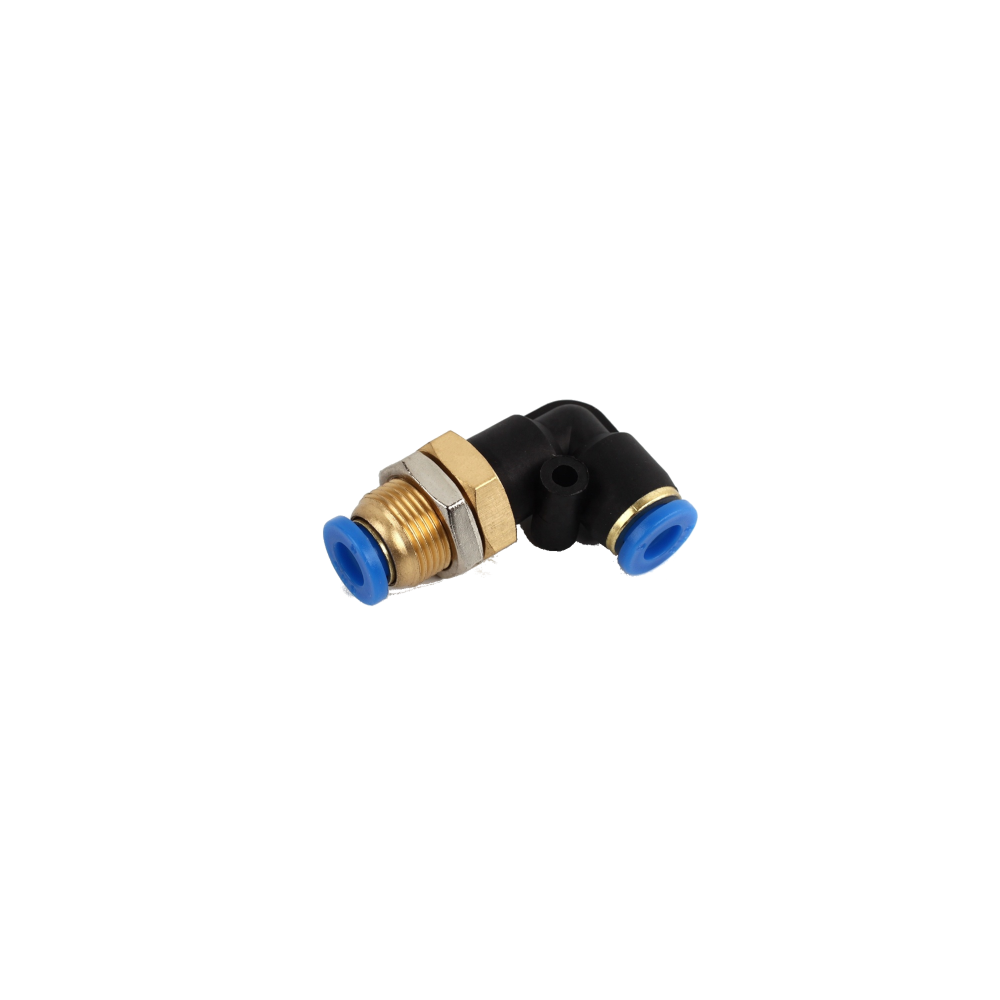

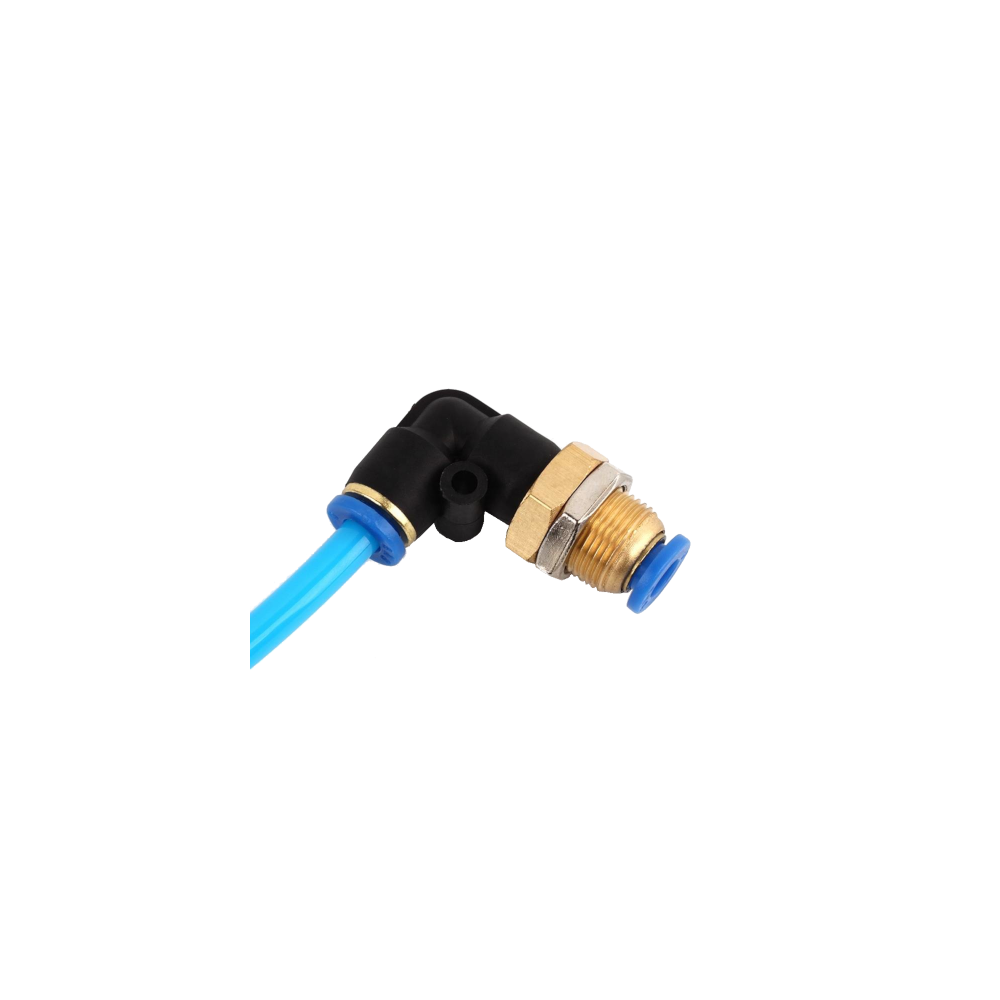

SPLM Pneumatic Push-In Bulkhead Elbow Connector

This fitting is an angled (90°) connector specifically designed to pass a pneumatic line through a panel, wall, or enclosure. It connects two sections of pneumatic tubing and mounts securely via a threaded shank, nut, and sometimes a sealing washer.

Key Features and Description

Type: 90° Elbow, Dual Push-to-Connect to Bulkhead Mount.
Function: It is used to create a sealed and secure point where a pneumatic line passes through a structural barrier (the bulkhead). The elbow shape allows the tubing inside the enclosure to run at a right angle to the mounting surface.
Connection 1 (Bulkhead Side): Push-to-Connect port with a locknut and sealing washers (visible on the threaded shank). This section mounts through the panel and features an external thread for the locknut to secure it.
Connection 2 (Opposite Side): Push-to-Connect port, allowing for quick connection/disconnection of the external tubing.
Connection Method: Both ends use the Push-to-Connect mechanism (indicated by the blue or black release collars) for rapid, tool-free connection of standard pneumatic tubing.
Materials: Features a durable Engineering Plastic body (black) and a Brass or Nickel-plated Brass threaded section for mounting.
Design: The "M" in SPLM often indicates a Bulkhead Mount or Panel Mount design.
