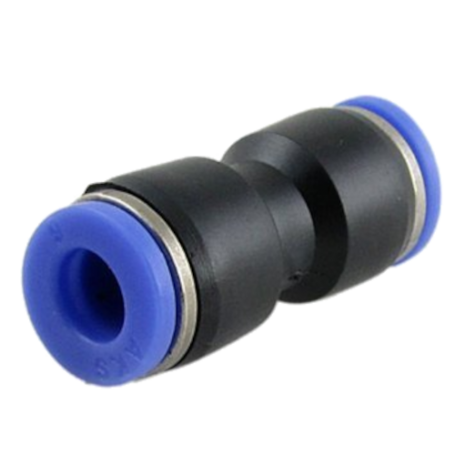

PU STRAIGHT PU UNION - SPU

Reference:

Condition: New

180 Item Items

RM2.00 tax excl.

Size

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

SPU Pneumatic Union Straight Push-In Connector

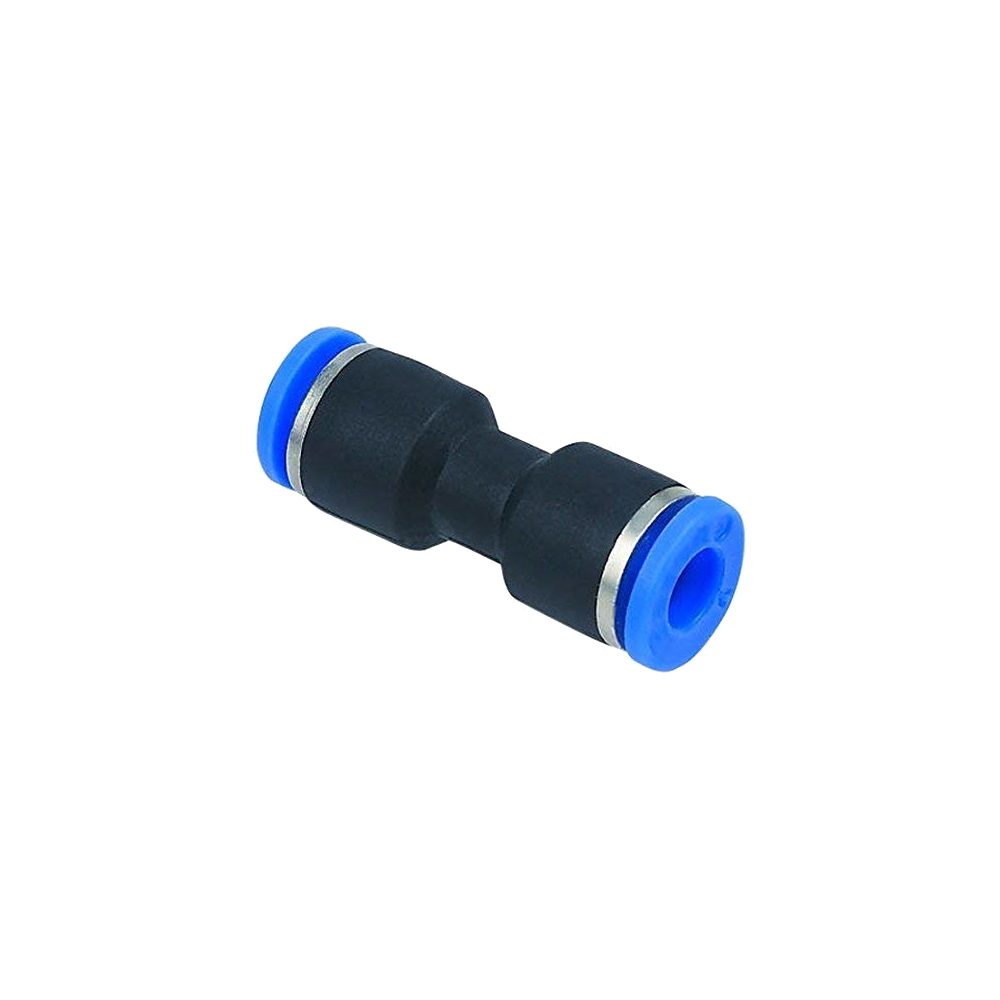

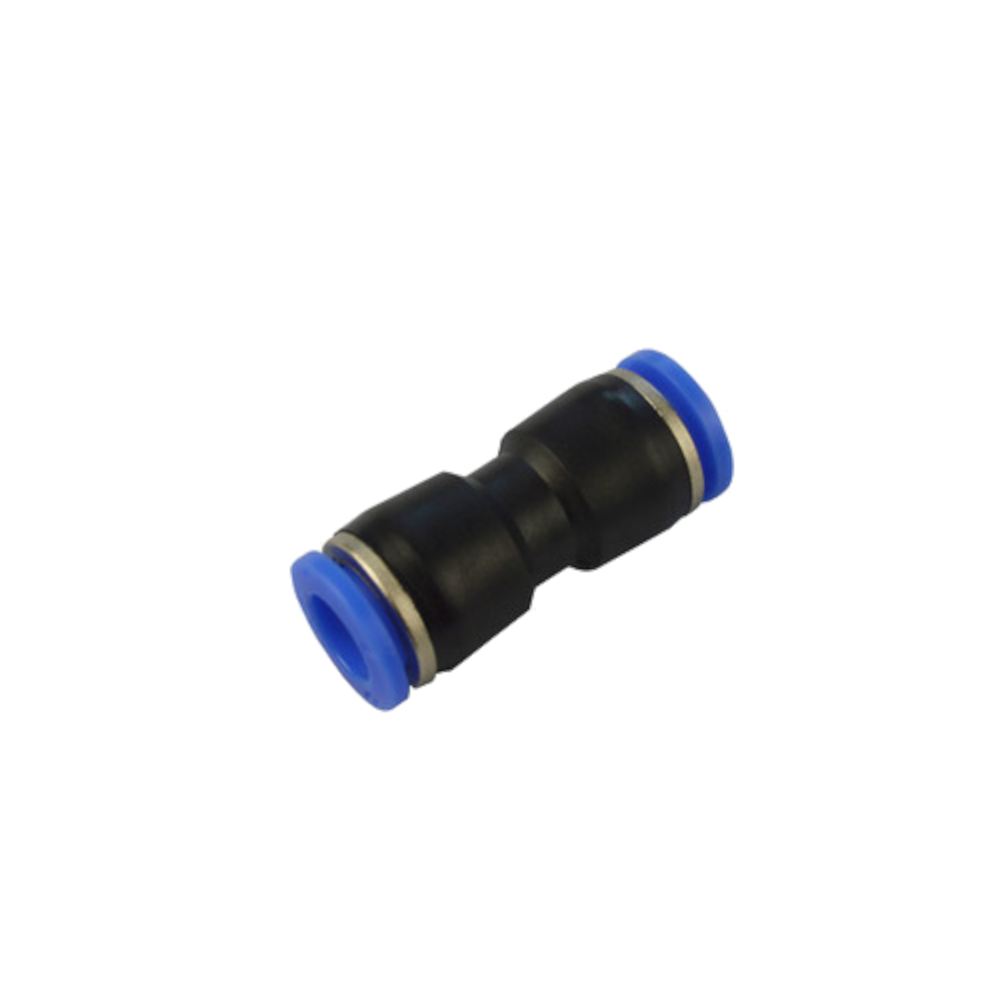

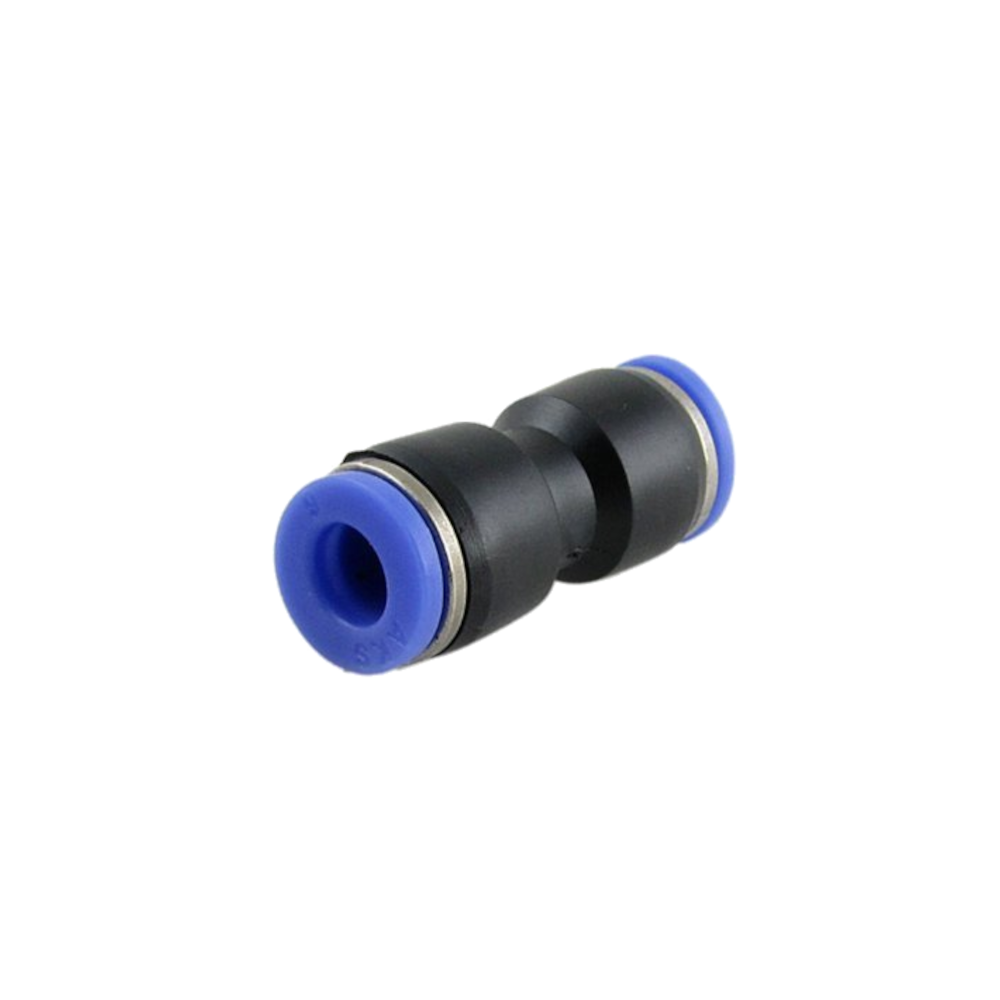

The images featuring the SPU designation show a Union Straight fitting. This is the simplest type of connector in a push-to-connect pneumatic system, designed to extend or repair air lines.

Product Description

Name: Union Straight, Union Coupler, or Straight Push-In Connector (often designated SPU in catalogs).
Function: This fitting is used to connect two lengths of pneumatic tubing of the same outer diameter (OD) in a straight line.
Mechanism: It features two identical push-to-connect ports on opposite ends. Tubing is inserted into each port until seated to create a secure, airtight connection.
Primary Purpose:
- Extending a Line: Used when a single piece of tubing is not long enough to reach the destination.
- Repairing a Line: Used to splice two good ends of tubing together after a damaged section has been cut out.
Key Design Features:
- Push-to-Connect: Allows for fast, tool-free installation.
- Quick Release Collar: A simple press on the colored release ring/collar allows the tubing to be quickly removed.

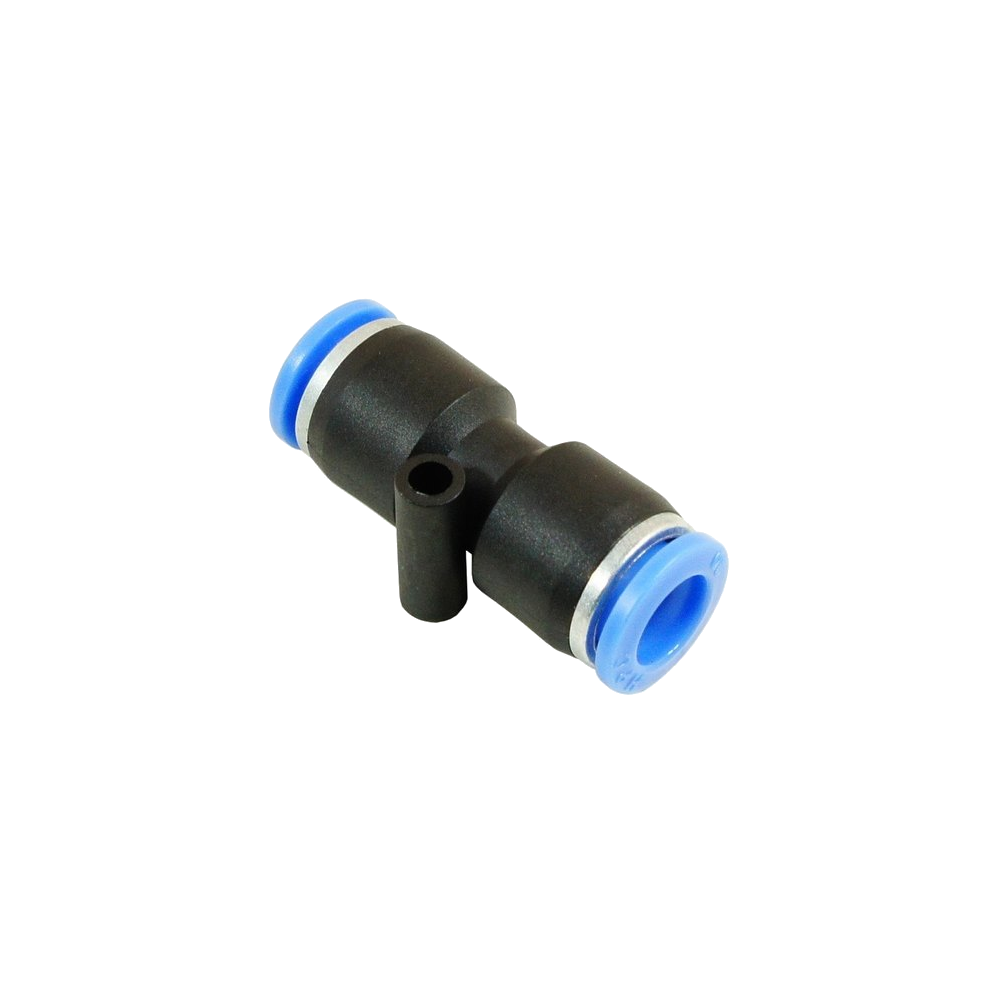

- Mounting Feature: One variant shown includes a flange or hole in the center, allowing the union to be panel-mounted or secured to a surface for strain relief and neatness.
Material and Sealing:
- Typically made from a durable thermoplastic body (e.g., PBT).
- Features an internal O-ring seal to prevent leaks and a collet (gripping claw) to firmly hold the tubing.
