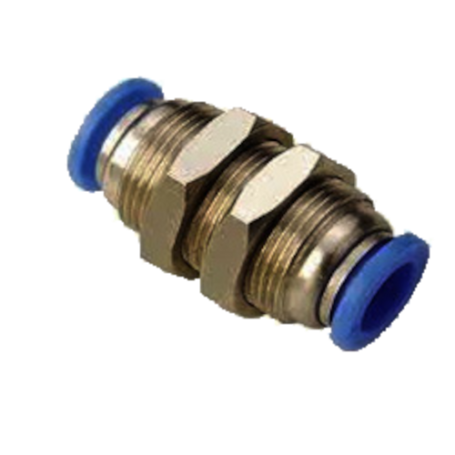

PU UNION BULK HEAD - SPM

Reference:

Condition: New

150 Item Items

RM5.50 tax excl.

Size

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

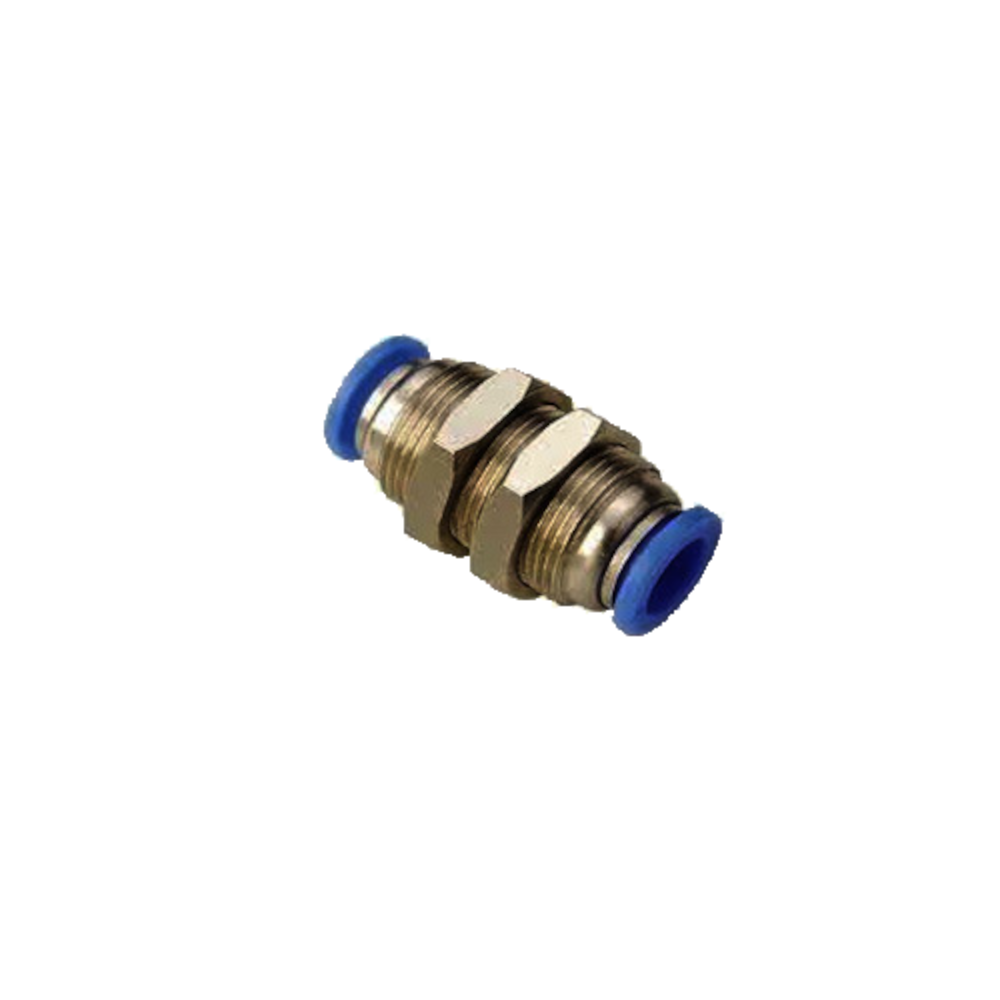

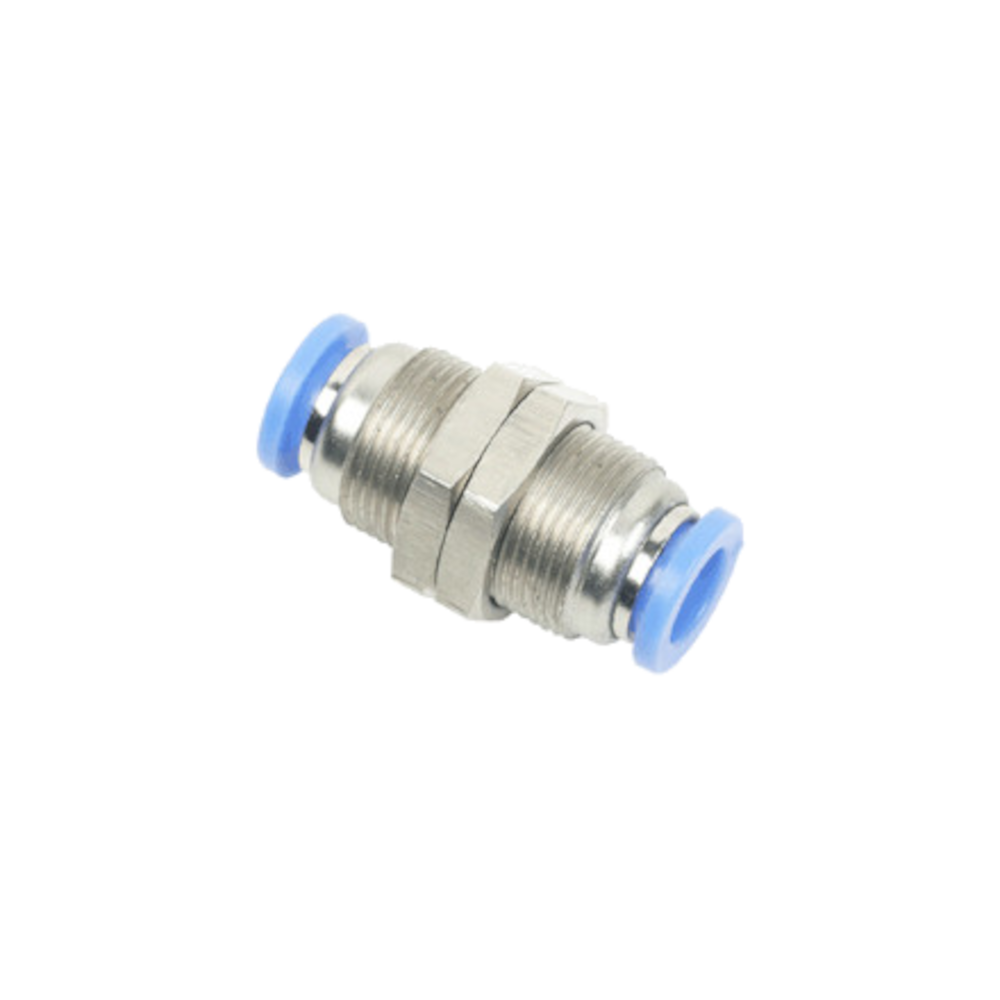

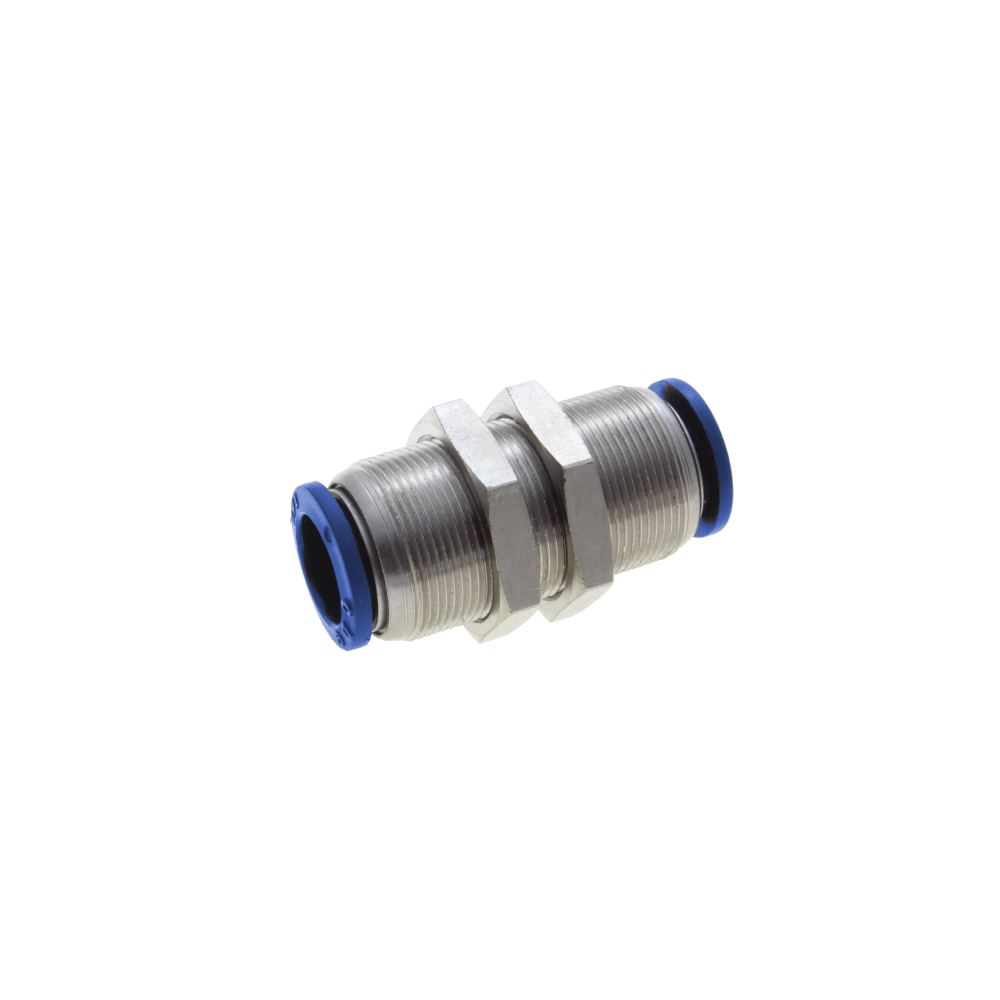

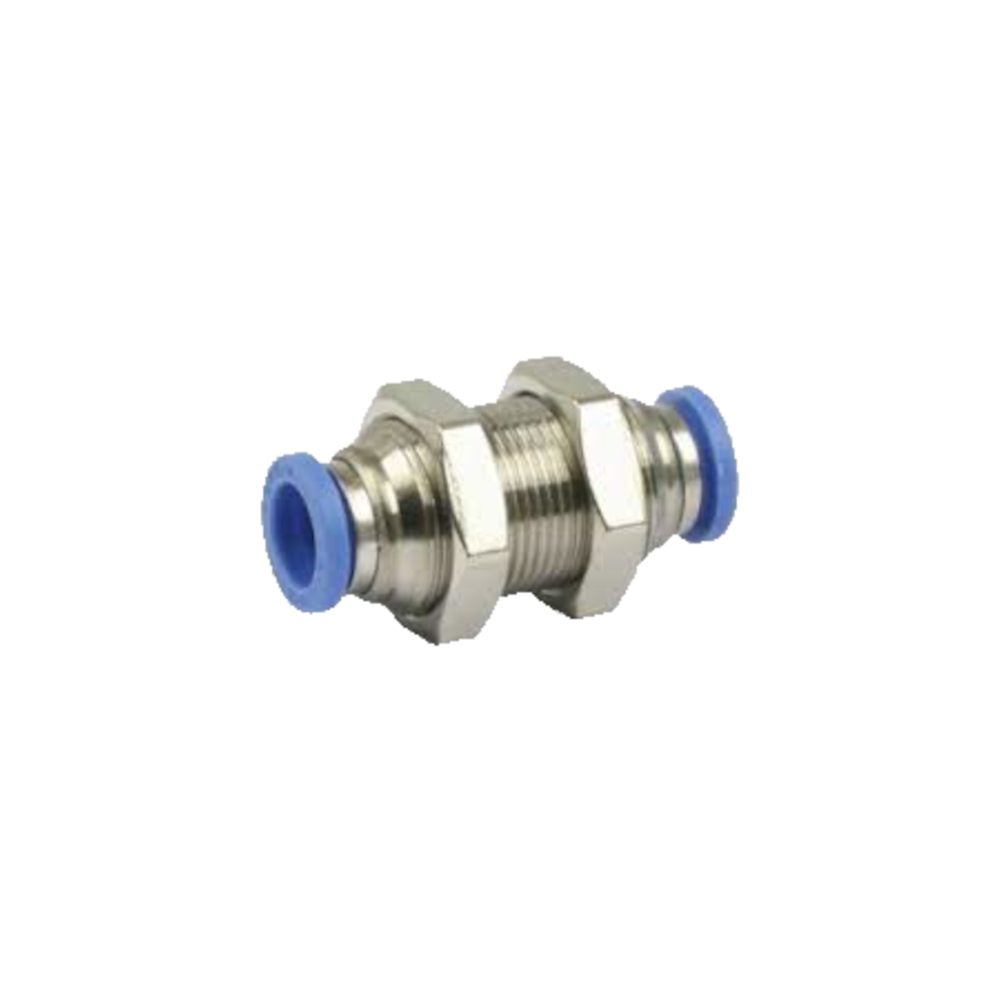

SPM Pneumatic Push-In Straight Bulkhead Coupling

This fitting is a straight-line connector designed for passing a single pneumatic tubing line securely and sealingly through a panel, cabinet, or wall. It joins two sections of tubing while providing a robust mounting point.

Key Features and Description

Type: Straight (Inline), Dual Push-to-Connect to Bulkhead Mount.
Function: Its primary use is to create a secure, sealed penetration point for a pneumatic tube to pass through a barrier (the bulkhead). The line runs straight through the fitting.
Mounting: Features a threaded shank and two hexagonal nuts (locknuts). The threaded section is inserted through a hole in the panel, and the two nuts are used to tighten and secure the fitting from both sides, clamping the panel between them to ensure a rigid mount and seal.
Connections: Both ends feature an identical Push-to-Connect mechanism (indicated by the blue release collars), allowing for quick and tool-free insertion and release of pneumatic tubing on both the interior and exterior sides of the panel.
Materials: Typically made entirely of Metal (often Nickel-plated Brass or Stainless Steel) for high strength, durability, and better performance under pressure, especially compared to plastic-body fittings. The metal construction is common for straight bulkhead fittings to withstand the clamping force.
Designation: The "M" in SPM often stands for a Bulkhead Mount or Panel Mount design, and the "S" for Straight or Inline.
