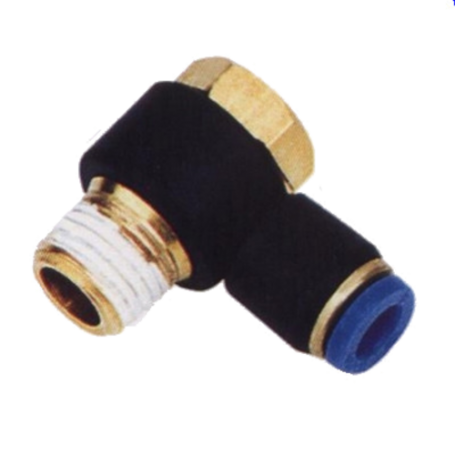

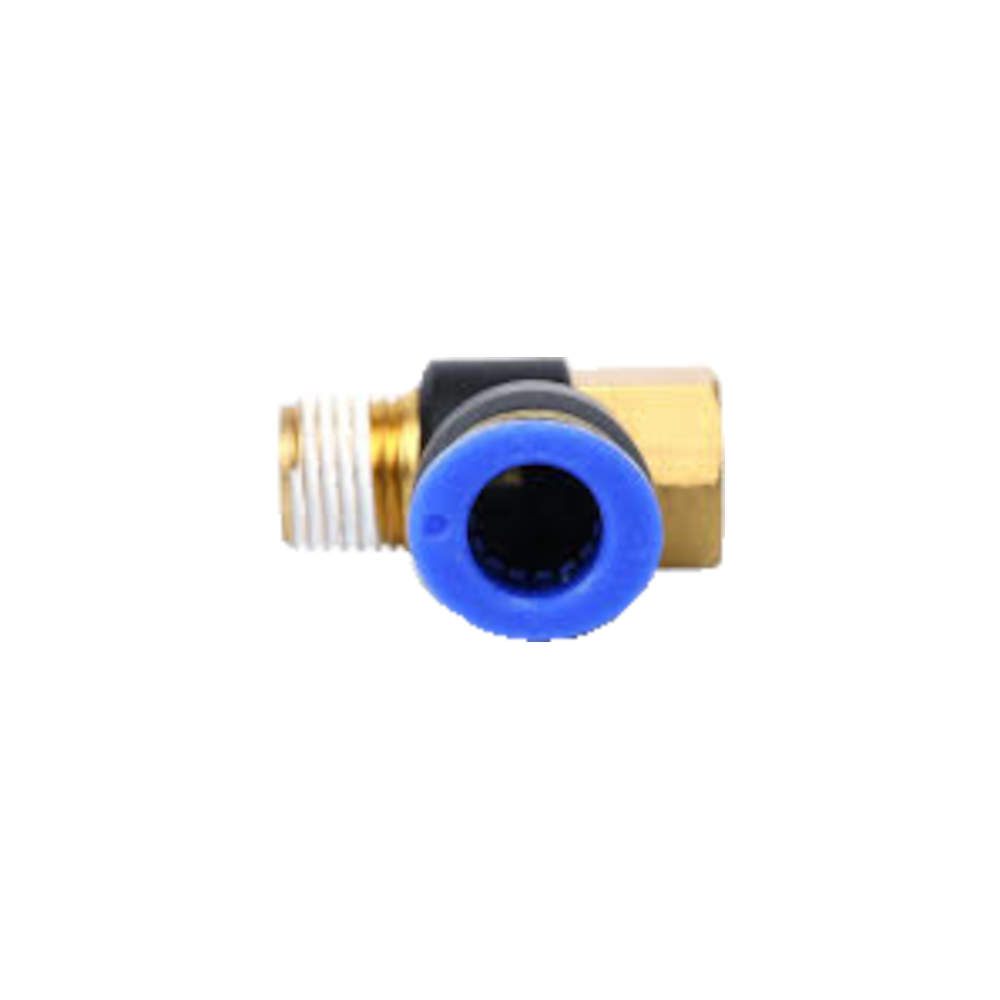

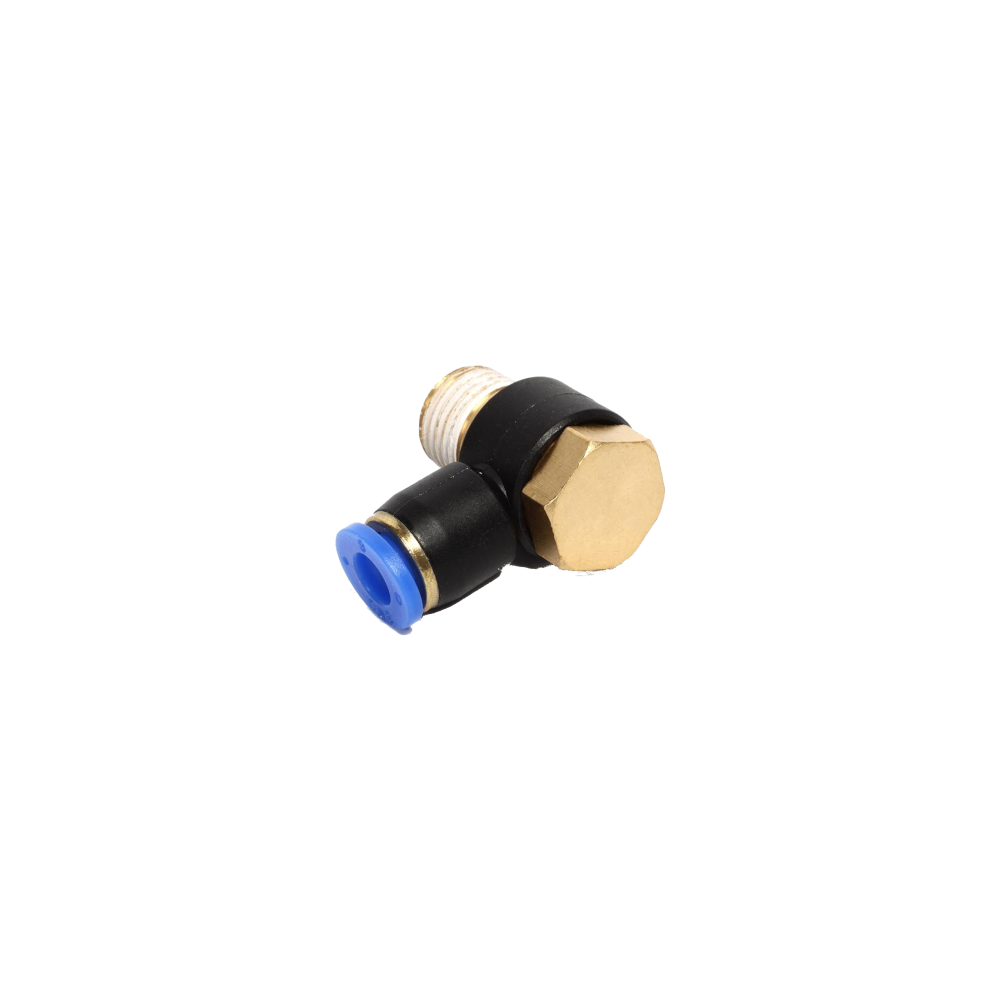

PU SWING ELBOW - SPH

Reference:

Condition: New

This product is no longer in stock

RM7.00 tax excl.

Size

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Product Description: Pneumatic Push-to-Connect Swivel Elbow Fittings

These components are designed to connect flexible pneumatic tubing to a rigid, threaded port, and provide a 90-degree angle connection with the added benefit of being able to swivel after installation to ensure optimal tubing alignment.

Key Features and Components

Type: Swivel Male Elbow (a 90-degree angle fitting with one threaded end and one push-to-connect end).
Tube Connection: Push-to-Connect (Push-in) mechanism, utilizing the black body, blue release ring (collet), and internal gripping ring for quick, tool-free tube insertion and removal.
Port Connection: Male Thread (the brass end, often featuring a white sealant or PTFE tape pre-applied, visible in the images). This thread connects directly into a component's female port.
Angle: 90 Degrees (Elbow shape) to change the direction of the tubing run.
Swivel Function: The body of the fitting (the black plastic and blue collet section) can rotate 360 degrees relative to the threaded brass base. This is crucial for installation flexibility, allowing the tubing to be directed correctly without unthreading the fitting.
Materials:
- Threaded Base: Typically brass (visible as the gold/yellow part) for durability and easy threading.
- Body: Durable engineering plastic (like Nylon or PBT) for lightweight and corrosion resistance.
- Release Ring: Plastic (Blue).
