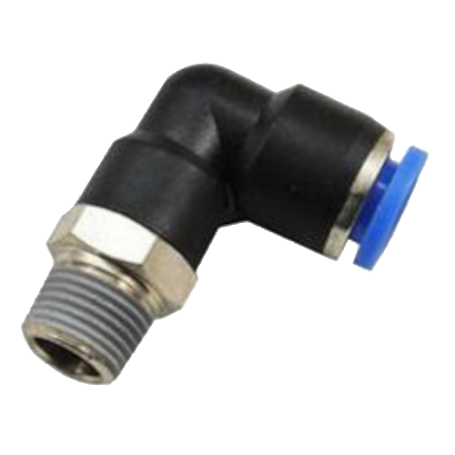

PU MALE ELBOW CONNECTOR - SPL

Reference:

Condition: New

720 Item Items

RM2.50 tax excl.

Size

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

Product Description: SPL Male Elbow Swivel Pneumatic Fitting

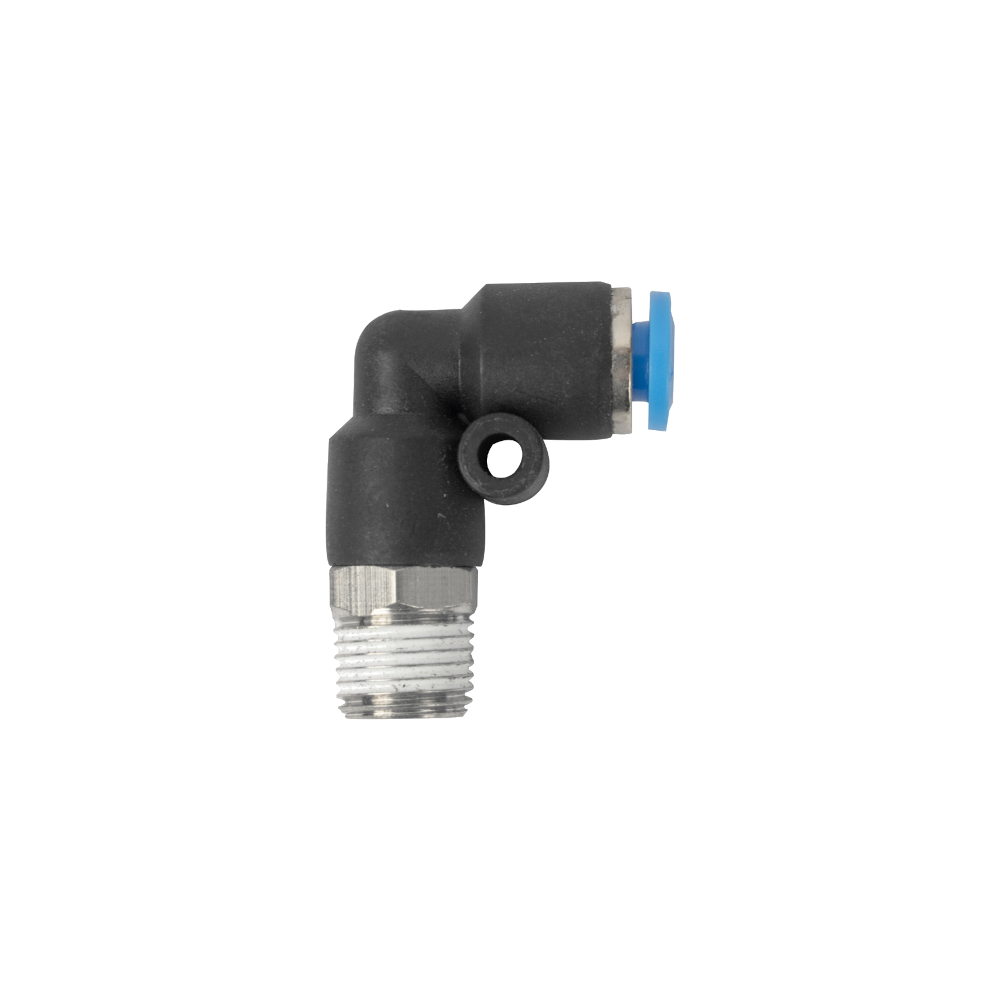

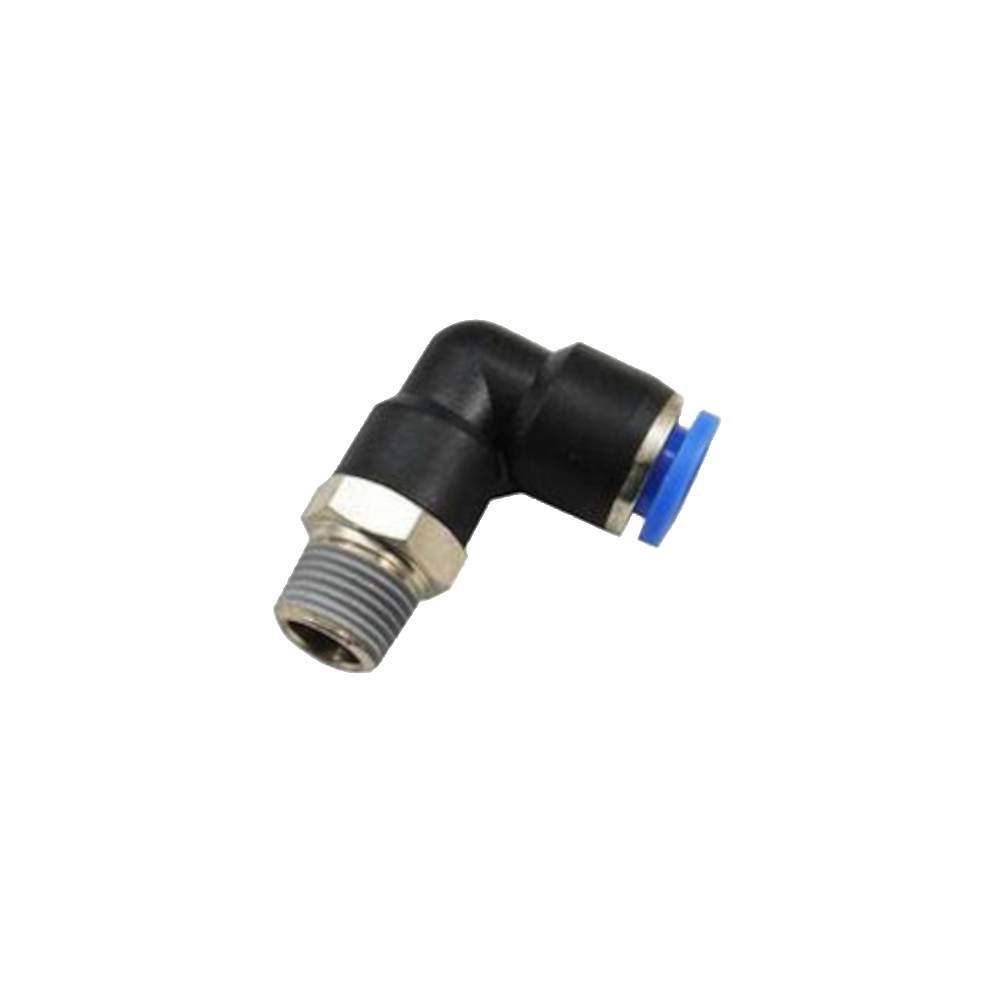

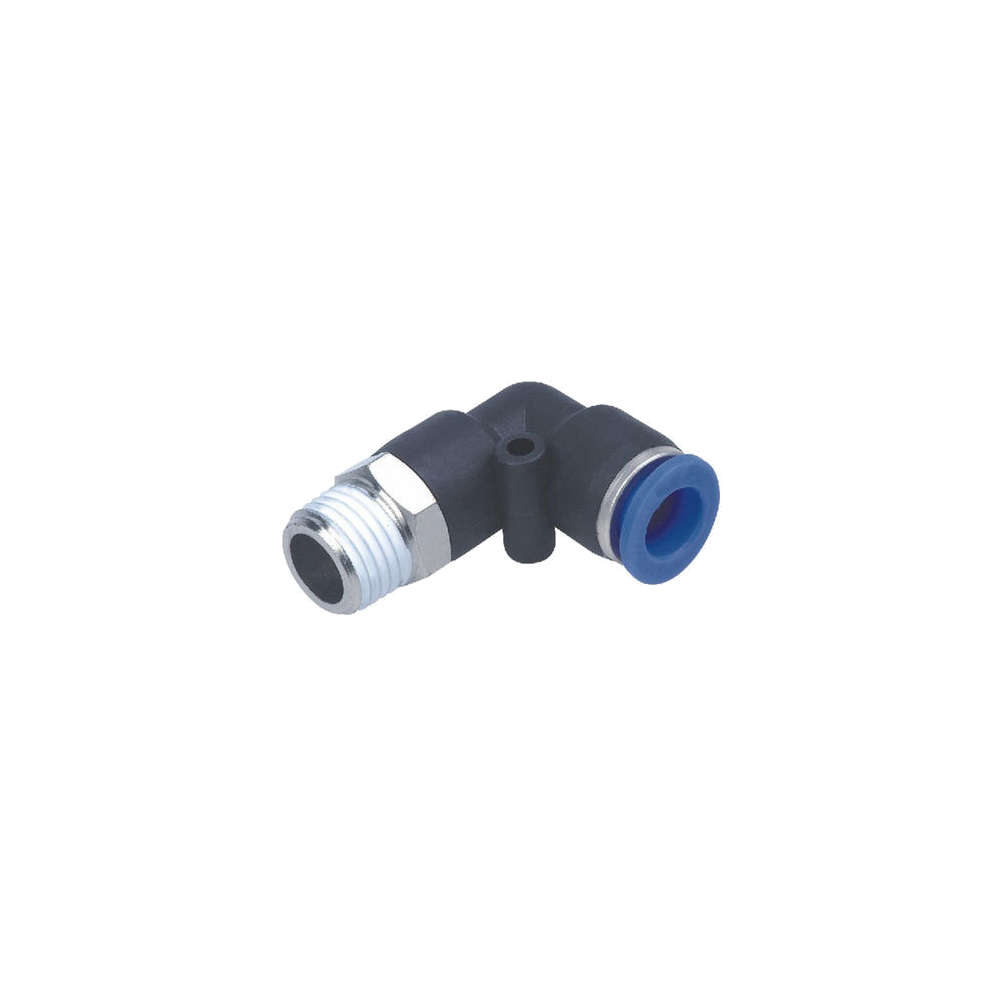

The item shown in the images is a Male Elbow Swivel Pneumatic Push-in Fitting, which is commonly identified by the model series SPL.

This fitting is essential in pneumatic systems for connecting a flexible air tube at a 90-degree angle to a threaded port on a device (like a cylinder, valve, or manifold).

Key Features & Specifications:

Type: SPL Series Male Elbow Swivel (sometimes called an "L-Type" or "90-degree" fitting).
Function: It connects a pneumatic tube to a female-threaded port on equipment, allowing the tubing to turn at a 90° angle, which is ideal for routing in tight spaces.
Two Connection Ends:
- Tube Connection: Features a Push-in or One-Touch mechanism (the black body with the blue collar) for quick, tool-free connection and release of tubing (typically PU or Nylon).
- Threaded Connection: Features an External Male Thread (the brass/nickel-plated metal end) that screws into a component's port. The white sealant/tape on the thread (often PTFE coating) ensures an airtight seal.
Swivel Feature: The plastic elbow body usually swivels 360 degrees relative to the threaded base after installation, allowing for flexible tube alignment without needing to rotate the entire fitting body during installation.
Material: Typically constructed with a Nickel-Plated Brass threaded base and a durable Plastic (Technopolymer/Nylon) body.
