PU MALE BRANCH TEE - SPB

Reference:

Condition: New

1000 Item Items

RM3.50 tax excl.

Size

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

More info

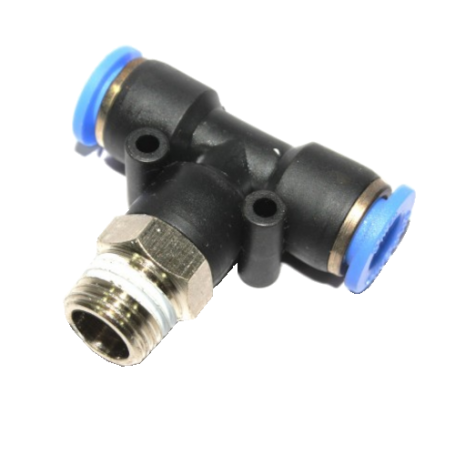

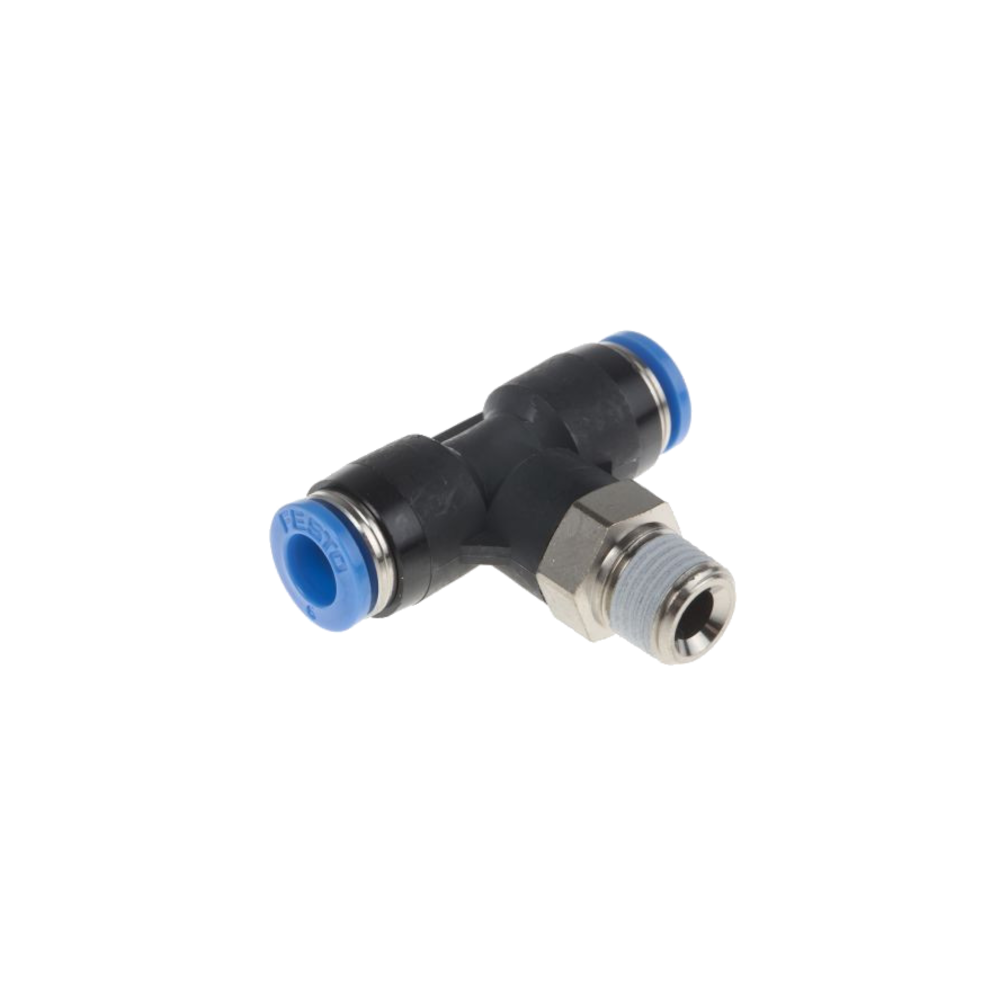

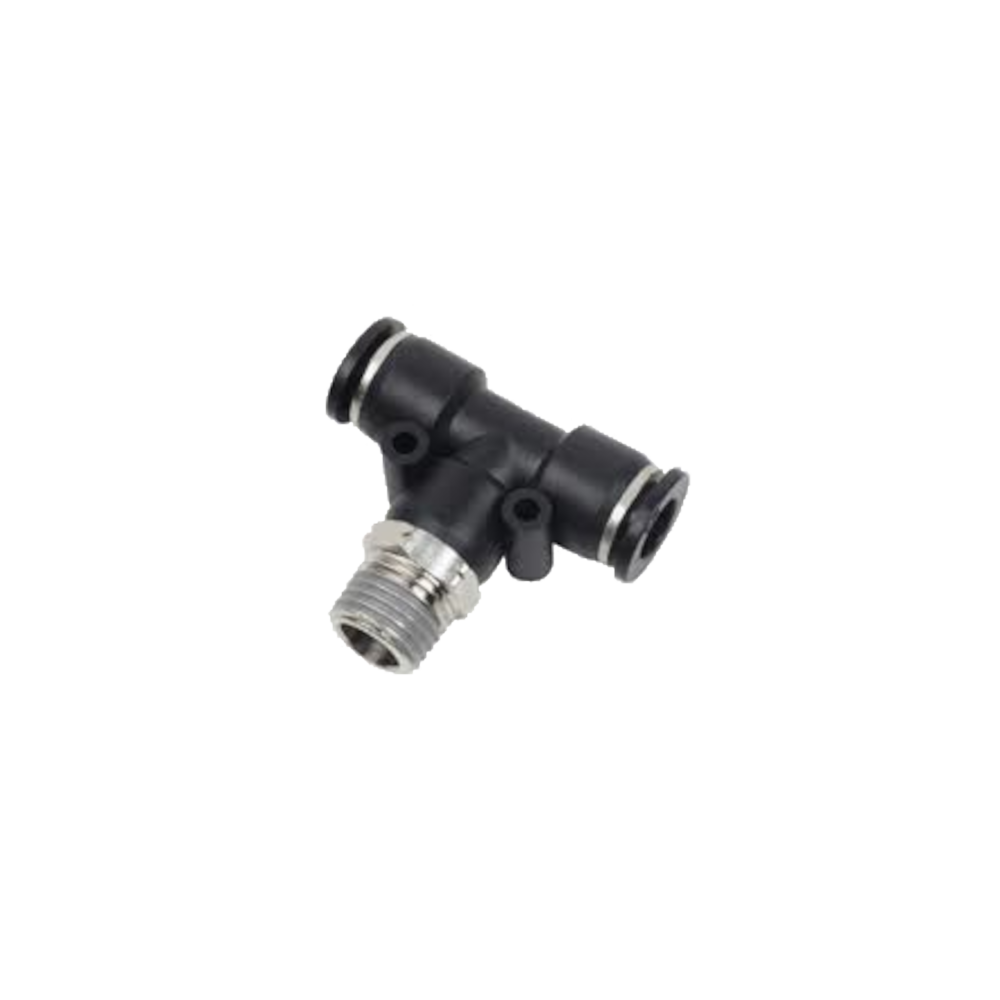

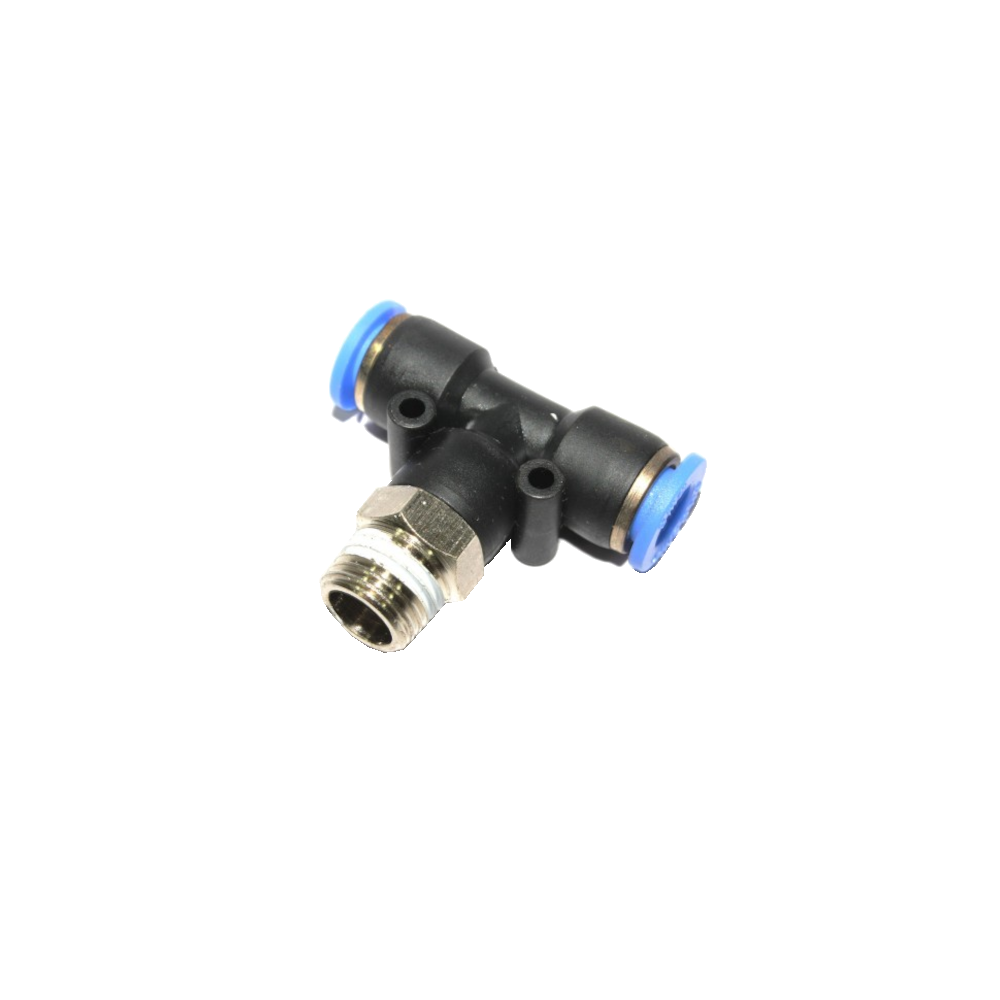

Product Description: Pneumatic Male Branch Tee (SPB Series)

This is a Male Branch Tee Pneumatic Push-In Fitting designed for quickly and securely connecting three sections of pneumatic tubing or for providing an air supply branch from a threaded port.

Key Features & Benefits:

Function: This three-way connector is used to divide a single air line into two branch lines, or to connect two tubes at a T-junction directly into a component or manifold with a threaded port.
Connection Style:
- Tube Ends (x2): Features Push-In (or Push-to-Connect) ports with release rings (typically blue or black). This mechanism allows for instant, tool-free connection and disconnection of standard plastic pneumatic tubing (PU, PA, PE, etc.).
- Threaded End (x1): Features a male pipe thread on the side branch of the 'T' shape. This end is designed to screw directly into a female threaded port on a valve, cylinder, air manifold, or other pneumatic component.
360° Swivel: The body of the fitting (the plastic T-piece) is typically able to rotate 360 degrees on the brass threaded base after installation, allowing for flexible and convenient tube routing without stress on the air line.
High Reliability: The combination of a robust metal (often nickel-plated brass) threaded base and a durable plastic body ensures a secure, leak-free connection suitable for the working pressures of pneumatic automation systems.
Easy Installation: Simply cut the tubing cleanly and push it fully into the port until it locks. To disconnect, push the release ring toward the body of the fitting and pull the tube out.
