SPV Pneumatic Push-In Fittings (Quick Connect)
Product Overview
SPV Pneumatic Push-In Fittings are high-quality, reliable, and user-friendly connectors designed for rapidly connecting and securing pneumatic tubing (such as PU or Nylon) in compressed air systems. They are engineered for a secure, leak-free seal and offer significant time savings over traditional threaded or compression fittings by allowing instant, tool-free connection and disconnection.
Key Features and Benefits
-
One-Touch Quick Connection: Effortlessly insert the tubing for a secure lock, dramatically reducing assembly time and labor costs.
-
Tool-Free Disconnection: Simply push the release collar (or sleeve) inward to instantly disengage and remove the tubing for quick maintenance or system reconfiguration.
-
Secure, Leak-Proof Seal: An internal collet/clamping mechanism (often stainless steel) firmly grips the tube, while an O-ring (typically NBR or FKM) ensures an airtight seal at operational pressures.
-
Versatile Configurations: Available in a wide range of types to accommodate various piping requirements:
-
Straight Fittings: To connect tubing in a straight line or to a threaded port.
-

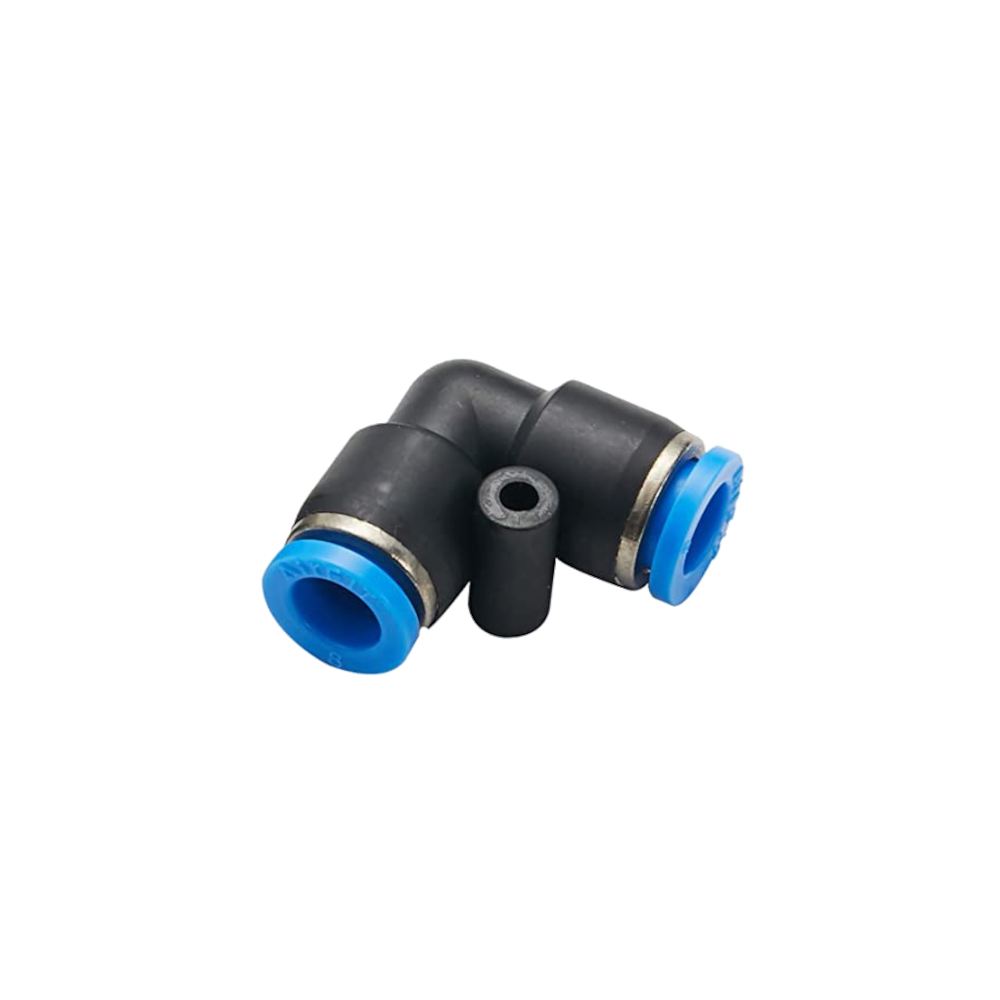

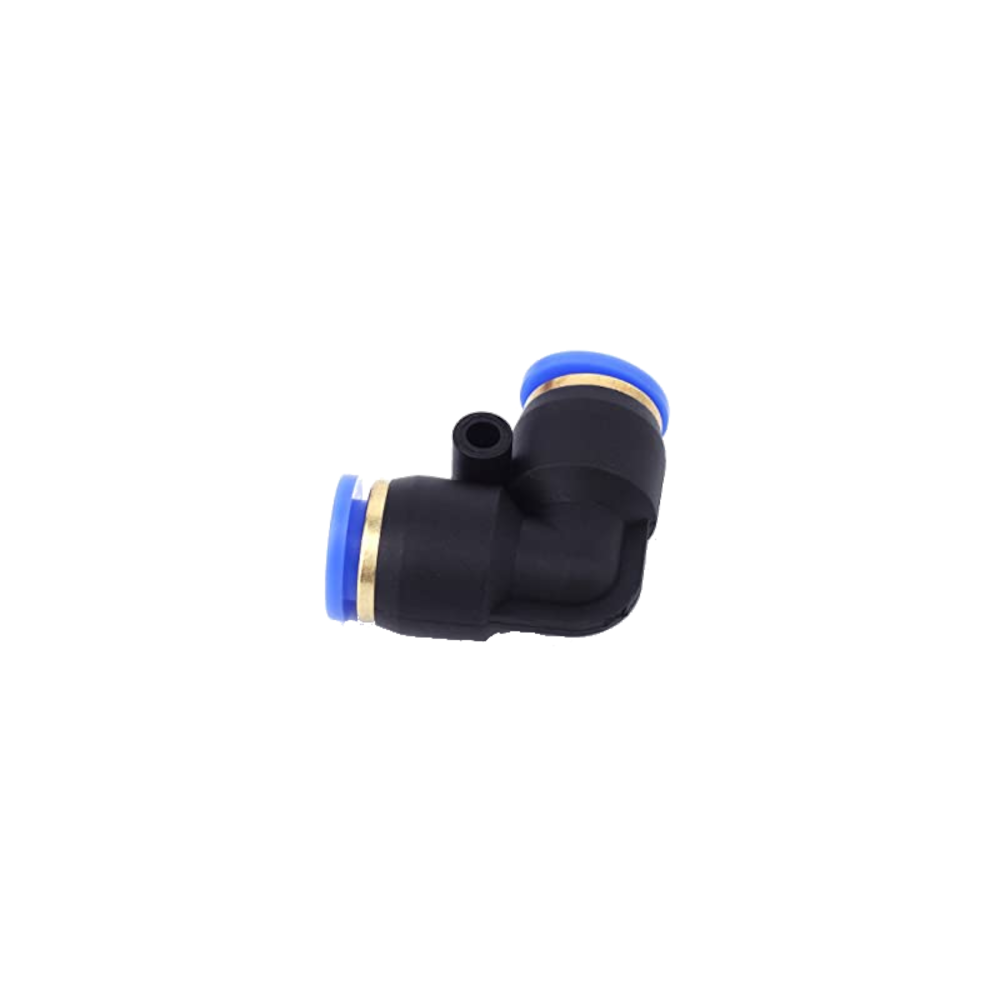

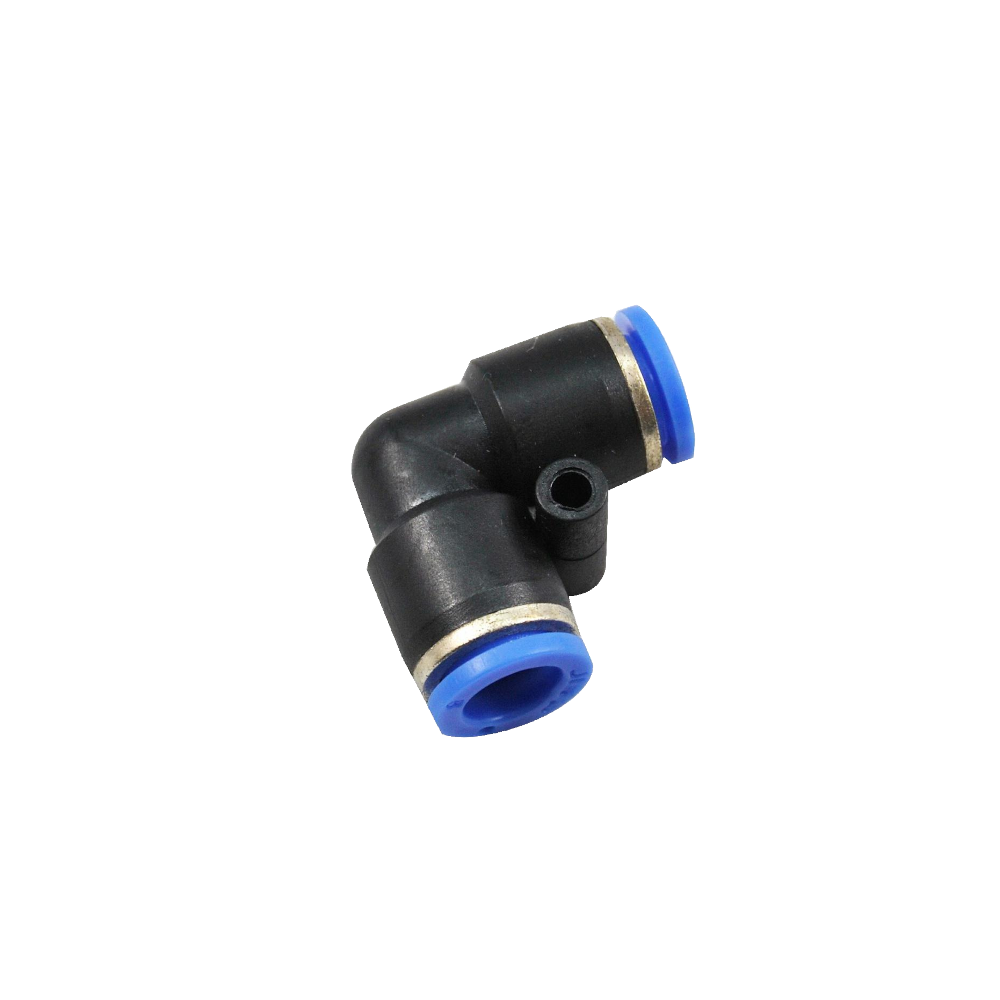

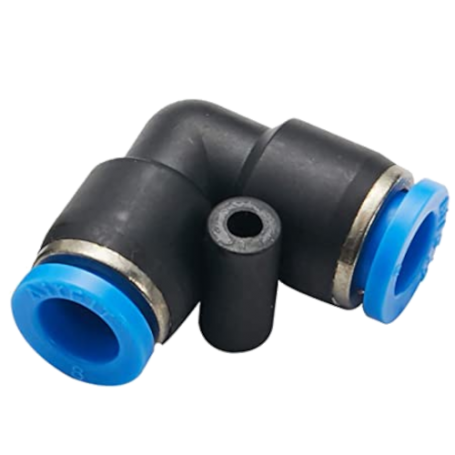

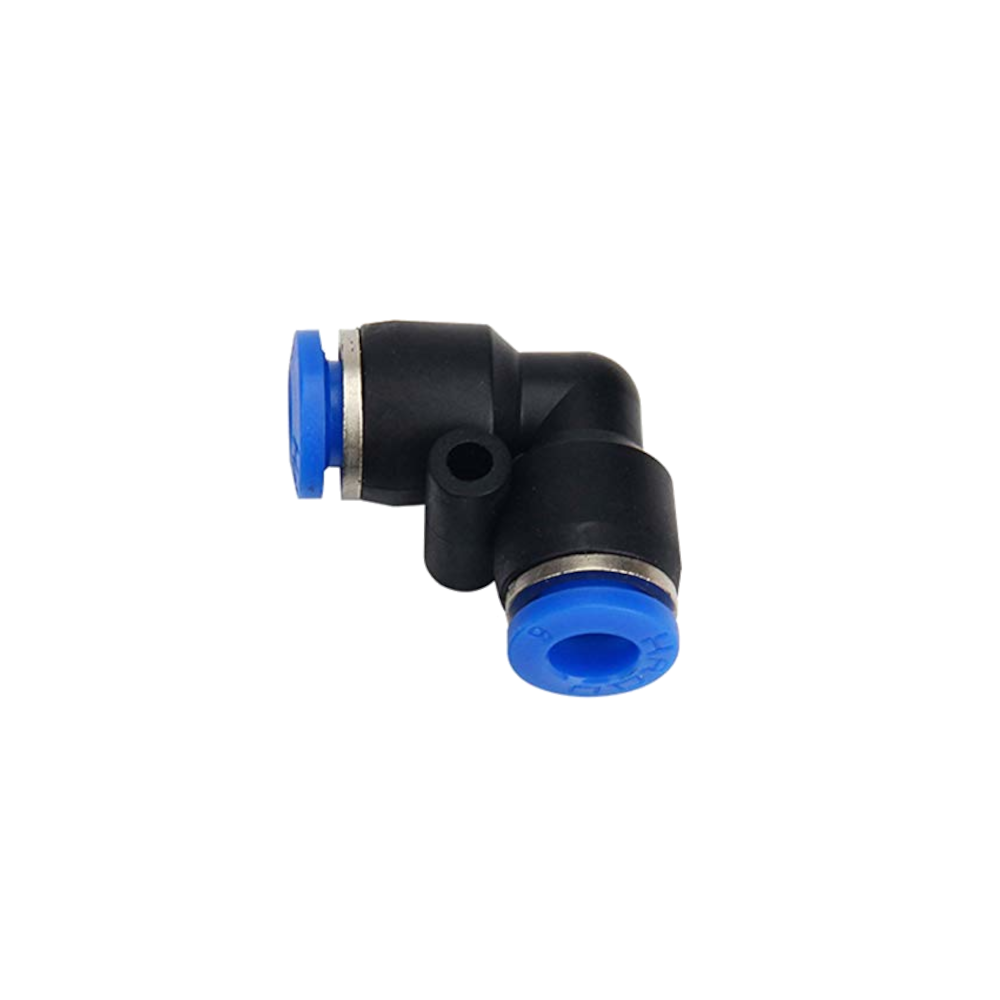

Elbow Fittings (90°): To change the direction of the airflow, perfect for tight spaces and routing around obstacles (as shown in image 2 & 4).
-
Tee / Union Fittings: To split or join a single air flow line into multiple paths (as shown in image 1 & 3).
-
Durable Construction: Built with materials like nickel-plated brass and high-quality engineering plastics (e.g., POM/PBT) for excellent resistance to corrosion, wear, and demanding industrial environments.
-
360° Swivel: Many elbow and T-fittings feature a swivel base on the threaded side for easy alignment during installation.
